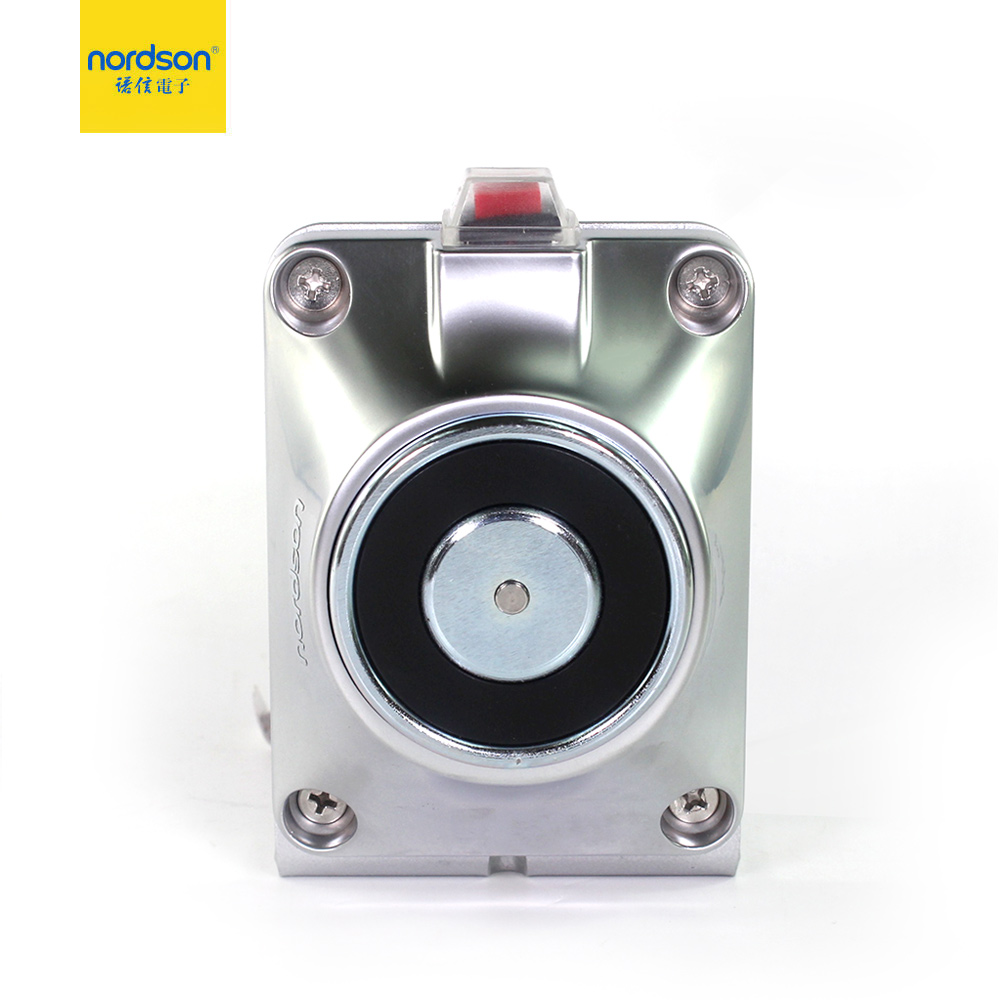

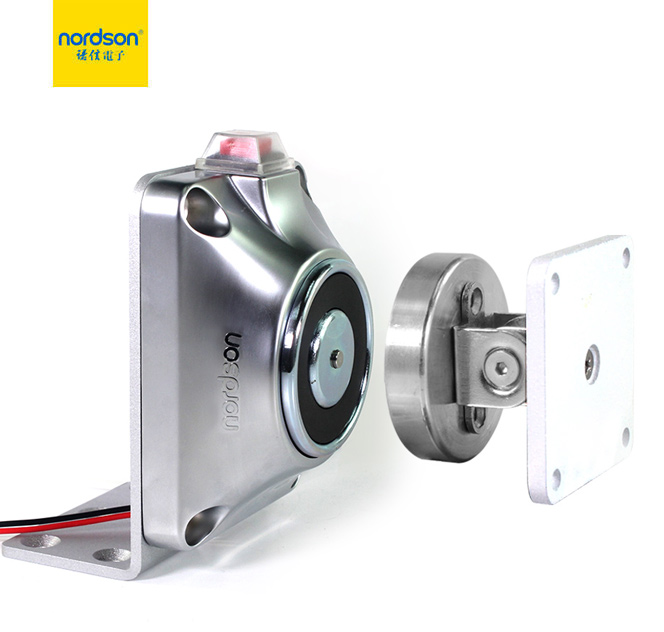

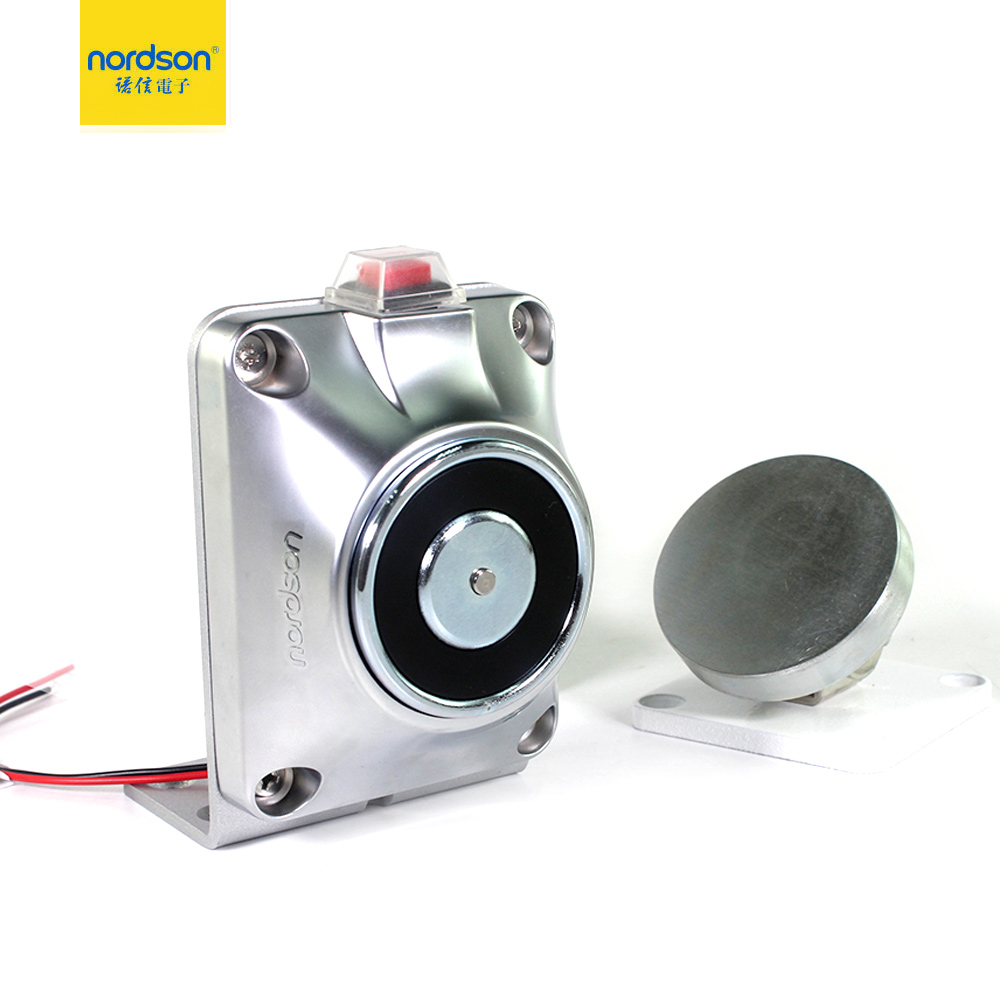

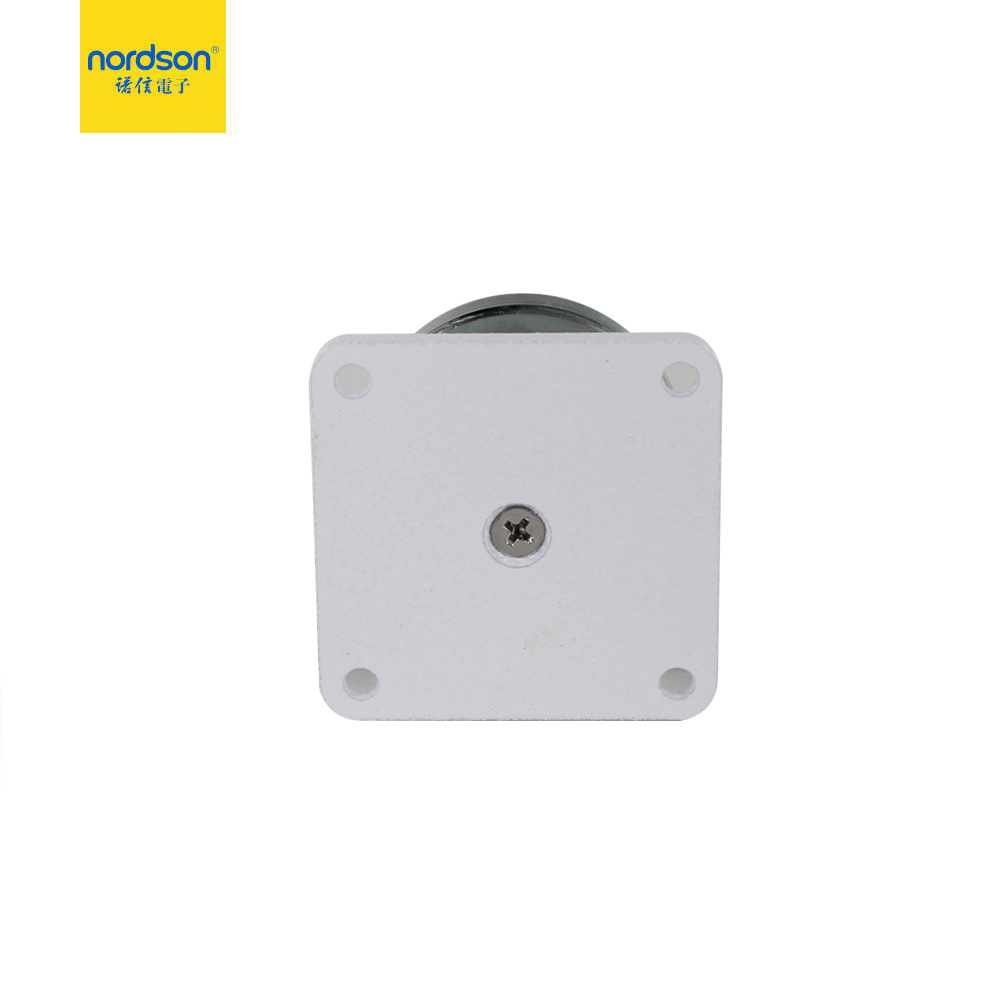

NP-G130 Wall Mount Door Holder(Floor Mount Bracket for options) takes the latest iron gray paint to match fire door. Low power consumption and 12V/24V dual voltage selective for energy efficiency. Up to 50kg holding force keeps fire door opened and it close automatically when fire happens, for fail safe function. It has manual door release button that can close door by hand. With built-in MOV reverse current protection, few residual magnetism to ensure fire exits is unimpeded. The movable plate installed on fire door suits for different installation angle. Catch plate and main part takes zinc alloy which is heat resisting and wear resisting. Professional anti-residual magnetism design ensures highest security. This professional designed secure and low power consumption electromagnetic door holder suits for various fire door, it is widely used in commercial and industrial area like: shopping mall, residential building, office building, hospital, school, factory, hotel etc. NP-G130 Wall Mount Electromagnetic Door Holder also called electric door holder, fire control door holder.

1.Dual voltage design, 12V/24V are alternative, well adaptation.

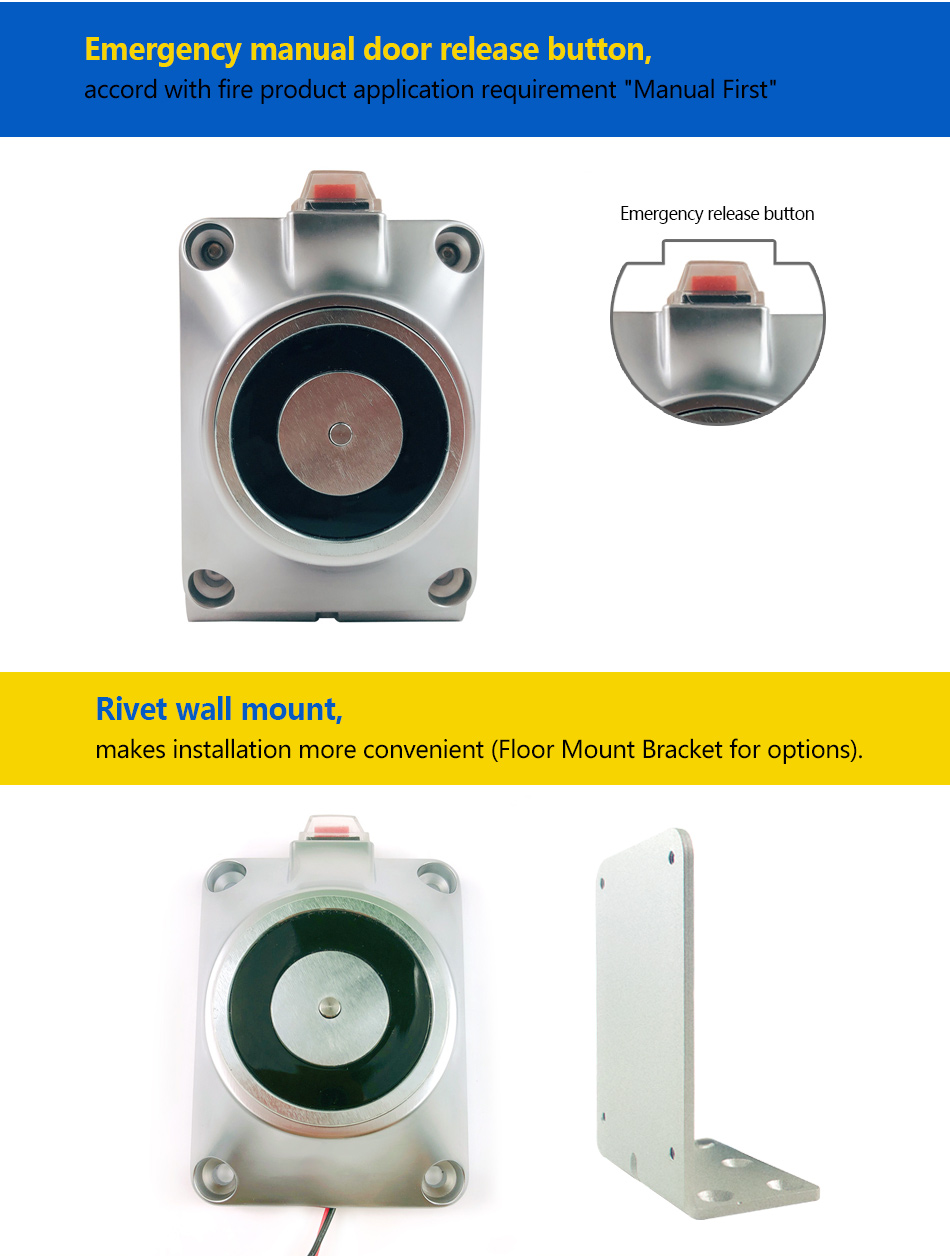

2.Emergency manual door release button, accord with fire product application requirement"Manual First".

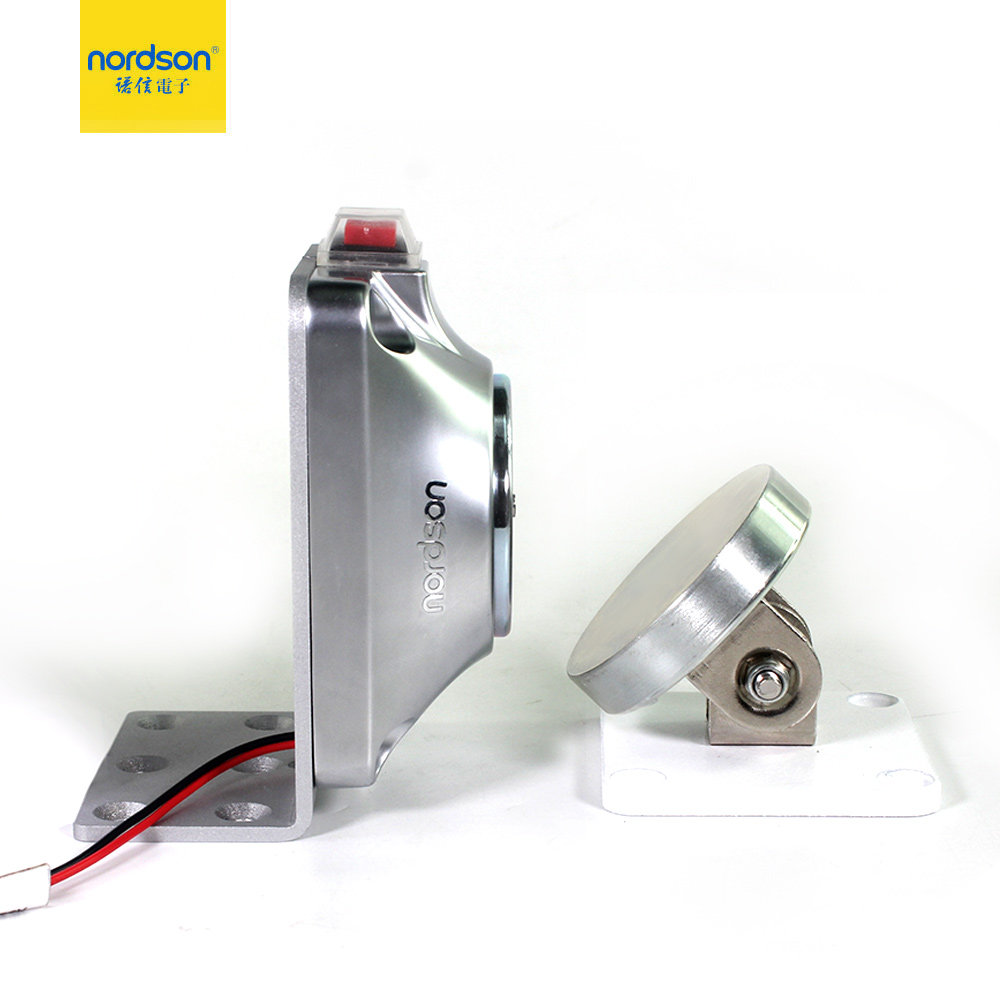

3.Rivet wall mount, makes installation more convenient(Floor Mount Bracket for options).
4.Low power consumption design, environment friendly product.

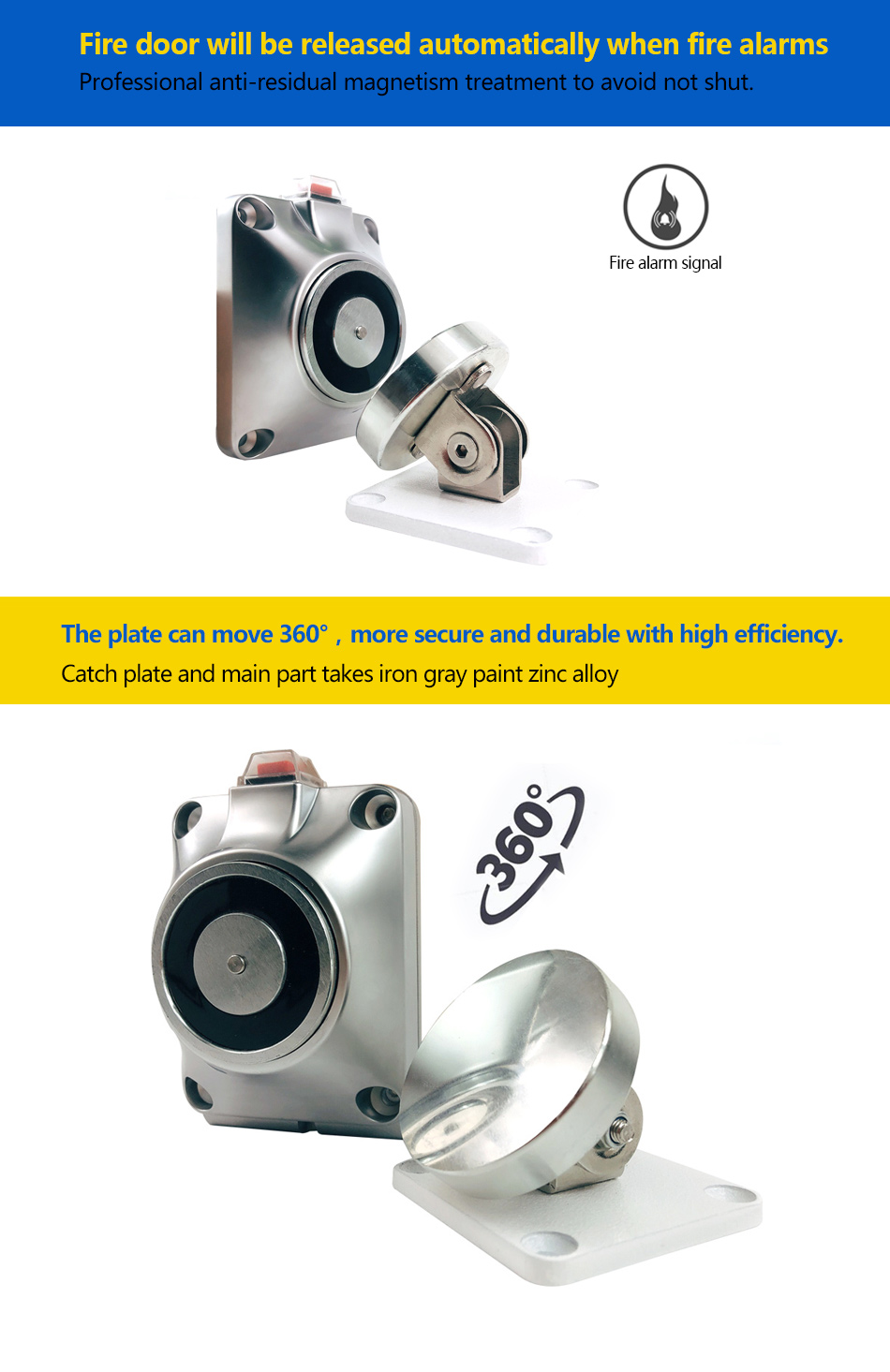

5.Fire door will be released automatically when fire alarms, professional anti-residual magnetism treatment to avoid not shut.

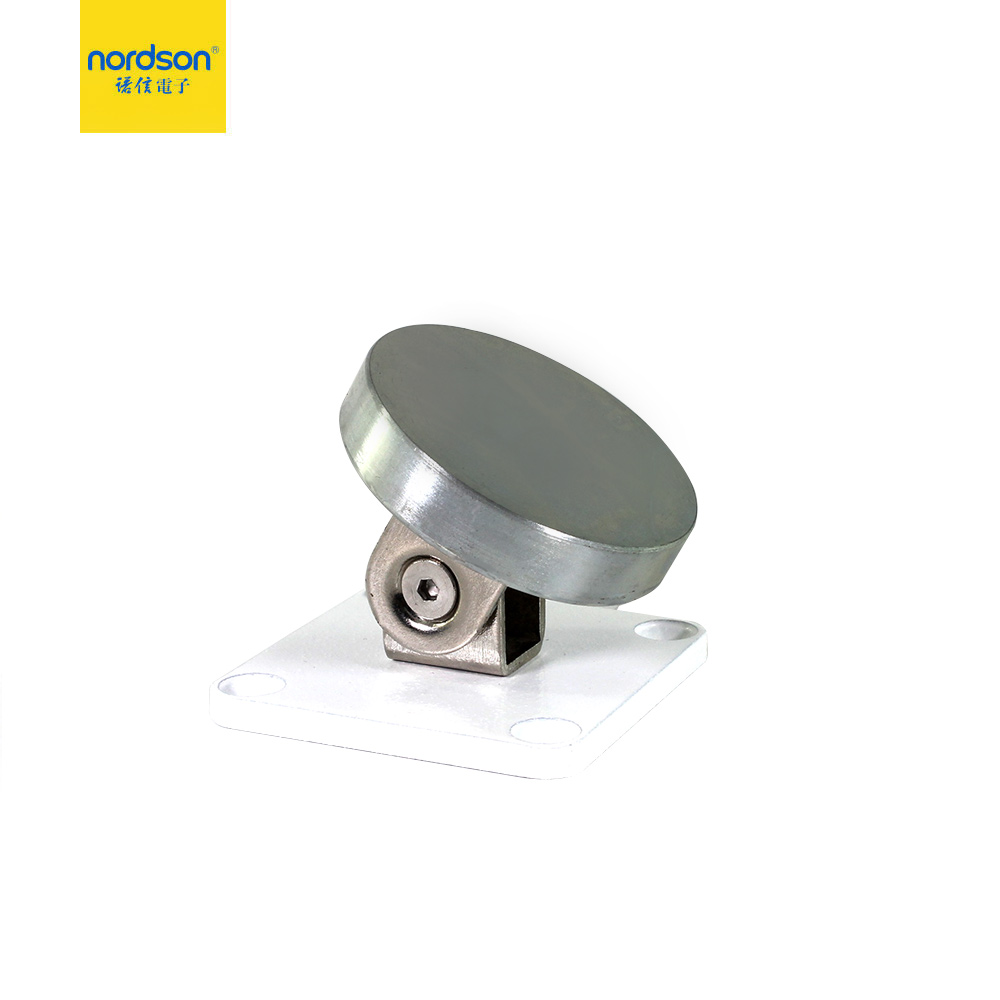

6.Catch plate and main part takes iron gray paint zinc alloy, the plate can move 360°，more secure and durable with high efficiency.

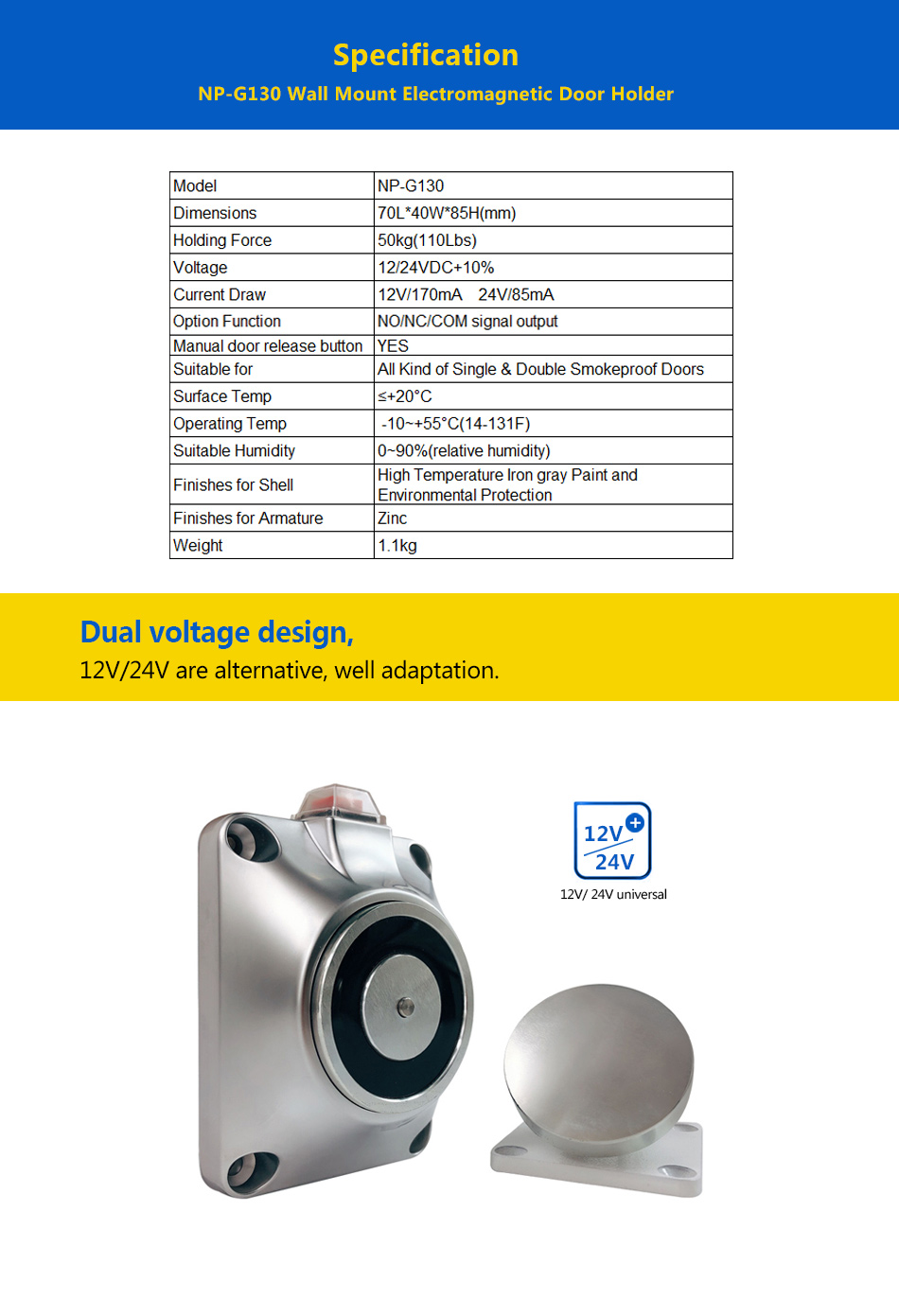

Model	NP-G130
Dimensions	70L*40W*85H(mm)
Holding Force	50kg(110Lbs)
Voltage	12/24VDC+10%
Current Draw	12V/170mA 24V/85mA
Option Function	NO/NC/COM signal output
Manual door release button	YES
Suitable for	All Kind of Single & Double Smokeproof Doors
Surface Temp	≤+20°C
Operating Temp	-10~+55°C(14-131F)
Suitable Humidity	0~90%(relative humidity)
Finishes for Shell	High Temperature Iron gray Paint and Environmental Protection
Finishes for Armature	Zinc
Weight	1.1kg
