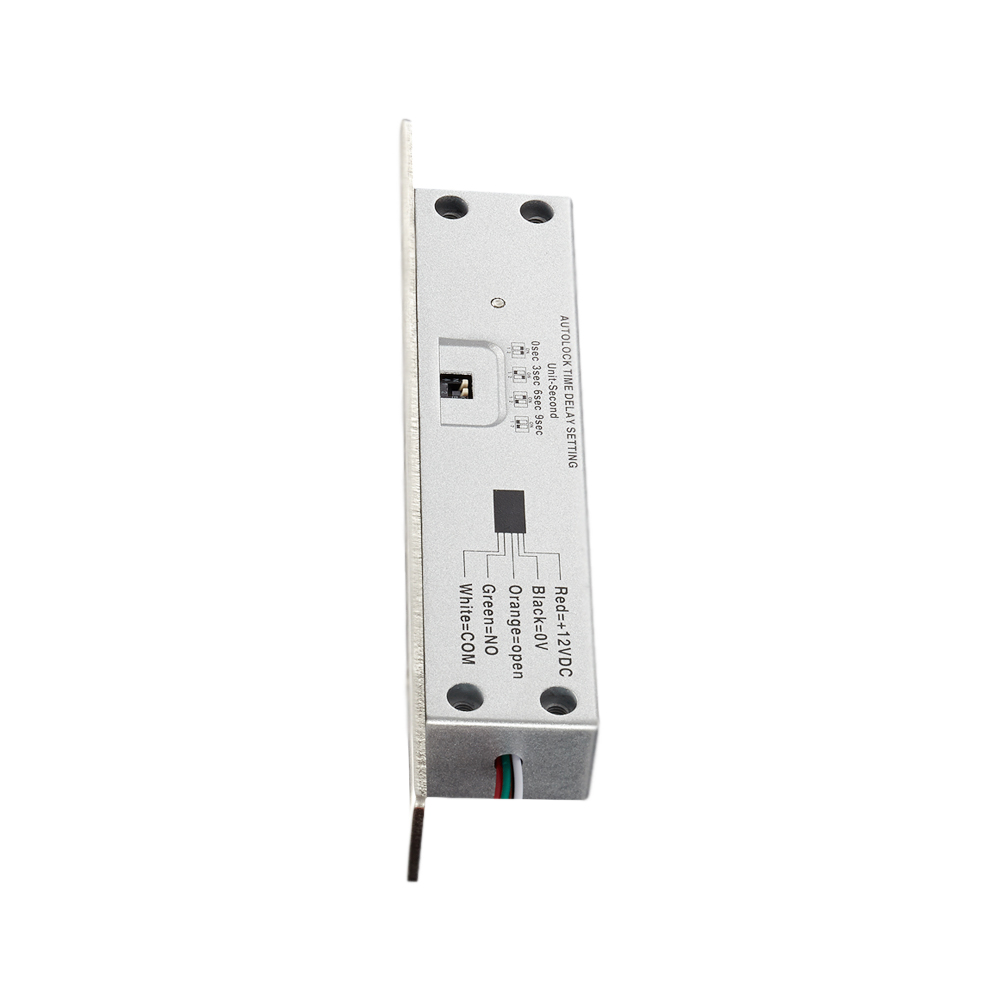

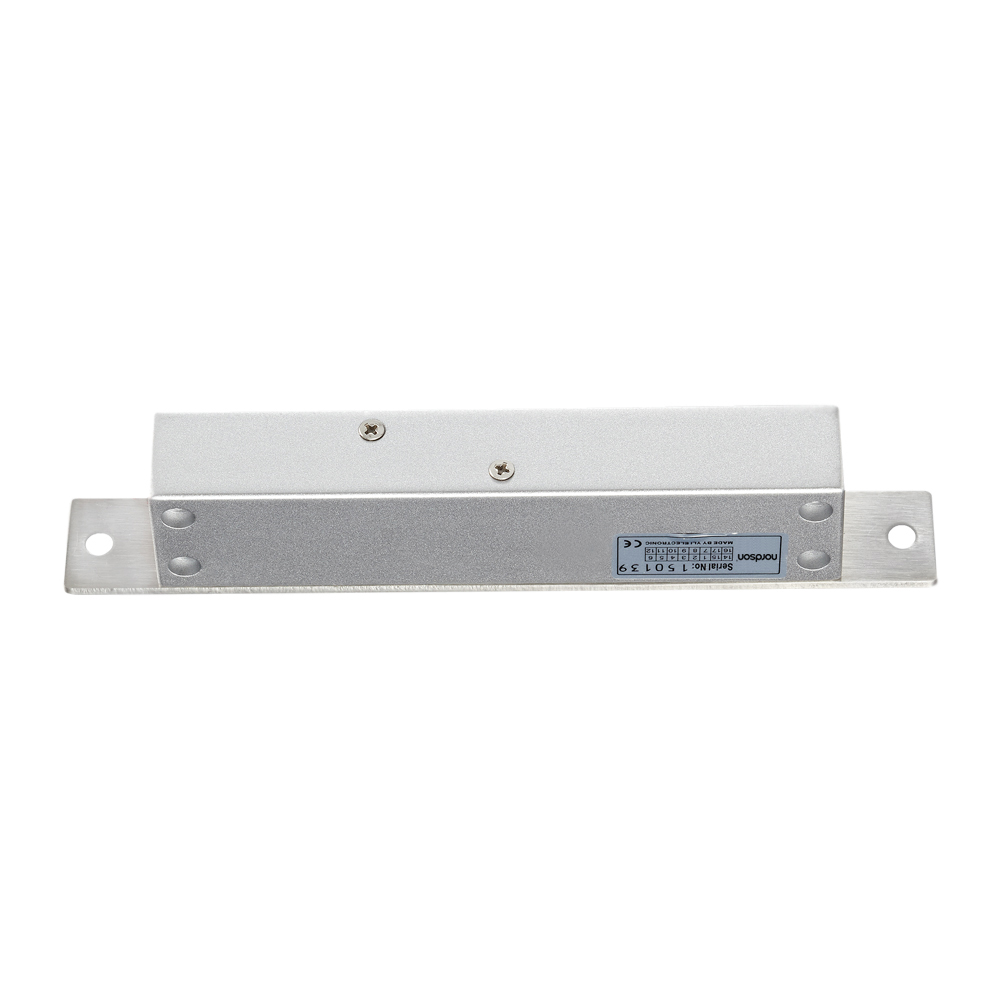

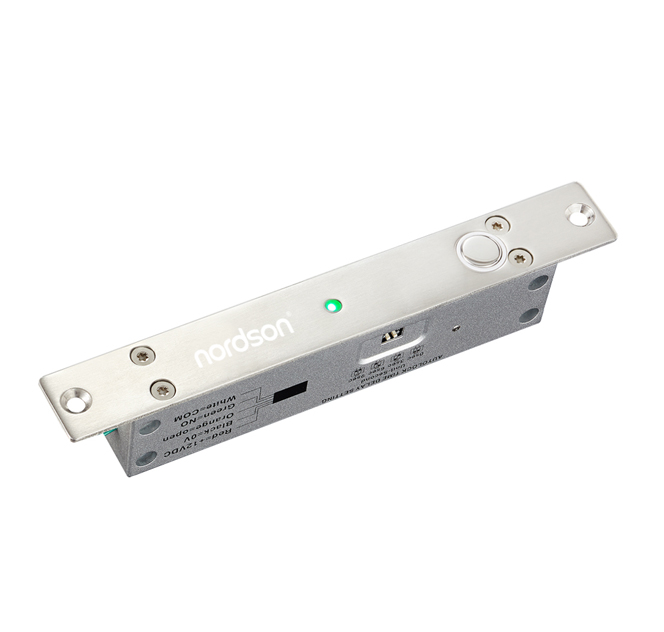

Sturdiness Electric Drop bolt lock,3000lbs electronic lock,professional Electric Bolt For Narrow Door supplier in china,nordson

Fail-safe type:Power to lock
With timer and door position detection.
Voltage: DC12V
Start Current: 800mA Standby Current: 150mA
Fail Safe: Power to lock
Face Plate:205L*27.5W*42.5H(mm)
Bolt: 16mm DIA,stainless steel 16mm throw
Small capacity, alloy material, can easy to be installed external door frame
Suitable for automatic door, swing-in or swing-out open wood and metal door.

Timer: 0/ 3/ 6 seconds available to set
Weight: 0.92kg

NI-610-L-A sturdiness electric bolt lock is a High security lock suitable for framed glass doors, wooden doors, metal doors, fire doors. Unique solenoid valve control, more stable, low failure rate. Lock body are made of High-strength aluminum alloy, all solid lock withstand 3000 pounds linear positive impact. Special photoelectric control ultra-low temperature, low efficacy,Safe and reliable energy saving. Attached accessories for frameless glass door and narrow panel door.
1. Full solid stainless steel lock and lock body, durable
2. Ultra-low temperature design, less heat, safer andmore durable
A.Momentary current conversion
B. electric bolt will start scouting low power consumption and low temperature conversion while Door position is not corrector with stands bolt
C. Photoelectric technology, reduce mechanical failure
3. Ultra-low temperature design, less heat is safe andreliable
4. 500,000 times successful test
5. Built-in reverse current preventing equipment.
6. Intelligent single-chip configuration, level three current applications
7. High-strength aluminum alloy lock body, stainlesssteel lock head
8. Product specification is complete for all types ofdoor installation
9. time delay setting: 0/3/6/9 sec.
10. Protective performance with intelligent single-chipconfiguration
11. Prevents external damage，MOV Provides Reverse Current Protection
12. overload dual current
13. Built-in optical coupling open output push button contact
14. Auto-relock if no Action within 5 secs.
15. CE, ROHS & MA certificates

Version	Fail unlocked(the bolt is unlocked when the current is off)
Diameter dead bolt	ø16mm,13mm (Full solid stainless steel)
Shear strength	3000lbs/1500KG
Relock Delay Timer	0,3,6 seconds open time delay is adjustable
Door Status Sensors	Dry contact NO,NC,COM
Rated Operating Voltage	DC 12V or 24V (Customization Available)
Start Current	800mA
Standby Current	150mA
Optional Functions	LED,Buzzer,Lock Sensor
Face place material	High Aluminum
Surface Temp	Low Temperature
Ambient temperature in °C	-10°C - +55°C
Suitable for	Specially Suitable for Narrow Door Wooden & Aluminum & Glass & Fireproof &Metal door
Face Plate Dimensions(L x W x D)	205L27.5W42.5H(mm)
Strike Plate Dimensions(L x W x D)	90L25W2W(mm)
Weight in kg	0.92kg
CE-mark for building	YES
Rohs-mark for building	YES
