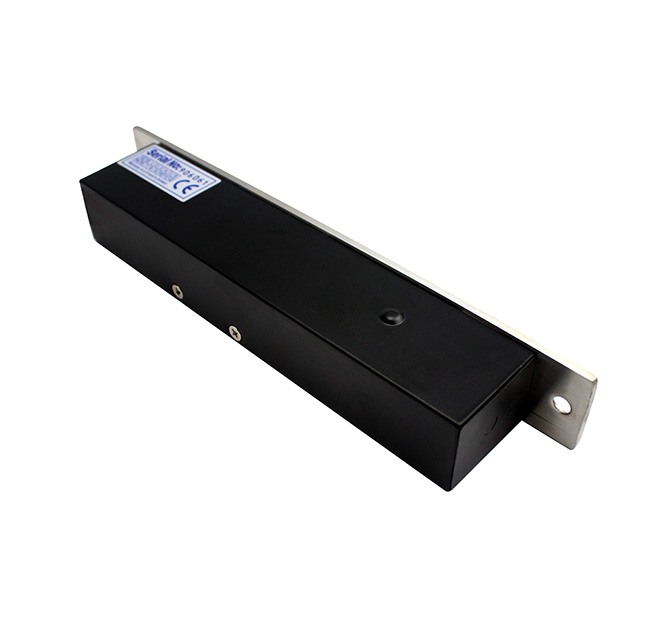

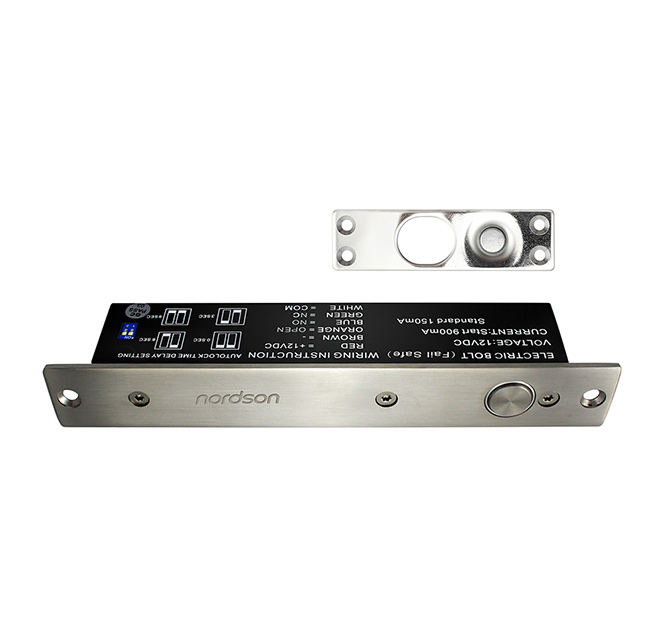

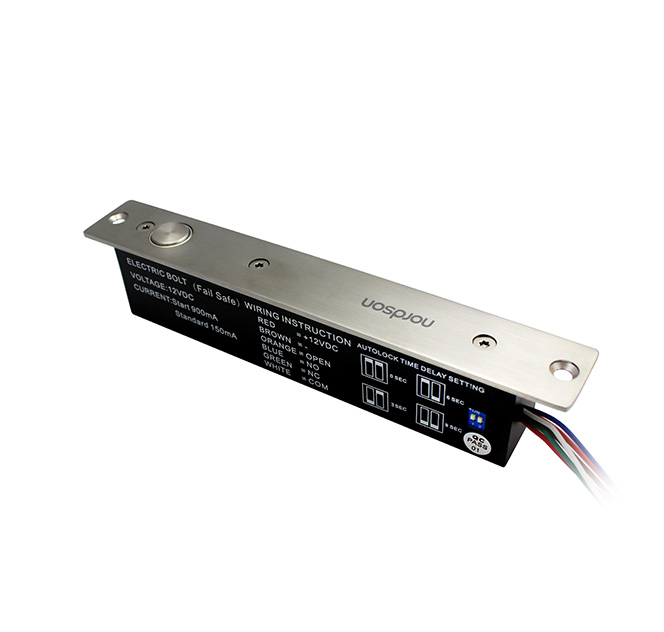

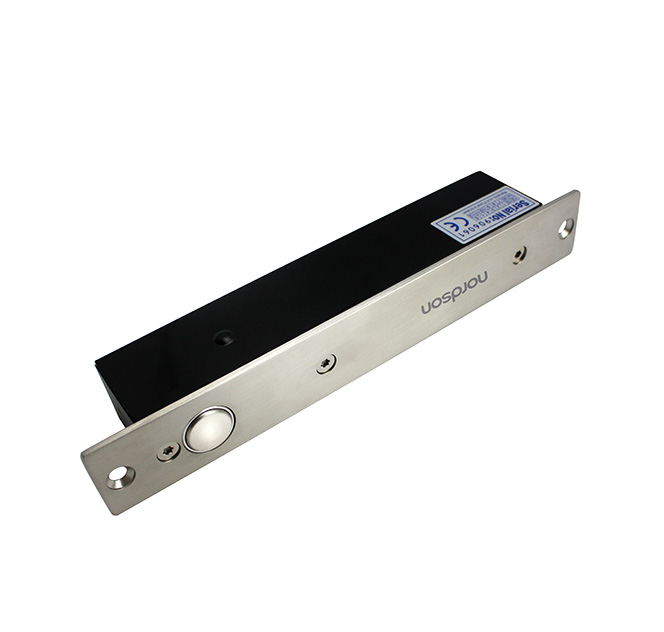

NI-500B Sturdiness Intelligent Electric Bolt Lock

Fail-safe type:Power to lock
Voltage: DC12V
Start Current: 900mA Standby Current: 120mA
Face Plate: 205L*30W*38H(mm)
Strike Plate : 100L*25W*3W(mm)
Bolt :16mm DIA,stainless steel 16mm throw
Solid Bolt: Polishing housing, 2000Kg Holding Force

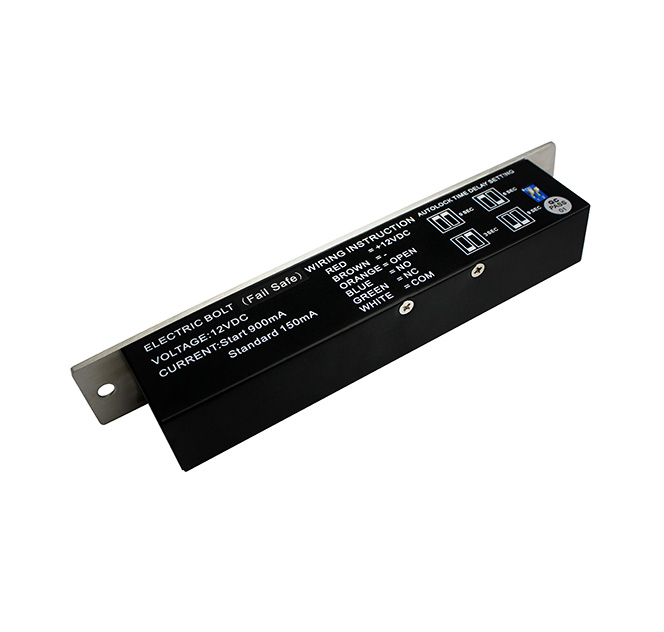

Signal Output Door status Output,NO/NC/COM
Suitable for: Wooden Door,Glass Door,Metal Door
Autolock Time Delay: 0,3,6,9sec.
Weight: 1kg

NI-500B sturdiness intelligent electric bolt lock, including Fail-safe and fail secure 2 types .Built individually controlled solenoid valve, High security locks suit for framed glass doors, wooden doors, metal doors, fire doors. Lock body are made of 304ss high hardness, corrosion resistant stainless steel, all solid lock withstand 4500 pounds linear positive impact, Special photoelectric control ultra-low temperature, low efficacy,Safe and reliable energy saving. Attached accessories for frameless glass door and narrow panel door.

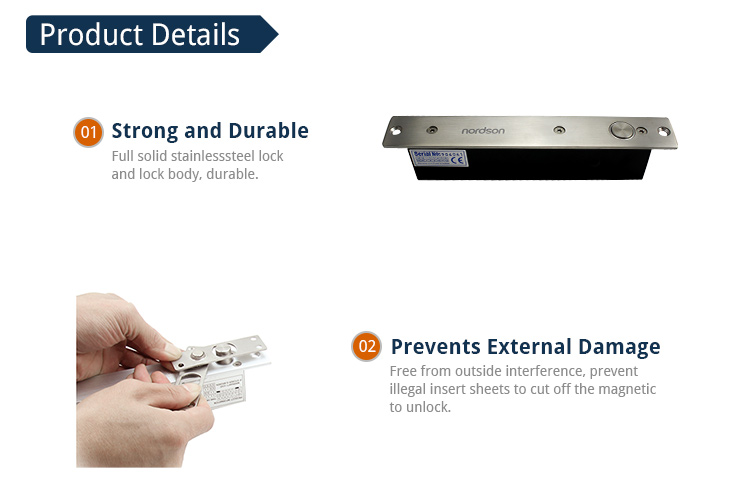

1. Full solid stainless steel lock and lock body, durable
2. Intelligent design, customized buzzer function
3. Ultra-low temperature design, less heat is safe and reliable
A.Momentary current conversion
B. electric bolt will start scouting low power consumption and low temperature conversion while Door position is not corrector withstands bolt
C. Photoelectric technology, reduce mechanical failure
4. Optical control techniques to prevent mechanicalfailure
5. Ultra-low-power design, energy saving
6. 500,000 times successful test
7. Built-in reverse current preventing equipment.
8. Intelligent single-chip configuration, level three current applications
9. Product specification is complete for all types of door installation
10. time delay setting: 0/3/6/9 sec.
11. Protective performance with intelligent single-chip configuration
12. Prevents external damage，MOV Provides Reverse Current Protection
13. overload dual current
14. Built-in optical coupling open output push buttoncontact
15. Auto-relock if no Action within 5 secs.
16. CE, ROHS & MA certificates

Version	Fail unlocked(the bolt is unlocked when the current is off)
Diameter dead bolt	ø16mm,16mm(full solid stainless steel)

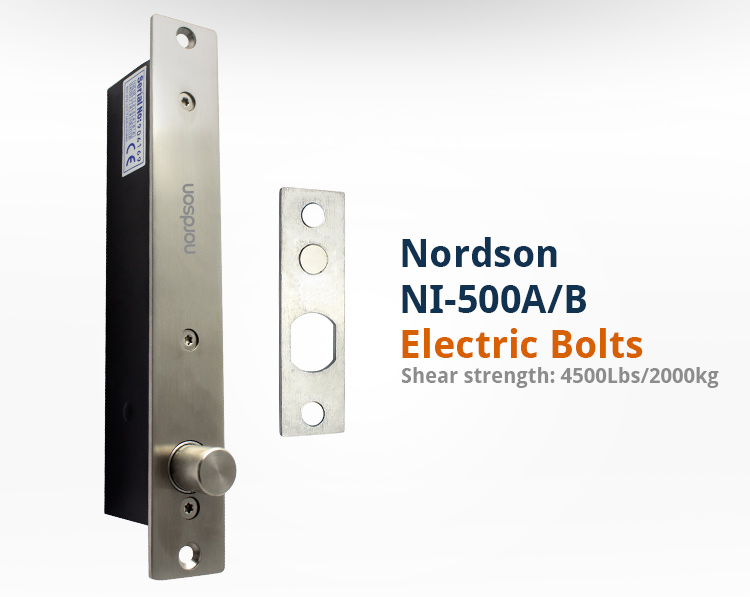

Shear strength	4500Lbs/2000kg

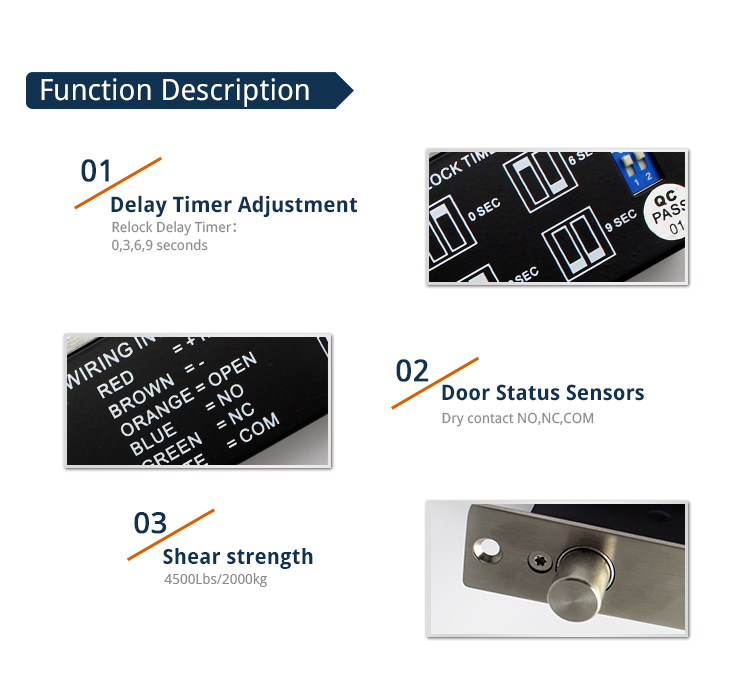

Relock Delay Timer	0,3,6 seconds open time delay is adjustable
Push Button Contact	Door Open Push Button Input Contact
Door Status Sensors	Dry contact NO,NC,COM
Rated Operating Voltage	DC 12V or 24V (Customization Available)
Start Current	1200mA
Standby Current	200mA
Optional Functions	LED,Buzzer,Lock Sensors
Face place material	High Aluminum
Surface Temp	Low Temperature
Ambient temperature in °C	-10°C - +55°C

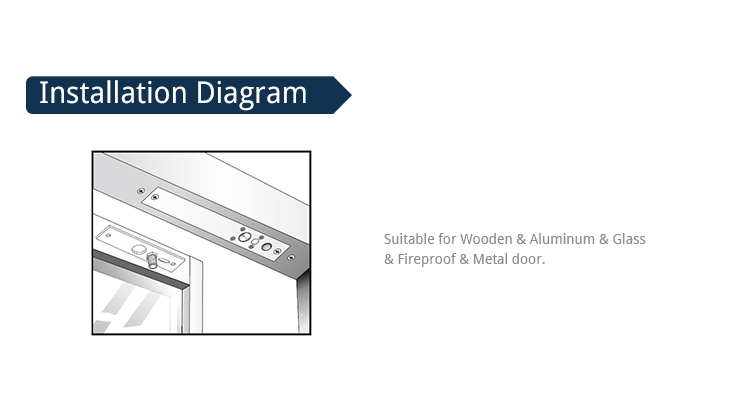

Suitable for	Wooden & Aluminum & Glass & Fireproof &Metal door

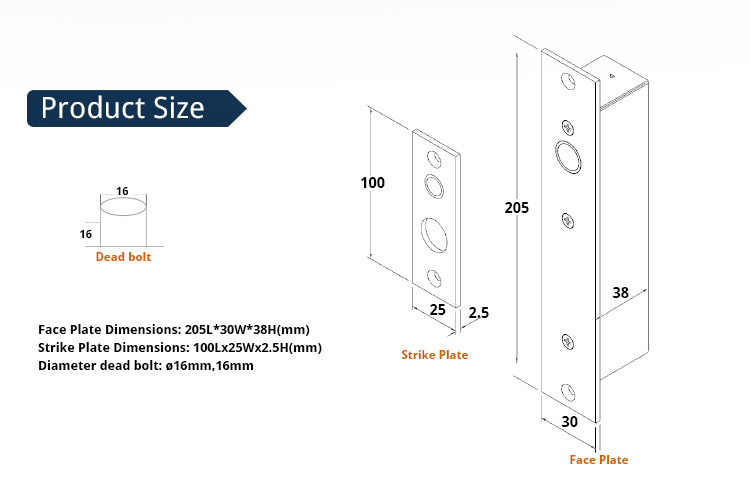

Face Plate Dimensions(L x W x D)	205Lx30WX38H(mm)
Strike Plate Dimensions(L x W x D)	100Lx25Wx2.5W(mm)
Weight in kg	1.0kg
CE-mark for building	YES
Rohs-mark for building	YES
