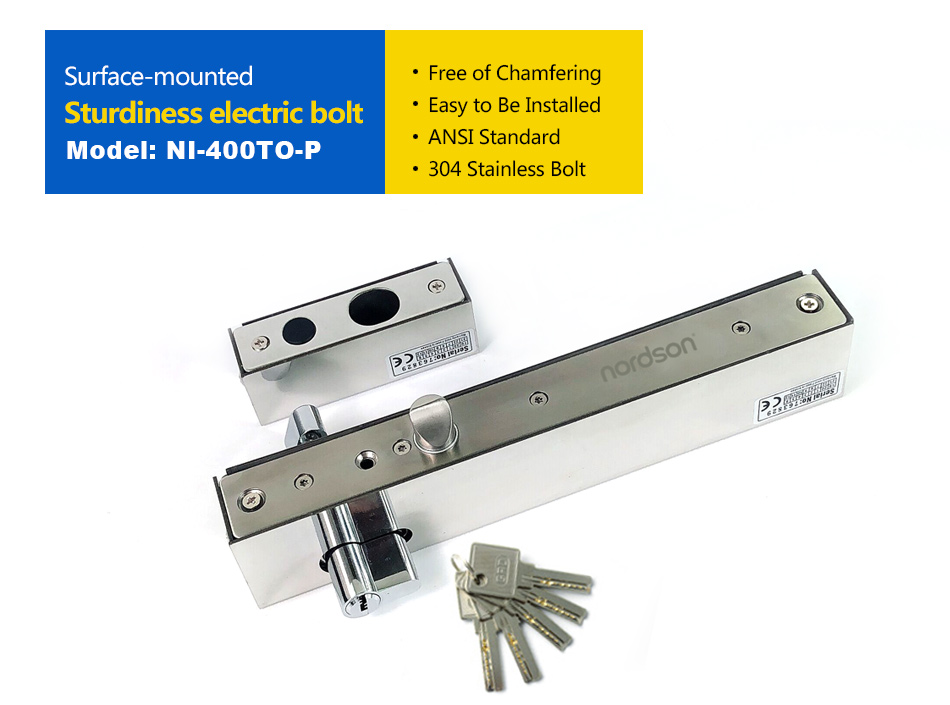

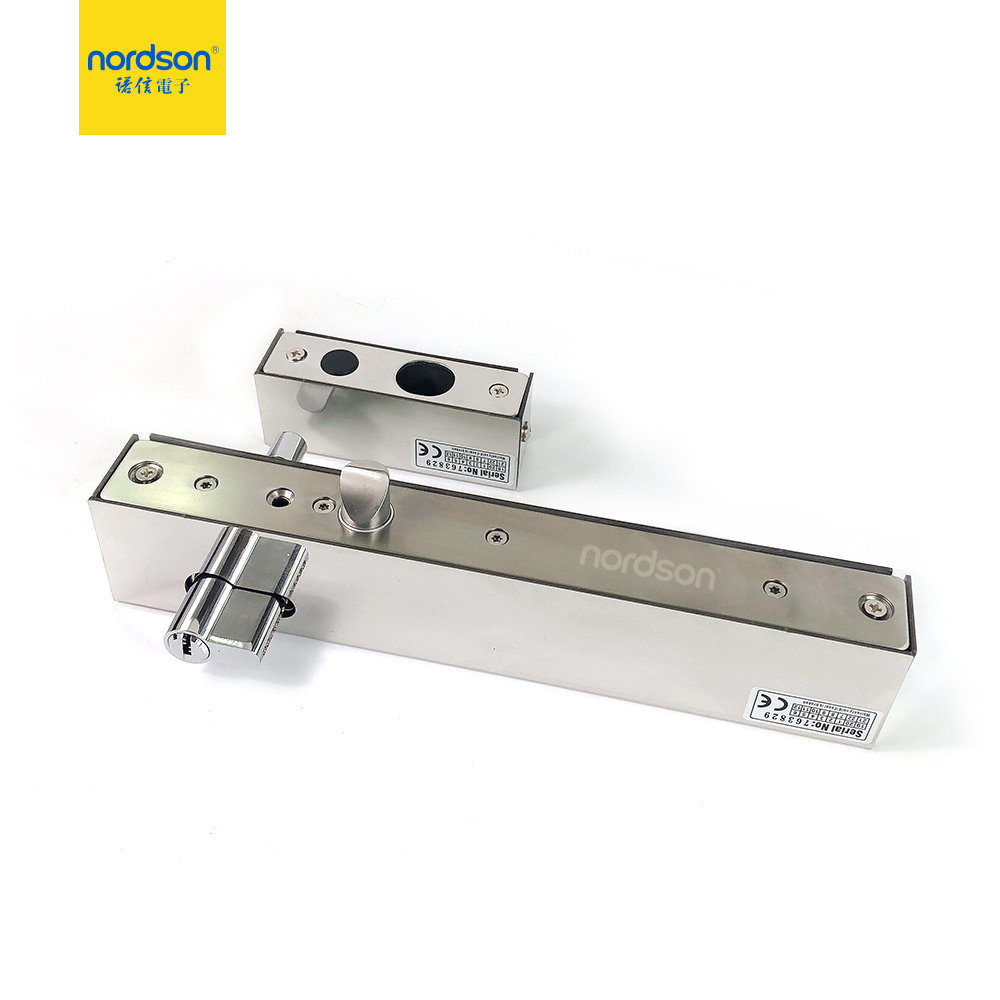

NI-400TO-P new designed external installation electric bolt lock,free of chamfering and easy to be installed.The lock is made of all stainless steel metal construction with classical American ANSI standard beveled latch bolt for closing door at once.Matching up manual key control device,the lock have fire safety certification and high security assurance.The special design of all-metal linkage parts results it can bear with the temperature of 60 ℃ or -40 ℃ below zero .Special adopts 304 stainless steel Bolt by CNC lathe, can withstand 2000kg holding force,sturdiness and wear resistant.Specially suit for the transformation of apartment automatic lock,office access control and high level security needed places. NI-400TO-P external installation electric bolt lock also called electric door lock,Fail-secure bolt lock,smart cylinder door lock, security heavy duty lock,electric deadbolt lock,frame glass door lock.

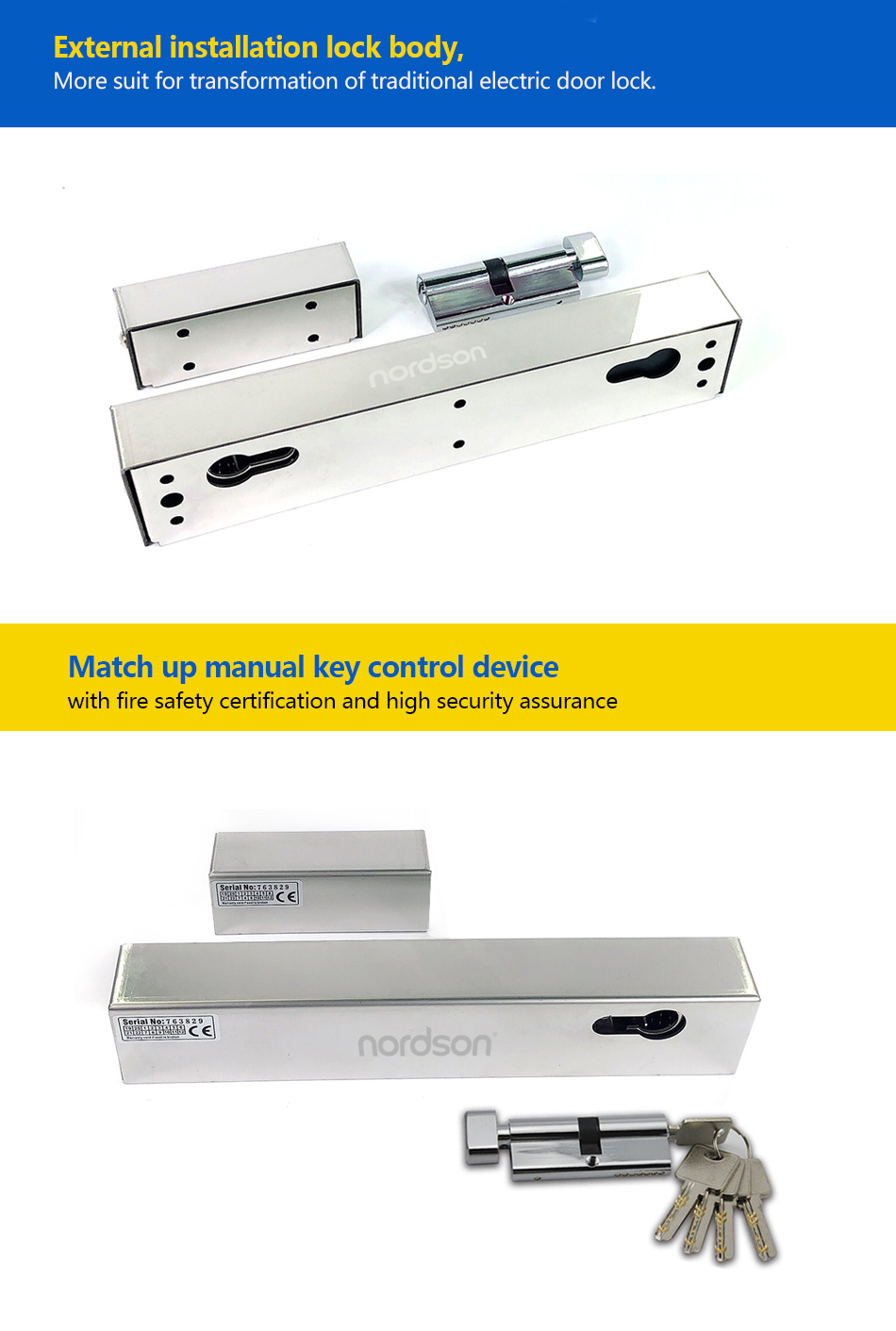

1.External installation lock body,more suit for transformation of traditional electric door lock

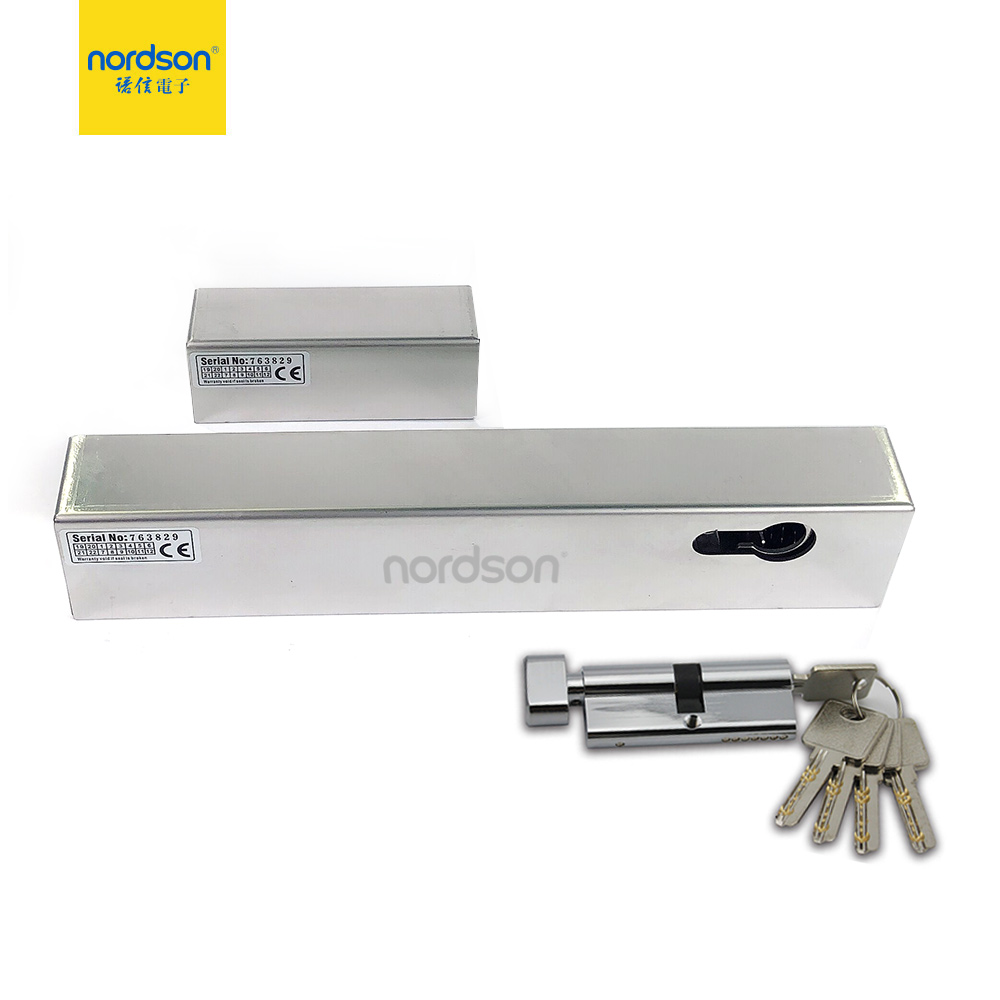

2.Match up manual key control device with fire safety certification and high security assurance

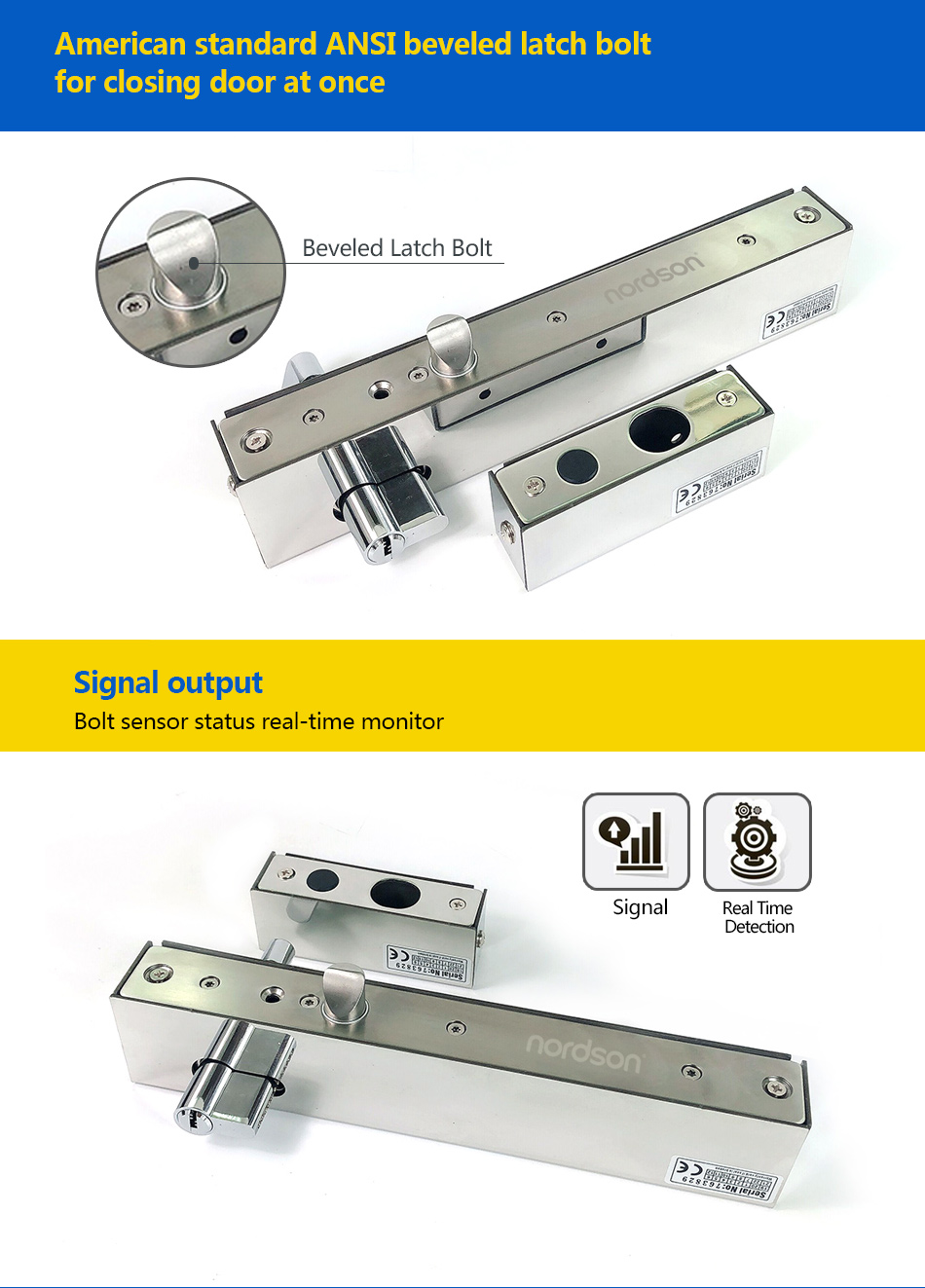

3.American standard ANSI beveled latch bolt for closing door at once
4.Signal output,bolt sensor status real-time monitor

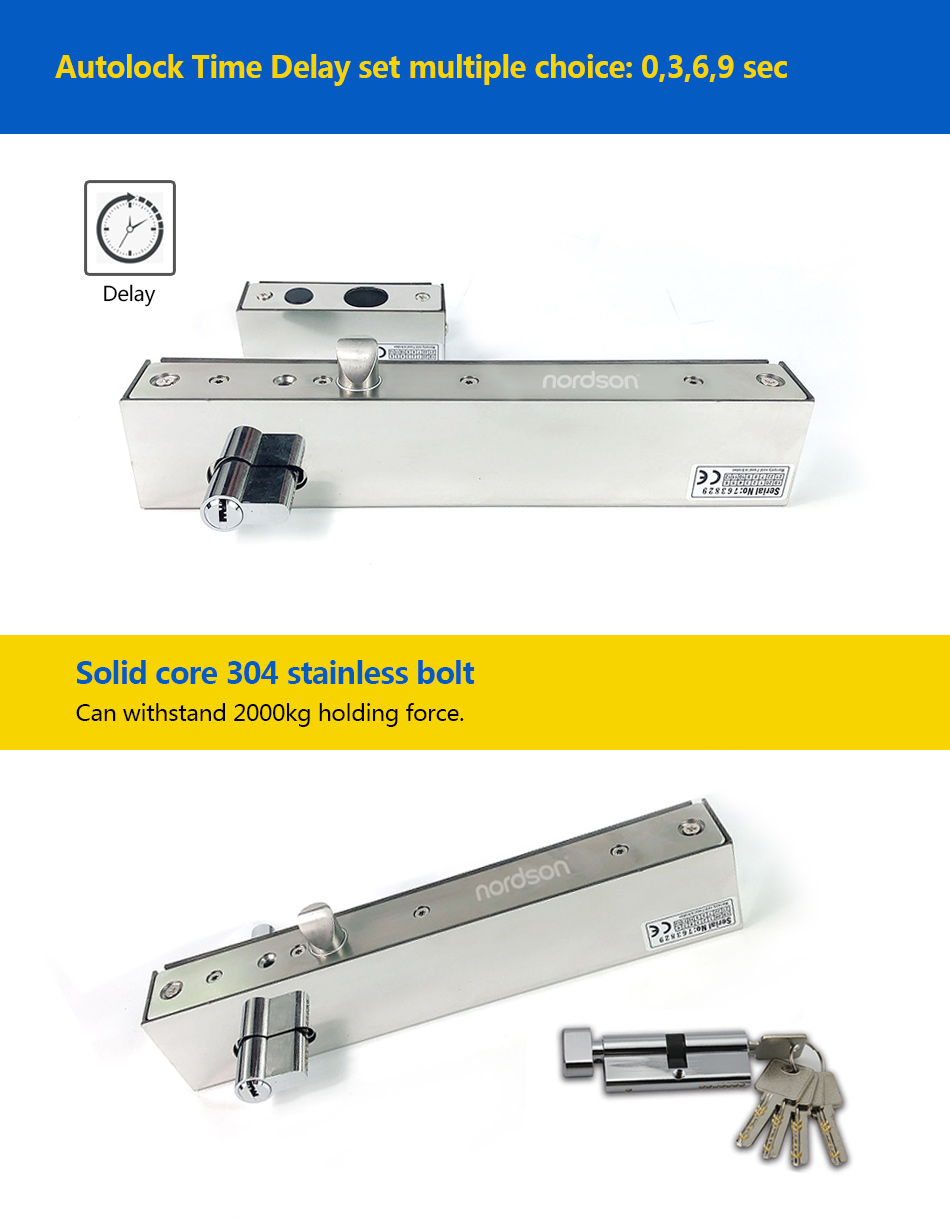

5.Autolock Time Delay set multiple choice: 0,3,6,9sec
6.Solid core 304 stainless bolt,can withstand 2000kg holding force.

Version	Fail locked external installation(the bolt is locked when the current is off)
Diameter dead bolt	ø16mm,16mm (Full solid stainless steel)
Shear strength	4000Lbs/2000kg
Lock Body	263Lx33WX51H(mm)
Strike Plate	98.5Lx28.5Wx40H(mm)
Bolt	16(prolongation)*16(diameter)(mm)
Voltage	DC12V
Start Current	1200mA
Standby Current	150mA
Autolock Time Delay	0,3,6,9 seconds open time delay is adjustable
Signal Output	Lock signal NO/NC/COM(need order door signal)
Suitable For	Wooden door , metal door , fireproof door , glass door
Material	304 stainless steel,wire draw finishing
Induction Distance	Within 8mm
CE-mark for building	YES
Rohs-mark for building	YES
Weight	1.95kg
