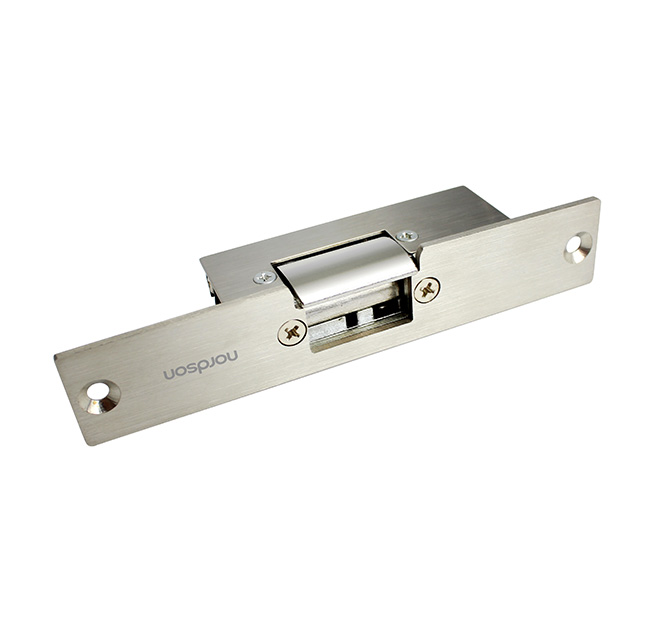

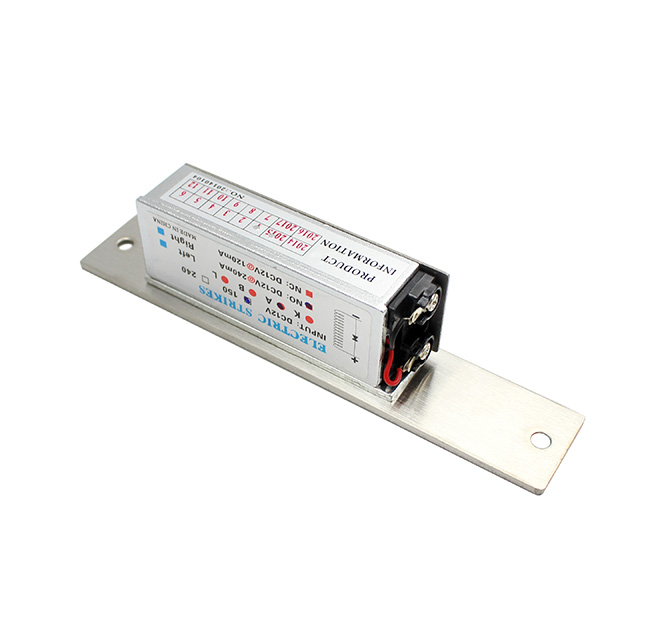

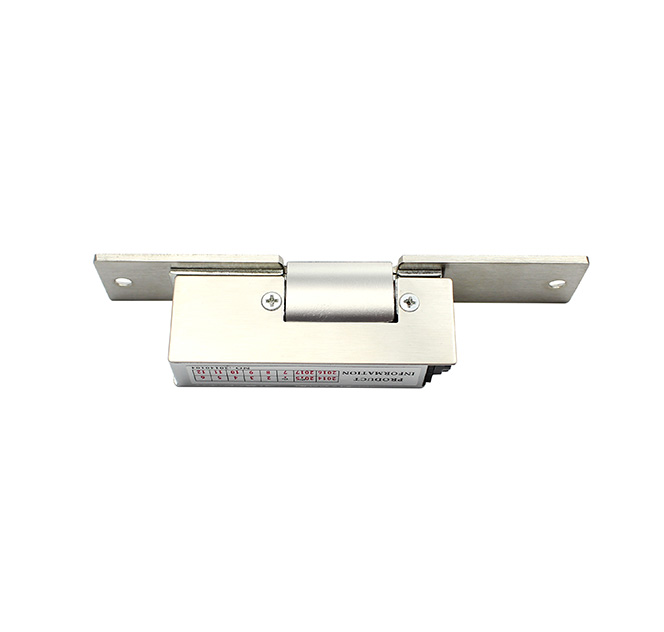

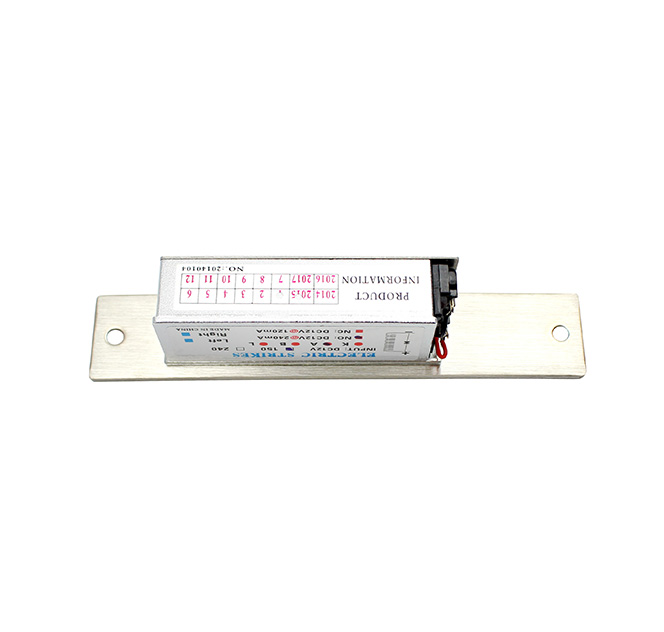

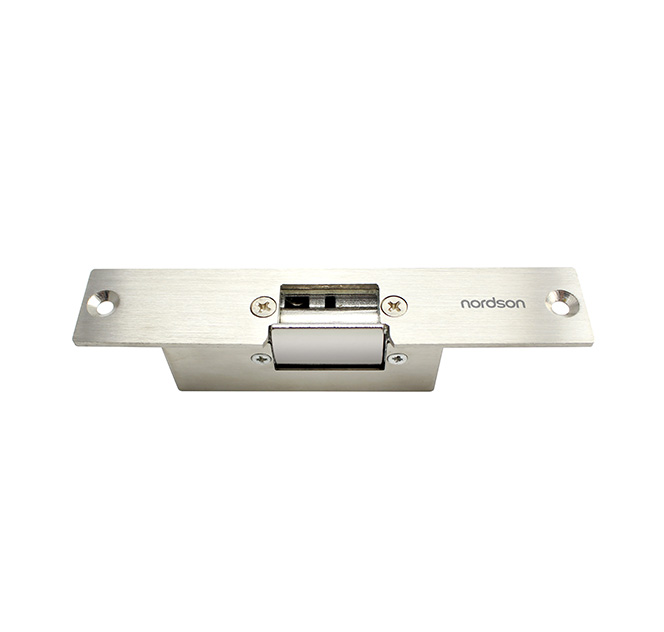

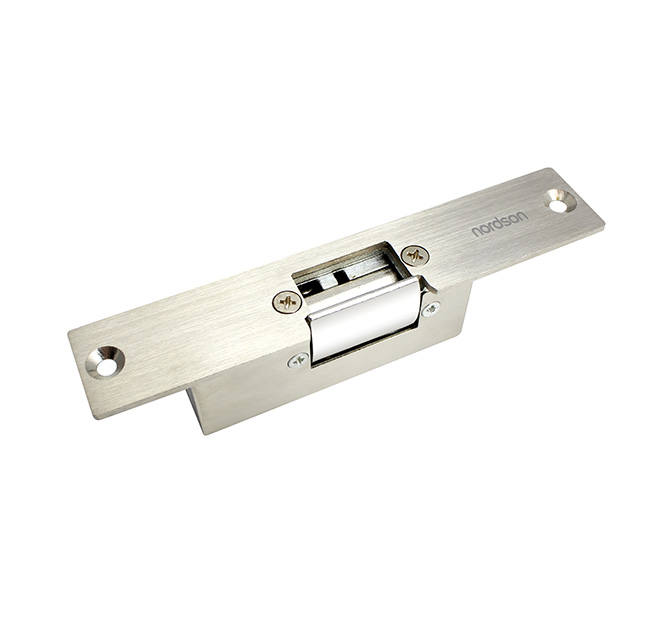

NJ-300A Narrow Mouth Standard-type Electric Strike

Fail-secure type (Power to open)
Lock Size: 150L*28W*31H(mm)
Holding Stength: 500kg
Bolt Structure: Stainless Steel
Voltage: 12VDC
Current: 240mA(NJ-300A) / 120mA(NJ-300B)
Weight: 0.5kg

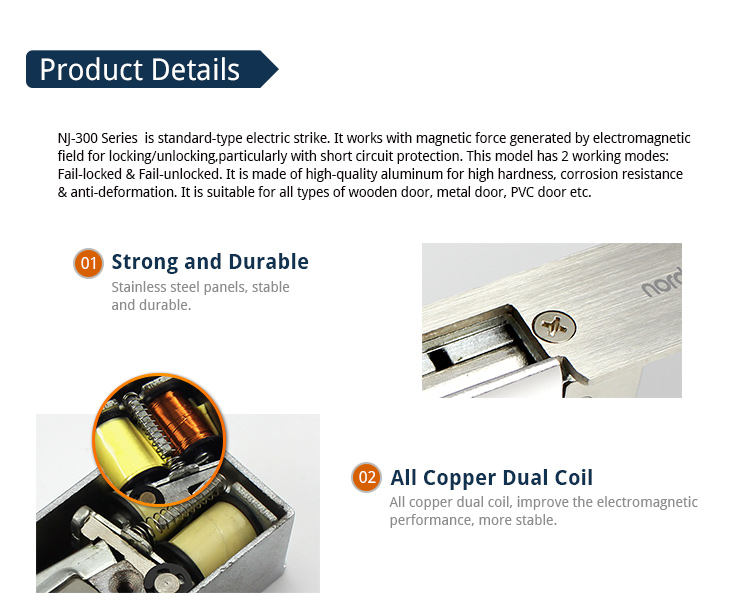

NJ-300A is standard-type electric strike.It works with magnetic force generated by electromagnetic field for locking/unlocking,particularly with short circuit protection.This model has 2 working modes:Power-to-open & Power-to-lock.It is made of high-quality aluminum for high hardness,corrosion resistance & anti-deformation.It is suitable for all types of wooden door, metal door, PVC door etc.

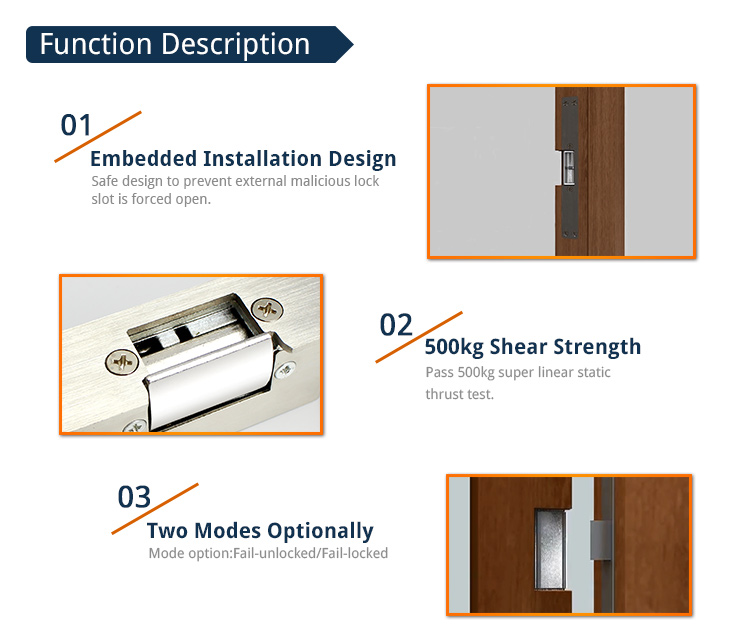

1.Pass 1200lbs super linear static thrust test
2.Mode option:Fail-unlocked/Fail-locked
3.Suitable for all standard-type doors with adjustable tongue distance

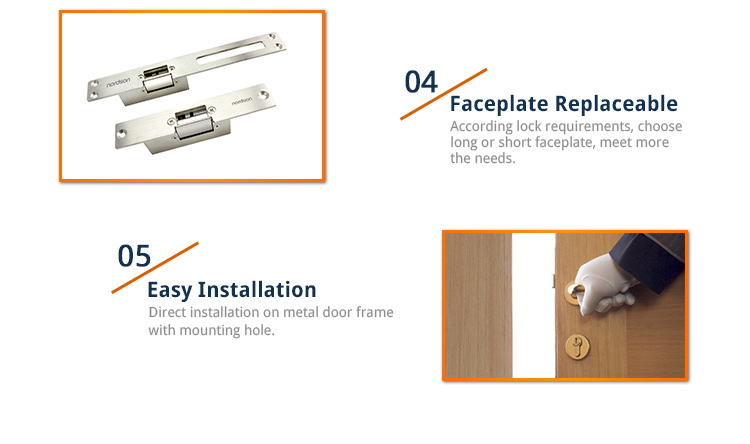

4.Direct installation on metal door frame with mounting hole
5.Pass test of high temperature aging 100,000 times

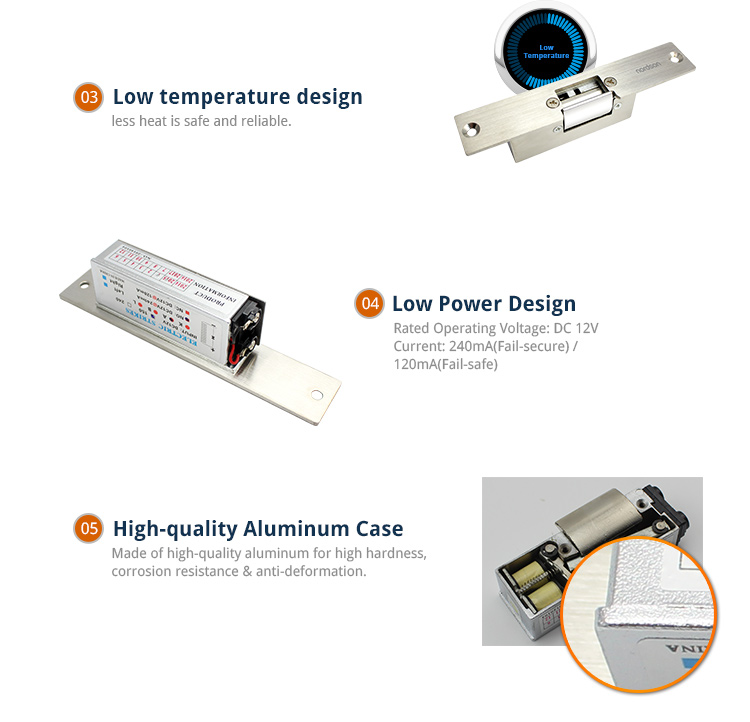

6.Made of high-quality aluminum for high hardness,corrosion resistance & anti-deformation
7.CE Certificate & MA Certificate approved

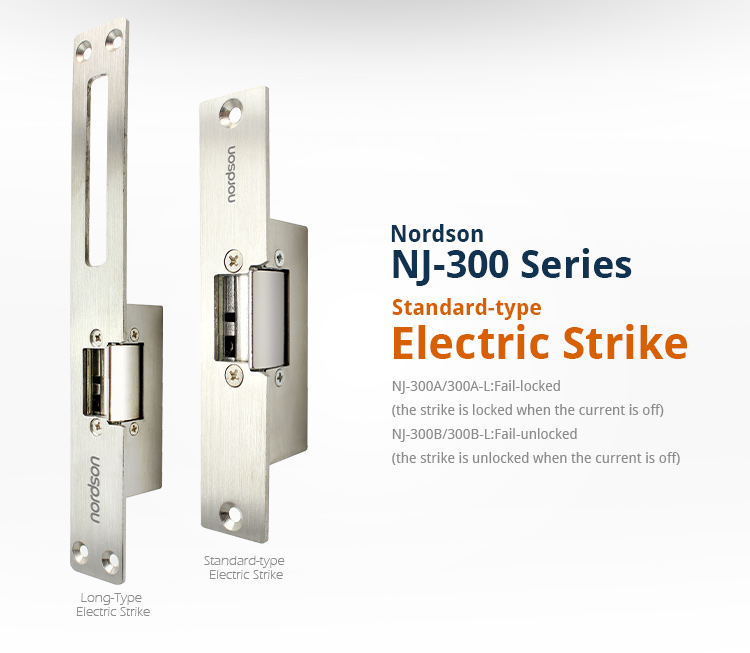

Version	NJ-300A:Fail-locked(the strike is locked when the current is off) NJ-300B:Fail-unlocked(the strike is unlocked when the current is off)
Shear strength	500kg
Rated Operating Voltage	DC12V
Standby Current	200mA
Optional Functions	Lock Status Sensors/DC 24V
Face place material	High Aluminum
Surface Temp	Low Temperature
Ambient temperature in °C	-10°C - +55°C

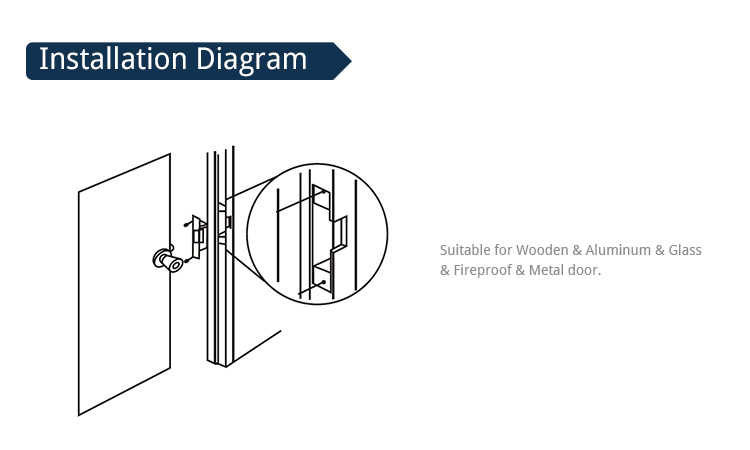

Suitable for	Wooden & Aluminum & Glass & Fireproof &Metal door

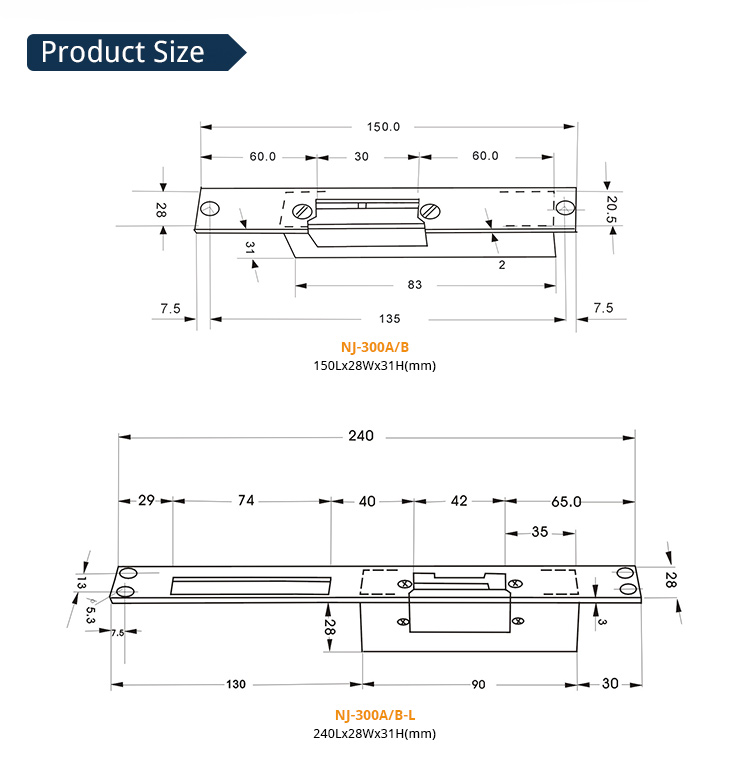

Strike Plate Dimensions(L x W x D)	150Lx28Wx31H(mm)
Weight in kg	0.4kg
CE-mark for building	YES
Rohs-mark for building	YES
