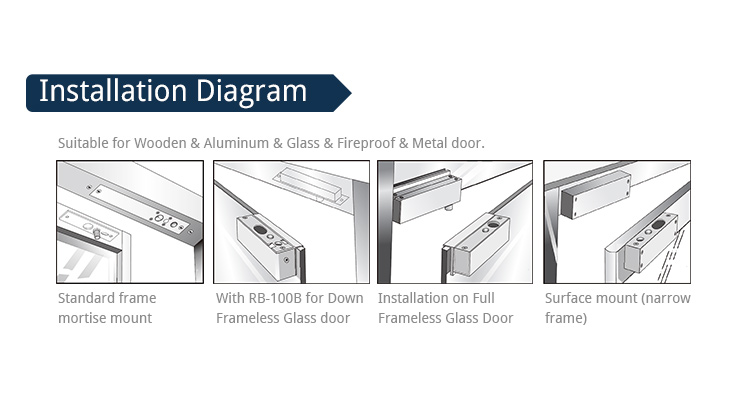

NI-100B is a simple low temperature electric door locks with timer and delay function, which is fail safe electric bolt lock that suitable for glass door, wooden door, metal door . We supply integrity equipment to collocate with fully frameless glass door, swing-in door and so on. Build-in Photoelectricity control and low temperature design, which makes access safer and durable.
Home >
Products >
Electric Locking Devices >
Standard Electric Bolts >
NI-100B Electric Door Locks with Timer
Home >
Products >
Electric Locking Devices >
Standard Electric Bolts >
NI-100B Electric Door Locks with Timer

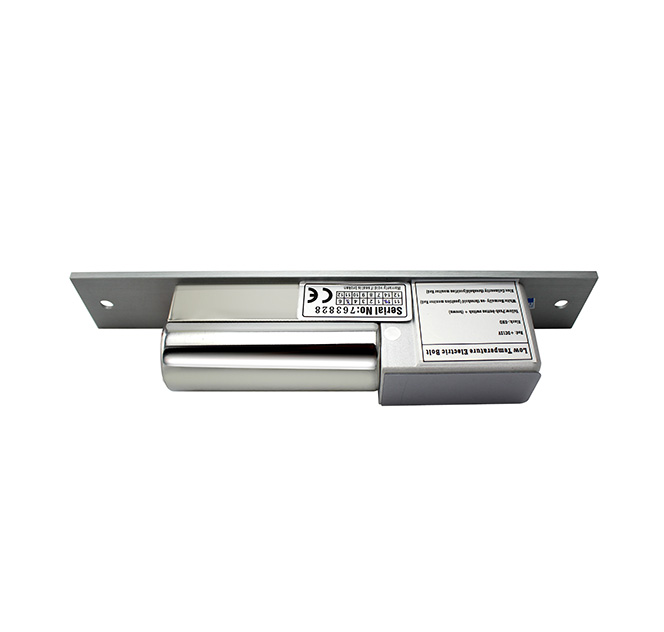

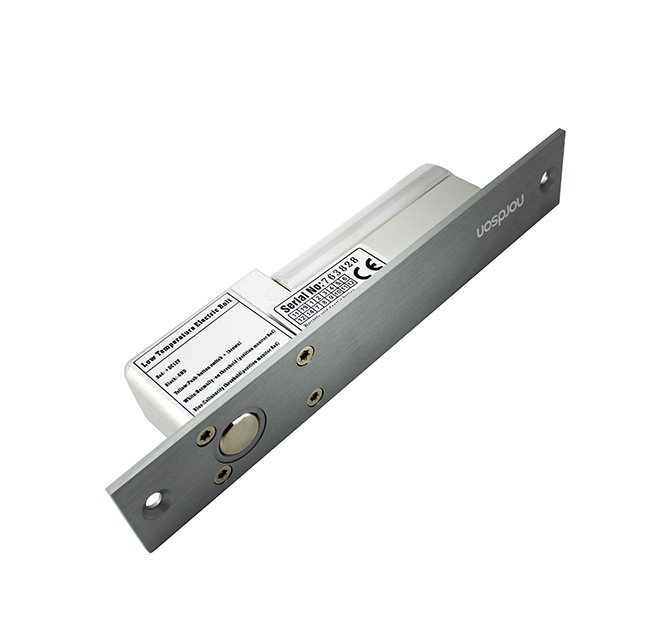

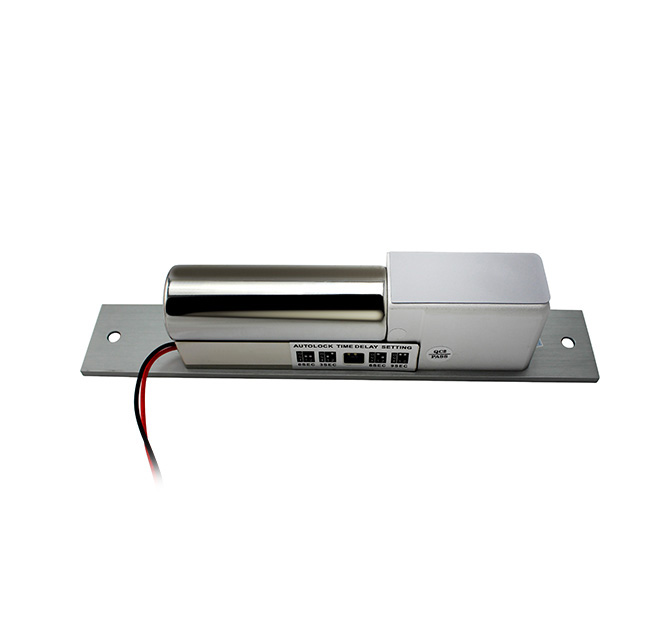

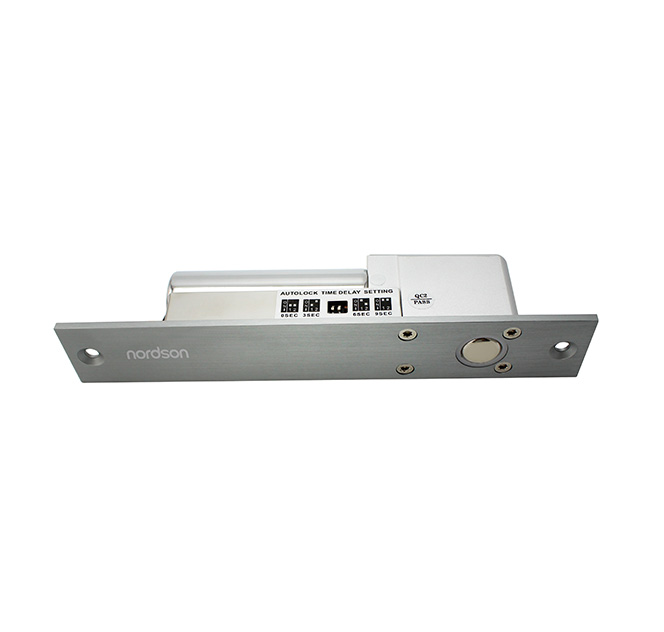

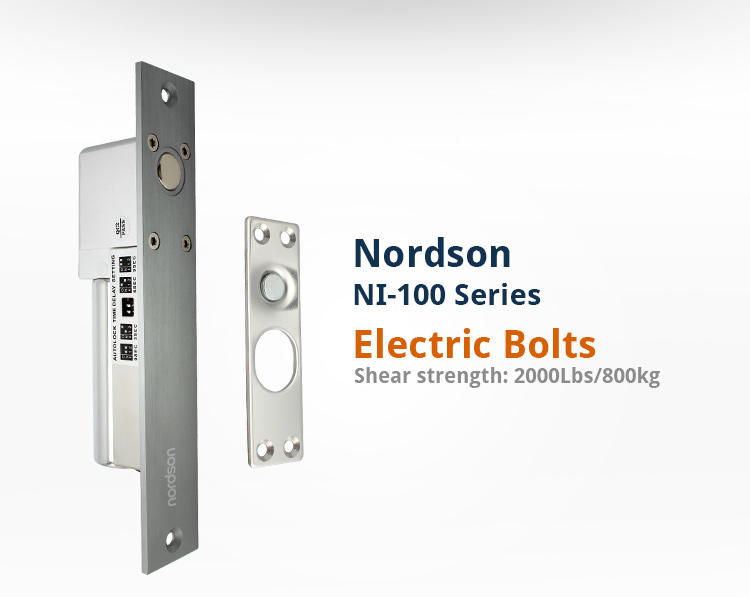

NI-100B Electric Door Locks with Timer
Fail-safe type: Power to lock

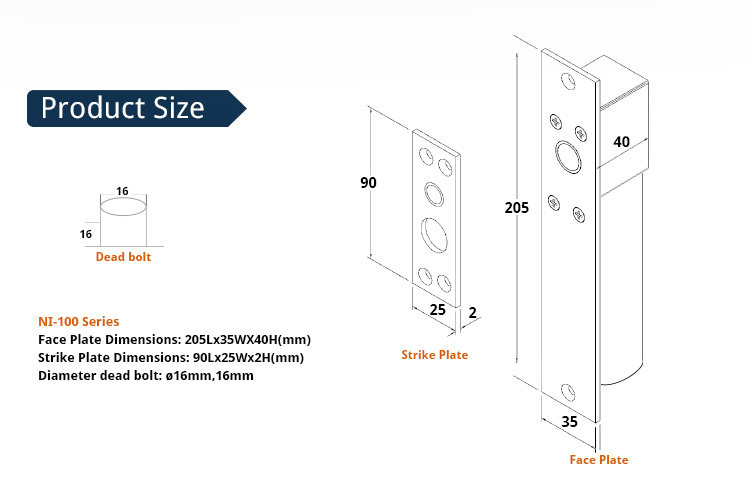

Face Plate: 205L*35W*40H(mm)

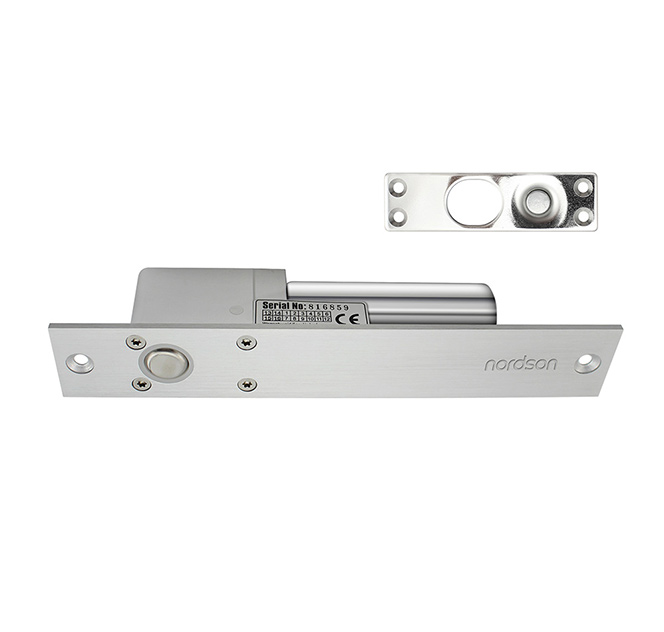

Strike Plate : 90L*25W*2H(mm)
Bolt : 16mm(Throw) * 16mm(Diameter)
Voltage: DC12V
Start Current: 960mA Standby Current: 130mA

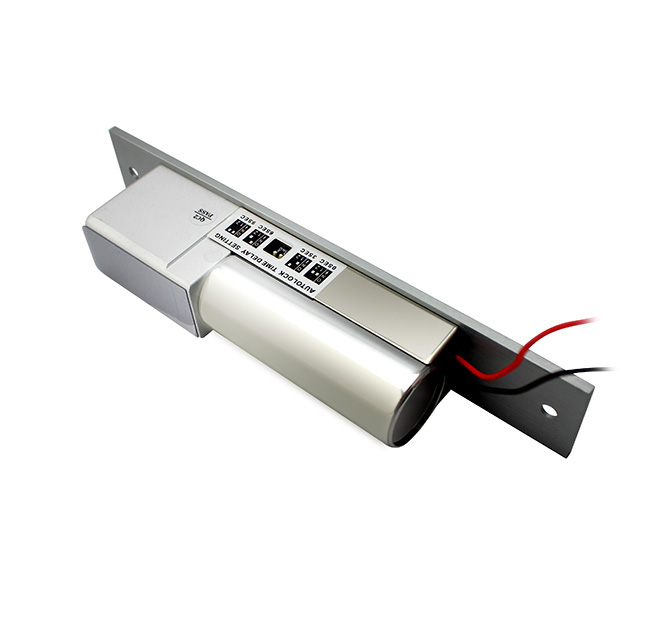

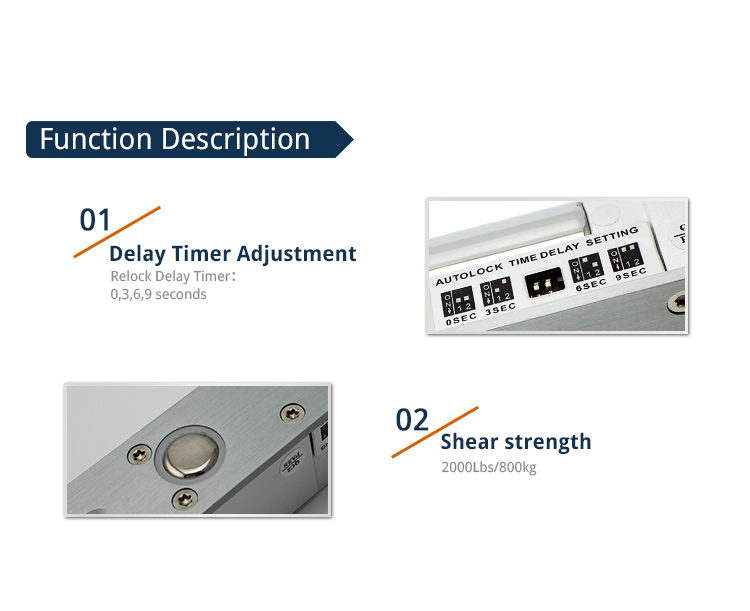

with Auto-lock Time Delay: 0/3/6/9 seconds available to set

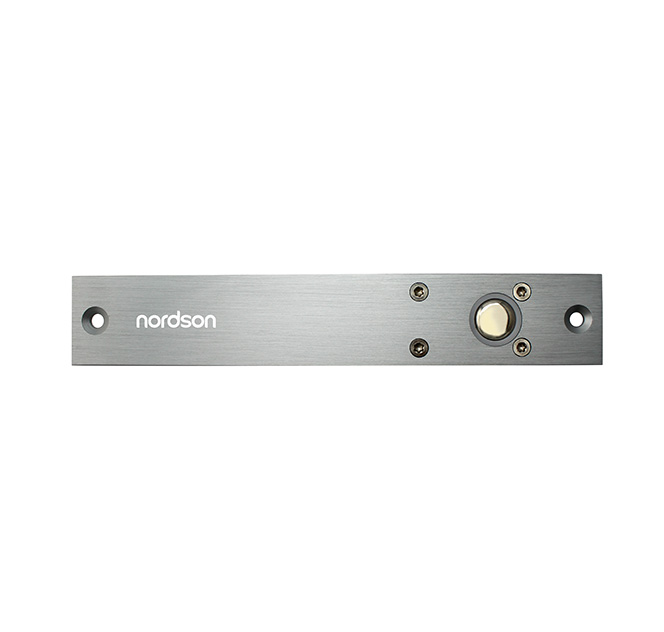

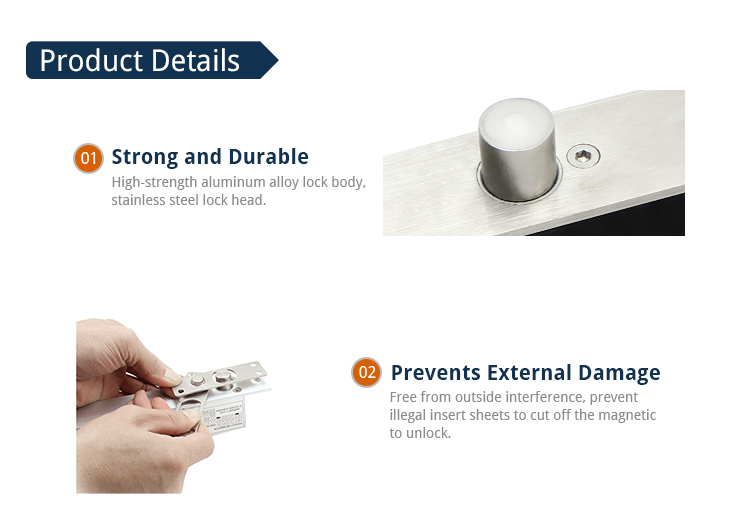

Face Place Material:High Aluminum,Carrulous Line Finished
Weight: 0.65kg
Face Plate: 205L*35W*40H(mm)
Strike Plate : 90L*25W*2H(mm)
Bolt : 16mm(Throw) * 16mm(Diameter)
Voltage: DC12V
Start Current: 960mA Standby Current: 130mA
with Auto-lock Time Delay: 0/3/6/9 seconds available to set
Face Place Material:High Aluminum,Carrulous Line Finished
Weight: 0.65kg
