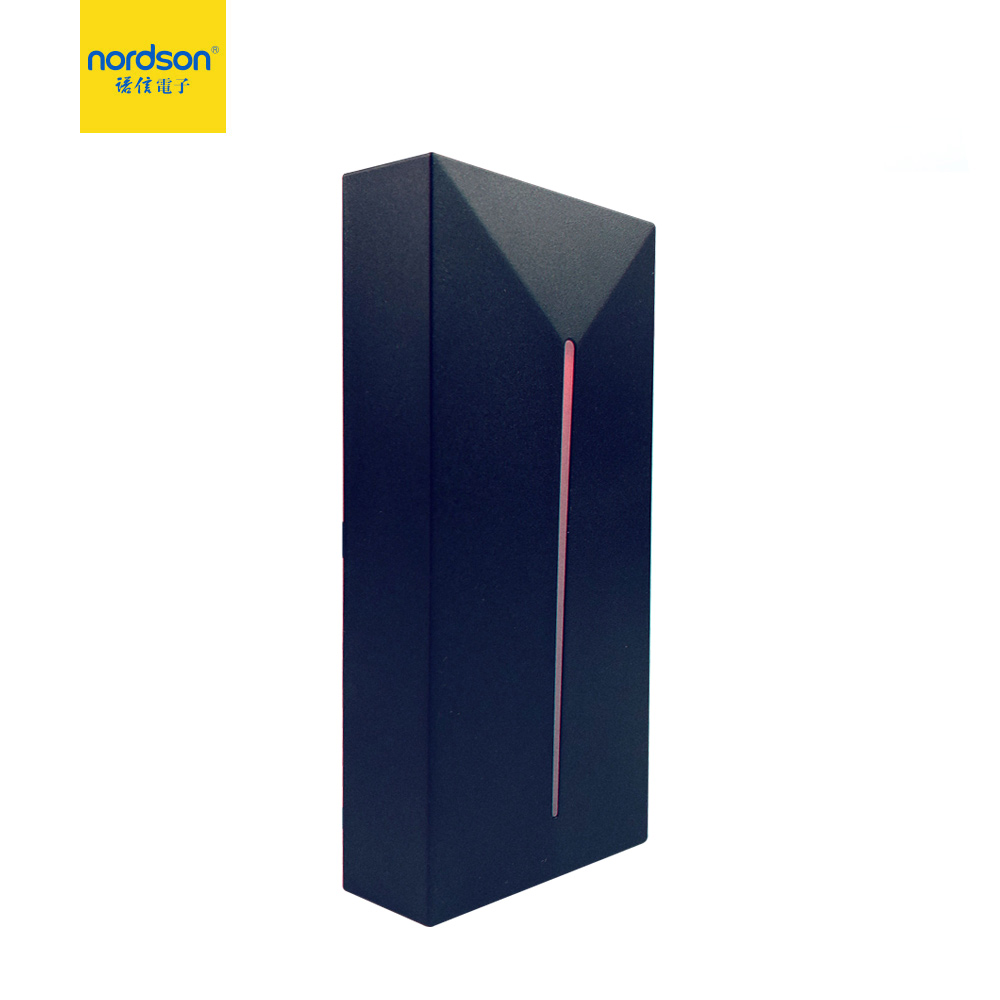

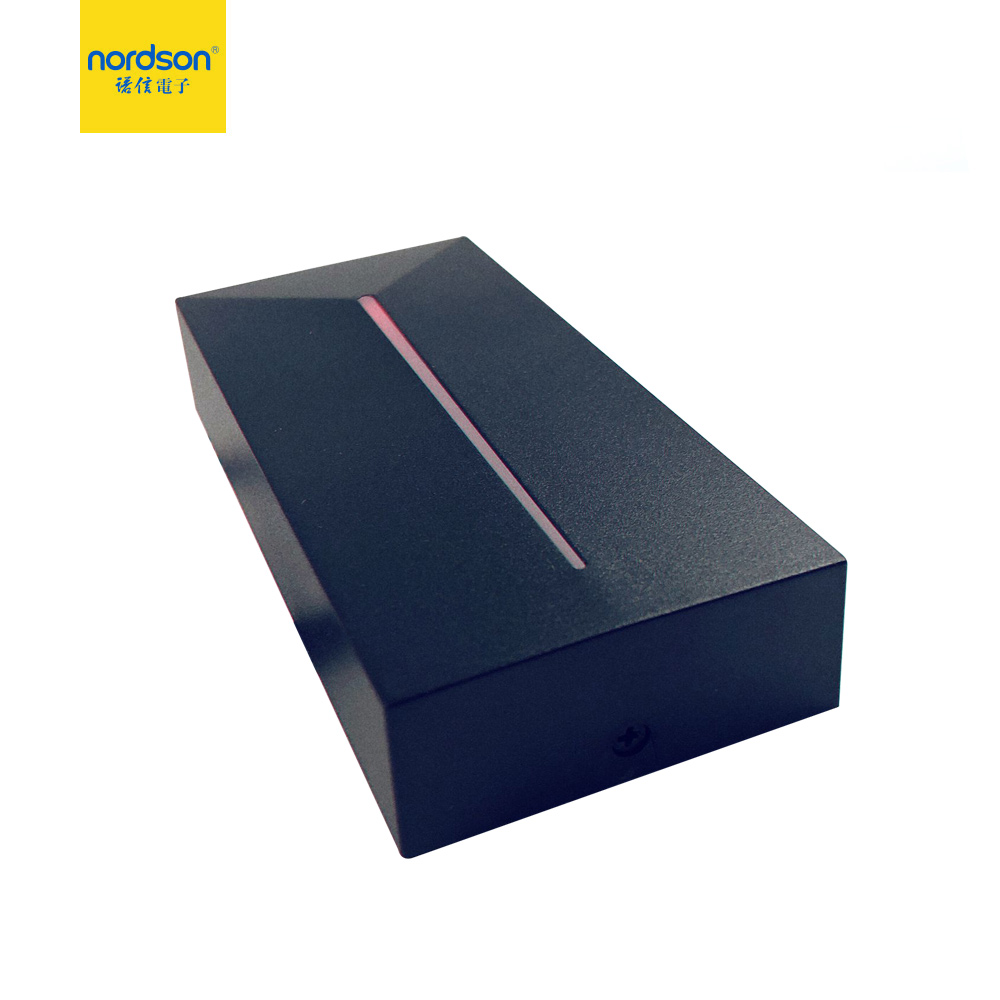

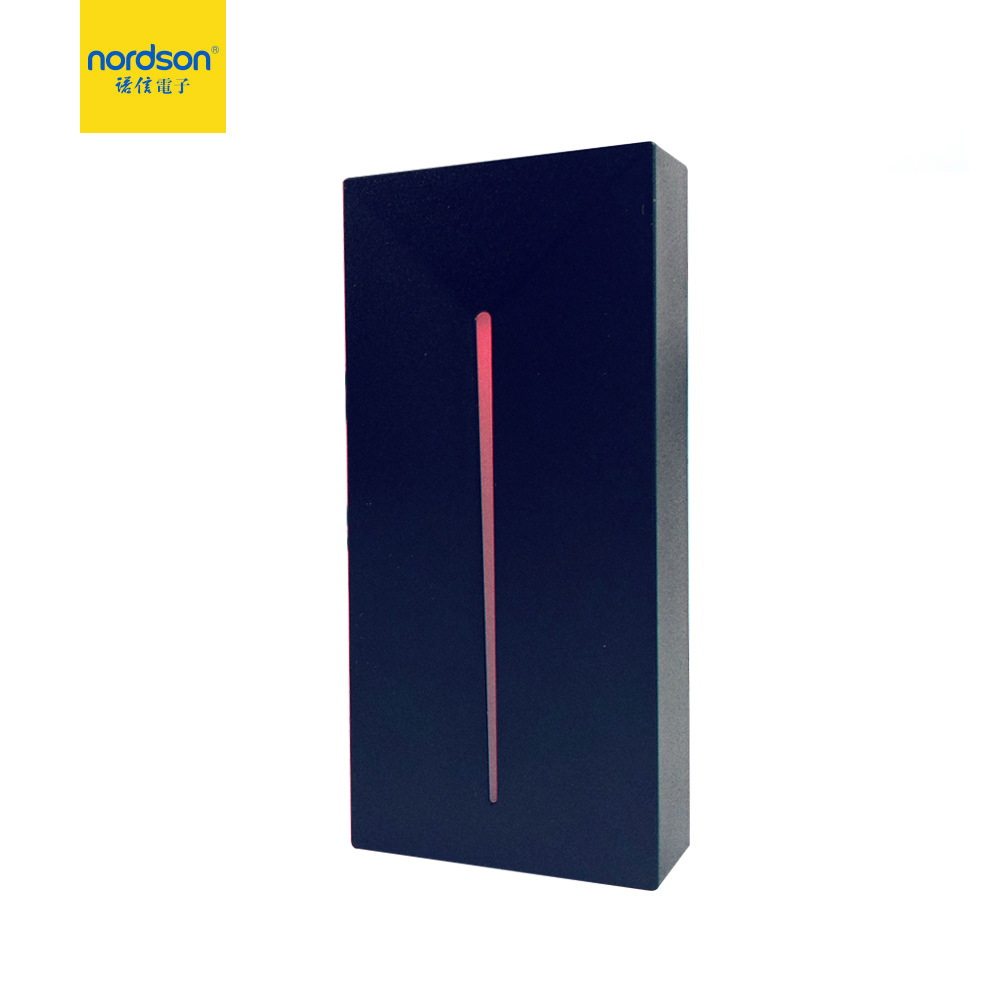

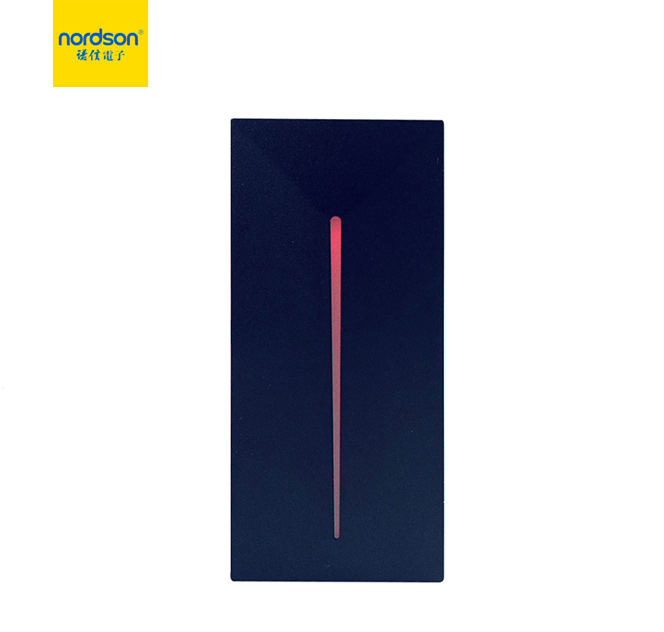

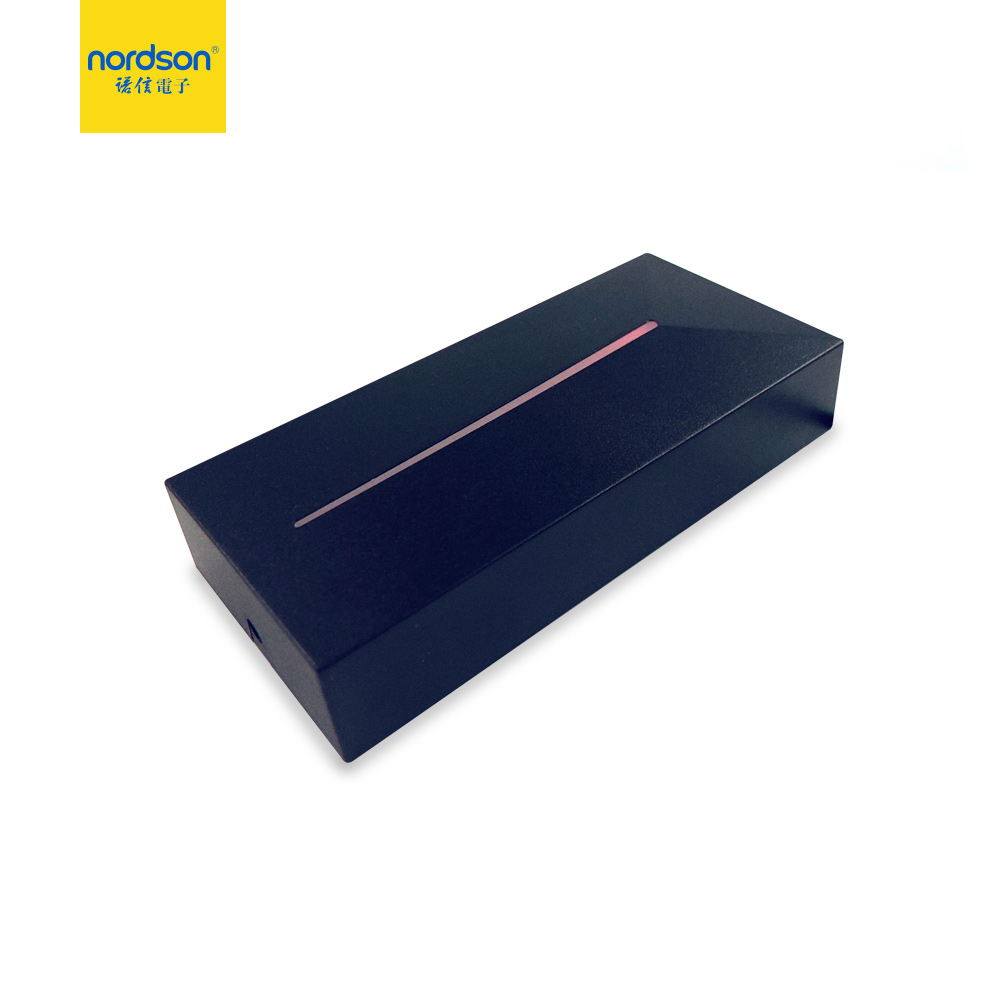

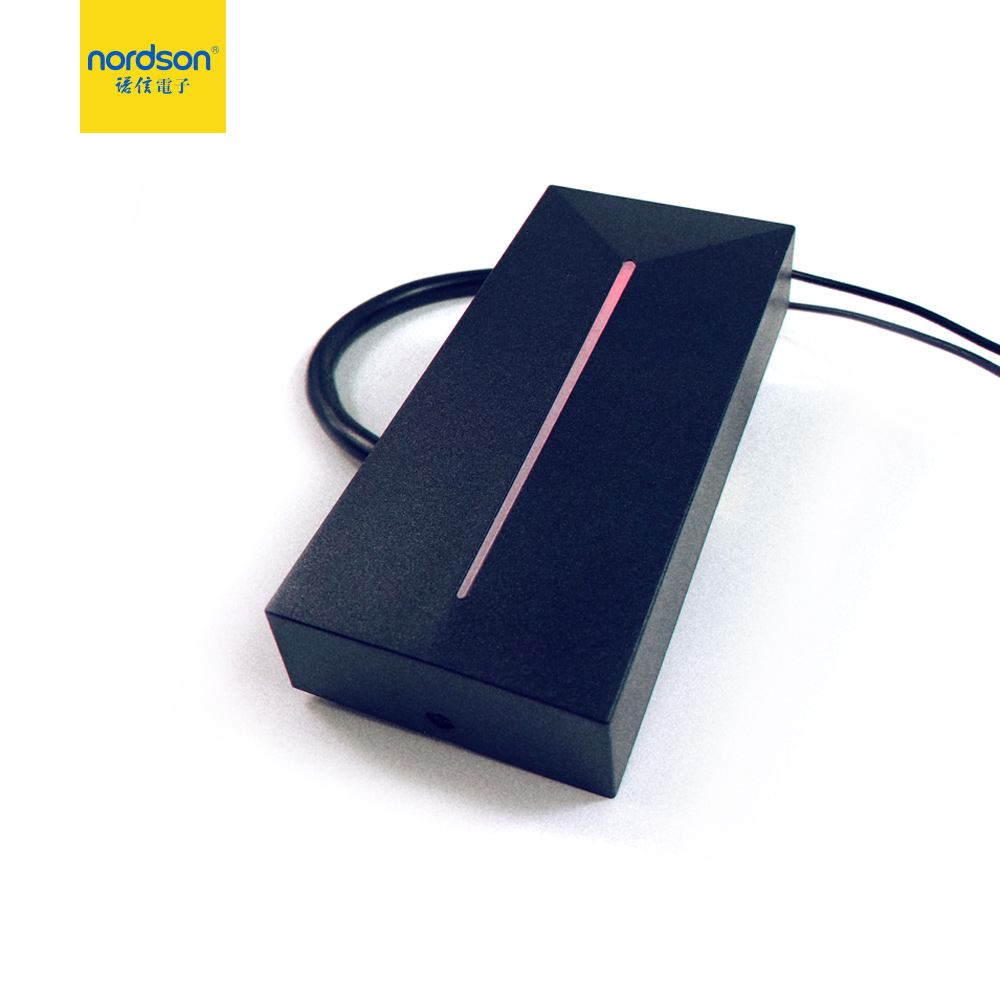

NK-RF203 Narrow frame waterproof ProximityCard Reader, with black elegant fashion designed appearance. The case takes ABSengineering plastics and professional surface treatment, which has waterproofIP65 level, fireproof and wear-resisting. So it can be installed not onlyindoor but also in inclement outside environment. It supports WG26/34 signaloutput connecting with access control panel which use EM/ID card(125KHz),IC/Mifare card (13.56MHz) and RS485/232 communication can be customized,multiple choice and personalized customization, high practicability suits fordifferent access control system device requirement. This card reader isdesigned with built-in red/green LED light, smooth linear. LED keeps red duringpower on, when swiping card LED turns green with fast reacting speed. Thisfeature make it possible to use in dark place and indicate working status,bringing excellent user experience. This card reader has high cost performanceand it's widely used in commercial industrial areas such as office, apartment,market, laboratory, warehouse, factory etc.NK-RF203 Narrow frame waterproofProximity Card Reader also called WG26/34 card reader, access control cardreader, proximity card reader.

1. ABS engineering plastics case, fireproof and wear-resisting, with strong IP68 waterproof performance.
2. WG26/34 Standard output.RS485/232 communication can be also customized for long range signal output and multiple device connection.
3. Support EM/ID card(125KHz),IC/Mifare card (13.56MHz) for options, to meet different requirement.
4. Red and green two color built-in LED designed, power on keeps red, when swipe card turns green. Direct visual and convenient operation.

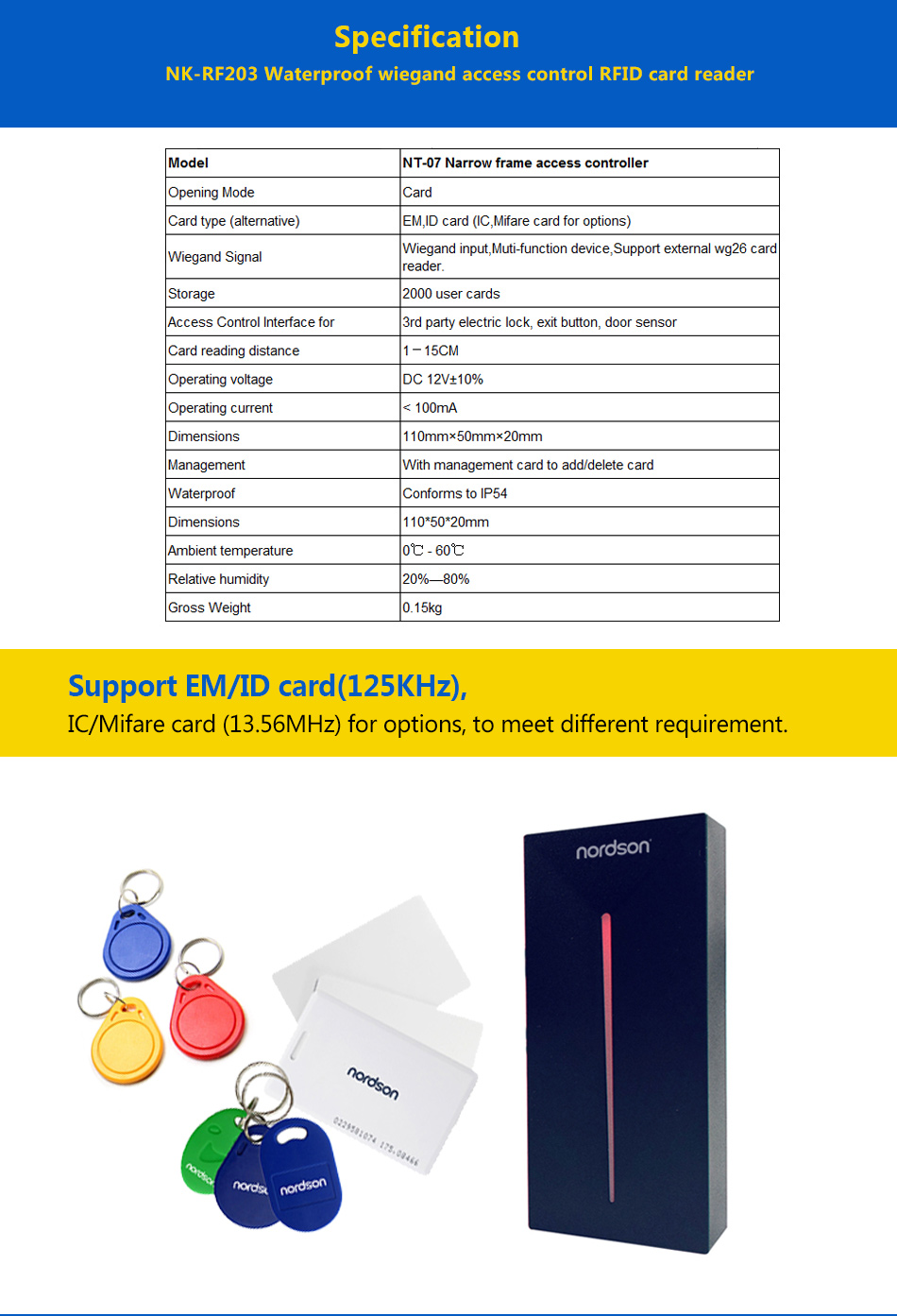

Model	NK-RF203 access control card reader
Read Range	5~15CM
Wiegand signal output port	26bit Wiegand(Default), 34bit, RS485/232 can be customized
Card type (alternative)	EM,ID card (IC,Mifare card for options)
LED	Built-in Red and Green LEDs
Material	ABS Case Material (Black Resin for Water-Proof Function)
Voltage	DC5~16V
Current	≤100mA
Read Time	<80ms
Waterproof	IP65
Operating Frequency	125KHz, 13.56MHz for options
Operating Temperature	-25℃～75℃
Dimension(LxWxH)	58*110*22mm
Gross Weight	0.1kg
