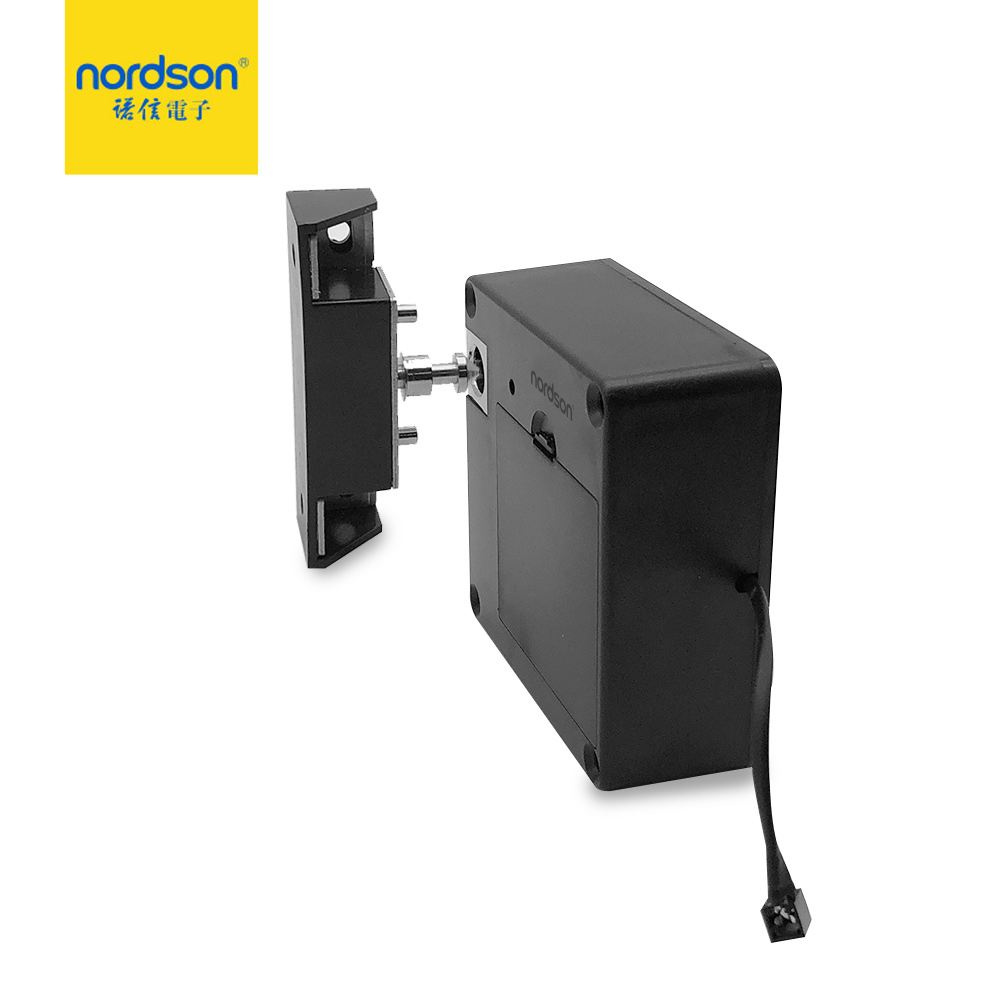

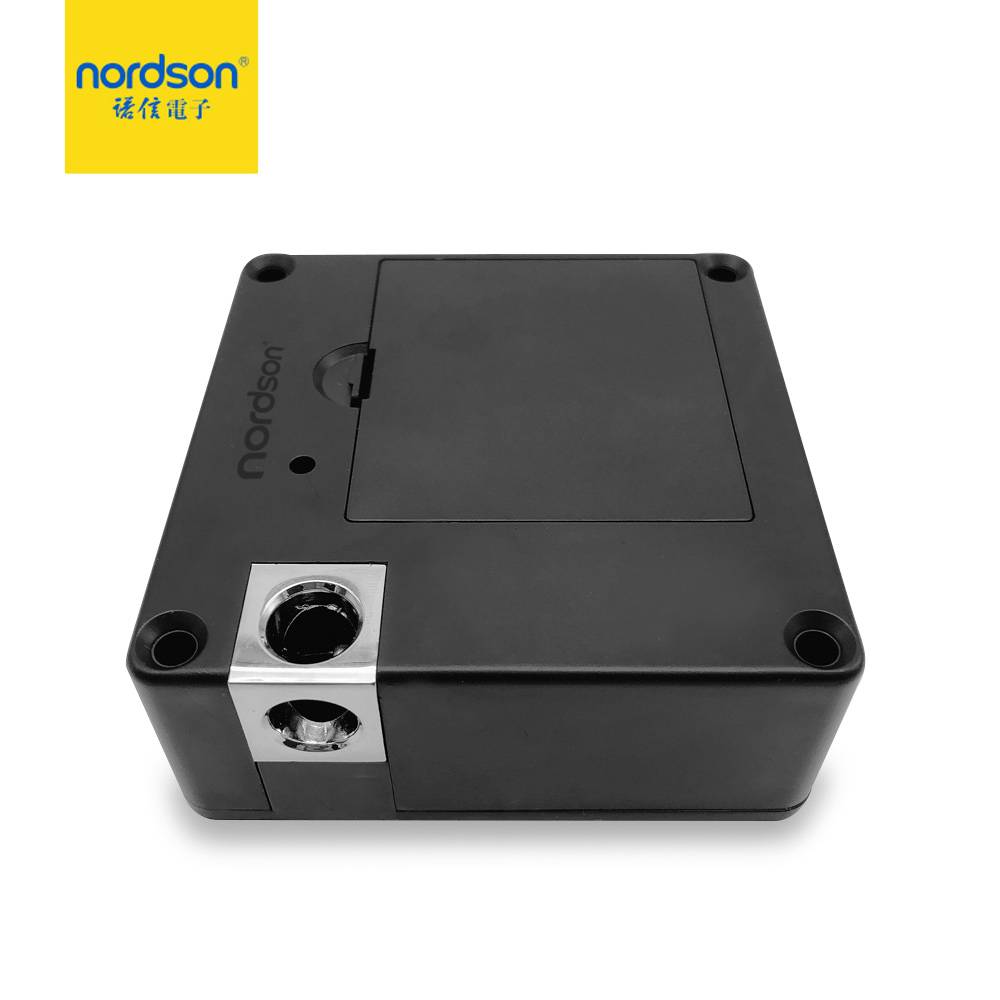

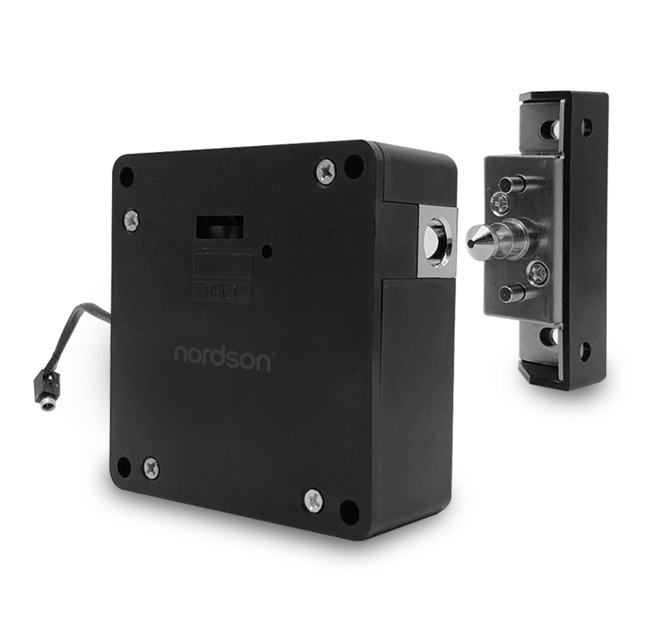

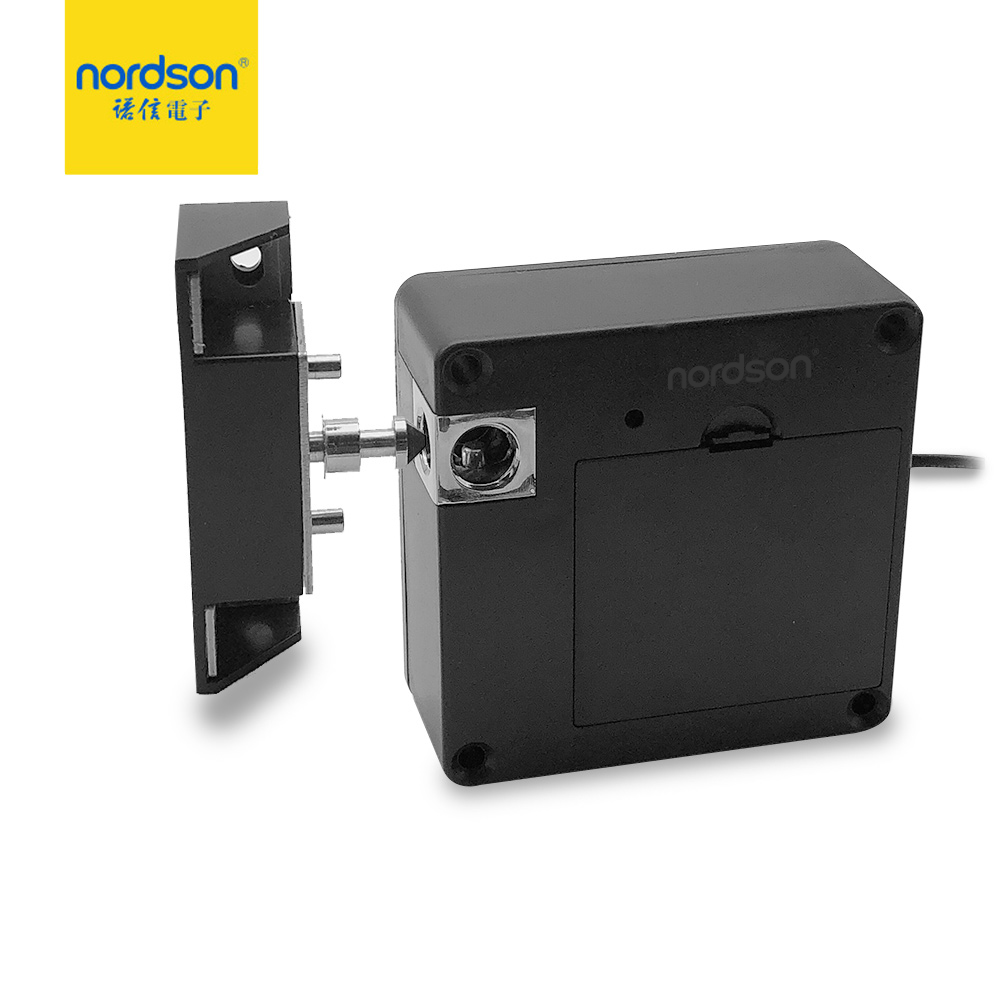

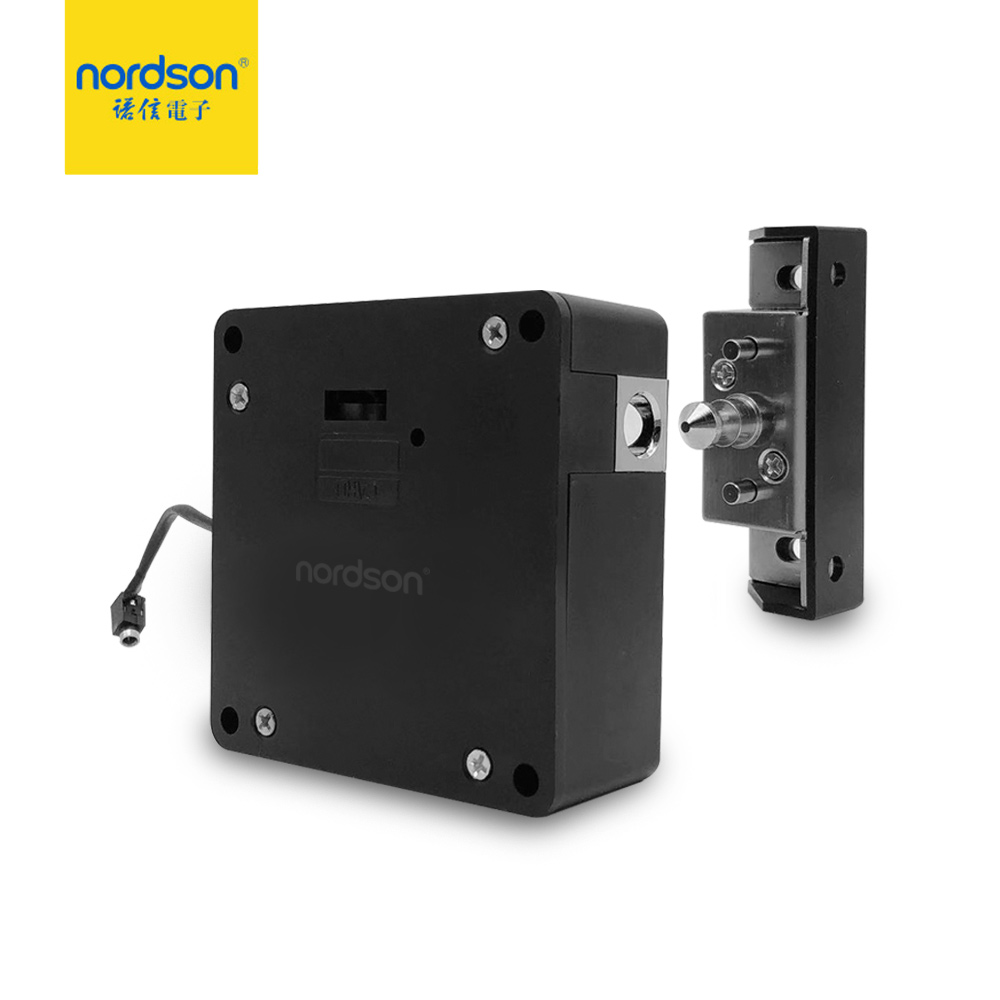

NI-16B-MF Intelligent hidden Double socket cabinet lock featuresa compact, surface-mounted design for all kinds of cabinets, drawers, boxs, lockers and other occasions whereit should be open frequently. etc. Special Double Socket makes itsuitable for side or top mounting capability. Battery poweredway avoids wiring trouble. This electric lock has low power alarm, when voltageis lower than 10% it will be working with sound and light on every opening.

1. Various installtion ways available (top，side etc), suit for different application.

2. Low voltage alarm: if voltage is lower than 10%, lock will prompt with sound and light on every opening.

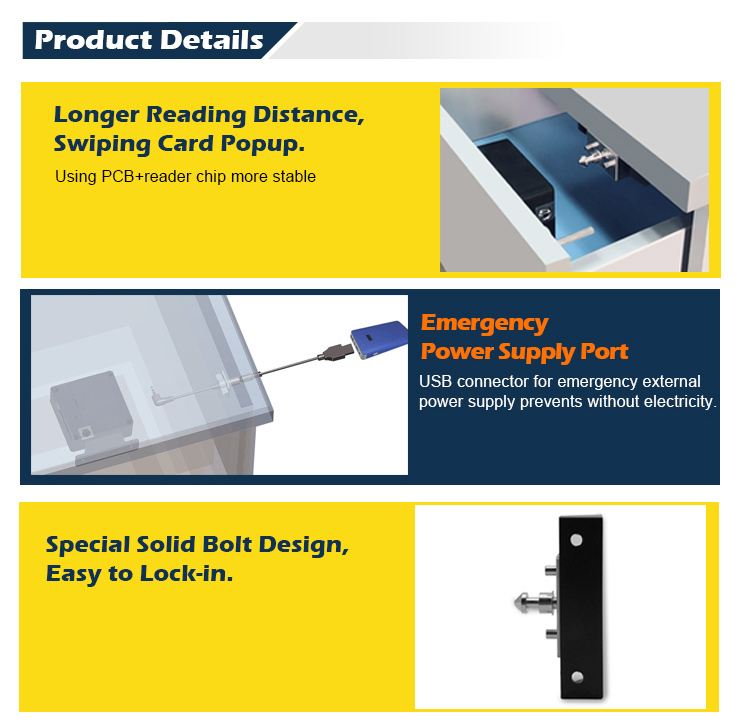

3. Micro USB connector for emergency power supply.

4. Different shapes of card available: wrist band, tag fob, rectangle card and so on.

Model	NI-16B-MF hidden double socket cabinet lock
Verification Method	Mifare /IC Card /13.56MHz

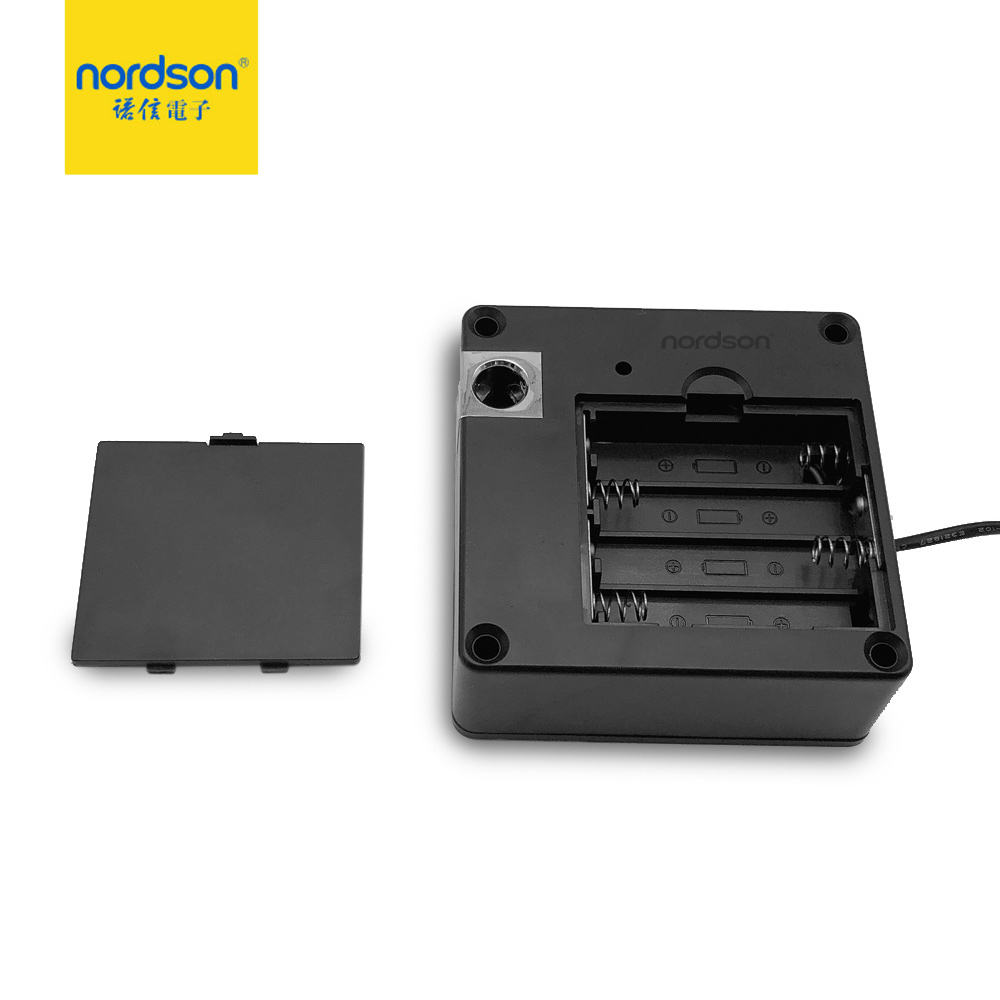

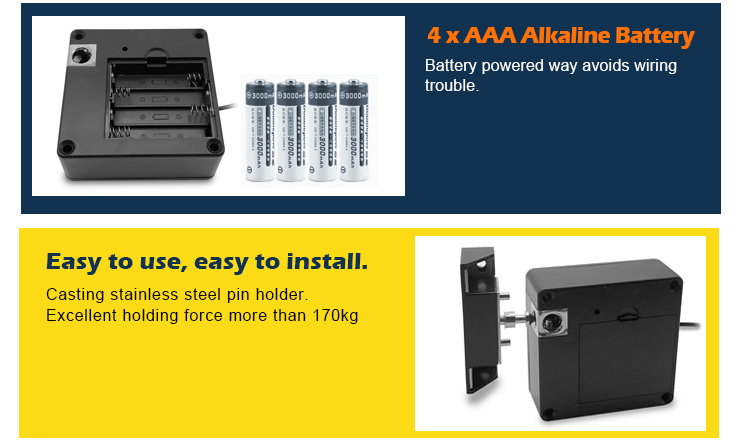

Power Supply	4*AAA Alkaline Battery
Low battery alarm	Voltage less than 10%
Pin Length	16mm

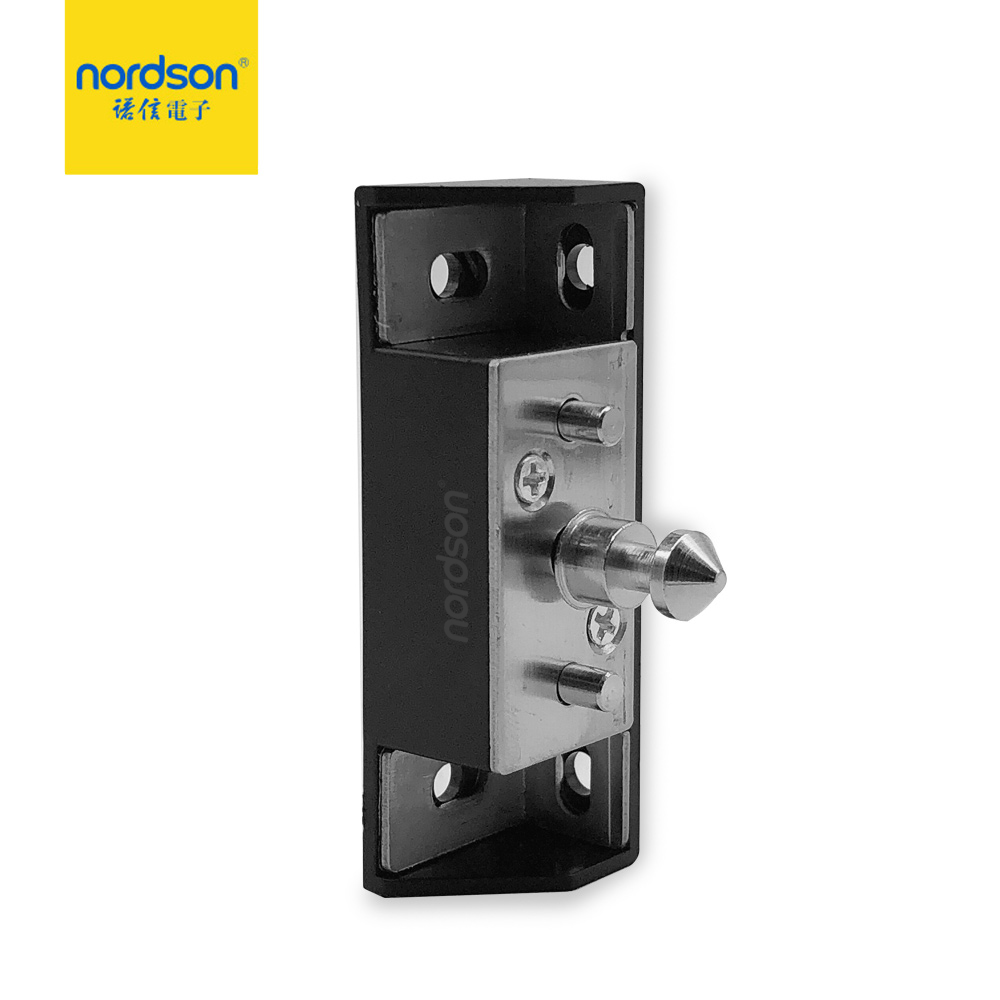

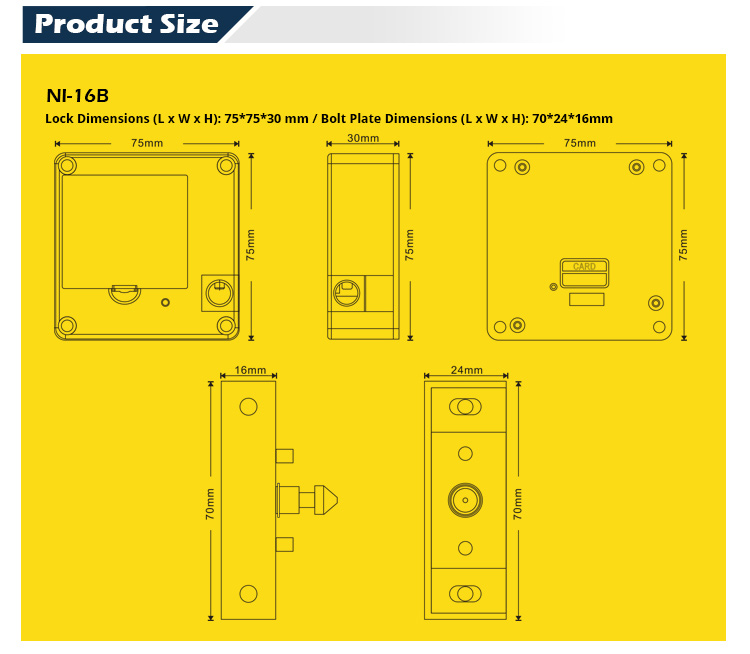

Bolt Plate Dimensions (L*W*H)	70*24*16mm
Lock Dimensions (L*W*H)	75*75*30mm
Holding force	More than 170kg

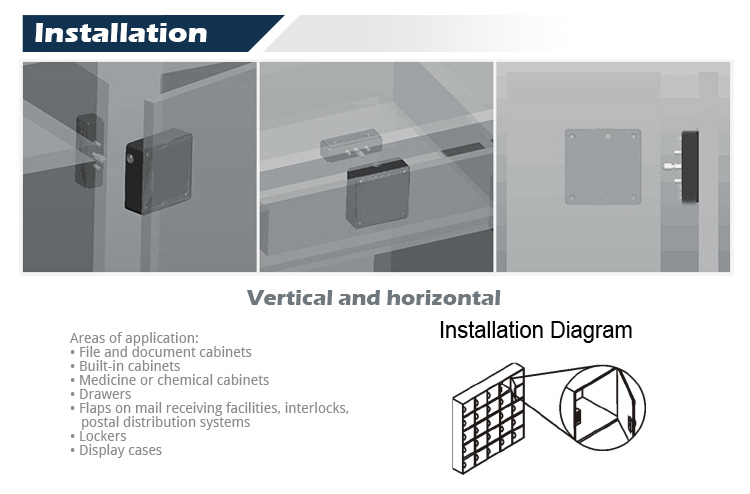

Installtion way	Side or top Sureface mounting
Emergency power supply port	USB
Weight	0.18kg
