The Redefinition of Access Control Card Reader

2020-06-01

Support HID/ID/IC Card+ Metal Waterproof + LED Indicator

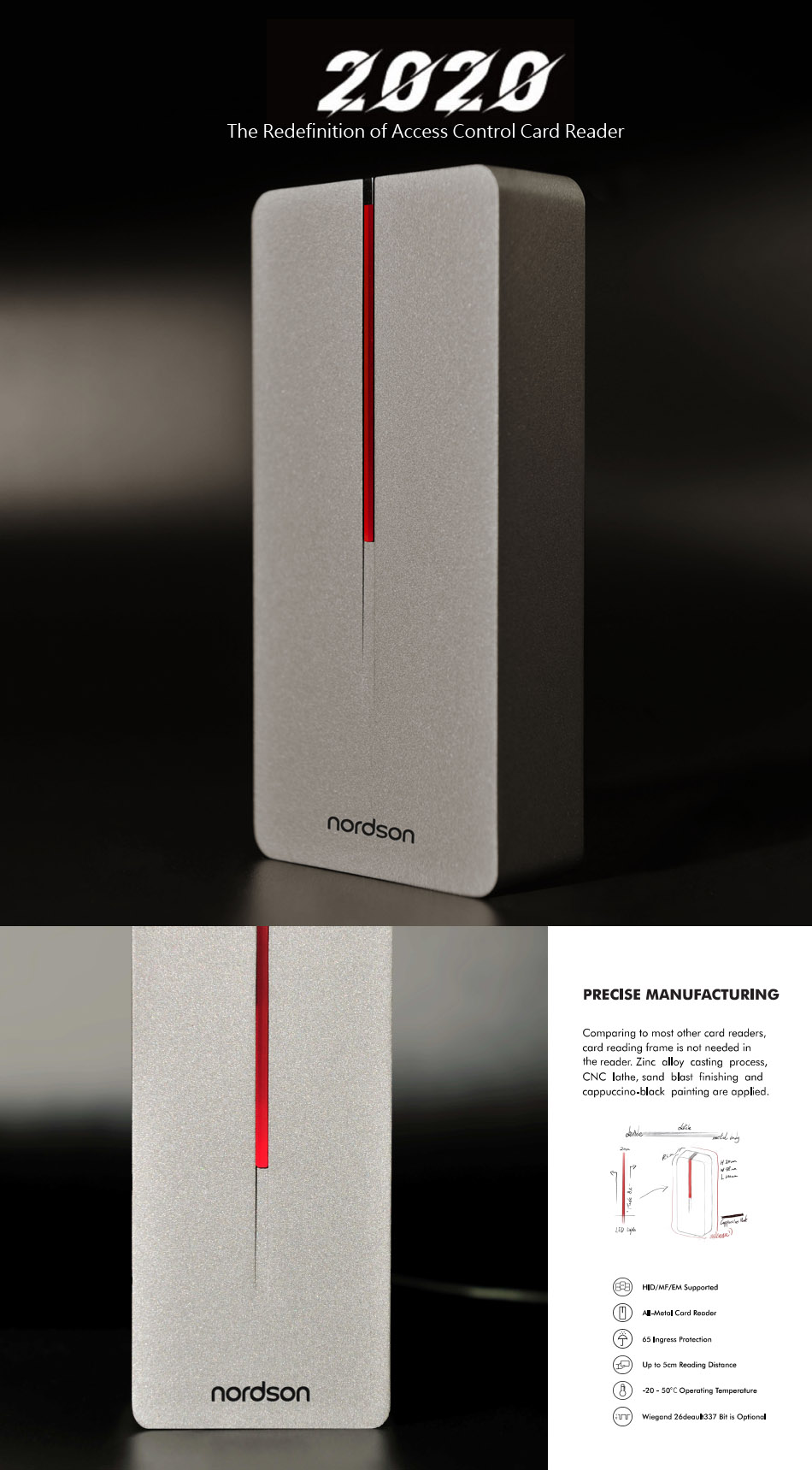

All metal access control card reader: PRO-RF1 launched now! This new style product perfectly combines both aesthetics and functionality with high durability.

ACCESS READER 2.jpg

The most striking part is all metal : Zinc alloy casting process, CNC lathe, sand blast finishing and cappuccino-black painting are applied. The sturdy shell is waterproof and dustproof with IP65 ! On the other hand, its working temperature is -20 - 50℃, so it can be mounted and used outdoor.

ACCESS READER 4.jpg

Compared with common plastics material access control card reader, metal card reader has signal interference but longer lifespan. Now you don’t need to worry about metal signal interference. In fact, PRO-RF1 reading part is a red line: LED indicator made form plastics. This elegant design is inspired by the story of Moses parting the red sea from Bible. When you swipe cards, it will shine.

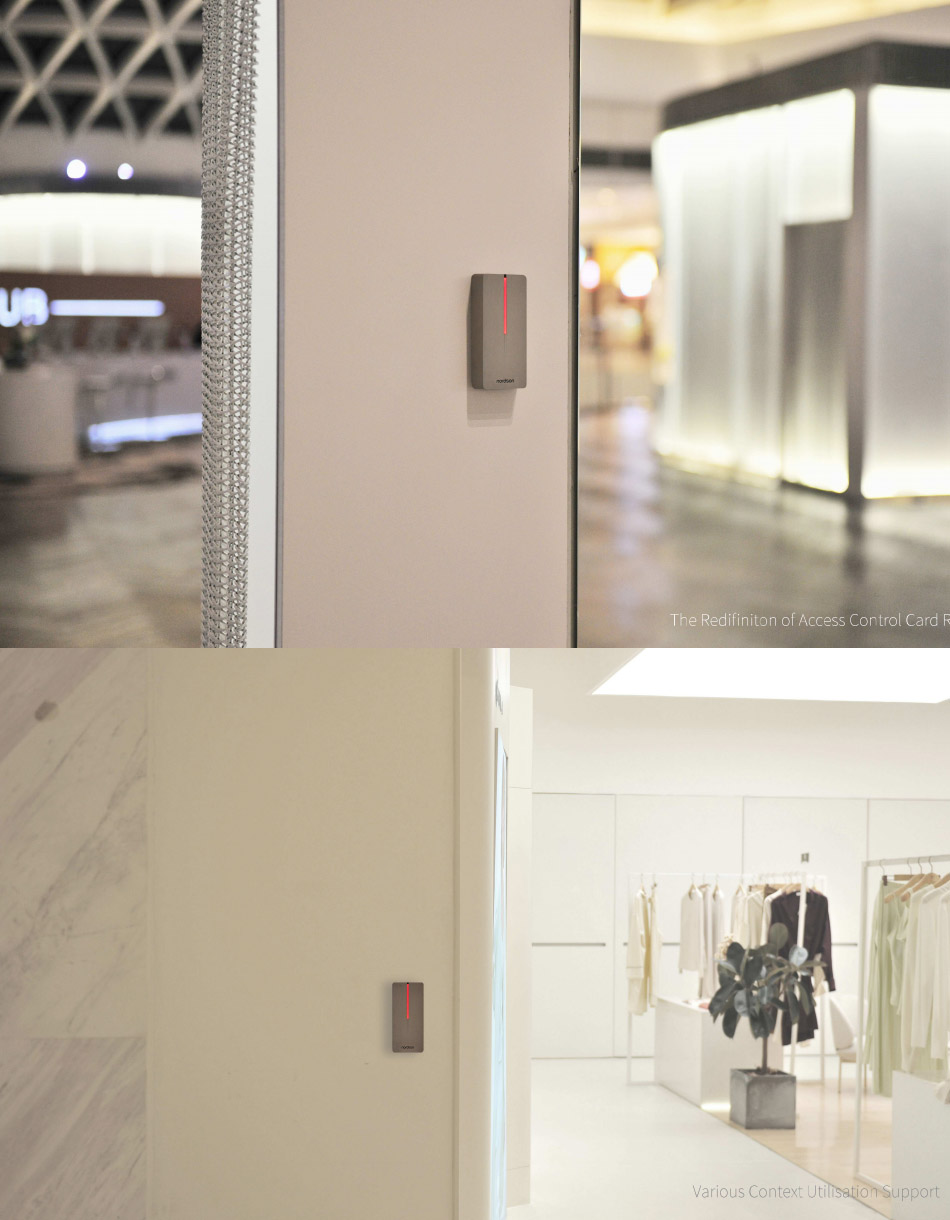

Besides, it has great function: The three-in-one card reader supports IC/Mifare, EM/ID, HID cards and Wiegand 26 signal. The reading range up to 3~10 cm. Metal access control card reader is widely applied in company, factory, logistics, hotel, hospital etc.

Model	PRO RF1
Body Material:	Zinc Alloy
Card types:	EM,HID Card(125Khz),IC Card ( include Mifare & CPU,13.56Mhz,ISO14443A)
Reading Range:	3-250px
Output Format:	Wiegand 26
Options	WG34/37bit Customization Available
Ingress Protection:	IP65
Input Voltage:	DC12V±10%
Quiescent Current:	≤35mA
Operating Temperature:	-20~95%
Operating Humidity:	0~95%
Dimension:	103×48×22mm

Get More http://www.chinanordson.com/metal-access-card-reader/hid-mifare-id-reader.html

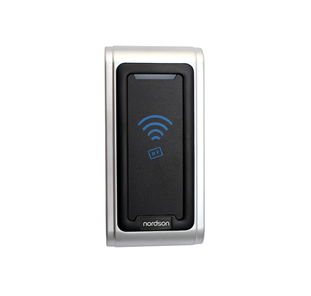

Model	NK-RF210 Metal RFID Card Reader
RFID Card Type	NK-RF210EM:EM-ID 125kHz NK-RF210MF:Mifare IC 13.56MHz
Standard Functions	Buzzer,Double color LED
Output Port	Wiegand 26(default)/WG34, RS485/232 can be customized)
Reading Time (Card)	≤300ms
Color	Zinc,Black
Power / Current	DC5~16V
Material	Metal
Current	≤100mA
Index of Protection	IP65
Ambient Temperature	-25℃～75℃
Reading Range	5~15CM
Size	1205618(mm)
Weight	0.52kg

Get More http://www.chinanordson.com/metal-access-card-reader/rfid-card-reader.html

Model	NK-RF220 Metal Outdoor Access Control Reader
RFID Card Type	NK-RF220EM:EM-ID 125kHz NK-RF220MF:Mifare IC 13.56MHz
Standard Functions	Buzzer,Double color LED
Output Port	Wiegand 26(default)/WG34, RS485/232 can be customized)
Reading Time (Card)	≤300ms
Color	Zinc,Black
Power / Current	DC5~16V
Material	Metal
Current	≤100mA
Index of Protection	IP65
Ambient Temperature	-25℃～75℃
Reading Range	5~15CM
Size	1208025(mm)
Weight	0.54kg

Get More http://www.chinanordson.com/metal-access-card-reader/outdoor-access-control-reader.html
