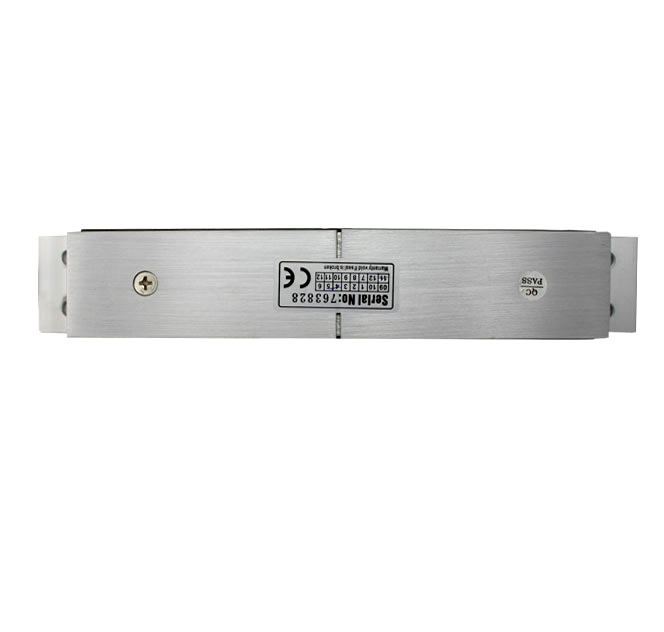

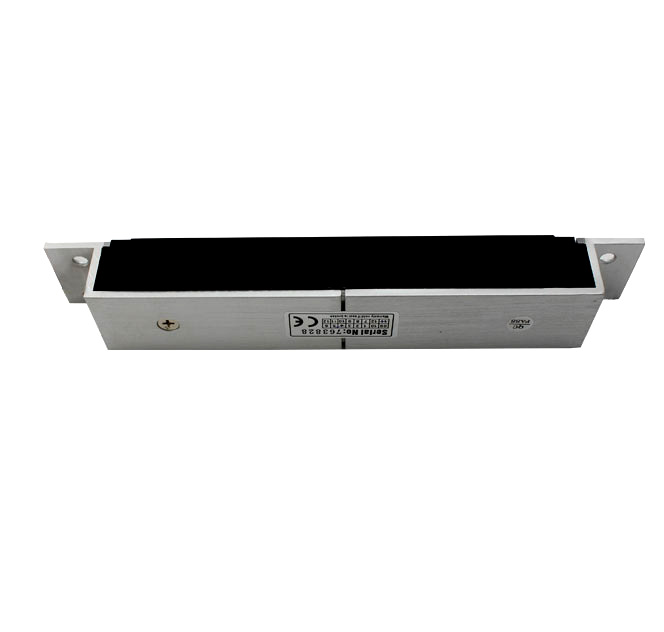

NE-280M Electromagnetic Door Locks

Without door position detection output
Voltage:DC12V or DC24V
Holding Force: 280kg(600Lbs)
Lock Size: 230L*38W*26H(mm)

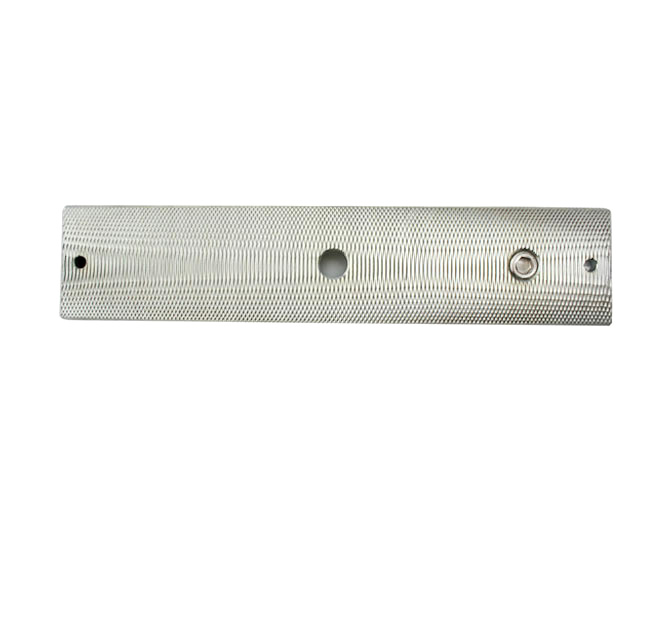

Armature Plate:180L*36W*11H(mm)
Current Draw: 12V/480mA 24V/240mA
Suitable for fire exit door or out-swing door.
Weight: 2kg

NE-280M,single door embedded magnetic lock,specially used to normal glass door,wooden door,metaldoor,fire doors, small doors.Hoisting design,saves time and power when Lifting installation.Inwarddoor,frameless glass door,narrow door all have a complete set of accessories.Special Anti-residual magnetic design makes automatic access control safer and more convenient.
1.Passed 600lbs super static linear tension tests.
2.Anti-residual magnetic design,keep constant tension.
3.Built-in reverse current protection device (MOV),performance stability ,safety coefficient is higher.
4.Wear materials, durable.
5.Electromagnetic suction work completely, there is nomechanical failure.
6.Shell with high strength alloy material, anodehardening treatment.
7.lock body with double insulation treatment.
8.Throughthe European CE and ROHS, MA certification in China.

Holding Force	280kg (600Lbs)
Lock Status Sensors	NO
Rated Operating Voltage	12/24VDC
Current consumption	12V/500mA 24V/250mA
Optional Functions	Lock Status Sensors ,Relock Delay Timer,Buzzer
Surface finish for magnet	Zinc plated
Surface finish for armature plate	Zinc plated
Ambient temperature in °C	-10～+55℃(14-131F)
Suitable for	Wooden & Aluminum & Glass & Fireproof &Metal
Magnets Dimensions(L x W x D)	250Lx48Wx25H(mm)
Armature Plate Dimensions(L x W x D)	180L38W11H(mm)
Weight in kg	2.0kg
CE-mark for building	Yes
Rohs-mark for building	Yes
