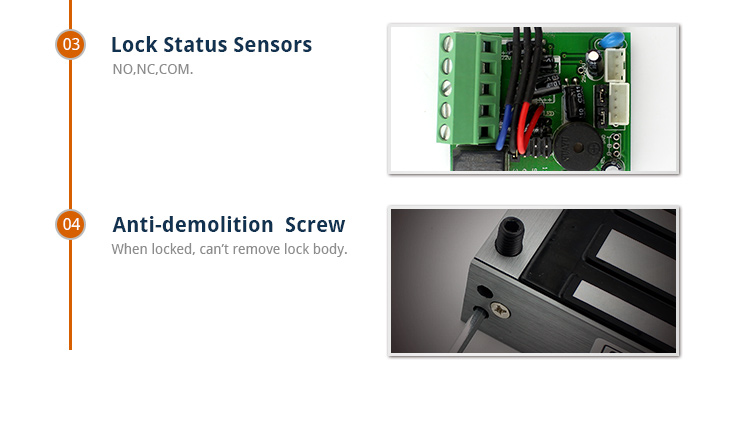

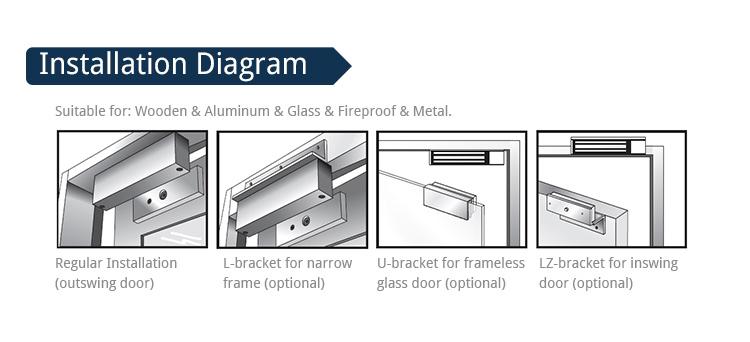

NE-280ST,single door magnetic lock,has doorstatus signal output and time delay,also with LED indicates, ,specially used tonormal glass door,wooden door,metal door,fire doors, small doors,the mostwidely used.Hoisting design,saves time and power when installation.Inwarddoor,frameless glass door,narrow door all have a complete set of accessories.Special Anti-residual magnetic design makes automatic access control safer and more convenient.
Home >
Products >
Electric Locking Devices >
Magnetic Lock 600Lbs >
NE-280ST Door Security Locks

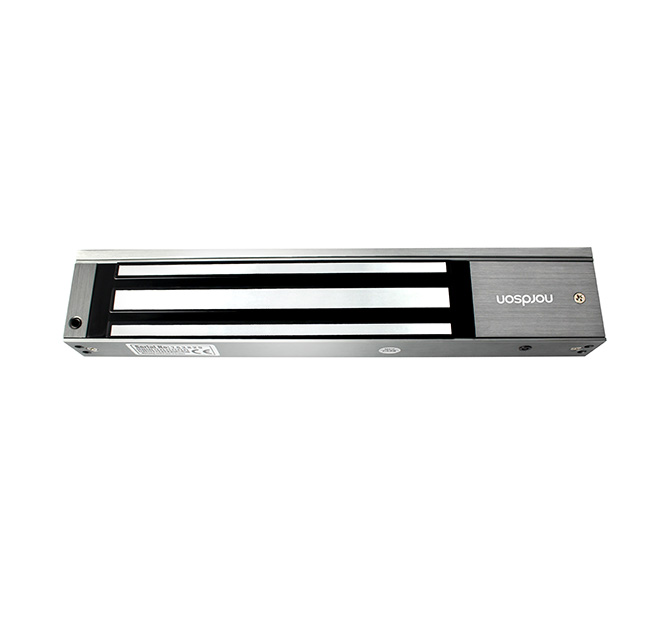

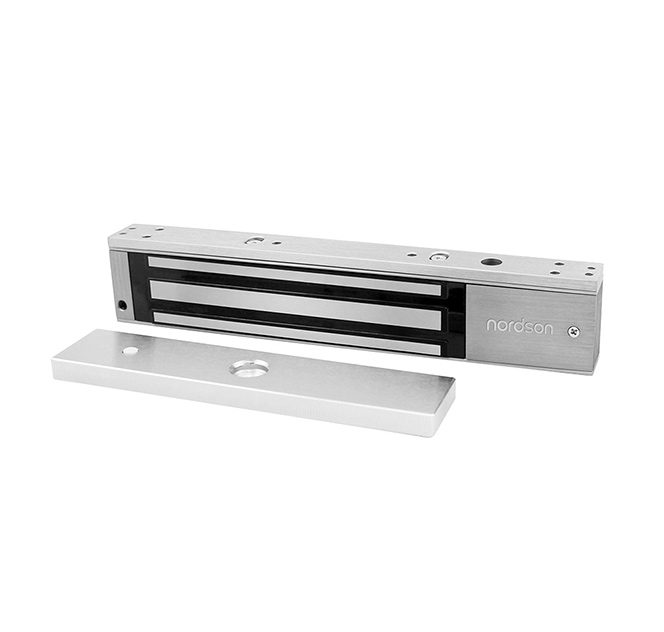

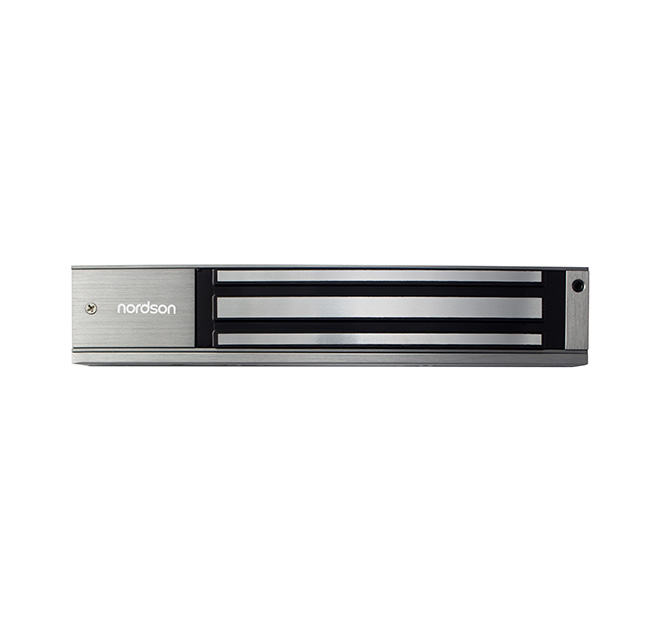

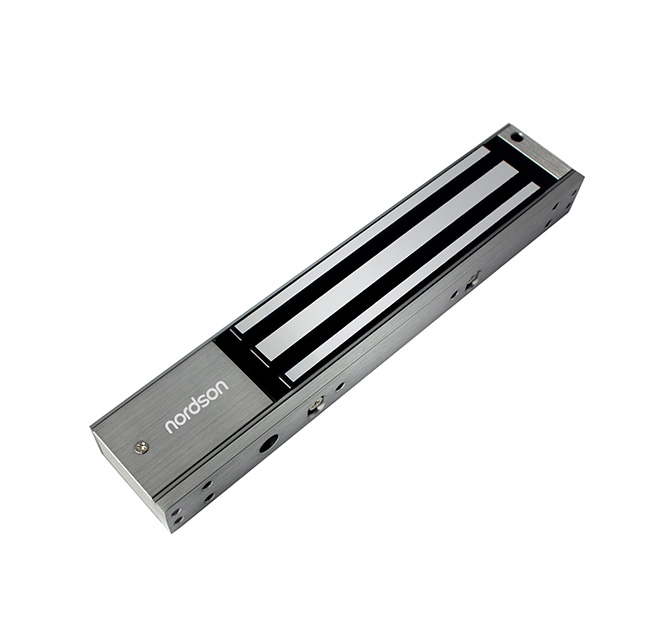

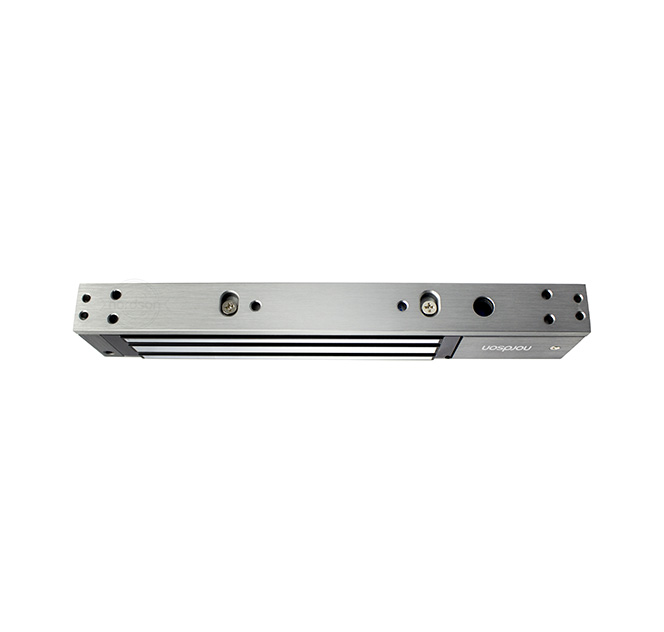

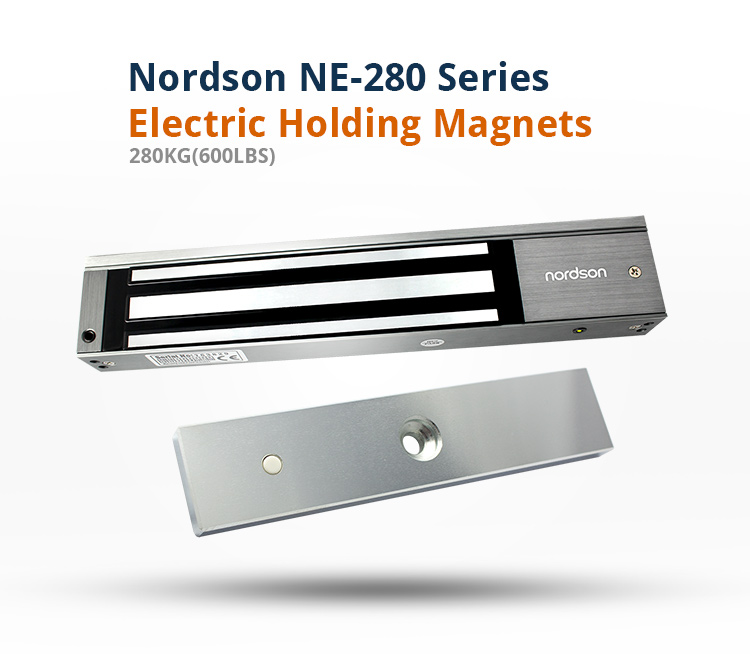

NE-280ST Door Security Locks
With delay and signal output

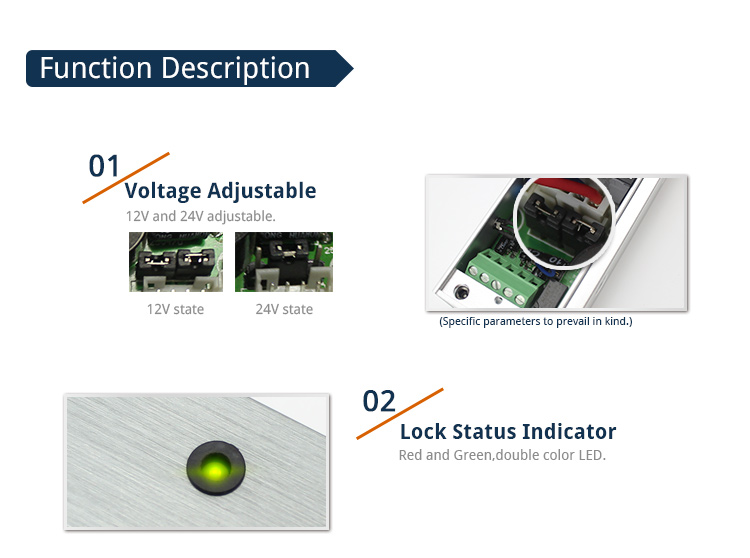

Voltage:DC12V or DC24V
Waterproof IP65 Customization Available

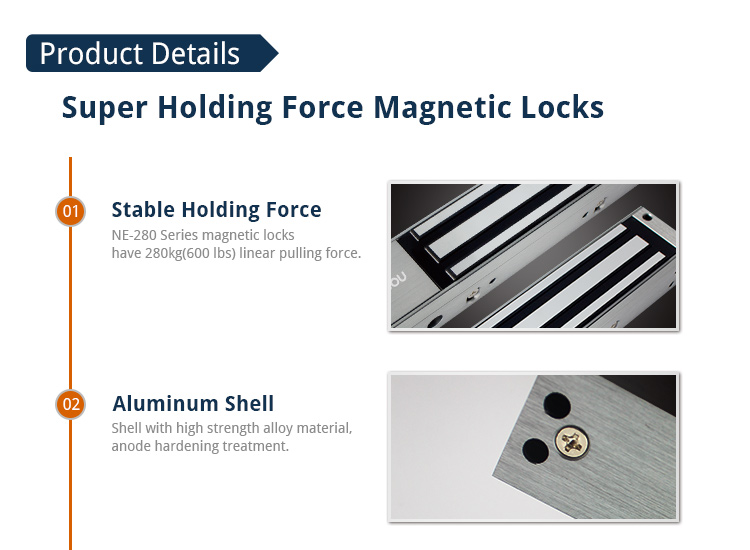

Holding Force: 280kg (600Lbs)

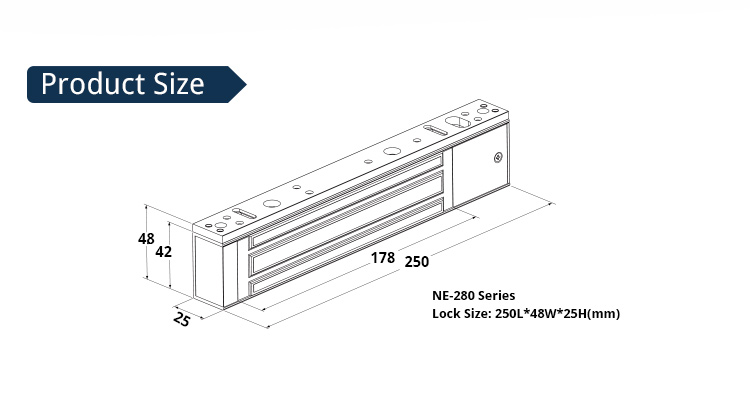

Lock Size: 250L*48W*25H(mm)

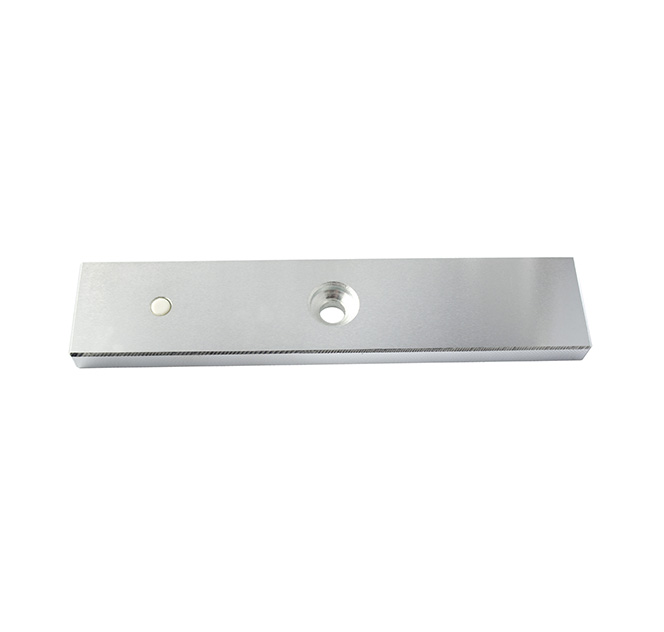

Armature Plate:180L*38W*11H(mm)
Current Draw: 12V/500mA 24V/250mA
LED indicates the door is unlock,Green indicates the door is lock

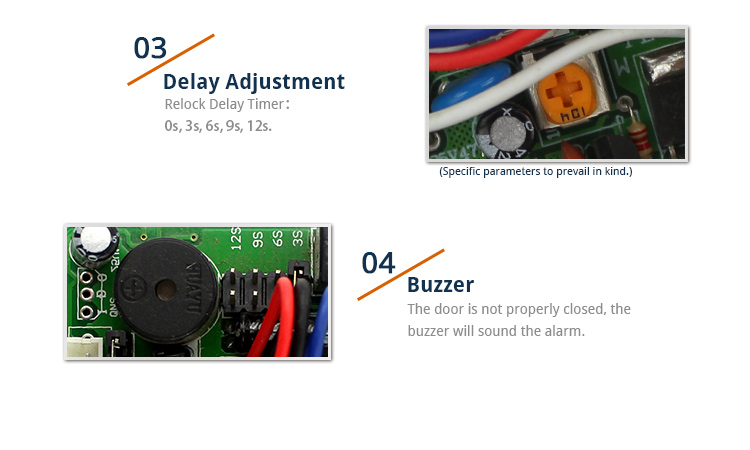

Time: 0/3/6/9sec
No residual magnetism, no mechanical damage 90 degrees open for all kinds of doors with frame
Weight: 2.0kg
