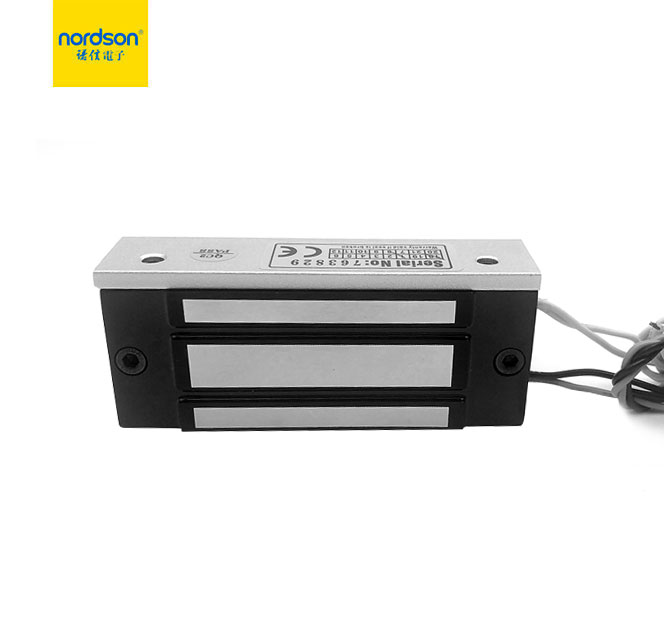

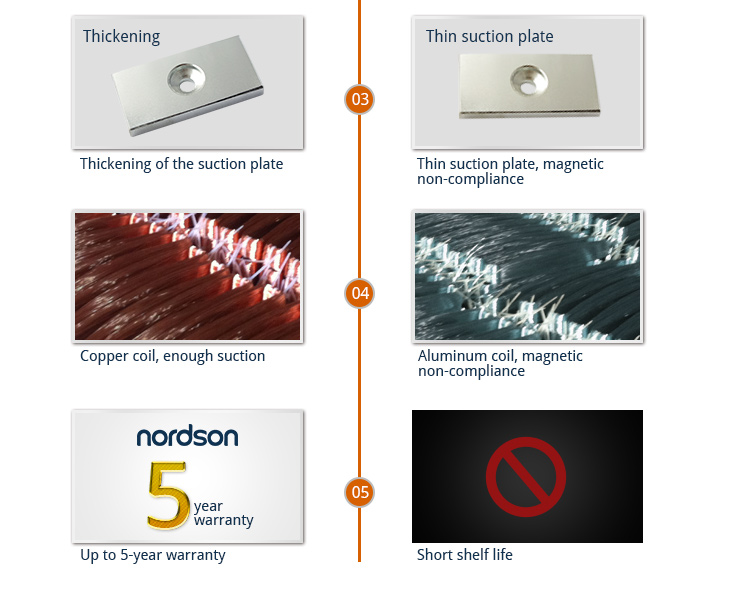

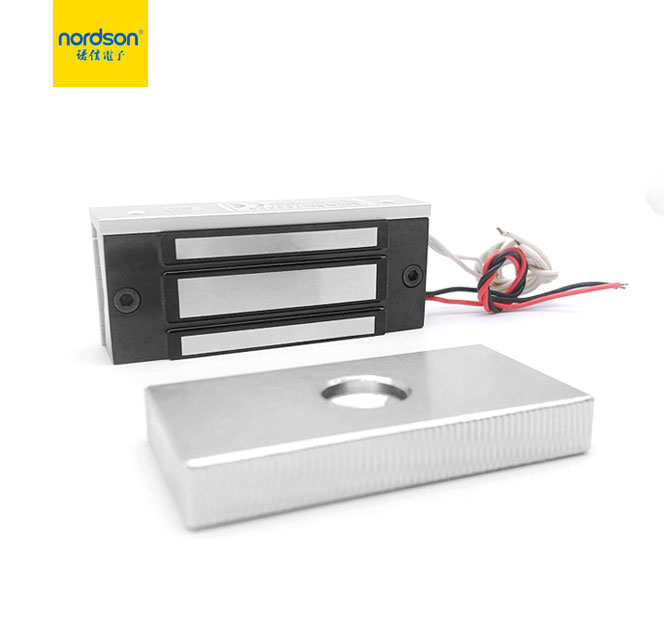

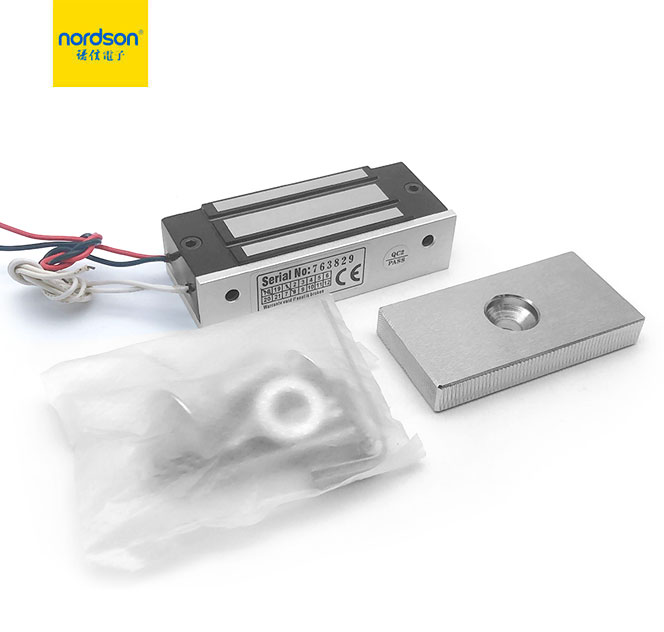

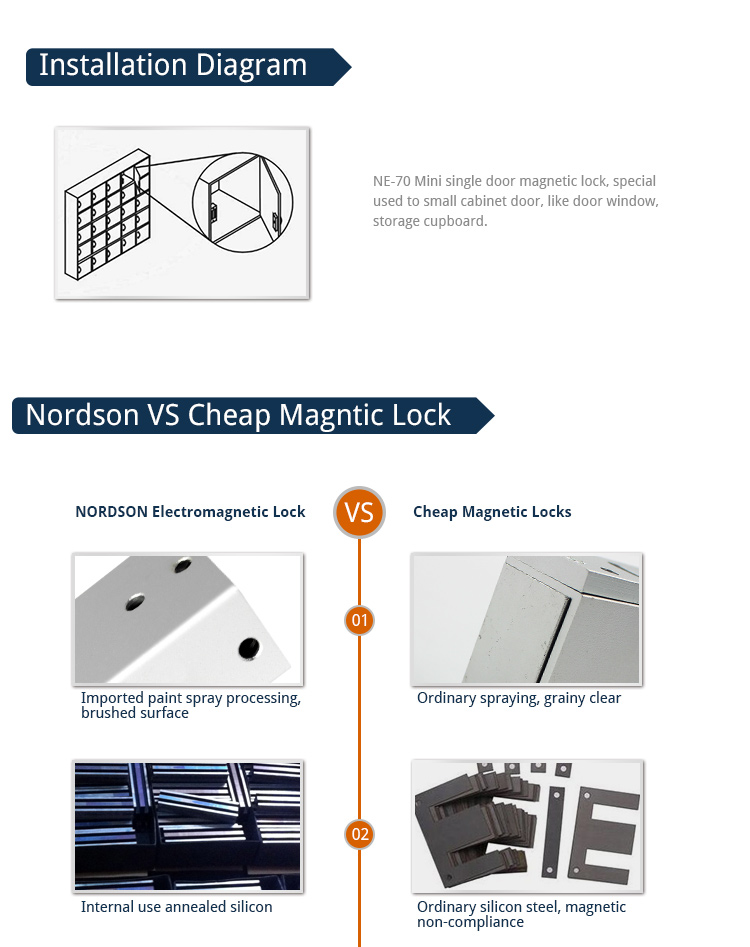

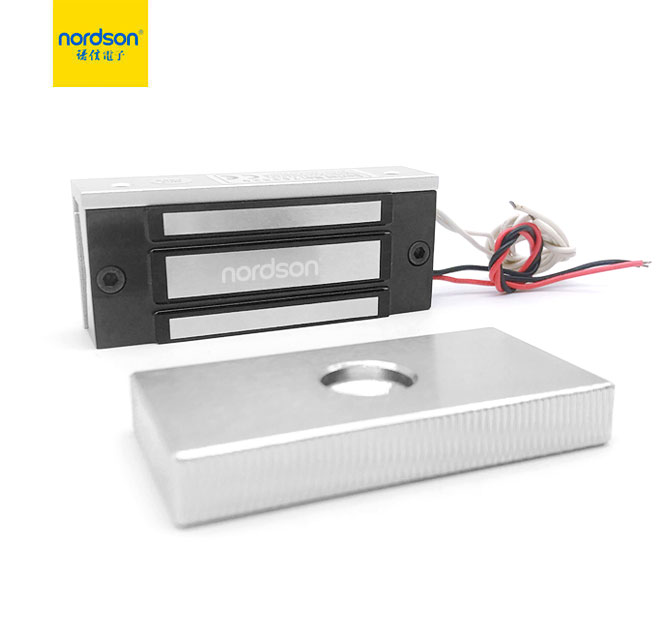

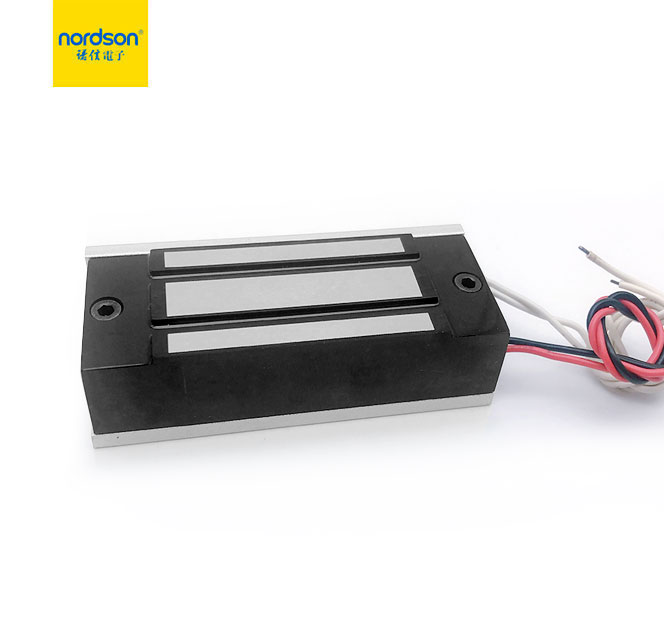

NE-70 Mini magnetic lock series use high strength aluminum alloy to make shell, lock body has double insulation treatment with anode hardening reinforce treatment. The suction plate is thickening and has stable holding force, NE-70 can bear 120Lbs tension,NE-80 can bear 140 Lbs tension. Our magnetic lock use imported material with surface treatment , so the lock boy is smooth and delicate. Internal is made of annealed silicon and copper coil so that can keep strong magnetic force. Mini single door magnetic lock series are power to lock type, also support lock or door status sensors customization, specially suit for small size cabinet door such as shop door window, locker cabinet door. Hoisted design saves time and energy when make installation. High quality lock has up to 5-year warranty. NE-70&NE-80 magnetic lock series are also called electromagnetic lock, electronics cabinets lock and electric lock.

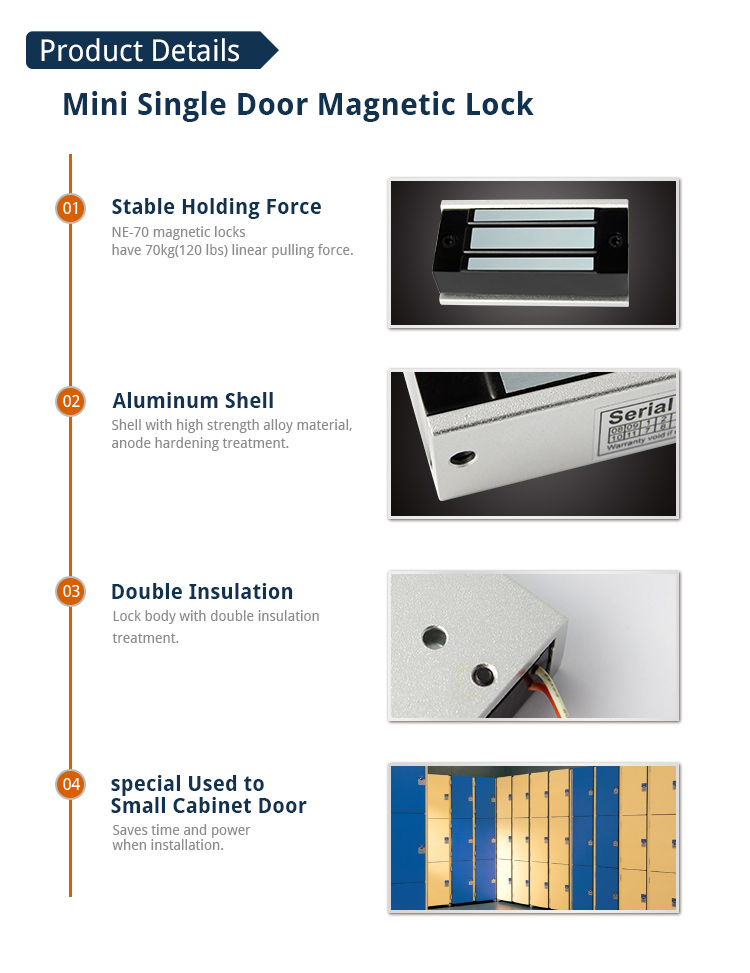

1.Passed 120lbs super static linear tension tests.
2.Anti-residual magnetic design,Anti-wear material made.
3.Built-in reverse current protection device (MOV), performance stability ,safety coefficient is higher.
4.Electromagnetic suction work completely, there is no mechanical failure.
5.Shell with high strength alloy material, anode hardening treatment.
6.lock body with double insulation treatment.
7.Through the European CE and ROHS, MA certification in China.

Model	NE-70 Electromagnetic Lock	NE-70S Electromagnetic Lock
Type	Fail-safe: Power to lock	Fail-safe: Power to lock
Holding Force	70kg(120Lbs)	70kg(120Lbs)
Signal Output	Null	Lock Status Sensors
Rated Operating Voltage	12VDC	12VDC
Current consumption	12V/120mA	12V/120mA
Optional Functions	Lock or Door Status Sensors,24V DC/AC	Lock or Door Status Sensors,24V DC/AC
Surface finish for magnet	Zinc plated	Zinc plated
Surface finish for armature plate	Zinc plated	Zinc plated
Ambient temperature in °C	-10～+55℃(14-131F)	-10～+55℃(14-131F)
Suitable for	Drawer, Door, Cabinet Door, Electronic Locker,File Cabinet ,Disply Cabinet,Furniture lock	Drawer, Door, Cabinet Door, Electronic Locker,File Cabinet ,Disply Cabinet,Furniture lock

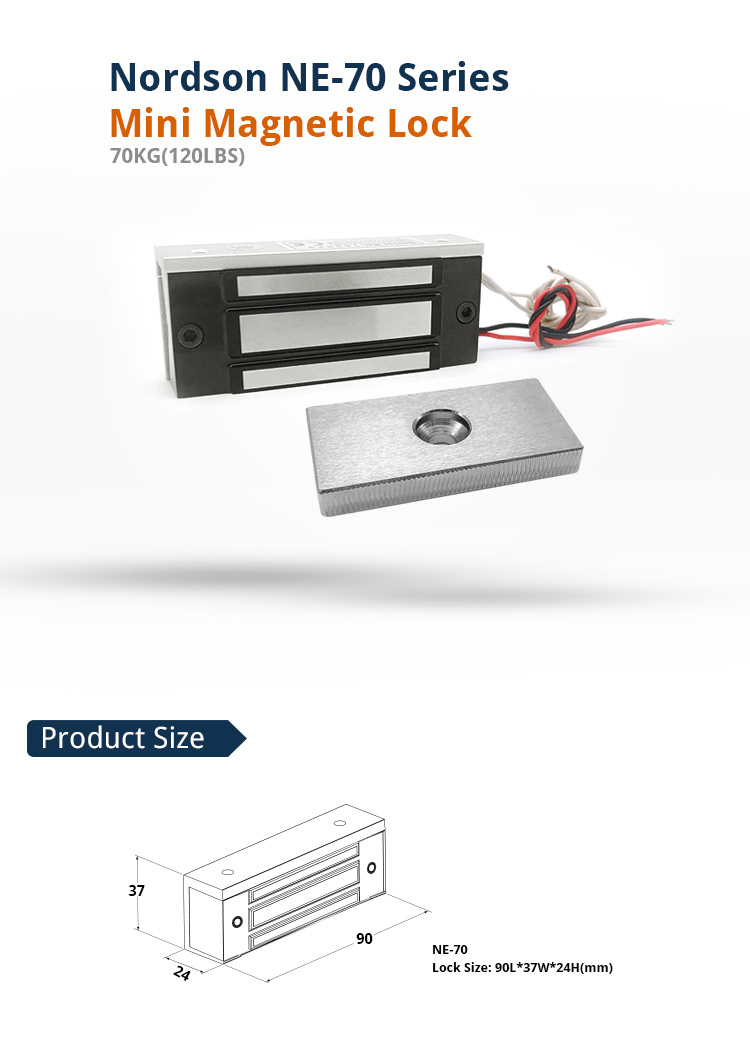

Magnets Dimensions(L x W x D)	90L*32.5W*19.5H(mm)	90L*37W*24H(mm)

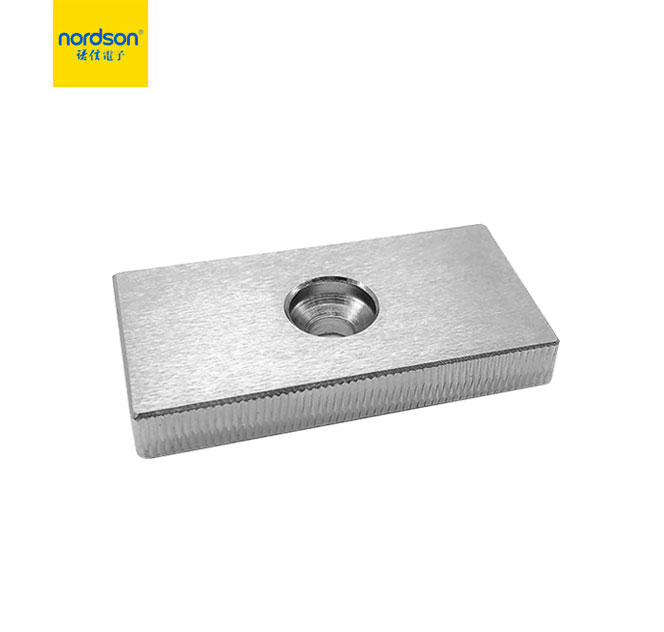

Armature Plate Dimensions(L x W x D)	76L*38W*11.5H(mm)	76L*38W*11.5H(mm)
Weight in kg	0.55kg	0.55kg
CE-mark for building	Yes	Yes
Rohs-mark for building	Yes	Yes
