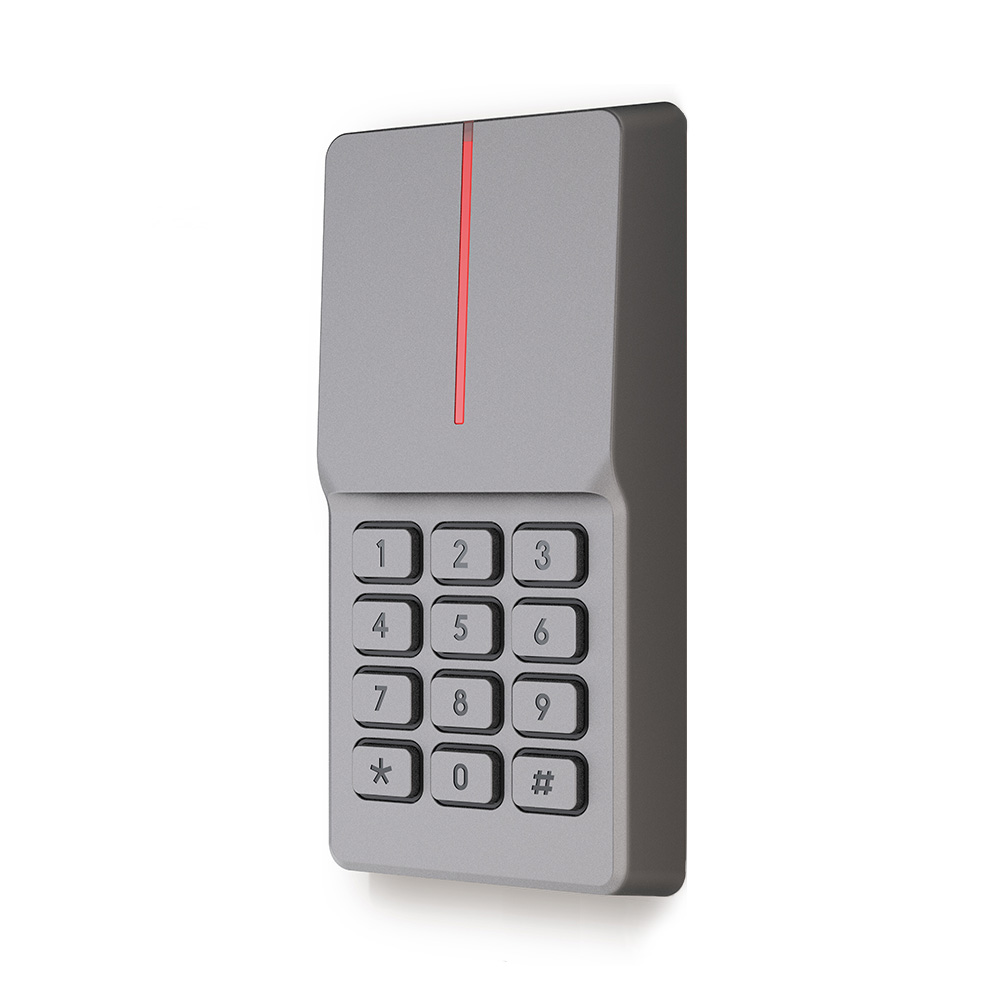

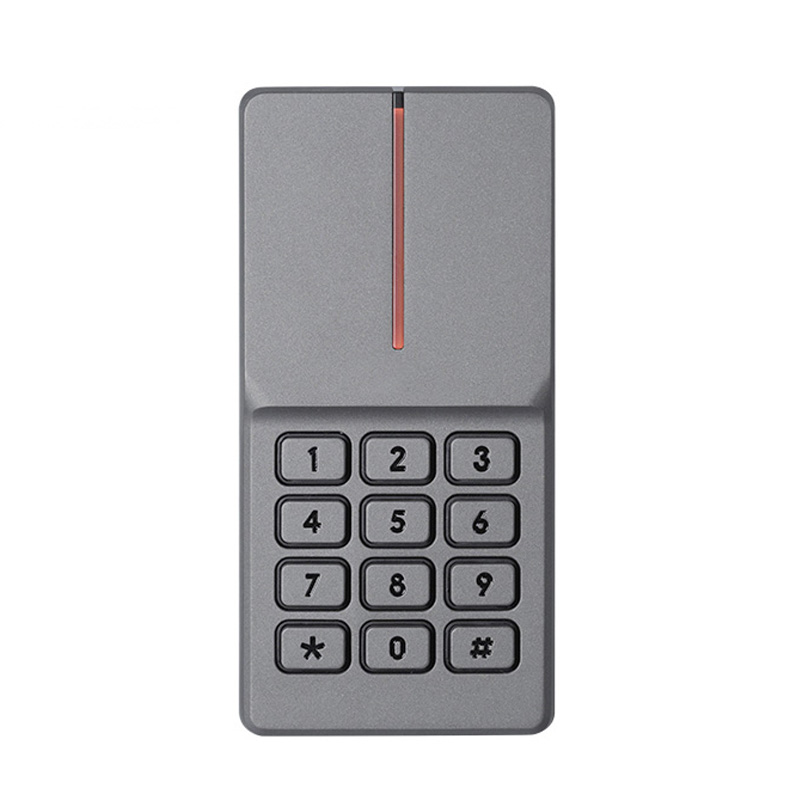

Dual Frequency (EM/HID/Mifare/NFC) Access Control or Reader

Pro-K2 adopts the shape of anti-metal shield patent technology, realize to control one door, and can be connected with external card reader to realize the special functions such as anti-passback through wiegand wire. It can directly drive electric lock, alarm, doorbell, and external exit button and magnetic door switch. It can read different kinds of contactless cards such as EM, HID, NFC,Mifare and CPU at the same time. 2000 user capacity, each user have a card and a password. In addition, the product can also set 1 administrator password, 1 adding card, 1 delete card, 1 anti-stress card and 1 anti-stress password, easy operation and more safe for users.

1.Adopt the non-electromagnetic shielding metal access control patent technology.

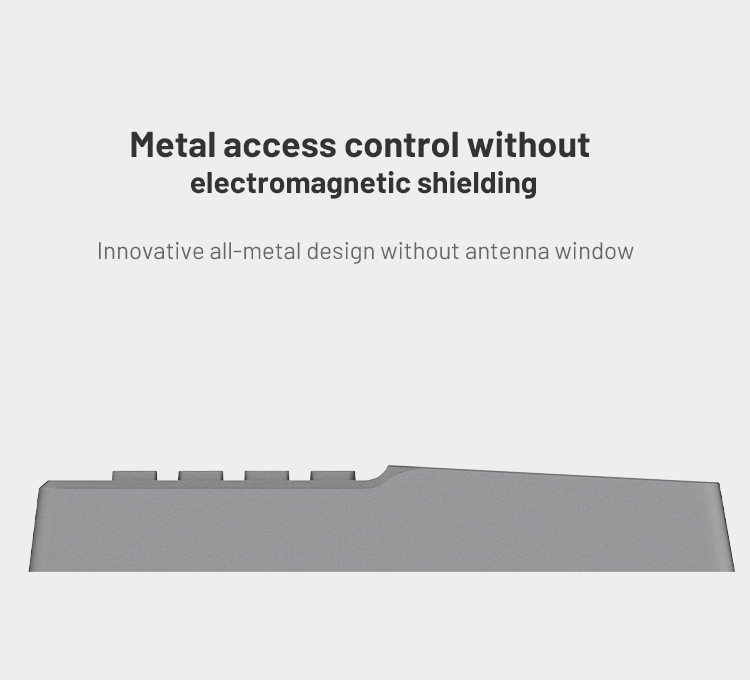

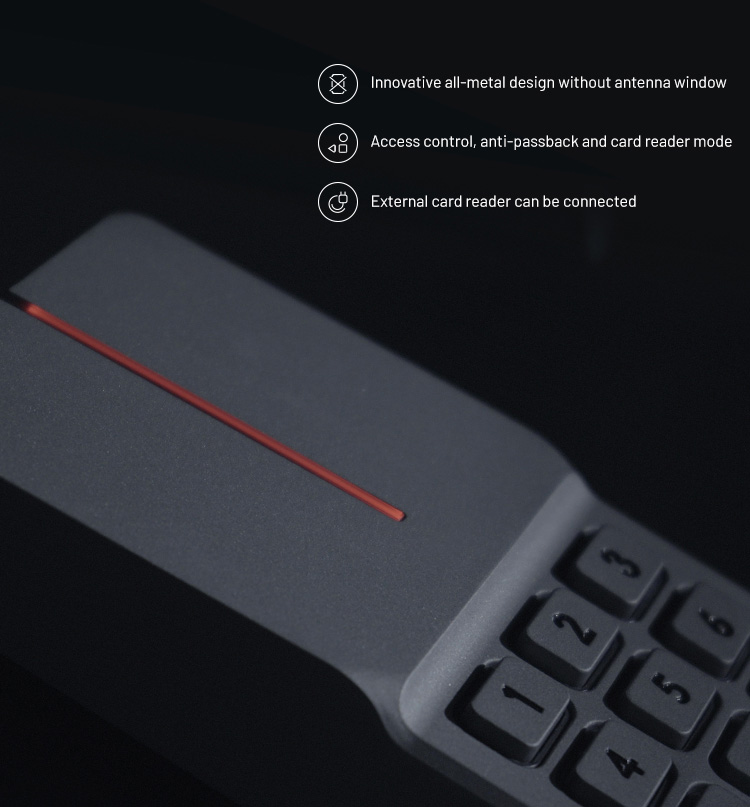

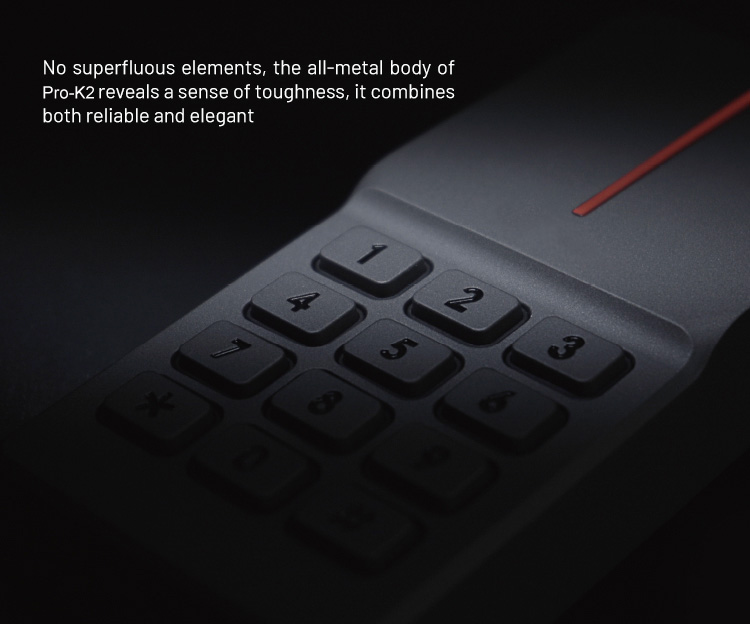

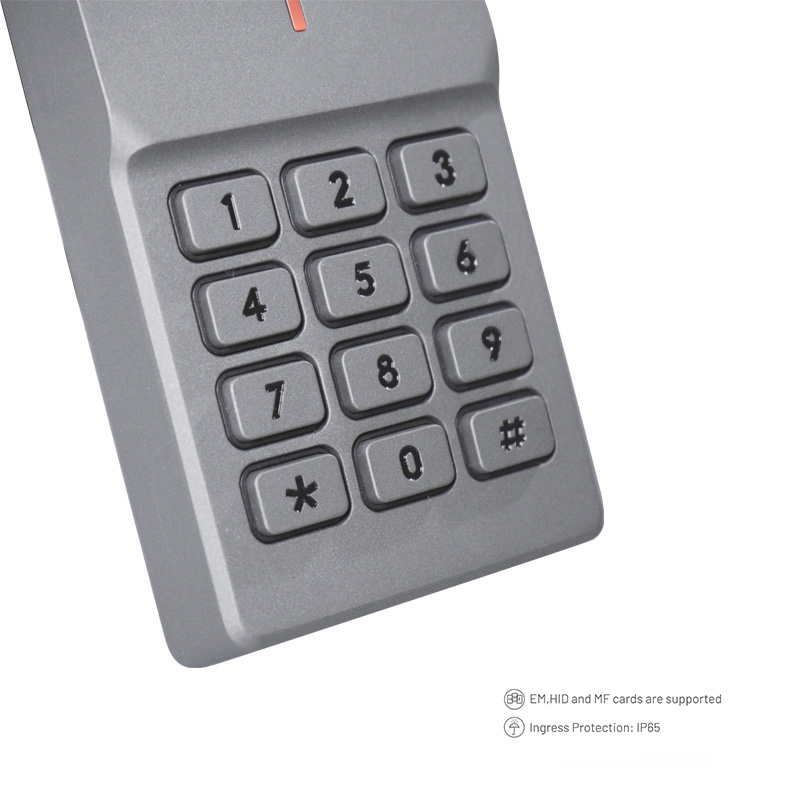

2.Innovative All-metal Design,no antenna window, Large metal keypad, European and American Style

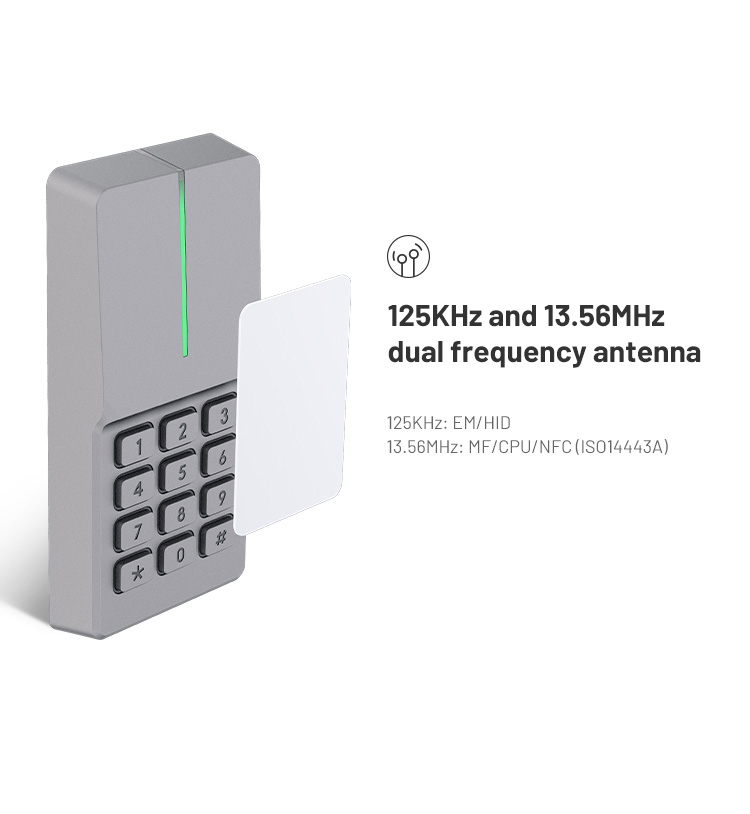

3.125KHz and 13.56MHz Dual-band antenna, support EM/HID/MF/NFC cards

4.Standalone mode, anti-pass back mode: wiegand input, external card reader can be connected

5.Reader mode: wiegand ouput, LED and Buzzer control input

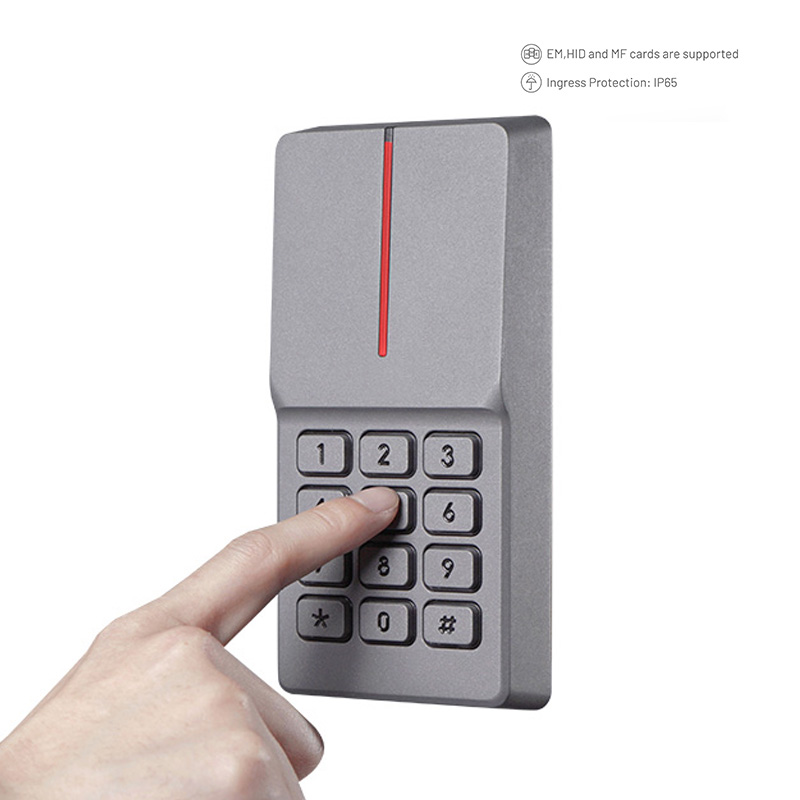

6.Fully potted process, IP65.
