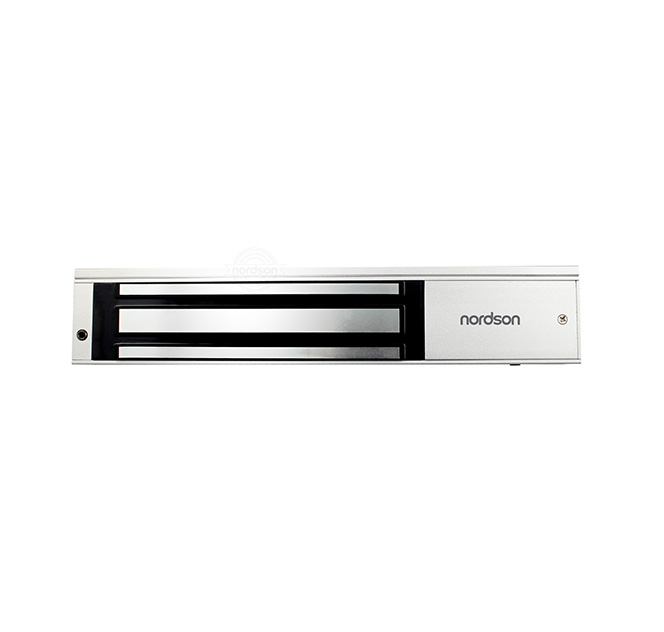

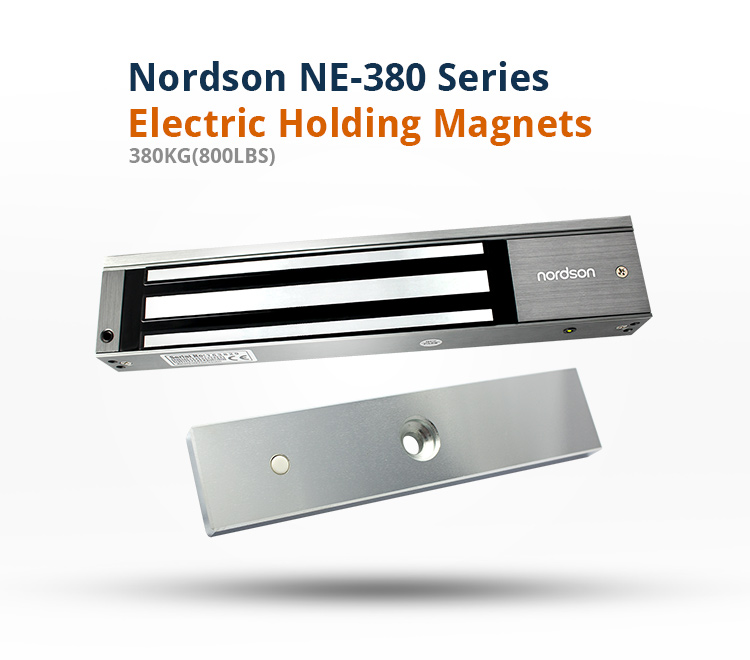

NE-380ST(Buzzer) Magnet lock

NE-380ST(Buzzer) Magnet lock

With delay and signal output &Buzzer

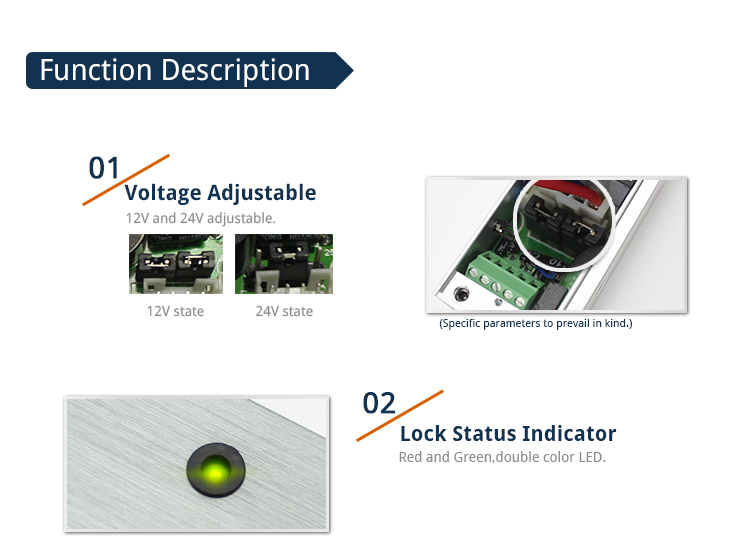

Voltage:DC12V or DC24V
Waterproof IP65 Customization Available

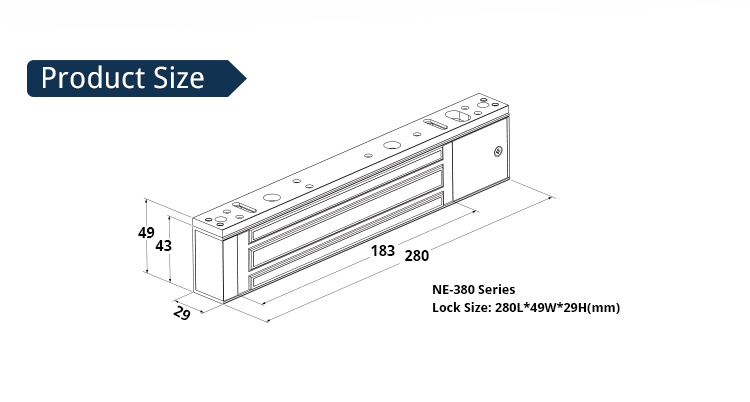

Lock Size: 285L*55W*29H(mm)
Armature Plate:190L*45W*11H(mm)
Armature Plate:190L*45W*11H(mm)
Current Draw: 12V/500mA 24V/250mA

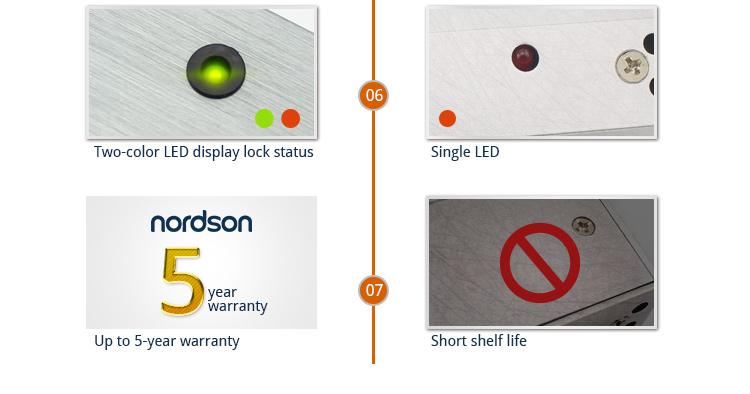

LED indicates the door is unlock,Green indicates the door is lock
With Buzzer
No residual magnetism, no mechanical damage 90 degrees open for all kinds of doors with frame
Weight: 2.6kg

inquiry

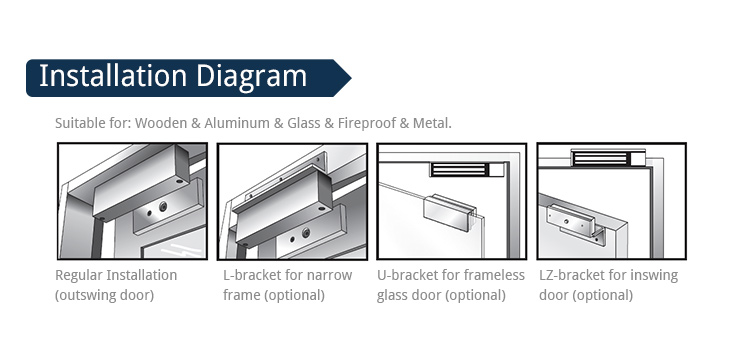

NE-380ST(Buzzer) single door waterproof magnetic lock,with the door status signal output , led indicates time delay and buzzer,specially used to normal glass door,wodden door,metal door,fire doors,and all kinds of door.Hoisting design,saves time and power when installation.Inward door,frameless glass door,narrow door all have a complete set of accessories.Special Anti-residual magnetic design makes automatic access control safer.

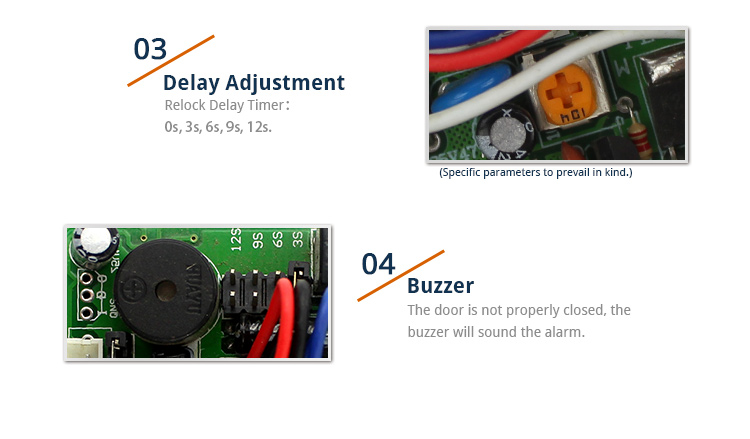

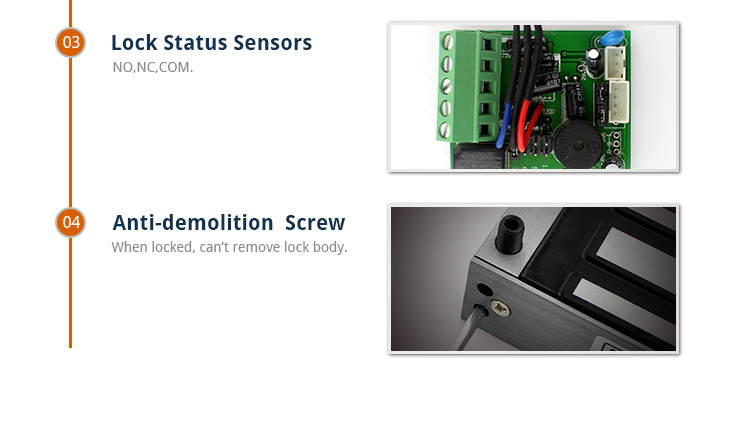

1.Withdoor status signal feedback time delay and buzzer,passed 800lbs super static lineartension tests.

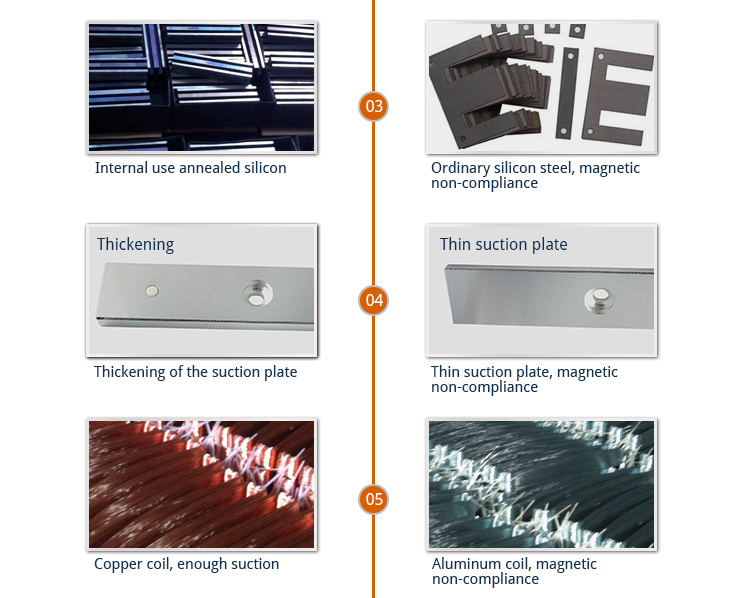

2.Anti-residual magnetic design,keep constant tension.

3.Built-in reverse current protection device (MOV), performance stability ,safetycoefficient is higher.

4.Wearmaterials, durable.

5.Electromagneticsuction work completely, there is no mechanical failure.

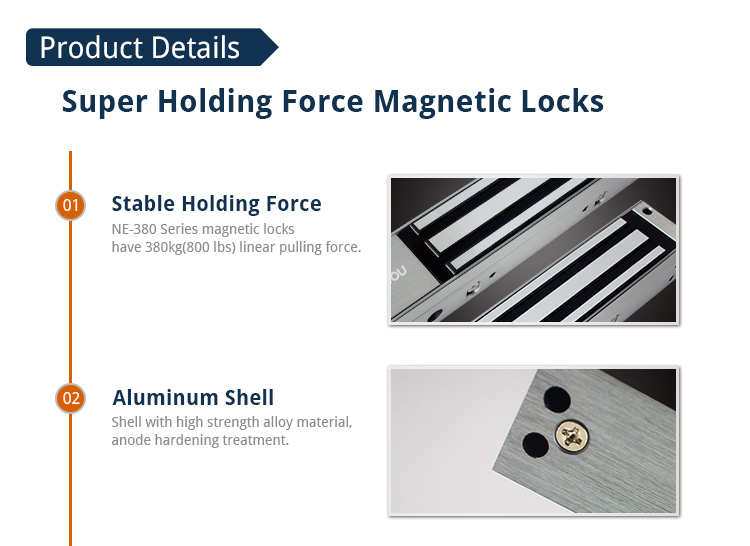

6.Shellwith high strength alloy material, anode hardening treatment.

7.lockbody with double insulation treatment.

8.Throughthe European CE and ROHS, MA certification in China.
