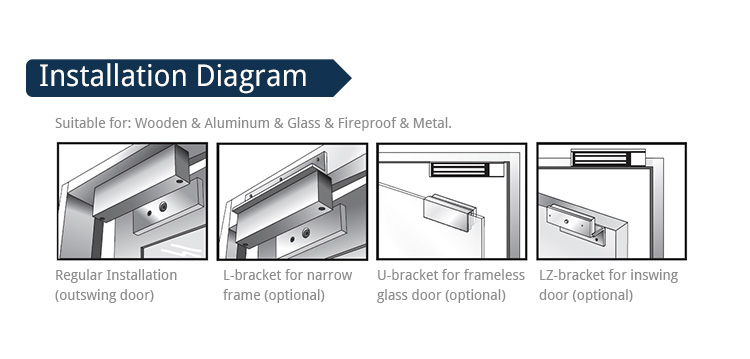

NE-380S single door magnetic lock,with door status signal output and led indicate,speciallyused to normal glass door,wodden door,metal door,fire doors,and all kinds ofdoor.Hoisting design,saves time and power when installation.Inwarddoor,frameless glass door,narrow door all have a complete set of accessories.Special Anti-residual magnetic design makes automatic access control safer and moreconvenient.
Home >
Products >
Electric Locking Devices >
Medium-magnets 800Lbs >
NE-380S 800Lbs Magnetic Door Lock Home >
Products >
Electric Locking Devices >
Medium-magnets 800Lbs >
NE-380S 800Lbs Magnetic Door Lock

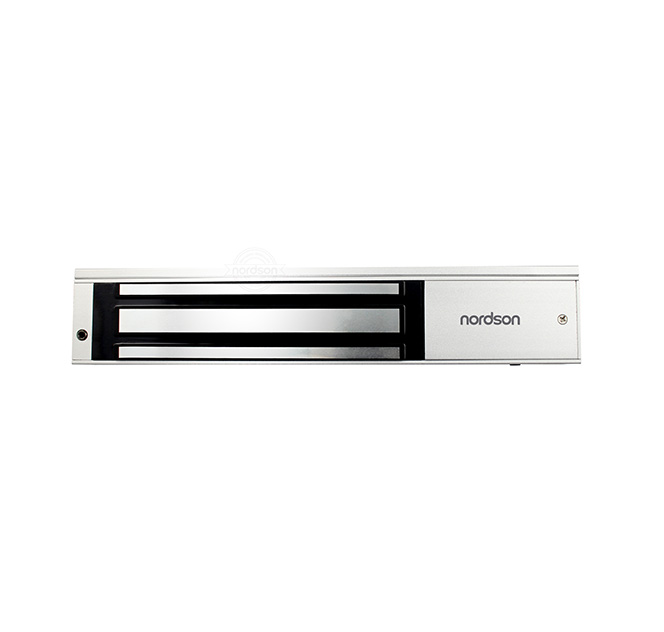

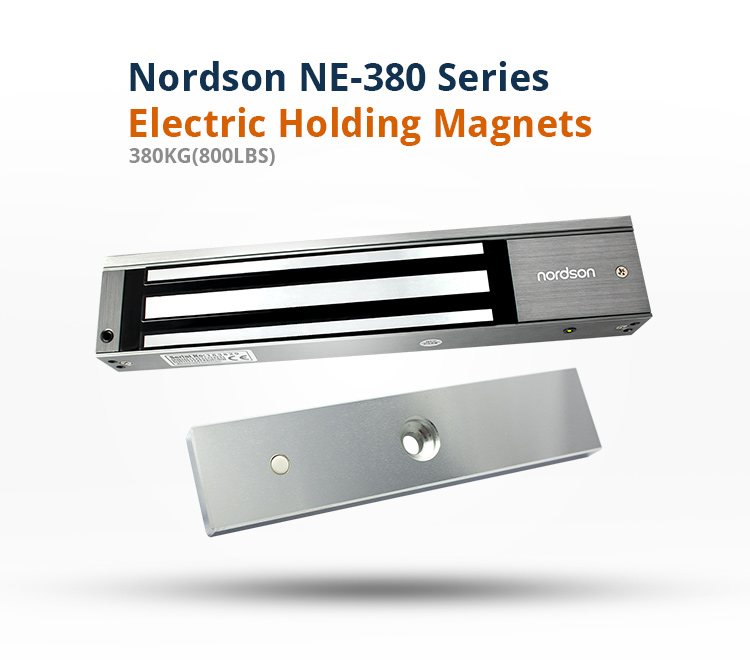

NE-380S 800Lbs Magnetic Door Lock

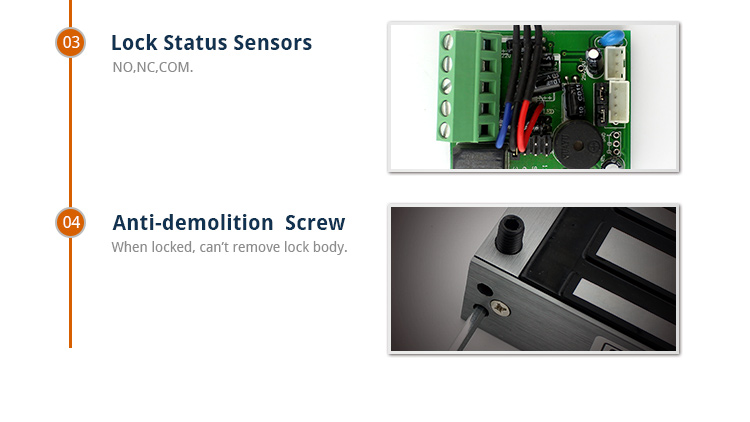

With LED and signal output

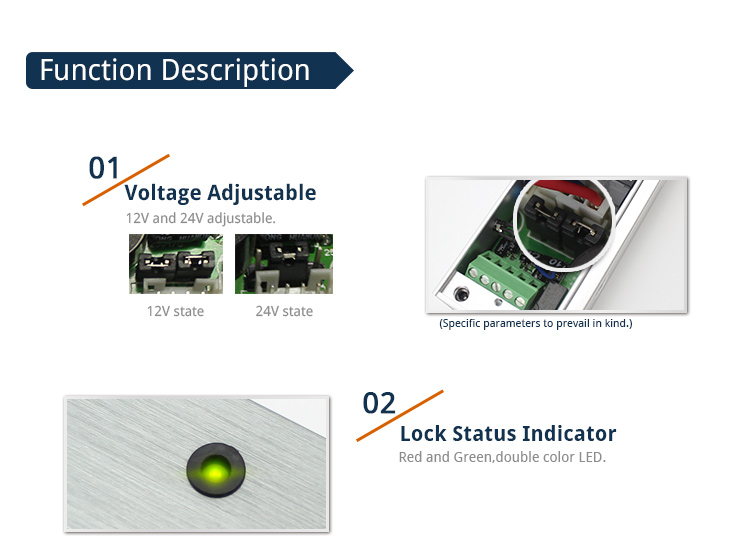

Voltage:DC12V or DC24V
Waterproof IP65 Customization Available

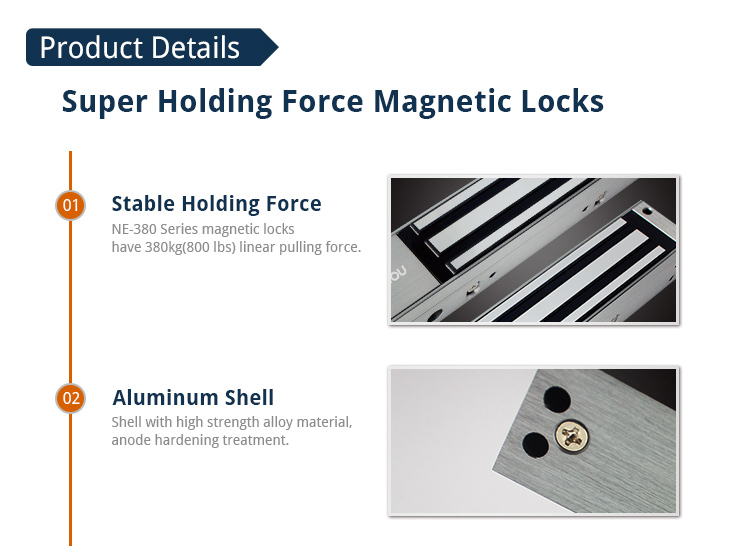

Holding Force: 380kg(800Lbs)

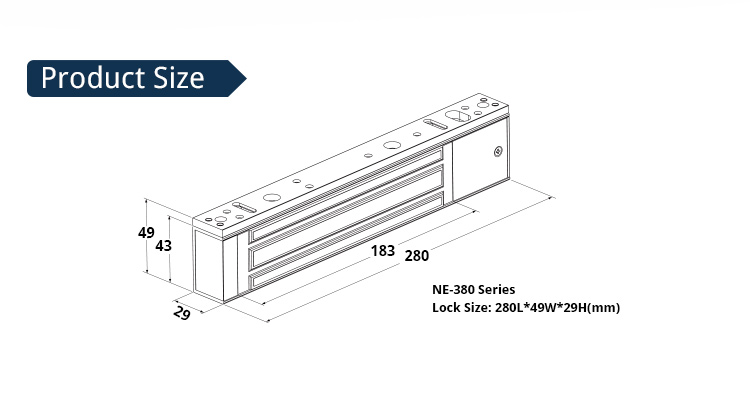

Lock Size: 280L*49W*29H(mm)
Current Draw: 12V/500mA 24V/250mA

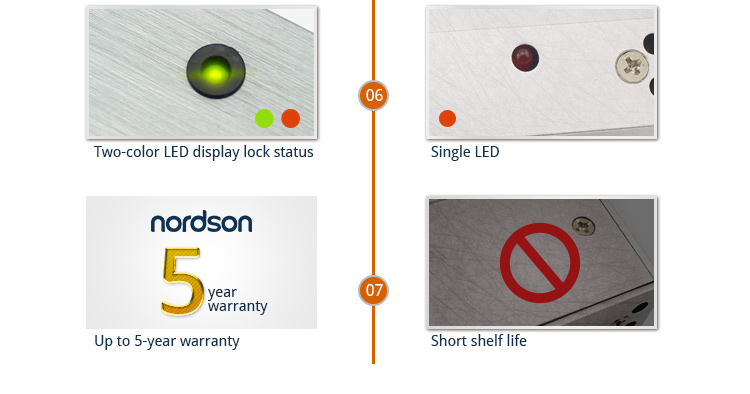

LED indicates the door is unlock,Green indicates the door is lock
No residual magnetism, no mechanical damage 90 degrees open for all kinds of doors with frame

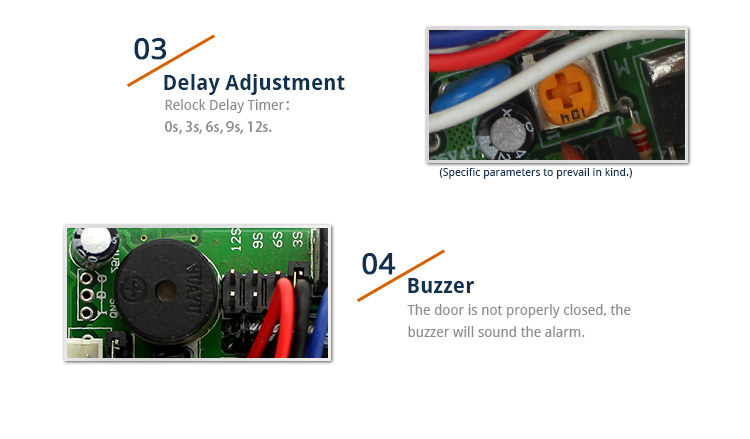

With Buzzer Customization Available
Weight: 2.6kg
Voltage:DC12V or DC24V
Waterproof IP65 Customization Available
Holding Force: 380kg(800Lbs)
Lock Size: 280L*49W*29H(mm)
Current Draw: 12V/500mA 24V/250mA
LED indicates the door is unlock,Green indicates the door is lock
No residual magnetism, no mechanical damage 90 degrees open for all kinds of doors with frame
With Buzzer Customization Available
Weight: 2.6kg
