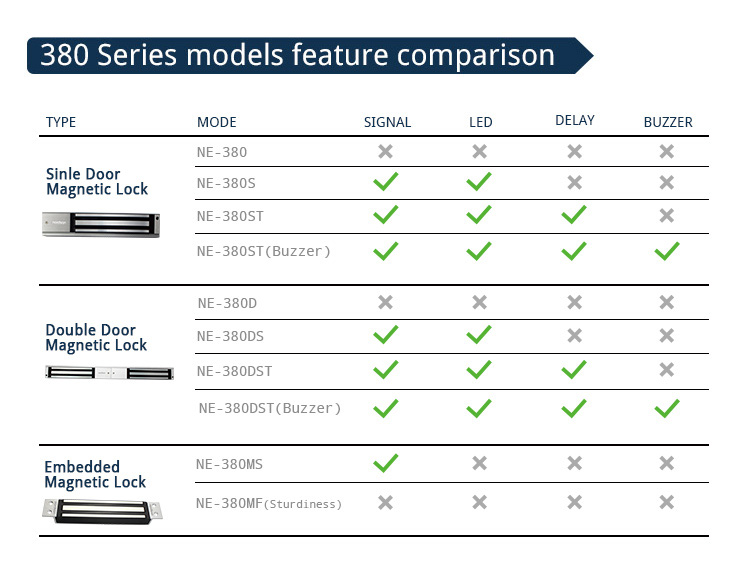

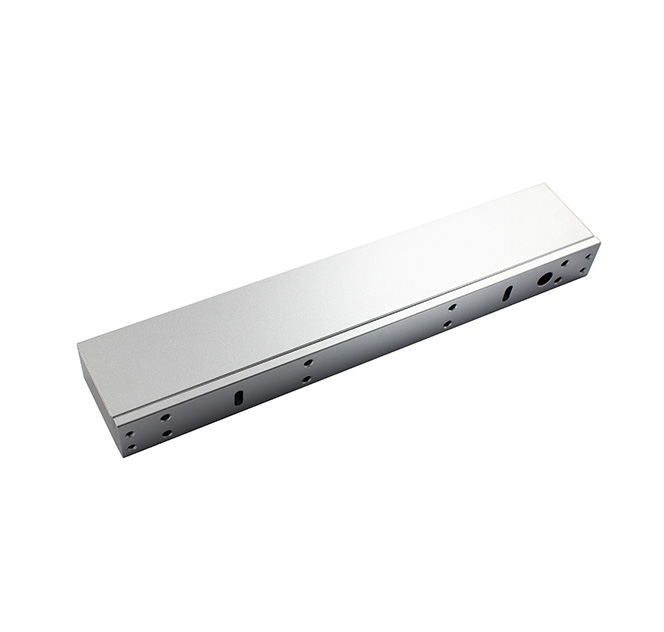

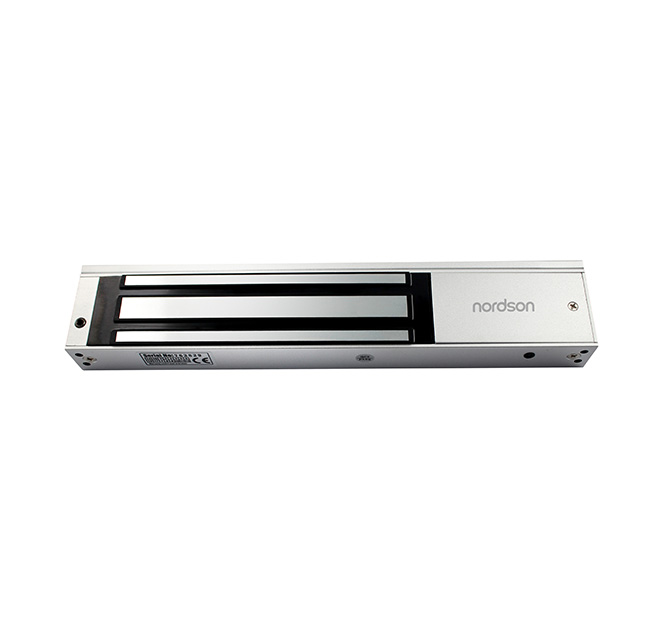

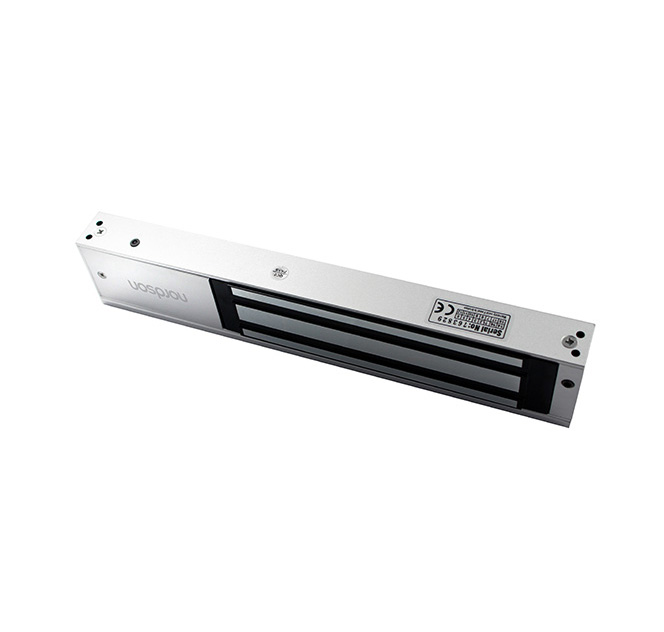

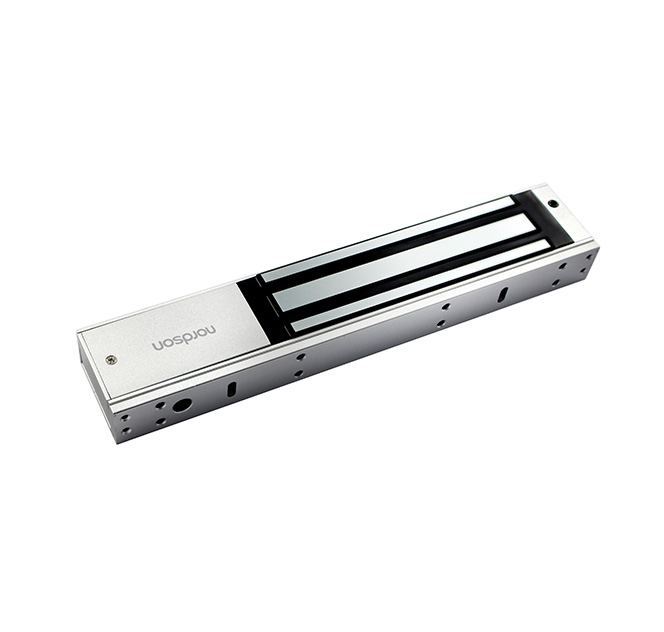

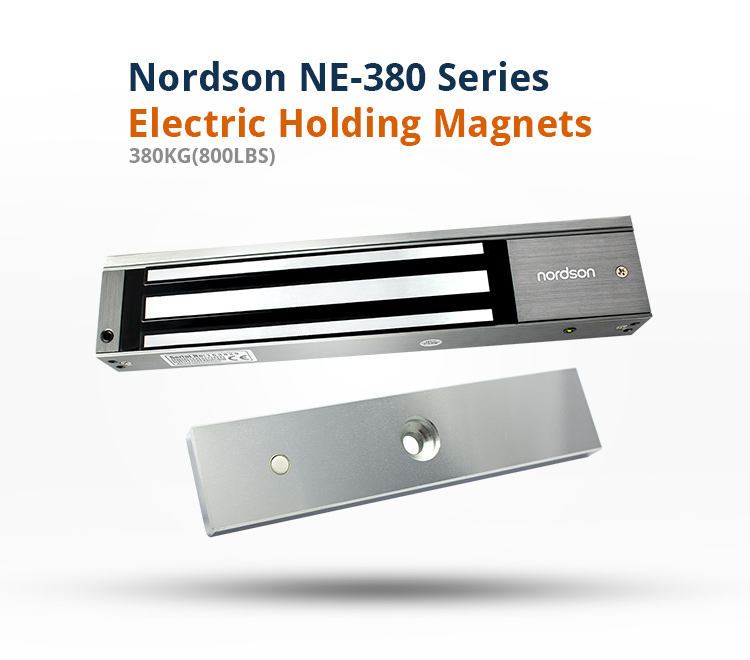

NE-380ST EM lock with Timer Dealy

With delay and signal output

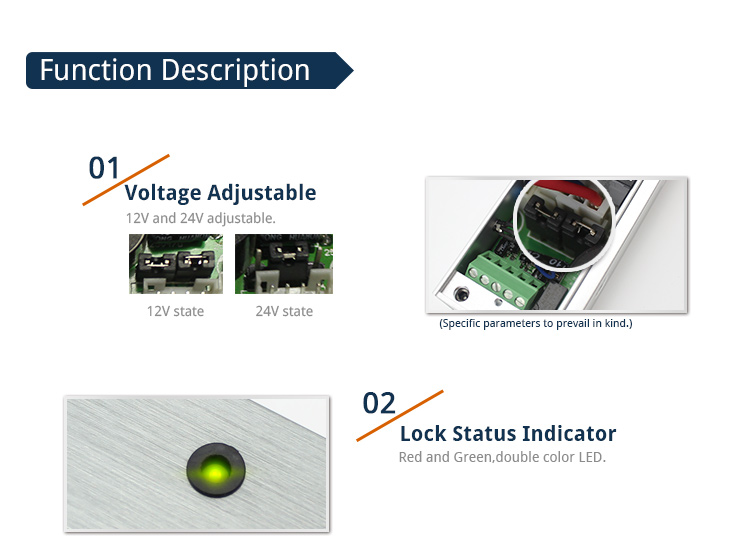

Voltage:DC12V or DC24V
Holding Force: 380kg(800Lbs)

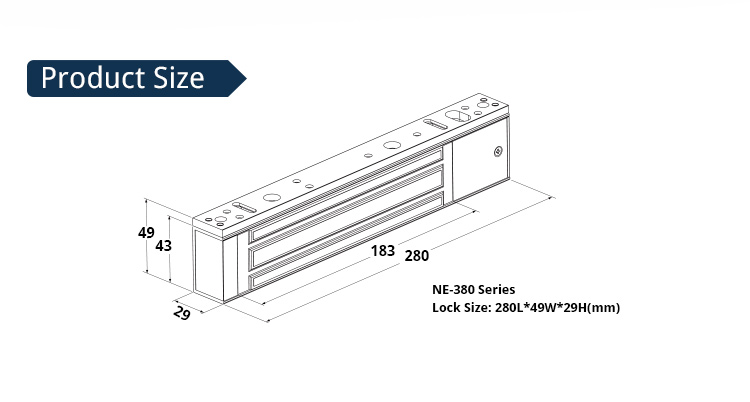

Lock Size: 285L*55W*29H(mm)

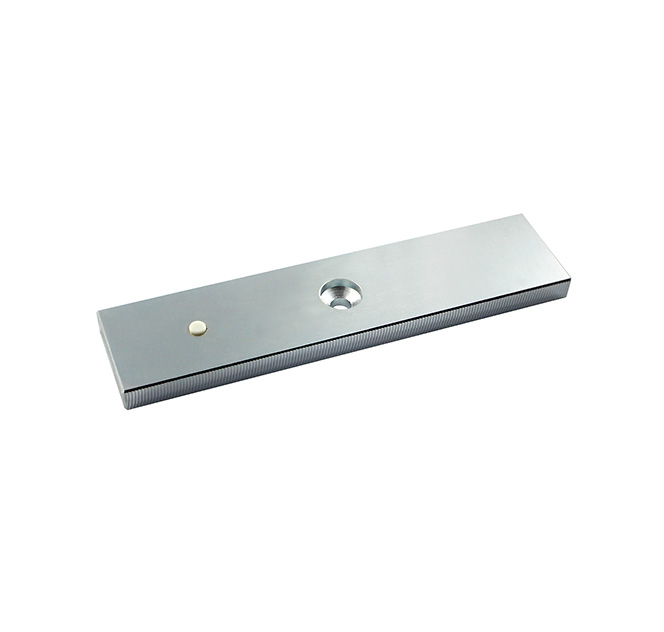

Armature Plate:190L*45W*11H(mm)
Current Draw: 12V/500mA 24V/250mA
LED indicates the door is unlock,Green indicates the door is lock
Time: 0/3/6/9sec
No residual magnetism, no mechanical damage 90 degrees open for all kinds of doors with frame
Weight: 2.6kg

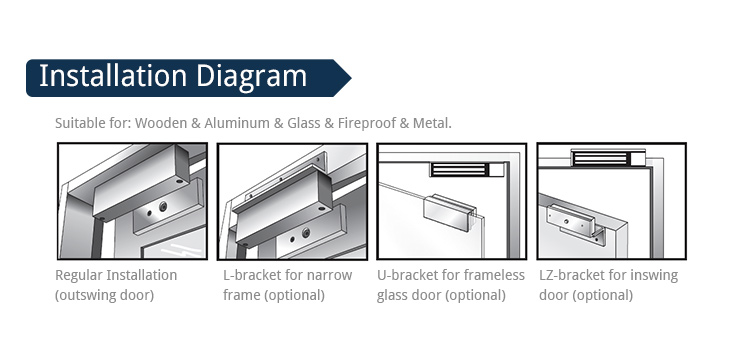

NE-380ST single door waterproof magnetic lock,with the door status signal output ,led indicates and time delay,specially used to normal glass door,wodden door,metal door,fire doors,and all kinds of door.Hoisting design,saves time and power when installation.Inward door,frameless glass door,narrow door all have a complete set of accessories.Special Anti-residual magnetic design makes automatic access control safer.

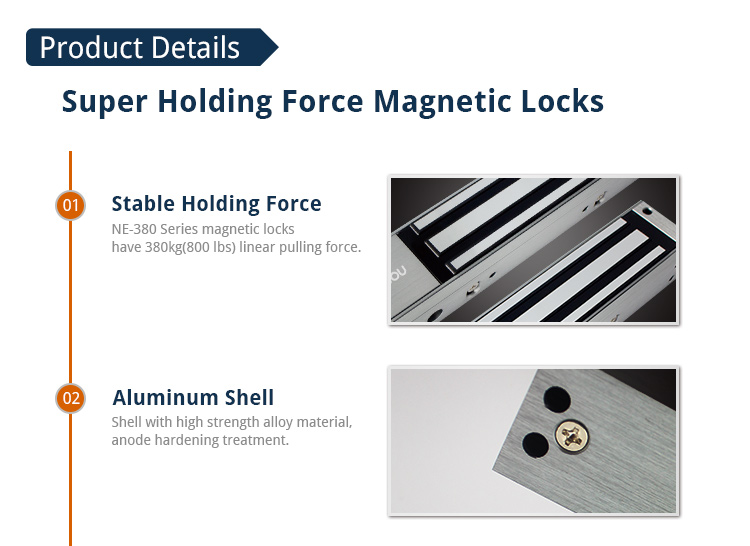

1.Withdoor status signal feedback and time delay,passed 800lbs super static lineartension tests.
2.Anti-residual magnetic design,keep constant tension.
3.Built-inreverse current protection device (MOV), performance stability ,safetycoefficient is higher.
4.Wearmaterials, durable.
5.Electromagneticsuction work completely, there is no mechanical failure.
6.Shellwith high strength alloy material, anode hardening treatment.
7.lockbody with double insulation treatment.
8.Throughthe European CE and ROHS, MA certification in China.

Holding Force	380kg(800Lbs)

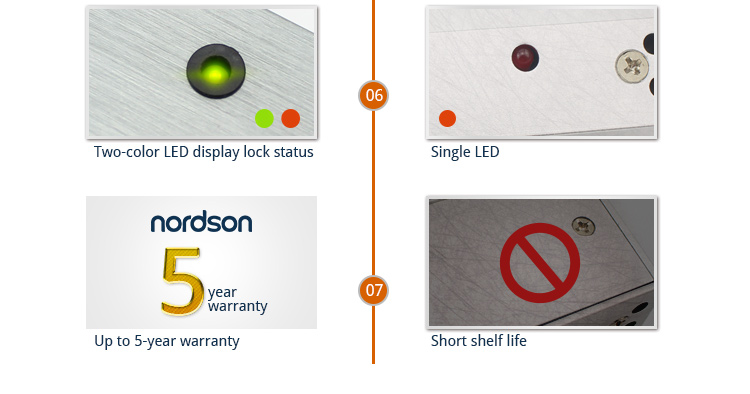

Lock Status Indicator	Red and Green, double color LED

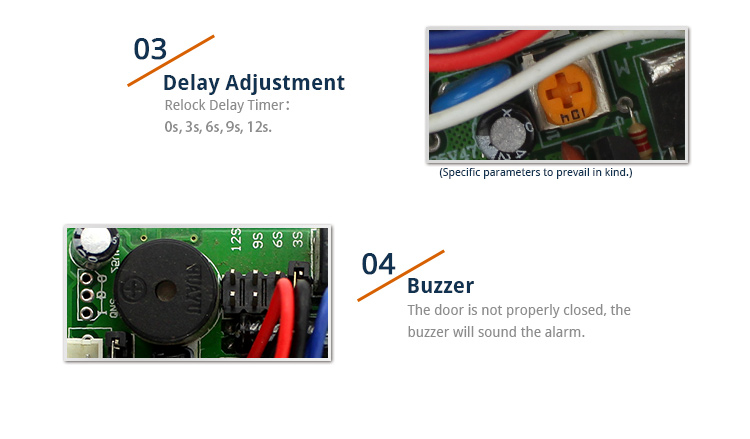

Relock Delay Timer	0,3,6,9 seconds open time delay is adjustable

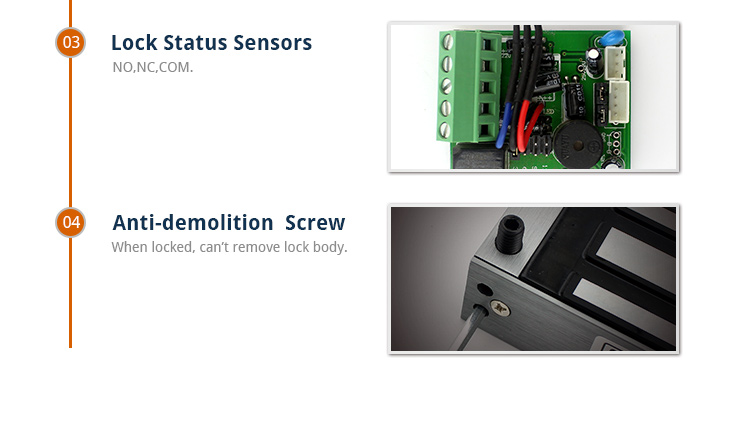

Lock Status Sensors	YES
Rated Operating Voltage	12/24VDC
Current consumption	12V/500mA 24V/250mA
Optional Functions	Buzzer
Surface finish for magnet	Zinc plated
Surface finish for armature plate	Zinc plated
Ambient temperature in °C	-10～+55℃(14-131F)
Suitable for	Wooden & Aluminum & Glass & Fireproof &Metal
Magnets Dimensions(L x W x D)	285Lx55Wx29H(mm)
Armature Plate Dimensions(L x W x D)	190Lx39Wx11H(mm)
Weight in kg	2.6kg
CE-mark for building	Yes
Rohs-mark for building	Yes
