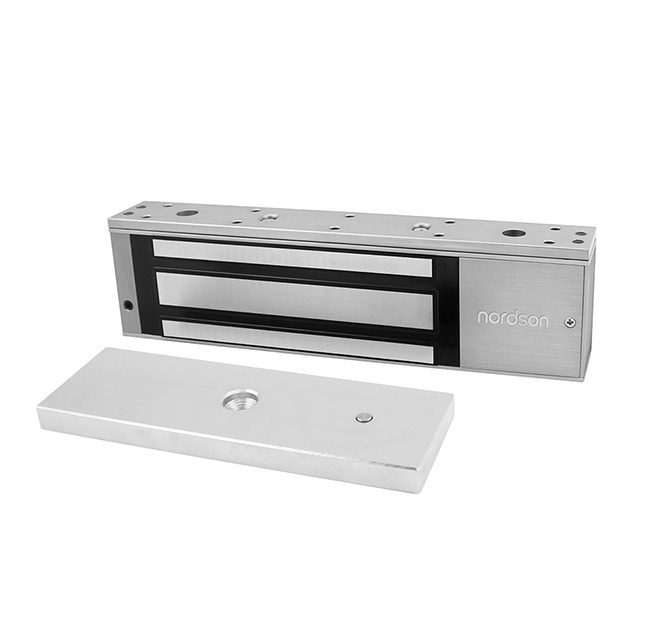

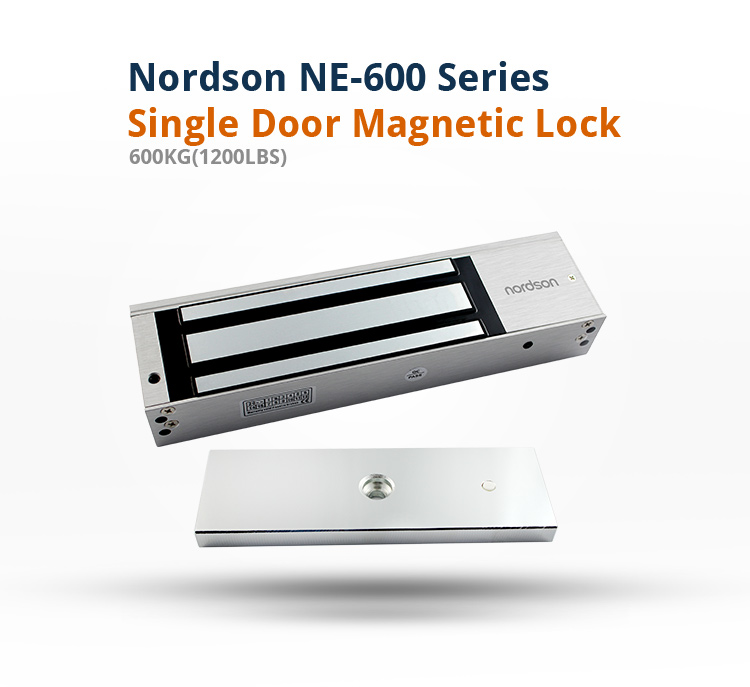

NE-600S Electromagnetic Entry door lock

NE-600S Electromagnetic Entry door lock

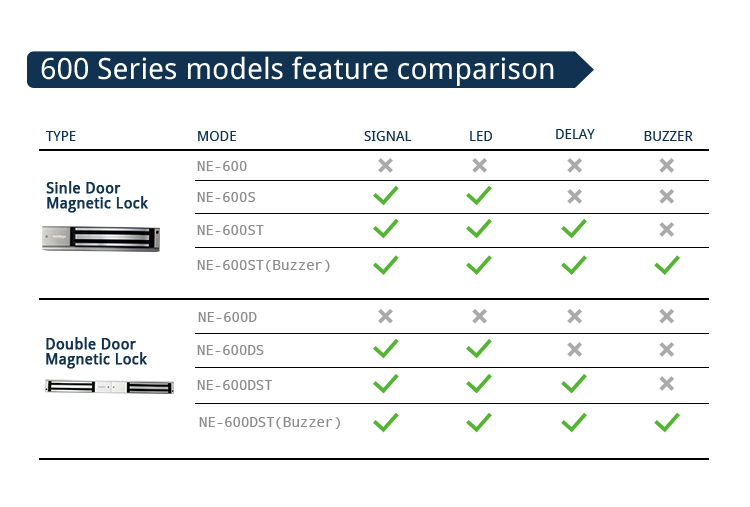

With LED and signal output

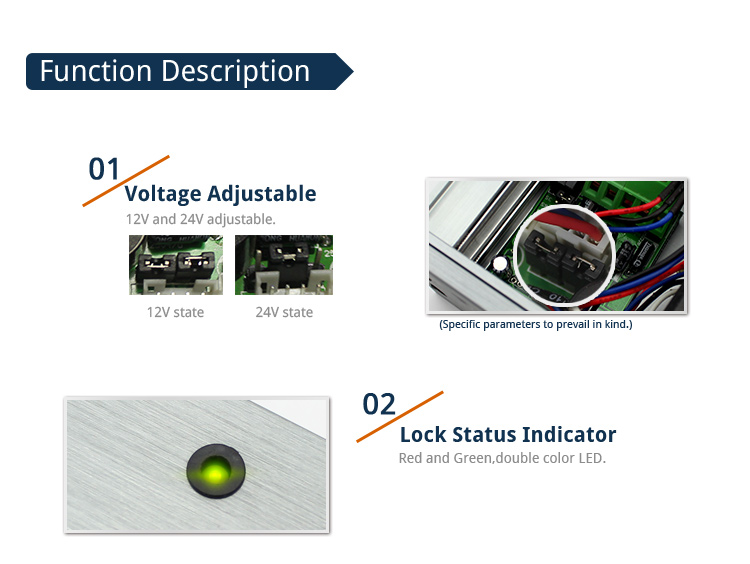

Voltage:DC12V or DC24V
Waterproof IP65 Can be customized

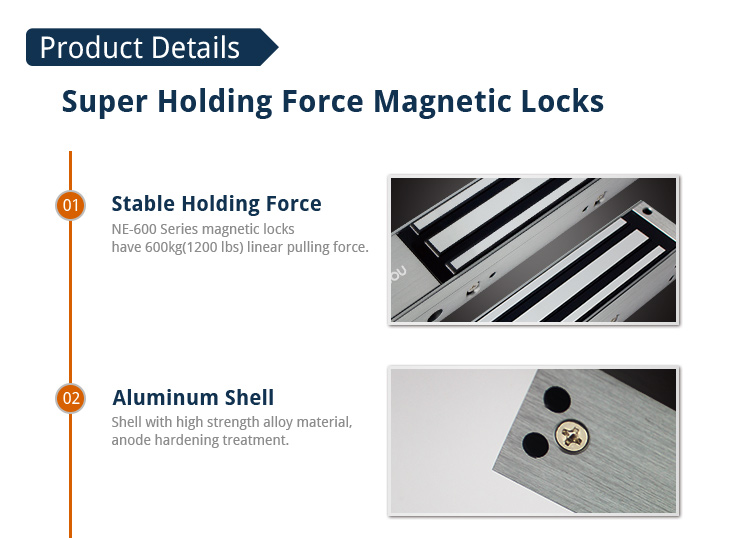

Holding Force: 600kg(1200Lbs)

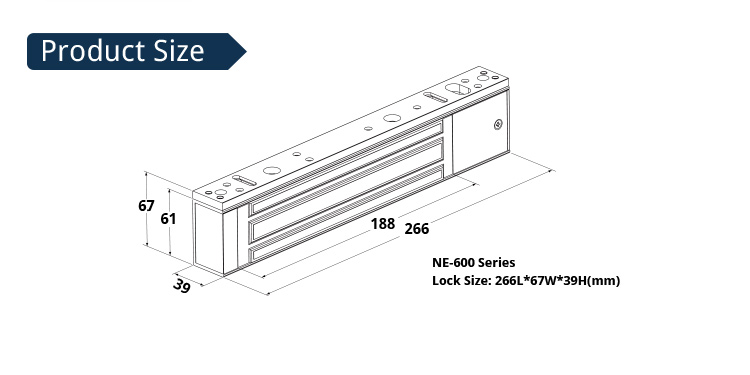

Lock Size: 266L*67W*39H(mm)
Armature Plate:185L*57W*13H(mm)
Current Draw: 12V/500mA 24V/250mA

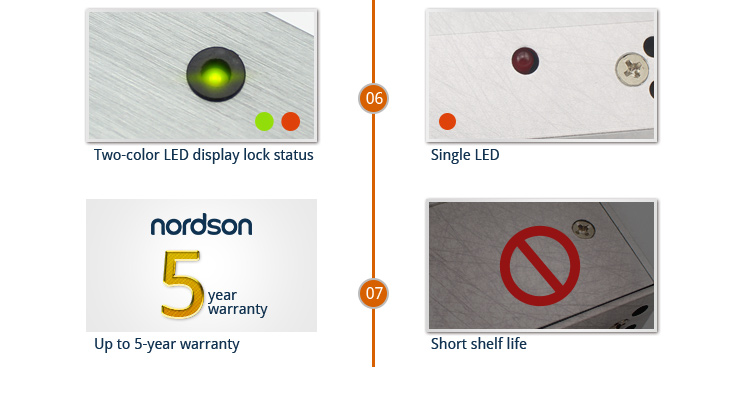

LED indicates the door is unlock,Green indicates the door is lock
Suitable for: Wooden door , Glass door ,Metal door , Fireproof door

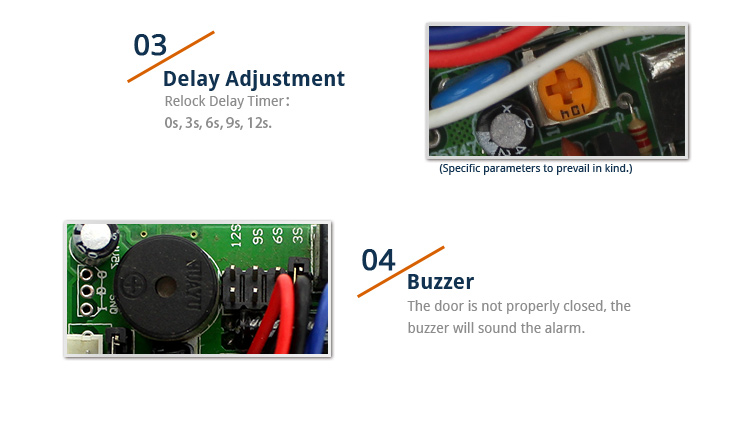

With Buzzer Can be customized
Weight: 4.5kg

inquiry

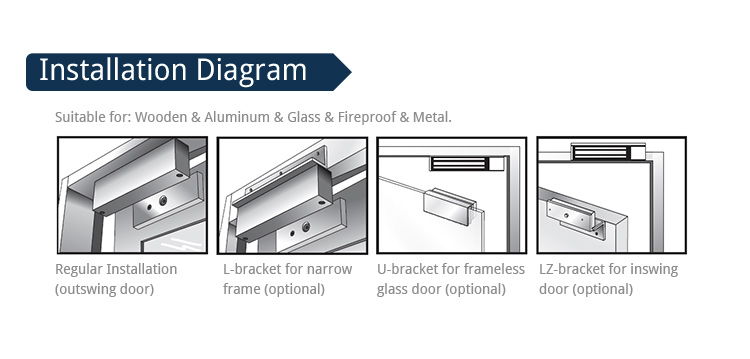

NE-600S single door magnetic entry door lock,with the door status signal output and led indicate,specially used to normal glass door,wodden door,metal door,fire doors,and all kinds of door.Hoisting design,saves time and power when installation.Inward door,frameless glass door,narrow door all have a complete set of accessories.Special Anti-residual magnetic design makes automatic access control safer

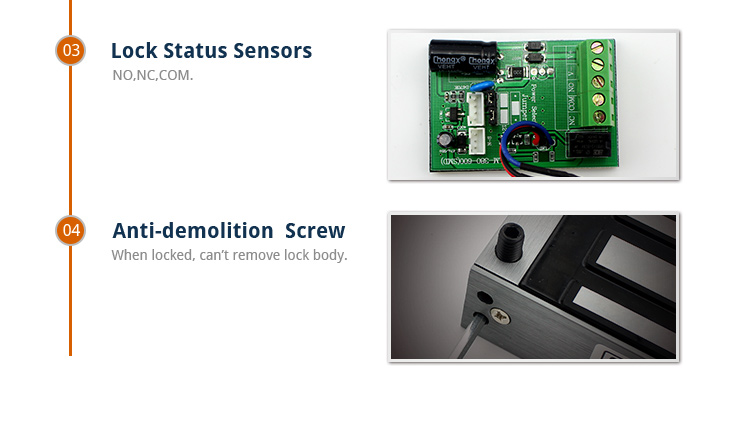

1.With the door status signal output,passed 1200lbs super static linear tension tests.
2.Anti-residual magnetic design,keep constant tension.
3.Built-in reverse current protection device (MOV), performance stability ,safety coefficient is higher.
4.Wear materials, durable.
5.Electromagnetic suction work completely, there is no mechanical failure.
6.Shell with high strength alloy material, anode hardening treatment.
7.lock body with double insulation treatment.
8.Through the European CE and ROHS, MA certification in China.
