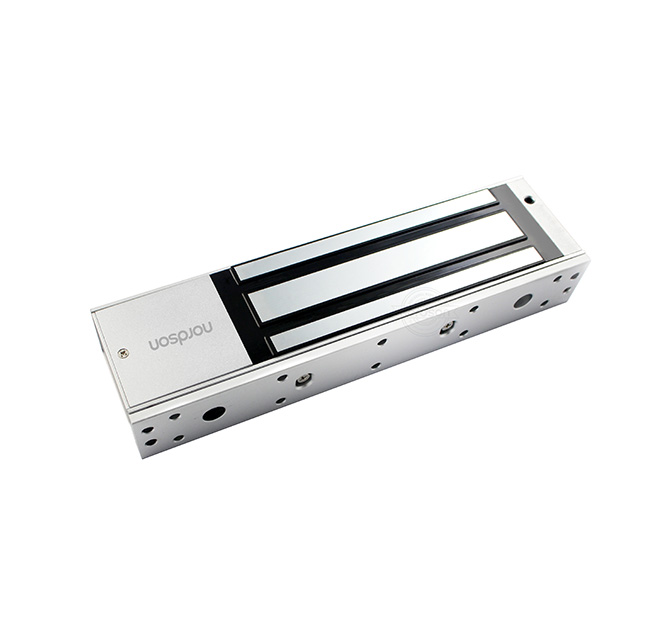

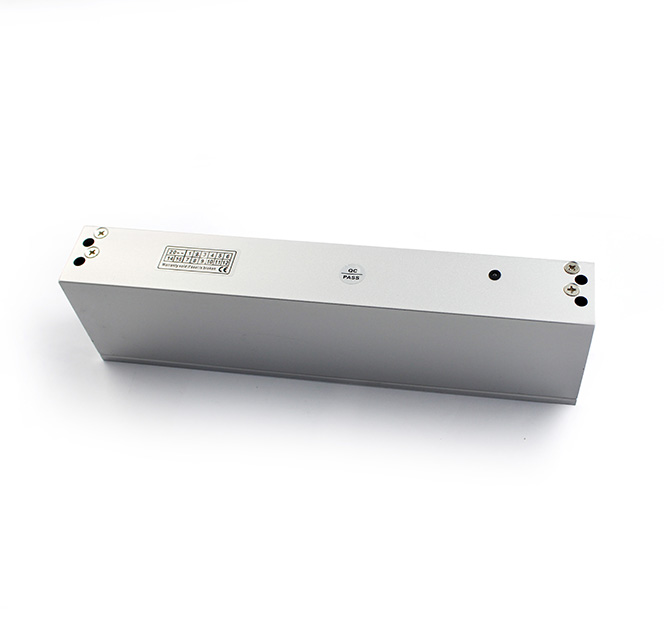

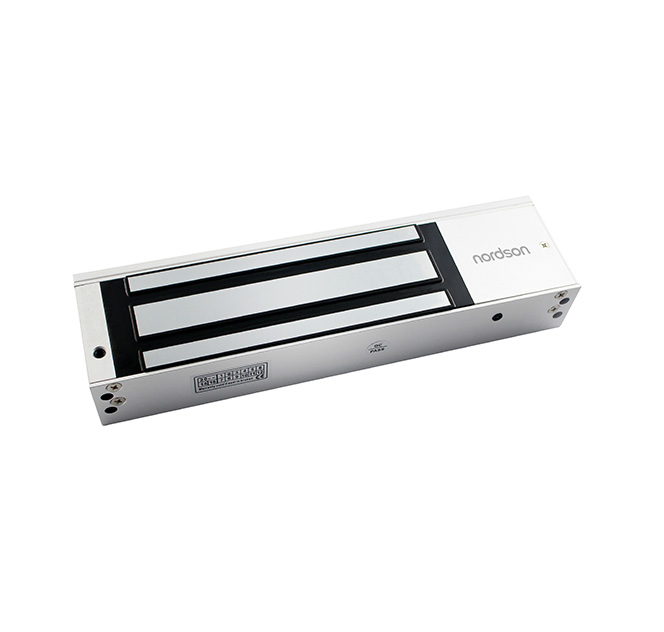

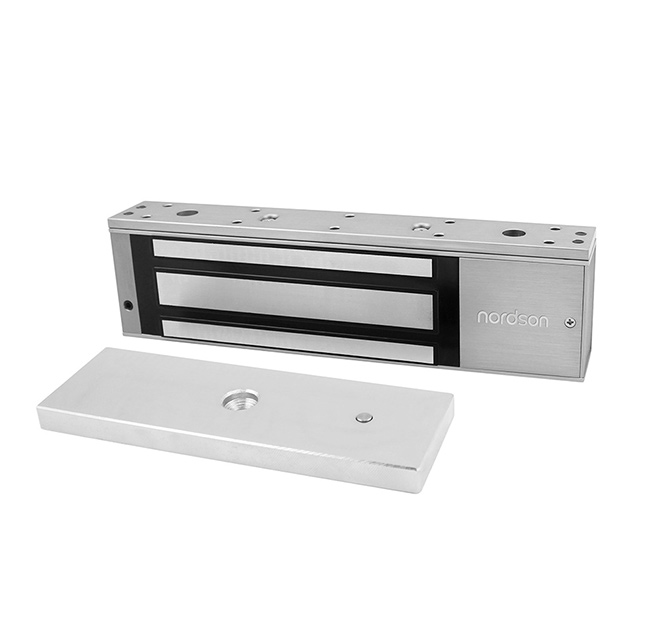

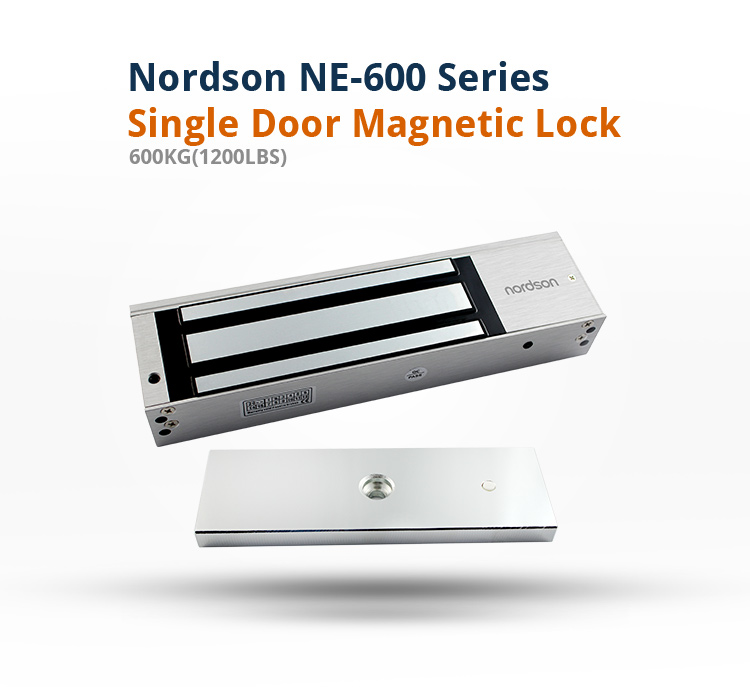

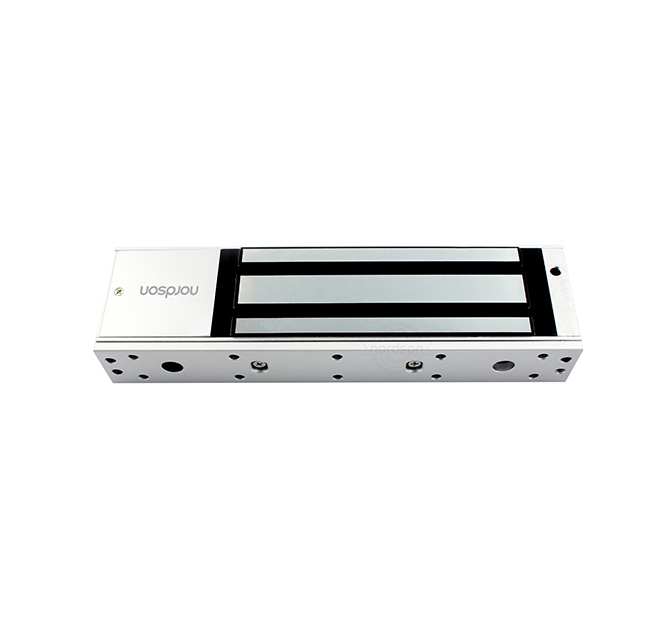

NE-600ST(Buzzer) 12V/24V Electromagnetic Lock with Buzzer

With delay and signal output&Buzzer
Voltage:DC12V or DC24V
Waterproof IP65 Customization Available
Holding Force: 600kg(1200Lbs)
Lock Size: 266L*67W*39H(mm)

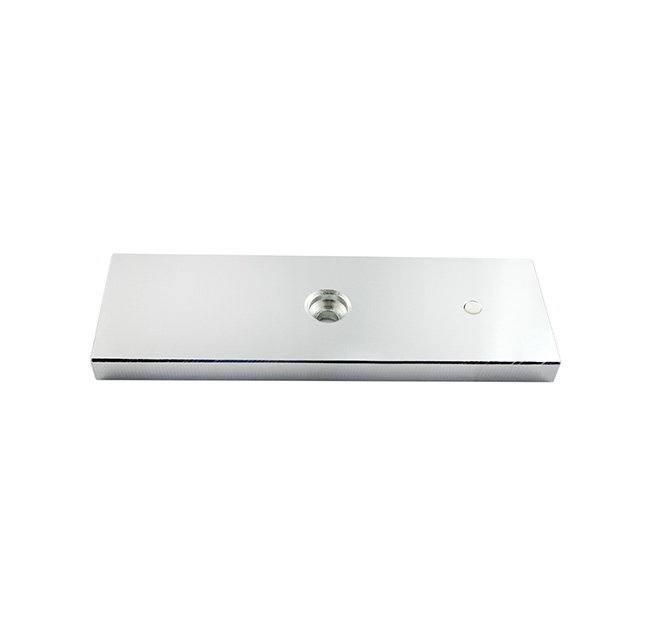

Armature Plate:185L*60W*13H(mm)
Current Draw: 12V/500mA 24V/250mA
LED indicates the door is unlock,Green indicates the door is lock
Time: 0/3/6/9sec
No residual magnetism, no mechanical damage 90 degrees open for all kinds of doors with frame
With Buzzer Customization Available
Weight: 4.5kg

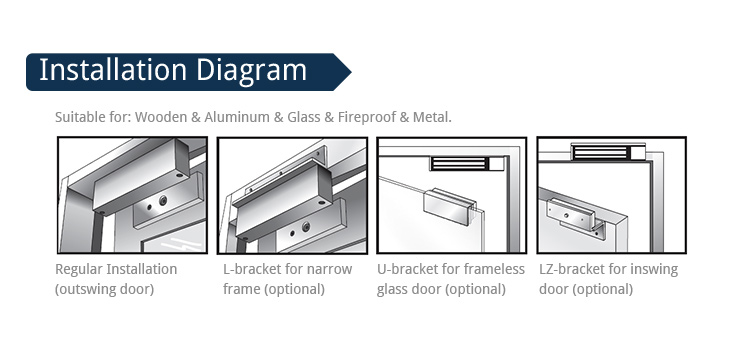

NE-600ST(Buzzer) single door 12V or 24V electromagnetic Lock,with the door status signal output and buzzer,time delay and led indicate,specially used to normal glass door,wodden door,metal door,fire doors,and all kinds of door.Hoisting design,saves time and power when installation.Inward door,frameless glass door,narrow door all have a complete set of accessories.Special Anti-residual magnetic design makes automatic access control safer.
1.With the door status signal output and time delay,passed 1200lbs super static linear tension tests.
2.Anti-residual magnetic design,keep constant tension.
3.Built-in reverse current protection device (MOV), performance stability ,safety coefficient is higher.
4.Wear materials, durable.
5.Electromagnetic suction work completely, there is no mechanical failure.

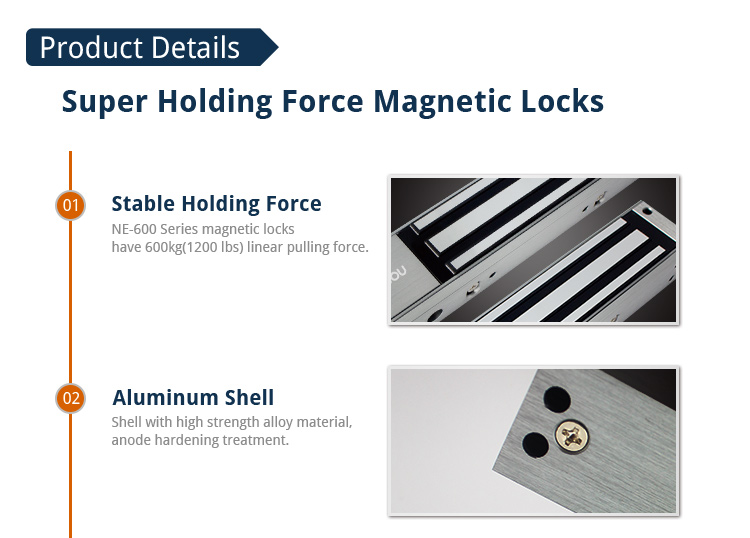

6.Shell with high strength alloy material, anode hardening treatment.
7.lock body with double insulation treatment.
8.Through the European CE and ROHS, MA certification in China.

Holding Force	600kg(1200Lbs)

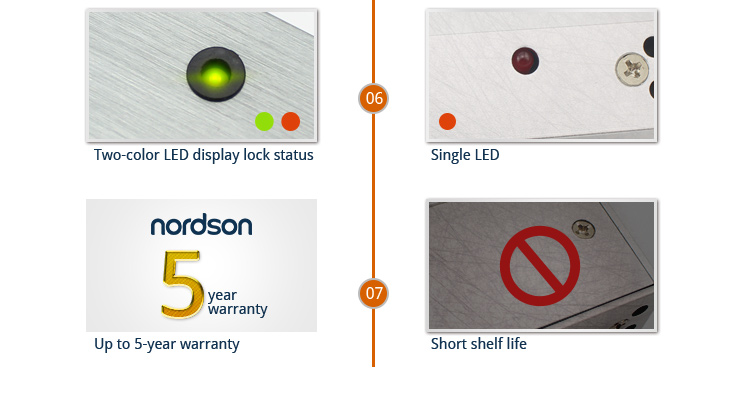

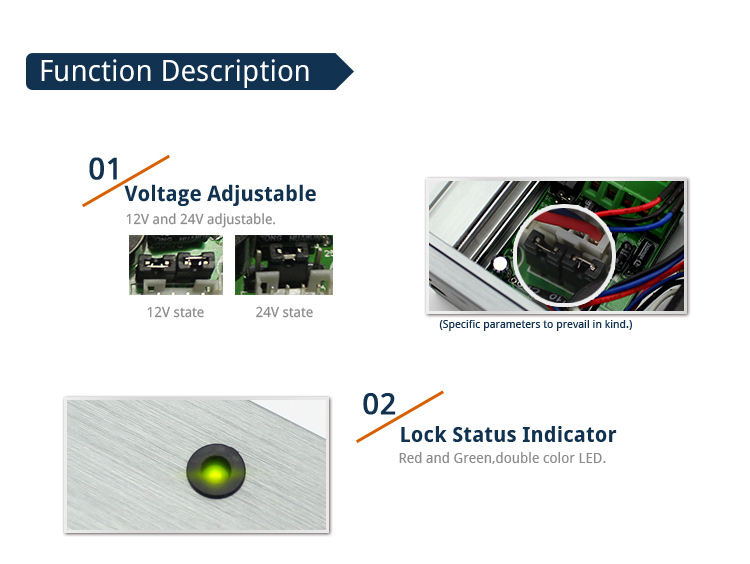

Lock Status Indicator	Double color LED,Red and Green

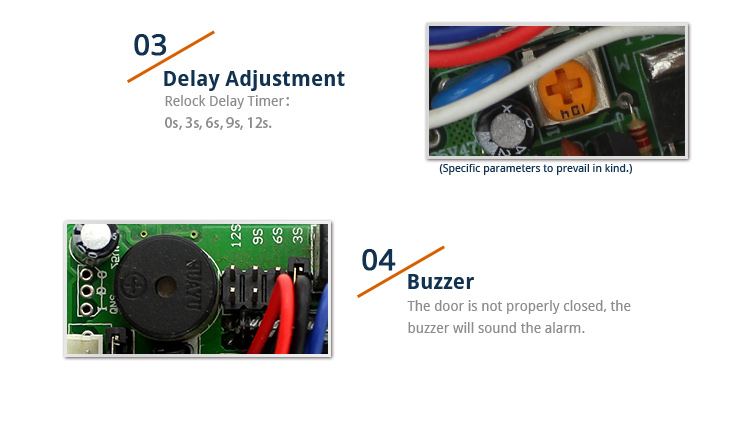

Relock Delay Timer	0,3,6,9 seconds open time delay is adjustable
Buzzer	When lock abnormal,provide buzzer alarm
Lock Status Sensors	Dry contact NO,NC,COM
Rated Operating Voltage	12/24VDC
Current consumption	12V/600mA 24V/300mA
Surface finish for magnet	Zinc plated
Surface finish for armature plate	Zinc plated
Ambient temperature in °C	-10～+55℃(14-131F)
Suitable for	Wooden & Aluminum & Glass & Fireproof &Metal
Magnets Dimensions(L x W x D)	265Lx71Wx40H(mm)
Armature Plate Dimensions(L x W x D)	185Lx60Wx13H(mm)
Weight in kg	4.5kg
CE-mark for building	Yes
Rohs-mark for building	Yes
