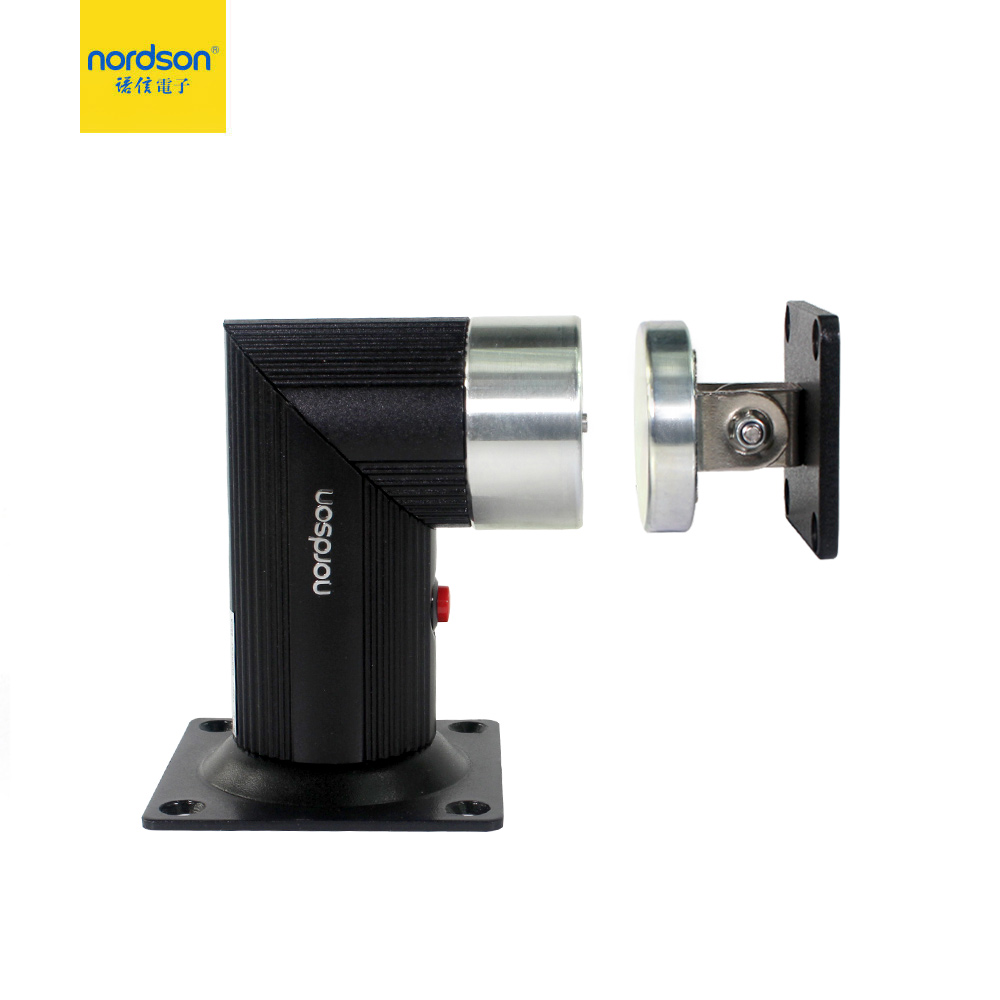

NP-G160 door holder magnetic

Holding Force: 50kg(110Lbs)
Voltage: 12/24VDC+10%
Current Draw: 12V/170mA 24V/85mA
Optional: The Hand Moves and Closes the Door to Release the Button
Suitable for: All Kind of the Single & Double Smokeproof Door
Finishes for Shell: High Temperature Paint and Environmental Protection Zinc
Dimensions: 80L*80W*120H(mm)
Weight: 1.2kg

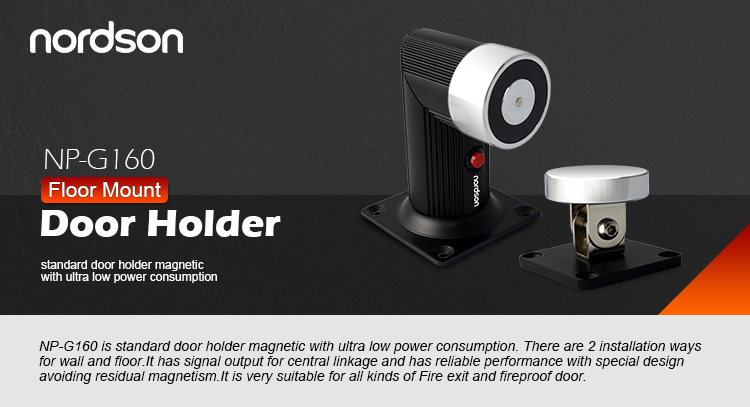

NP-G160 is standard door holder magnetic with ultra low power consumption. There are 2 installation ways for wall and floor.It has signal output for central linkage and has reliable performance with special design avoiding residual magnetism.It is very suitable for all kinds of Fire exit and fireproof door.
1.Pass 100Lbs super linear static thrust test
2.Double release modes: Power off & Manual button
3.Available for 12VDC /24VDC
4.Energy saving with ultra-low-power design

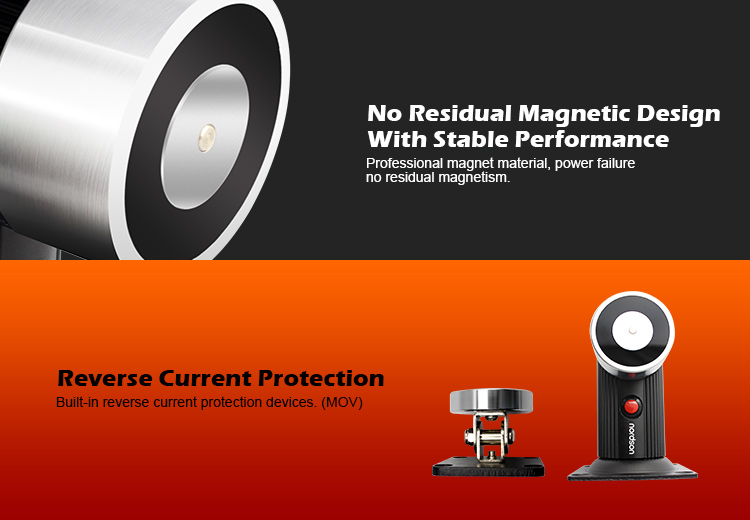

5.No residual magnetic design with stable performance
6.Passive switch signal output

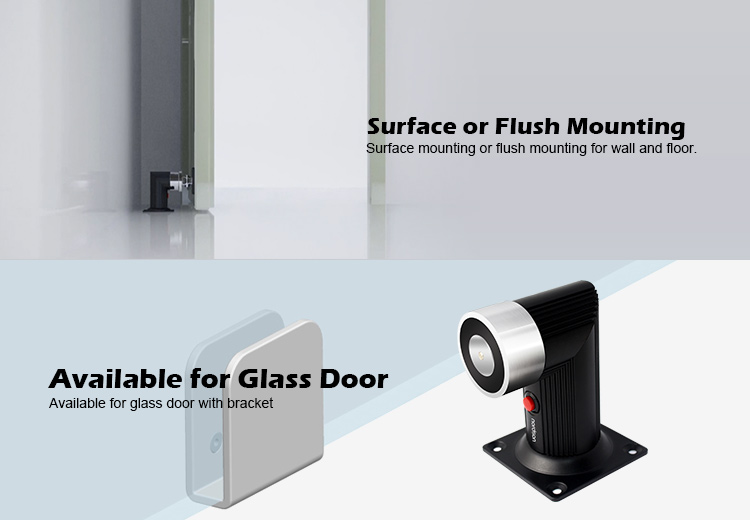

7.Surface mounting or flush mounting for wall and floor
8.Available for glass door with bracket

Version	Fail-unlocked
Holding Force	50kg(100Lbs)
Standard Functions	Manual door release button
Lock Status Sensors	NO
Rated Operating Voltage	DC 12V or 24V (Adjustable)
Current consumption	12V/180mA 24V/85mA
Surface finish	Paint and Zinc plated
Ambient temperature in °C	-10°C - +55°C
Suitable for	All Kind of Single & Double Smokeproof Doors
Magnets Dimensions(L x W x D)	80L80W120H(mm)

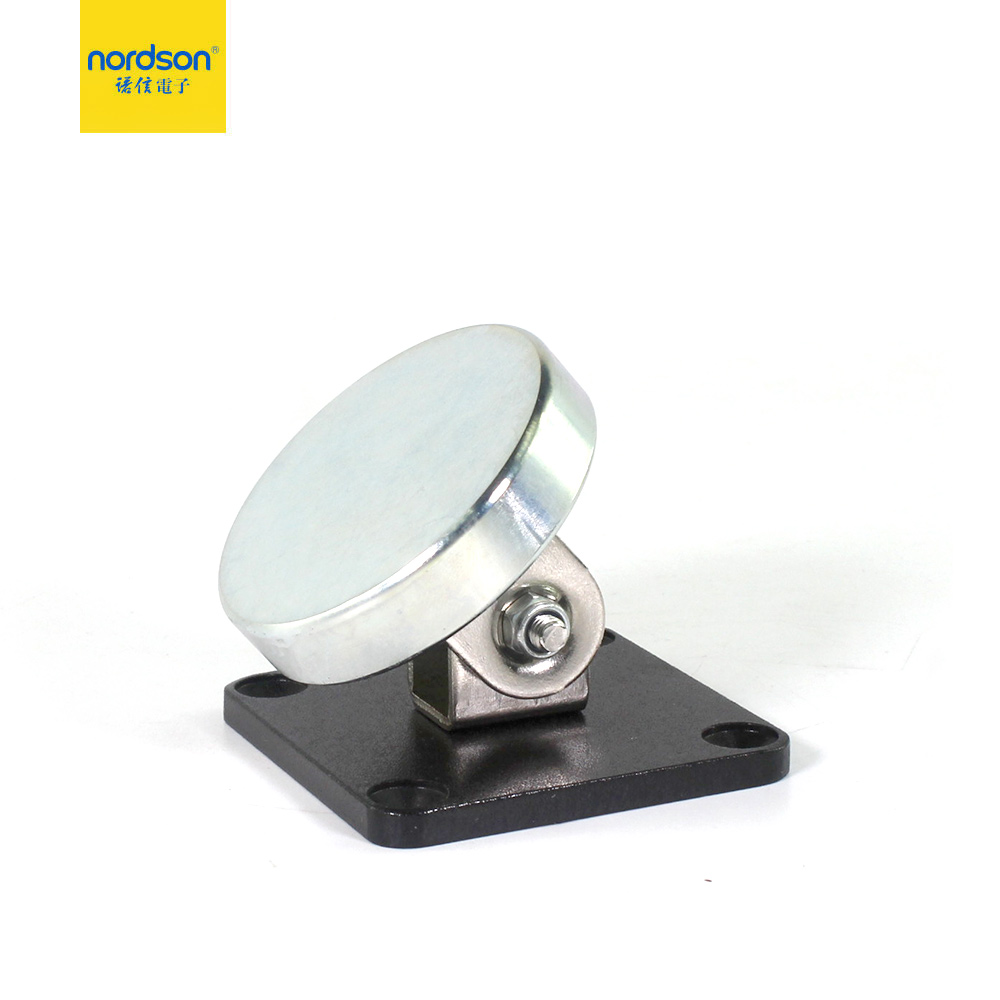

Armature Plate Dimensions(L x W x D)	65L65W53H(mm)
Weight in kg	1.05kg
CE-mark for building	YES
Rohs-mark for building	YES
