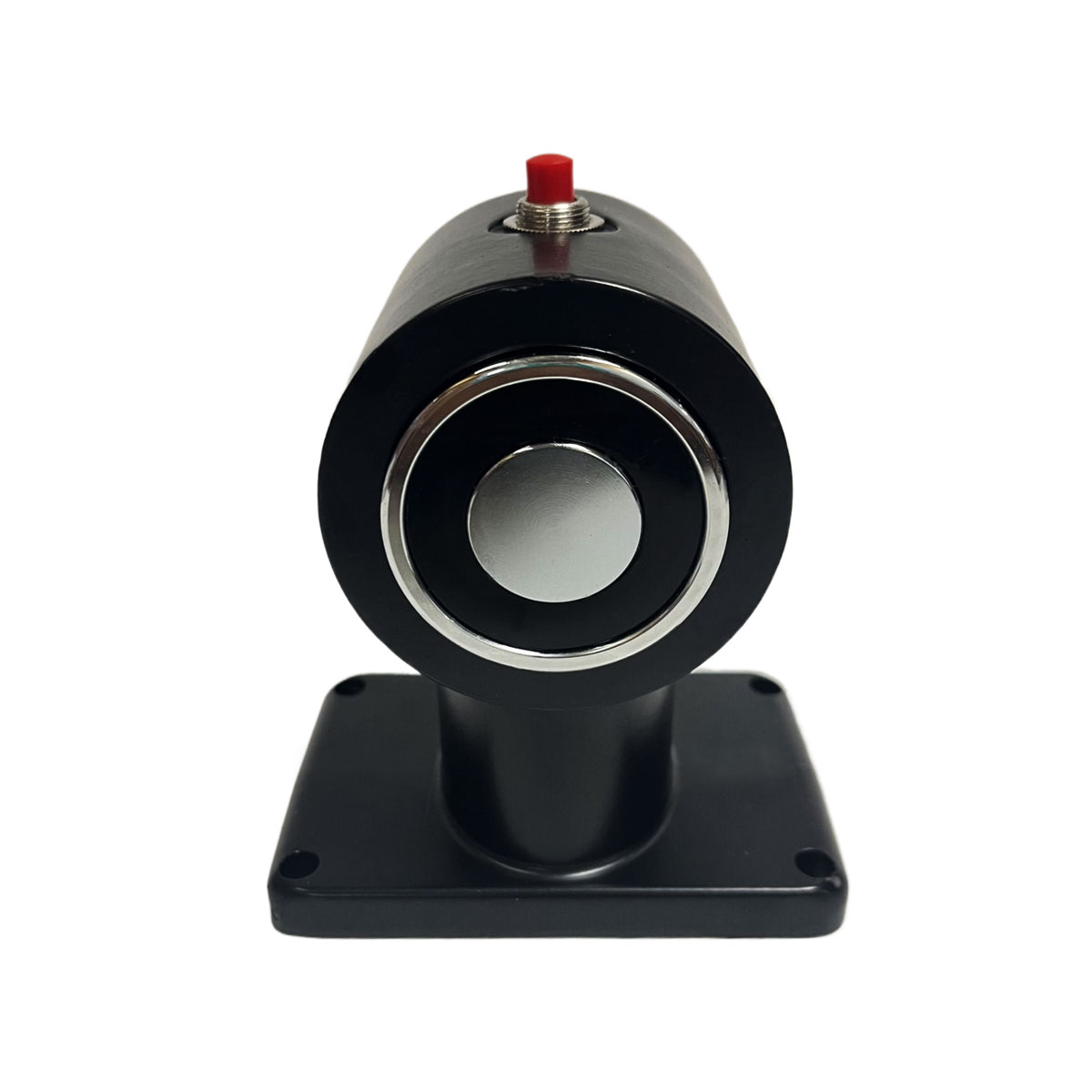

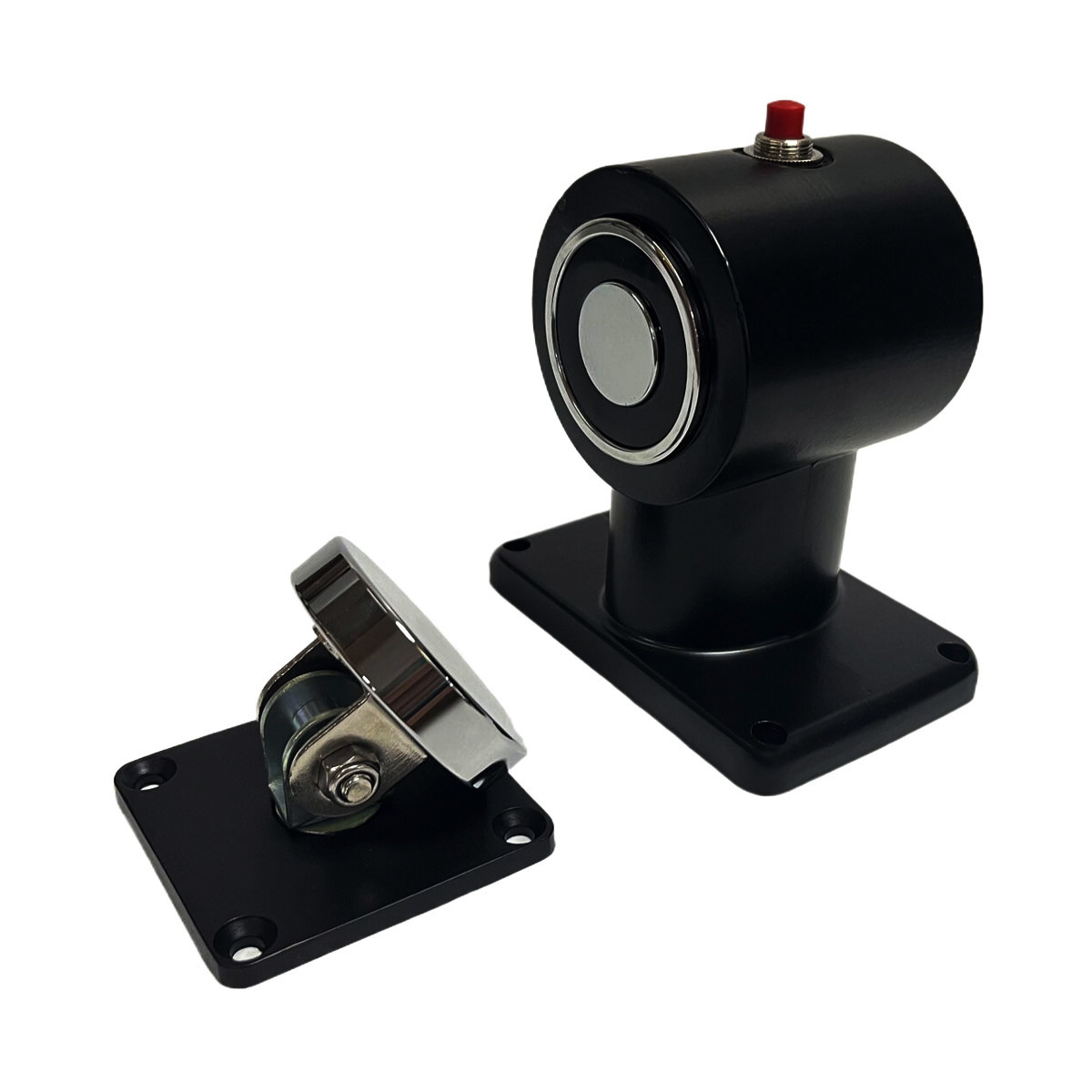

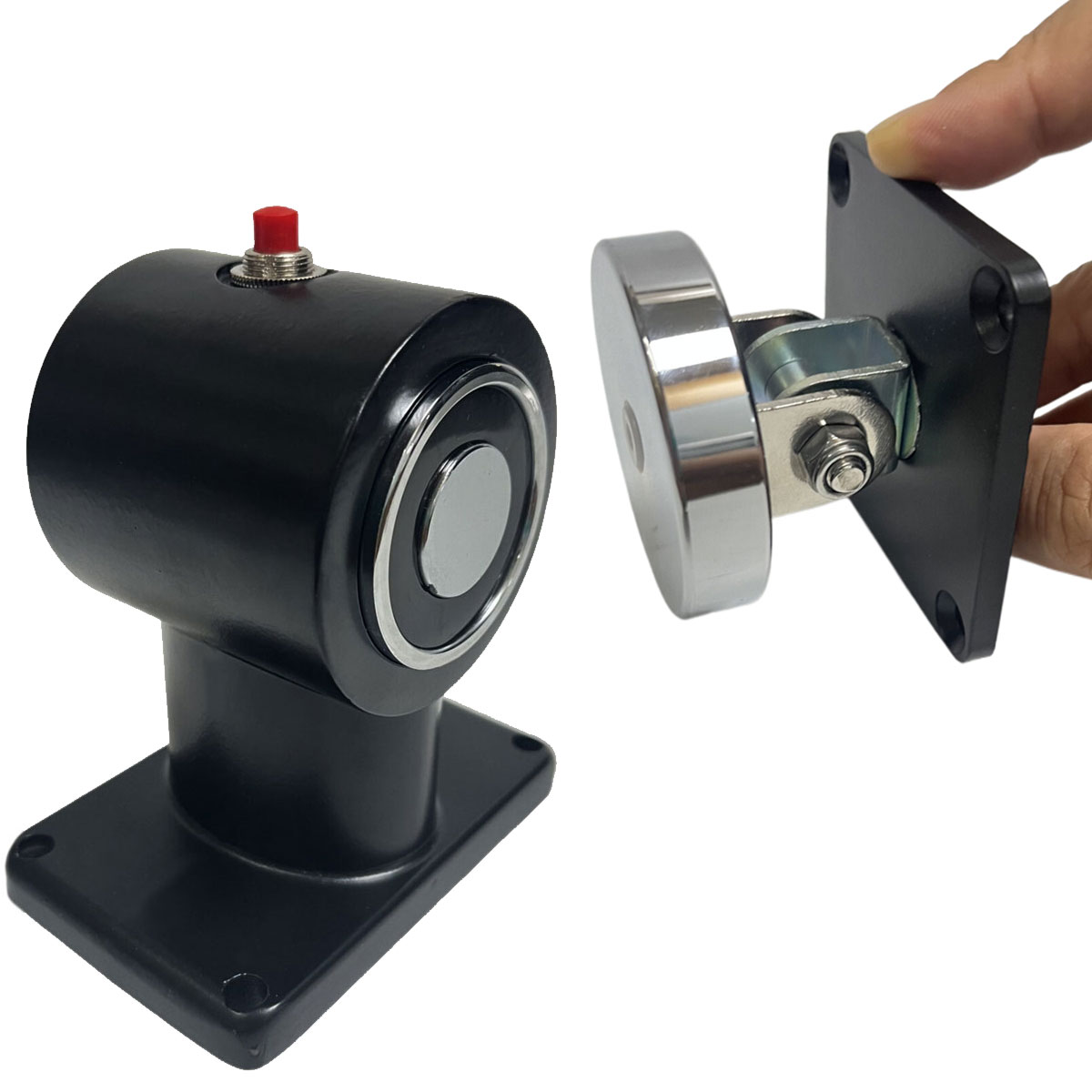

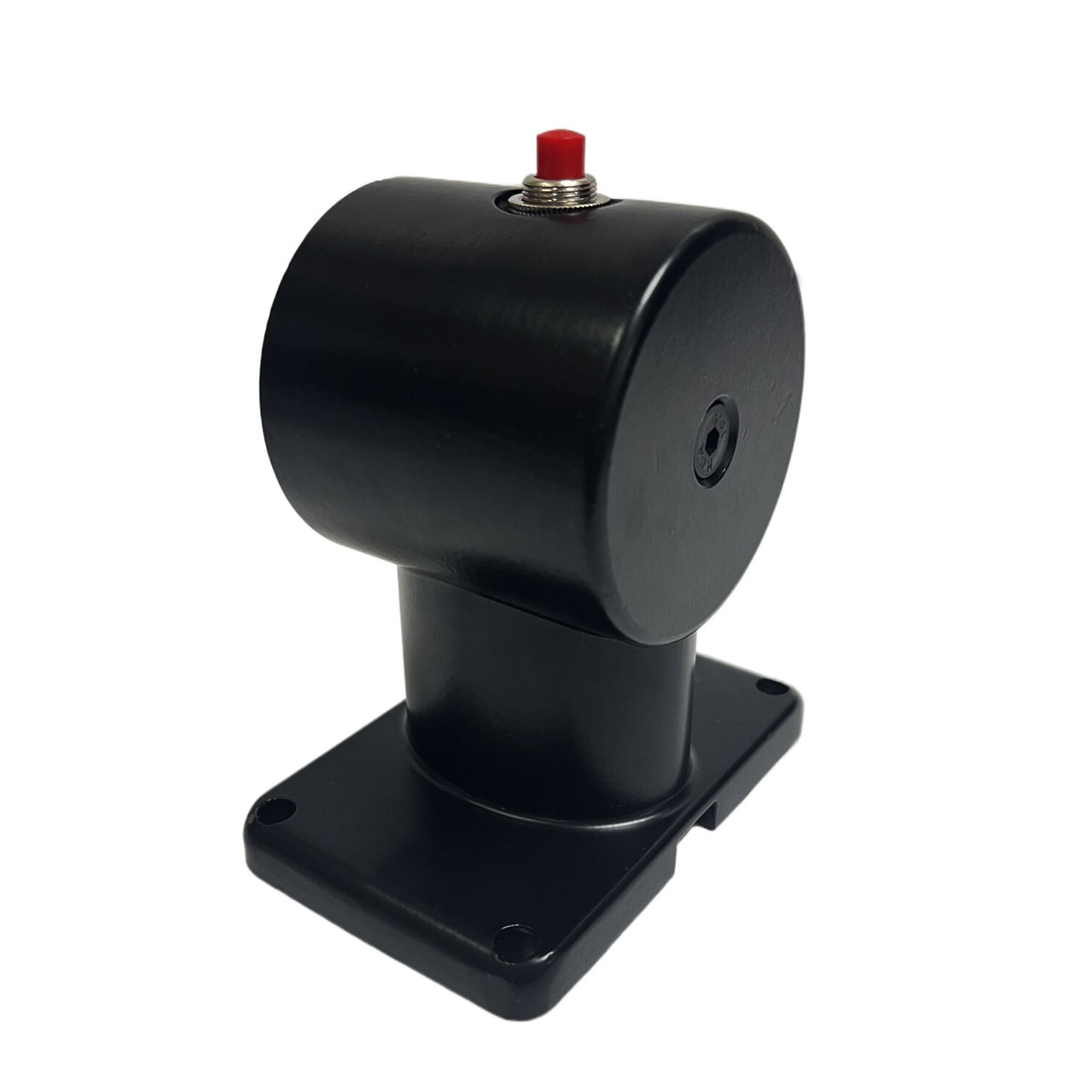

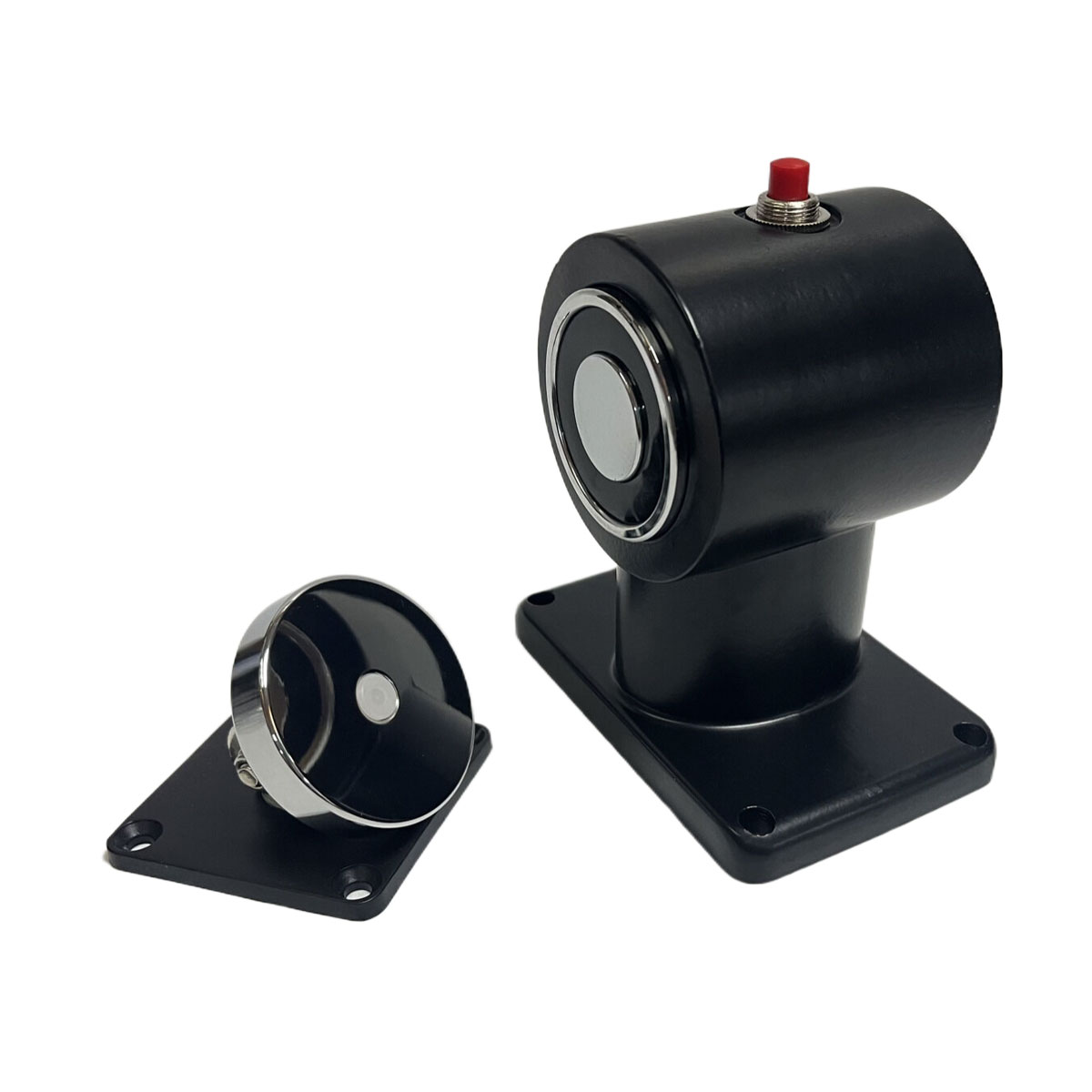

NP-G900F Floor Mount Door Holder

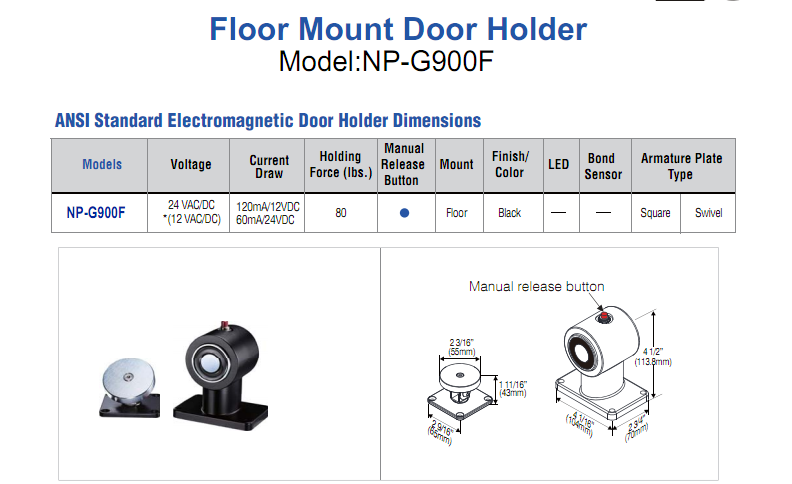

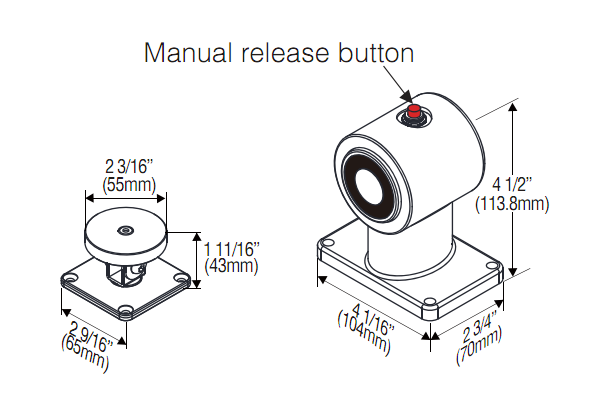

◆Dimensions: 104L*70W*113.8H(mm)

◆Holding Force: 50kg(110Lbs)

◆Voltage: 24VDC+10%

◆Current Draw:24V/85mA

◆Fail-safe type (power to lock), suitable for fire exit door.

ANSI Standard Electromagnetic Door Holder

NP-G900F is ANSI standard electromagnetic door holder with ultra low power consumption. The door holder can installation for floor.It has signal output for central linkage and has reliable performance with special design avoiding residual magnetism.It is very suitable for all kinds of Fire exit and fireproof door.
◆Dimensions: 104L*70W*113.8H(mm)
◆Holding Force: 50kg(110Lbs)
◆Voltage: 24VDC+10%
◆Current Draw:24V/85mA
◆Fail-safe type (power to lock), suitable for fire exit door.

Version	Fail-unlocked
Holding Force	50kg(100Lbs)
Standard Functions	Manual door release button
Lock Status Sensors	NO
Rated Operating Voltage	24V DC
Current consumption	24V/85mA
Surface finish	Paint and Zinc plated
Ambient temperature in °C	-10°C - +55°C
Suitable for	All Kind of Single & Double Smokeproof Doors
Magnets Dimensions(L x W x D)	104L70W113.8H(mm)
Armature Plate Dimensions(L x W x D)	65L65W43H(mm)
Weight in kg	1.36kg
CE-mark for building	YES
Rohs-mark for building	YES
