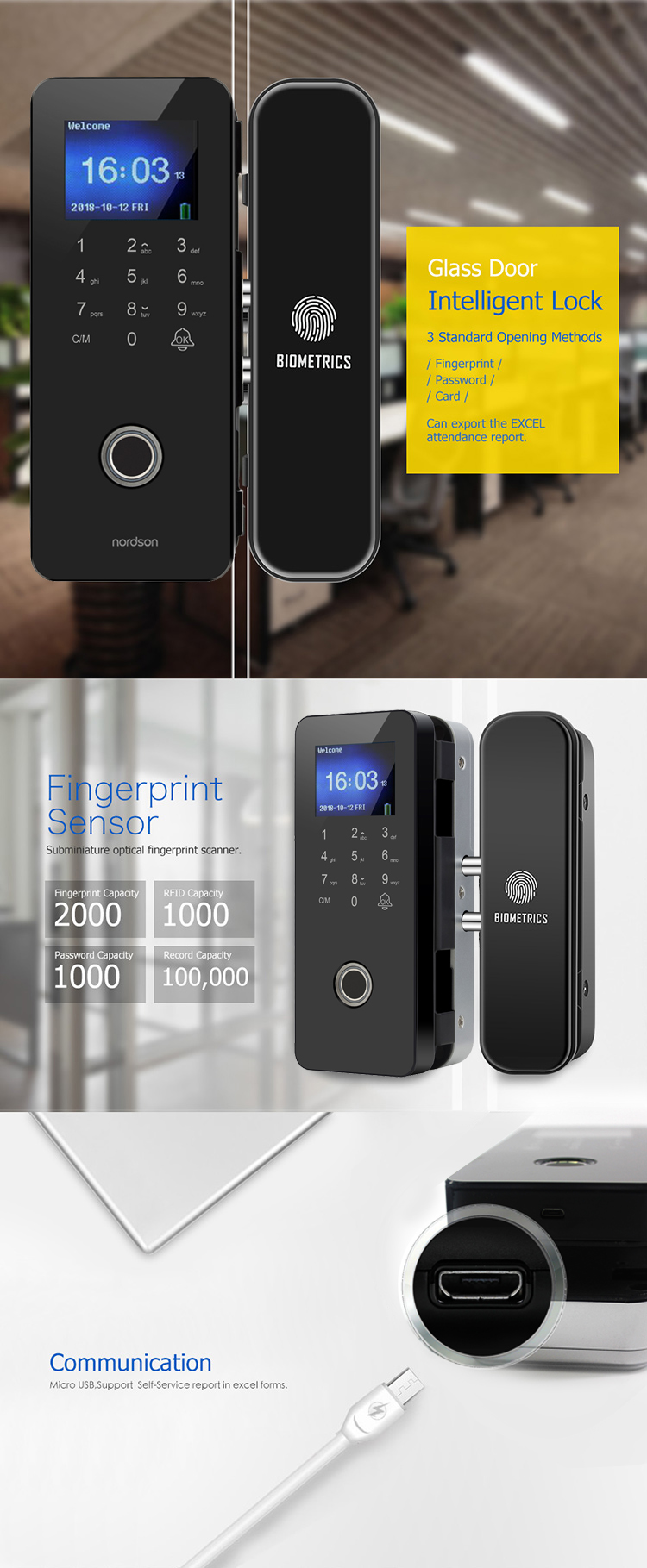

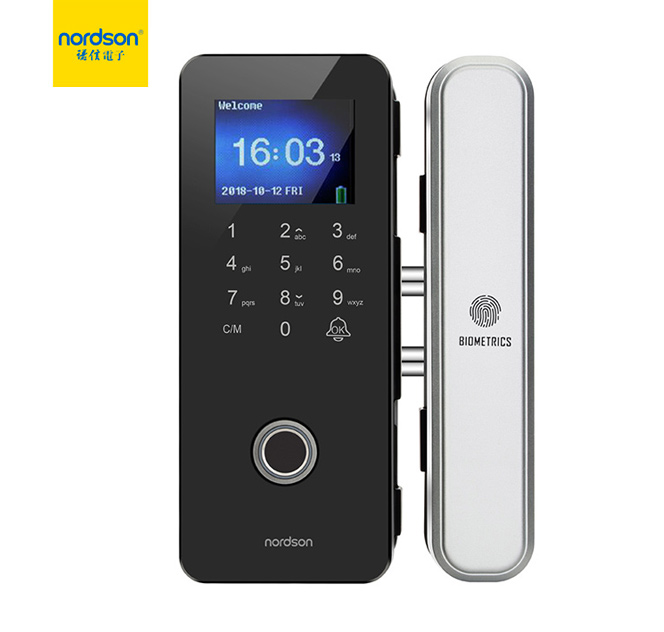

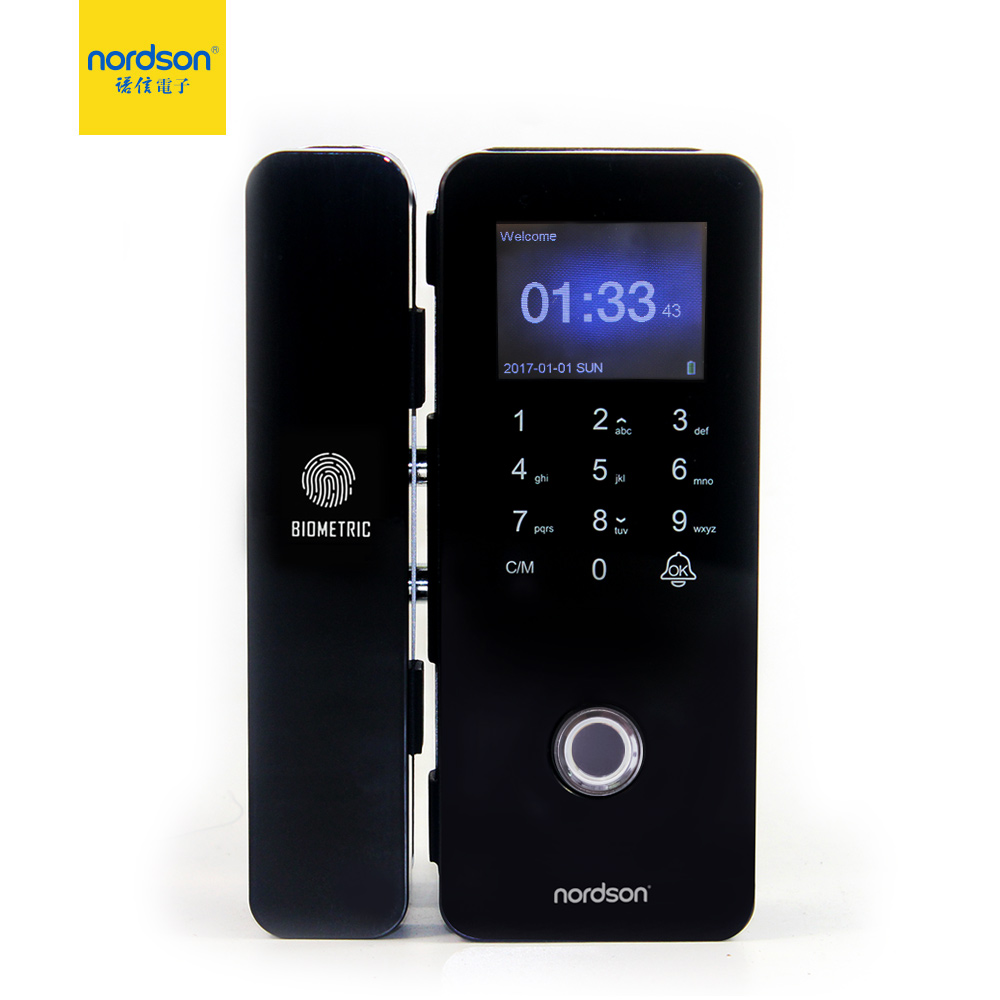

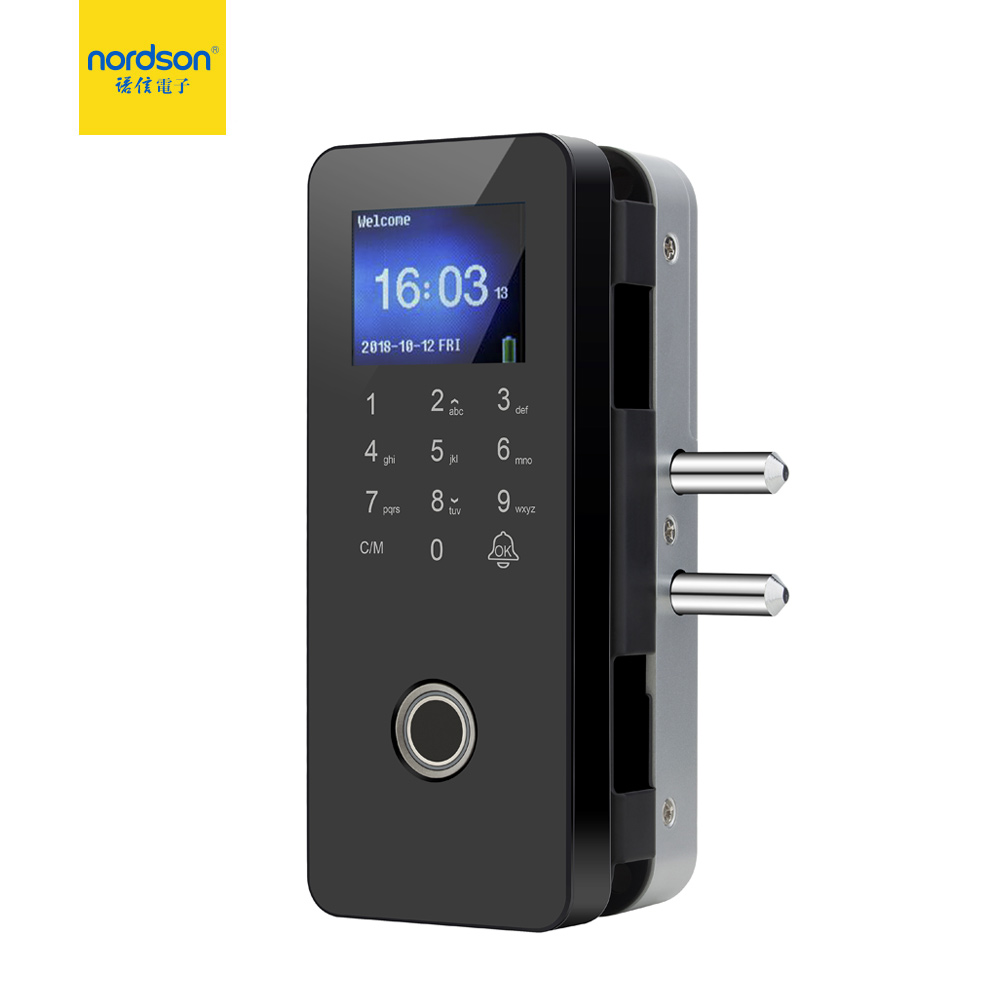

IGLASSII-C, a new revolutionary designed product of glass door locks: a brand new appearance,ten digital keys,a 1.77-inch true color large screen,free of wiring and punching, very intuitive and easy to operate;3 standard opening methods: fingerprint, password, card; support exporting self-service reports in excel format with micro USB port; use imported semiconductor fingerprint sensor that speeds up the induction speed to be less than 0.3s.IGLASSII-C can be widely used for double frameless glass doors, single frameless glass doors and framed glass doors (with different accessories) in the offices.

1.HD non-membrane fingerprint collector and imported semiconductor fingerprint sensor for 360°high speed recognition
2.Smart chip with embedded fingerprint module and 32-bit processor.
3.3 standard opening methods,more convenient to use.
4.Free of wiring,drilling,nailing and punching,easy to install.
5.2.4 inch TFT screen,intuitive to operate.
6.10 digital keys,safer to set password.
7.Suitable for double frameless glass doors, single frameless glass doors and framed glass doors.
8.Support exporting self-service reports in excel format:download attendance reports,edit and upload user datas, edit and upload working schedules.

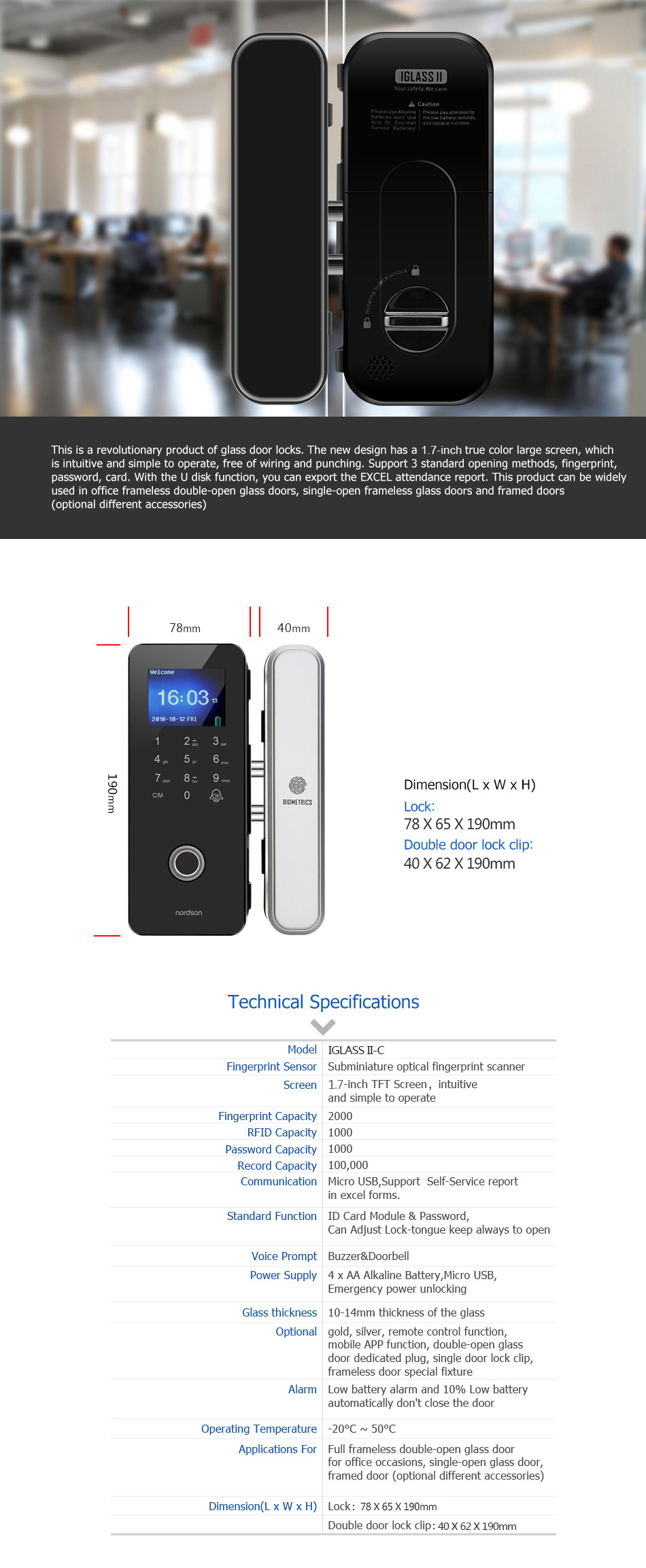

Model	GLASSII-C
Fingerprint Sensor	Imported subminiature optical fingerprint scanner
Screen	1.7 inch TFT Screen,0-9 ten digits keypad,intuitive and simple to operate
Fingerprint capacity	2000
RFID card capacity	1000
Password capacity	1000
Record capacity	100,000

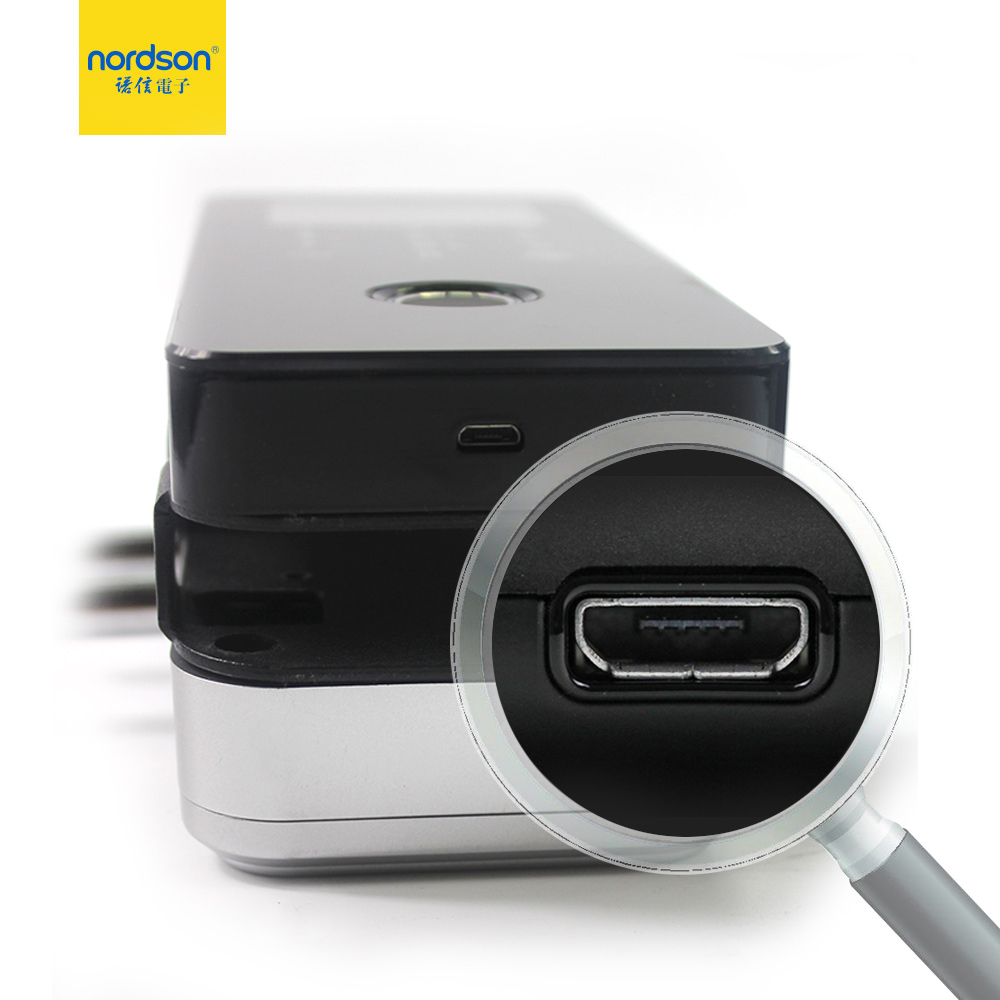

Communication	Micro USB,Support Self-Service report in excel format.

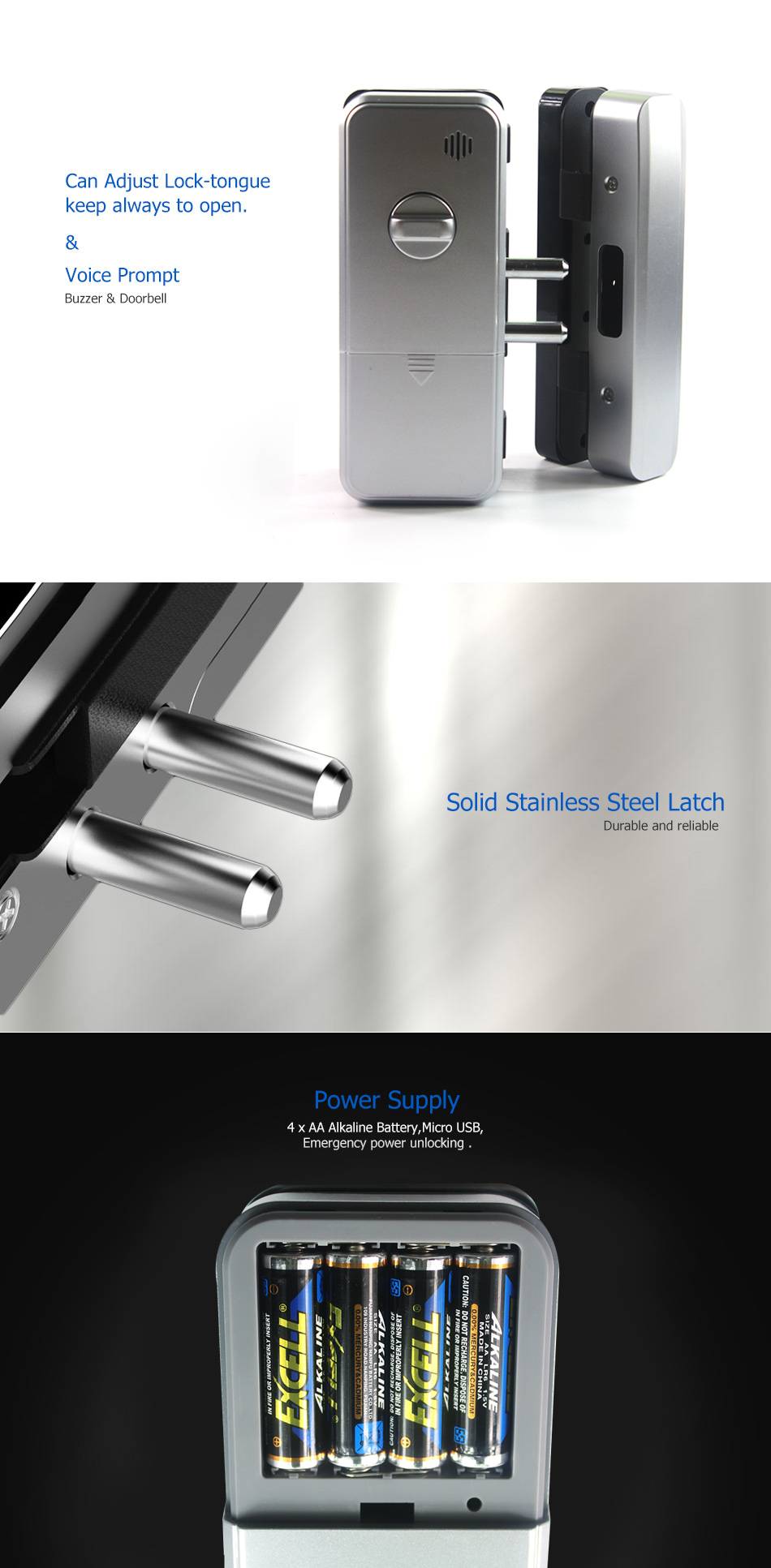

Standard Function	ID Card,Password & Fingerprint,Adjust bolt can keep the lock opening.
Voice Prompt	Buzzer&Doorbell

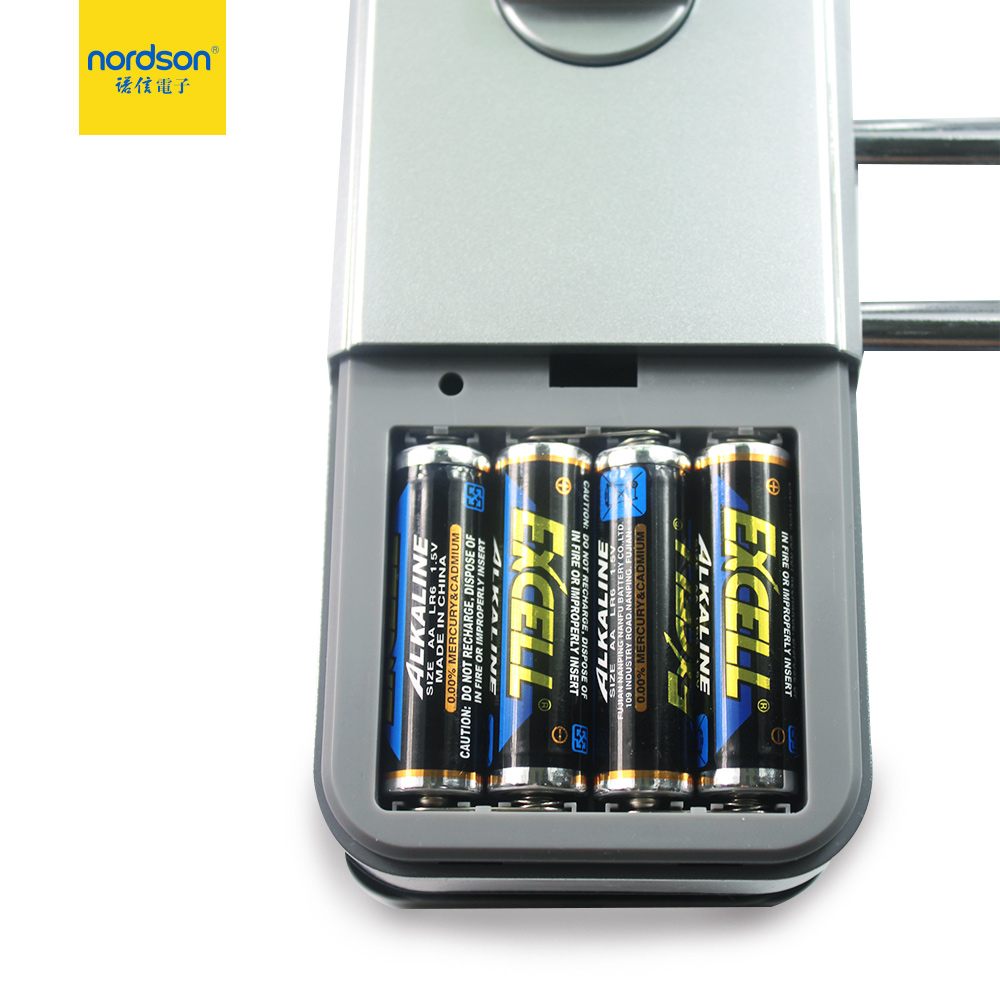

Power Supply	4 x AA Alkaline Battery,Micro USB, Emergency power unlocking .
Optional	double-open glass door dedicated plug, single door lock clip, frameless door special fixture;gold, silver, remote control function, mobile APP function
Alarm	Low battery alarm and the door automatically unlocks when the power of batteries is below 10%.
Operating Temperature	Minus 20°C ~ 50°C
Applications for	double frameless glass doors, single frameless glass doors and framed glass doors (with different accessories)

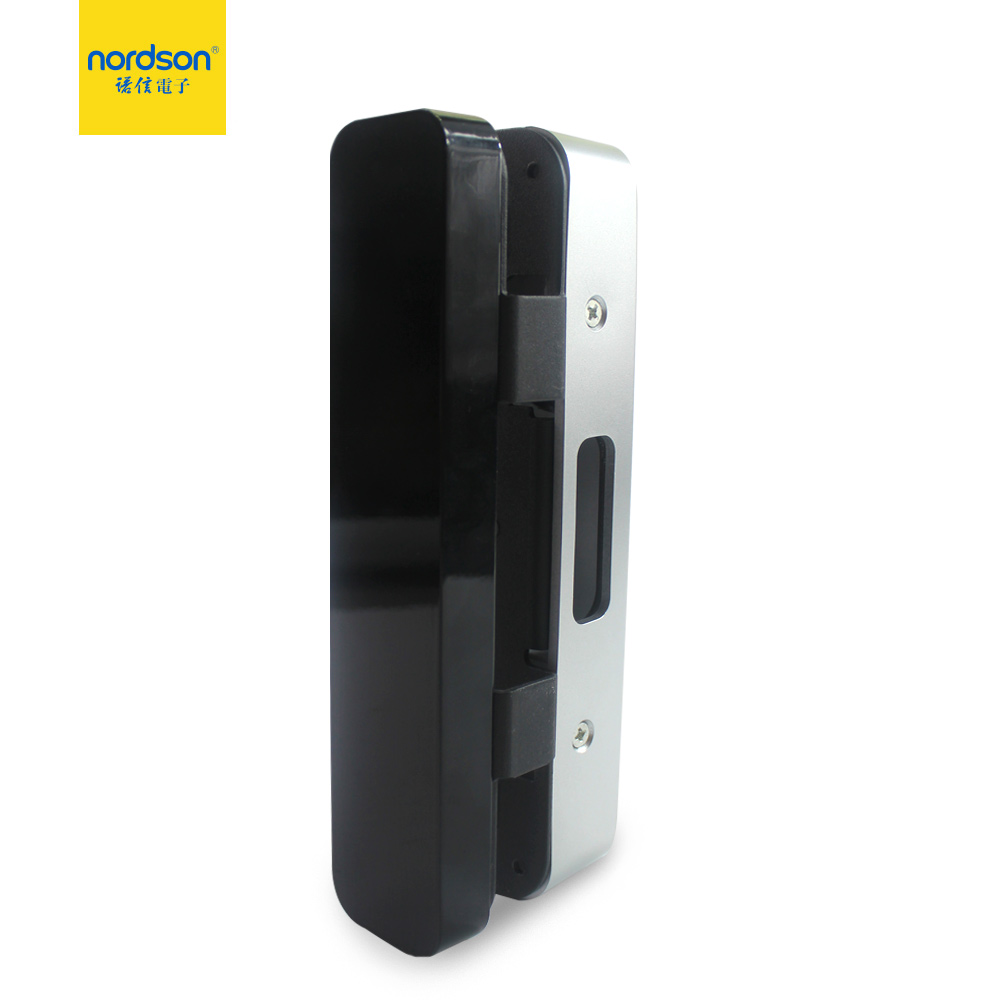

Dimension(L x W x H)	Lock：78x65x190mm Double door lock clip：40x62x190mm
