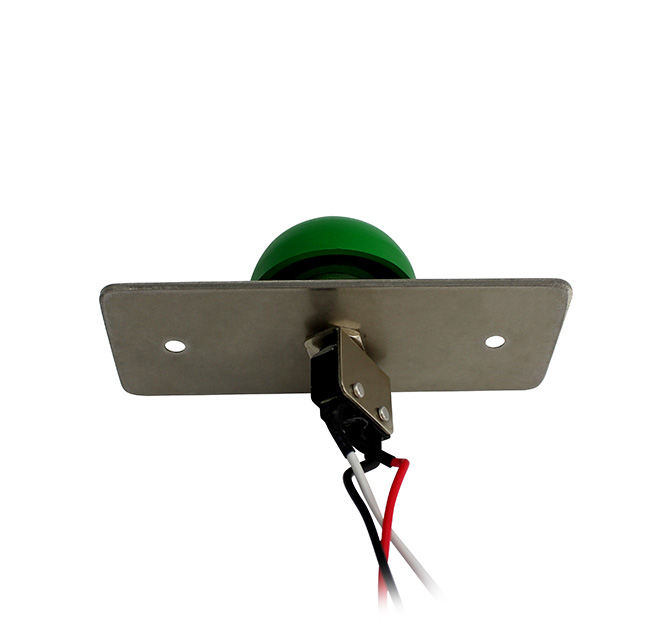

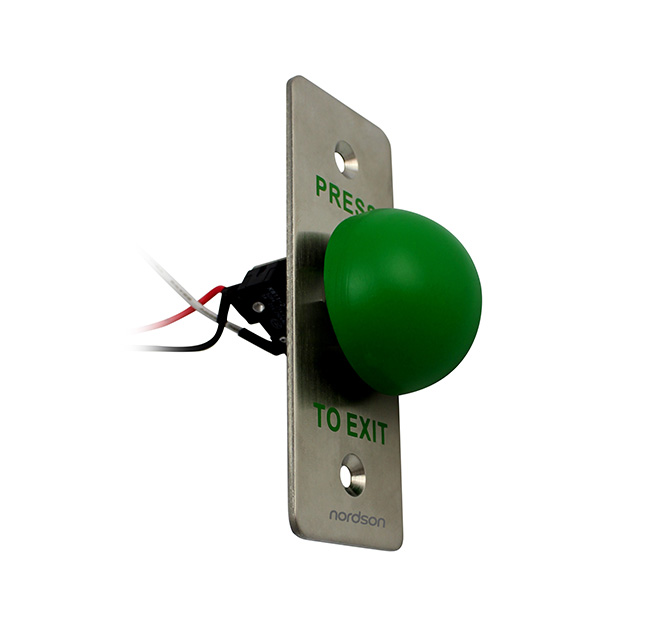

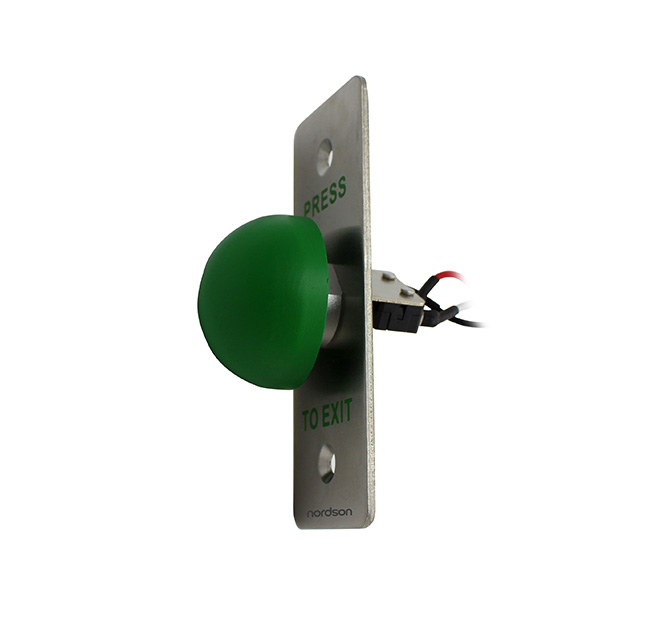

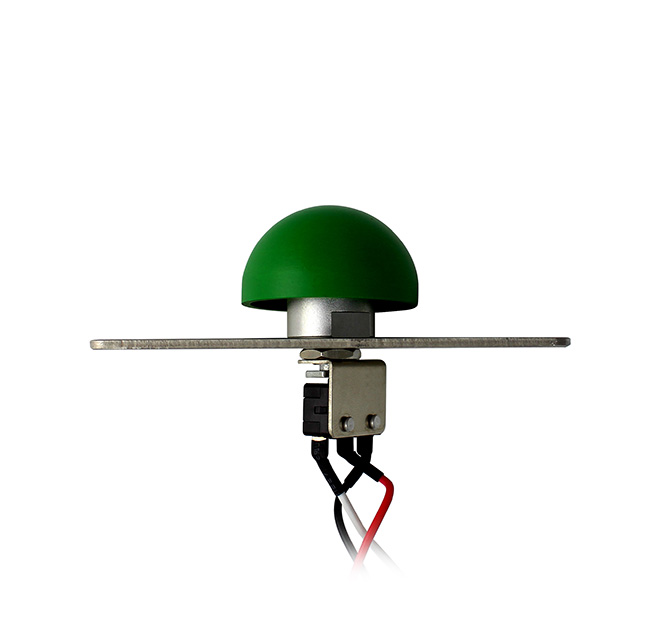

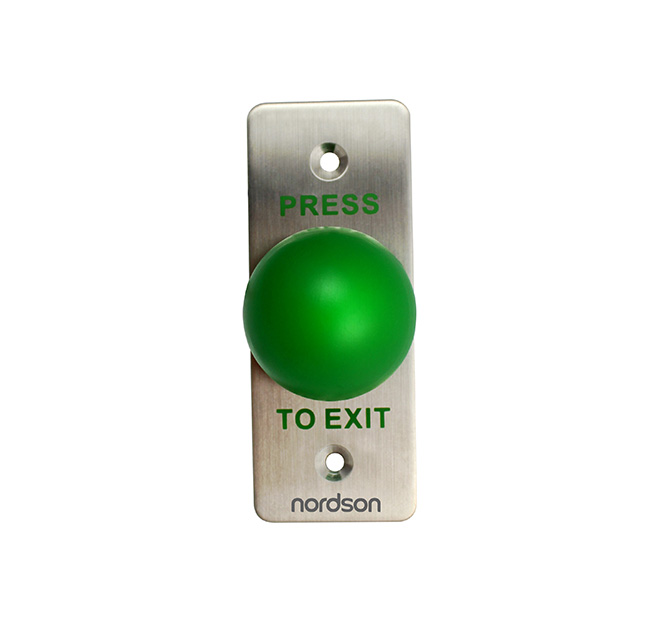

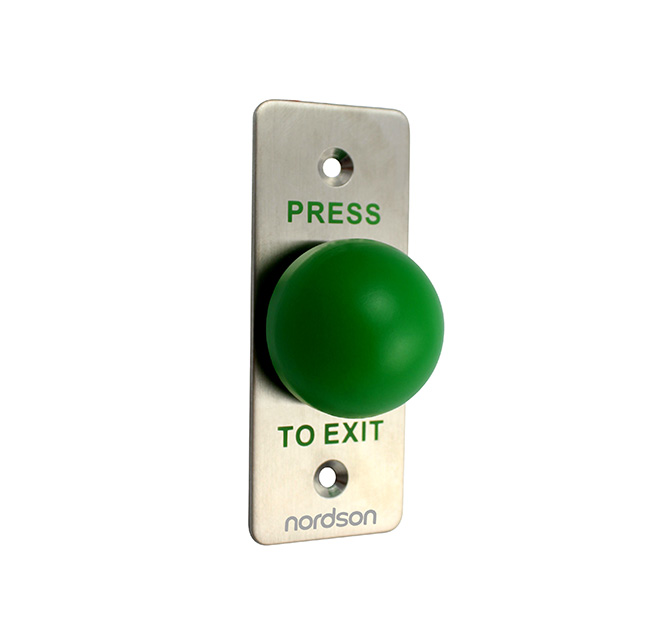

NF-88L Push Switch

Dooe release button does not include back box.
Standard structure Stainless steel panel, metal Button
Current rating: 3A@36VDC Max
Output contact: NO/NC/COM
Mechanical life: 500000 tested
Suitable for door: All kinds of doors
Panel Material: Stainless steel panel,wire drawing finished
Dimensions:90Lx35Wx54H(mm)
Weight 0.14kg

NF-88L Push Switch is a satin finish stainless steel access switch button, suitable for a variety of door frame, which is marketed after 500,000 successful test . It is with simple & ultra-narrow design, refined and elegant.The Push Switch is the Best Choice for Access Control Systems.
1.Simple and elegant design
2.Durable quality with imported stainless steel for faceplate and button
3.Easy installation with NO/NC/COM dry contact
4.Long lifespan,500000 Successful Test

Model	NF-88L Push Switch
Model	NF-88L Push Switch
Standard Structure	Standard structure Stainless steel panel, Big metal Button
Input	DC12V
Current Rating	3A@36VDC Max
Output Contact	NO,NC,COM
Mechanical Life	500000 tested
Suitable for Door	All kinds of doors
Operating temp	-10～+55℃(14-131F)
Operating Humidity	0-95% (non- condensing)
Panel Material	Stainless steel panel,wire drawing finished
Dimensions	90Lx35Wx54H(mm)
Weight	0.4kg
