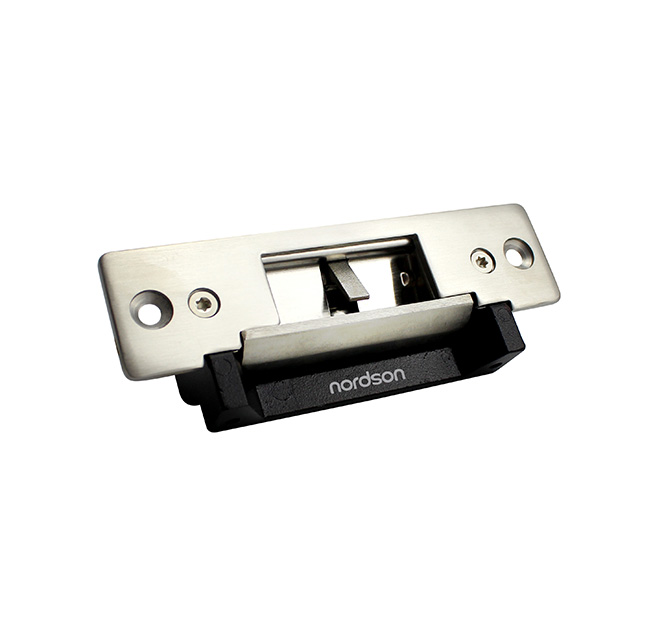

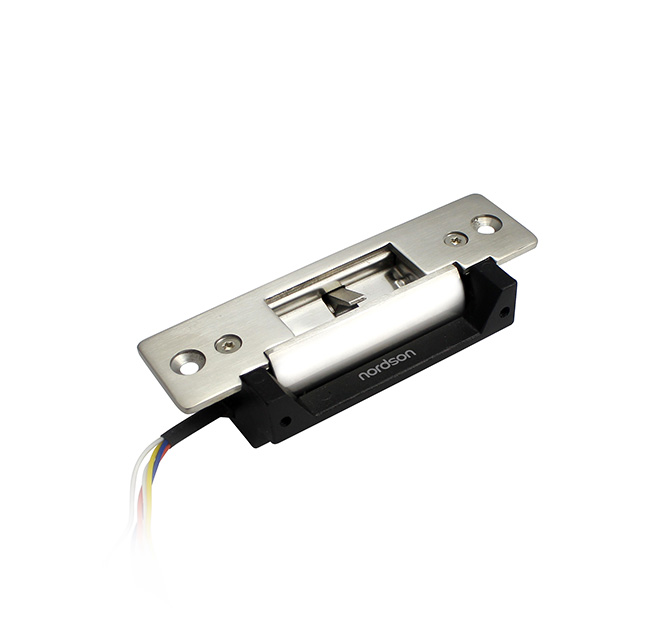

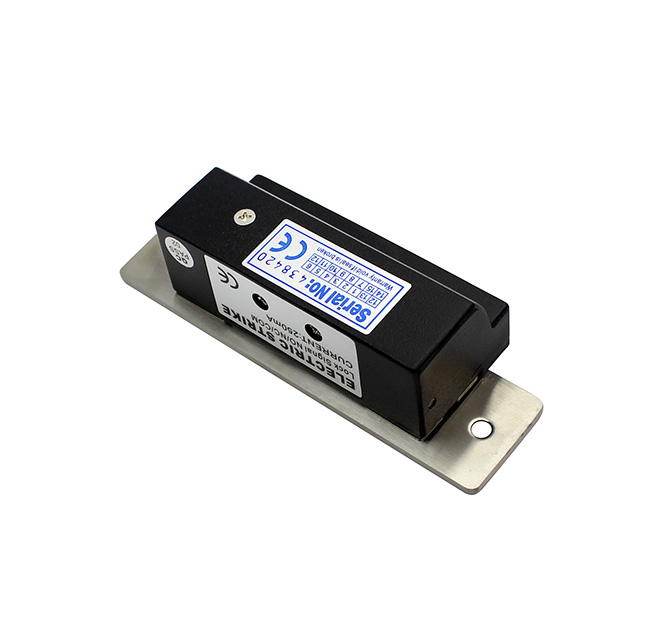

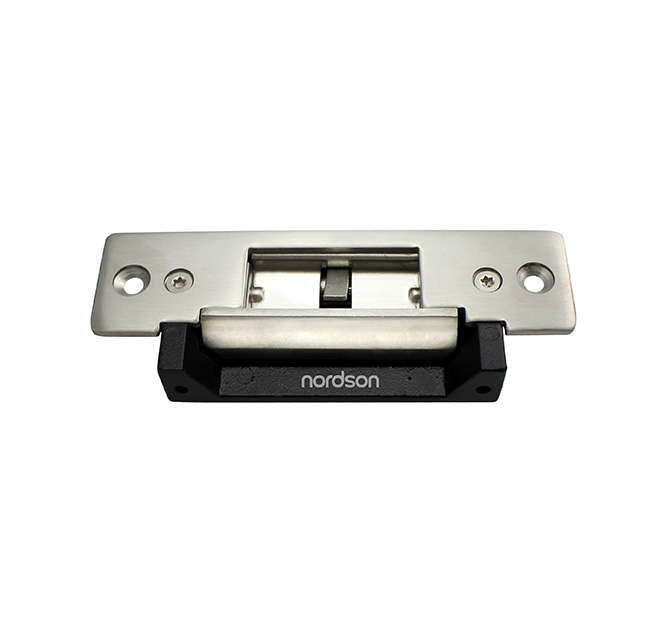

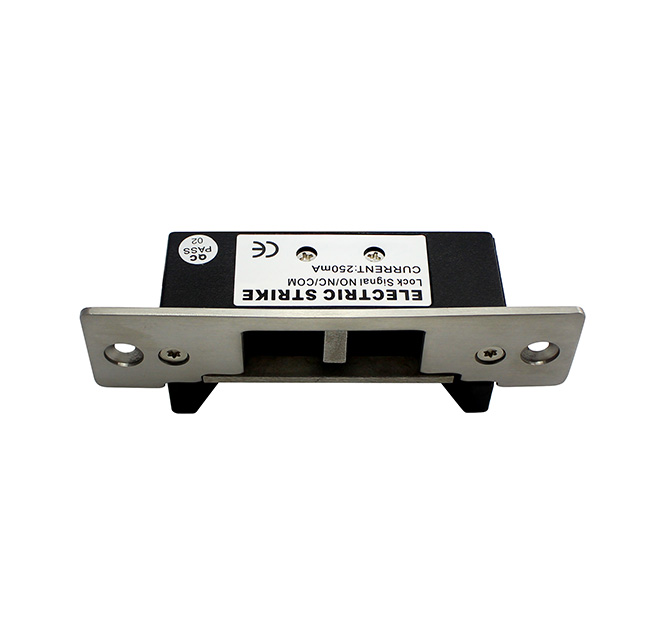

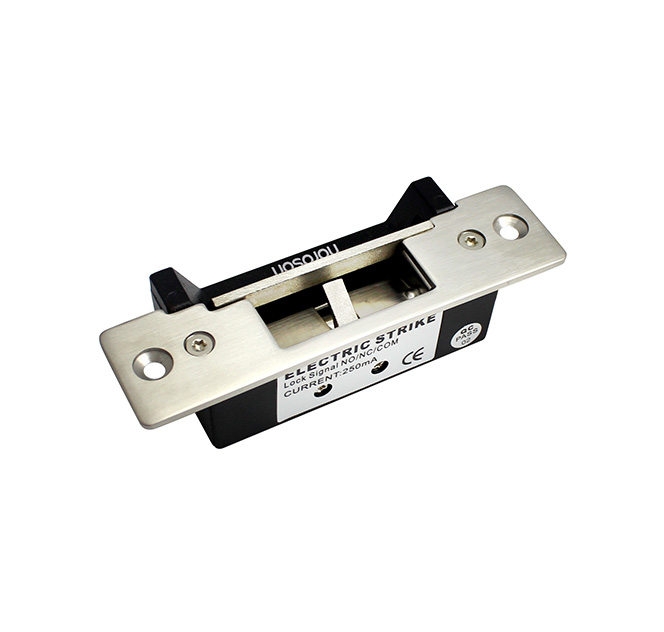

NJ-320A-S ANSI standard Heavy Duty Electric Strike Series Lock Status Output

With Signal Output: Lock Status Output NO/NC/COM
Fail-secure type (Power to open)
Can be adjusted

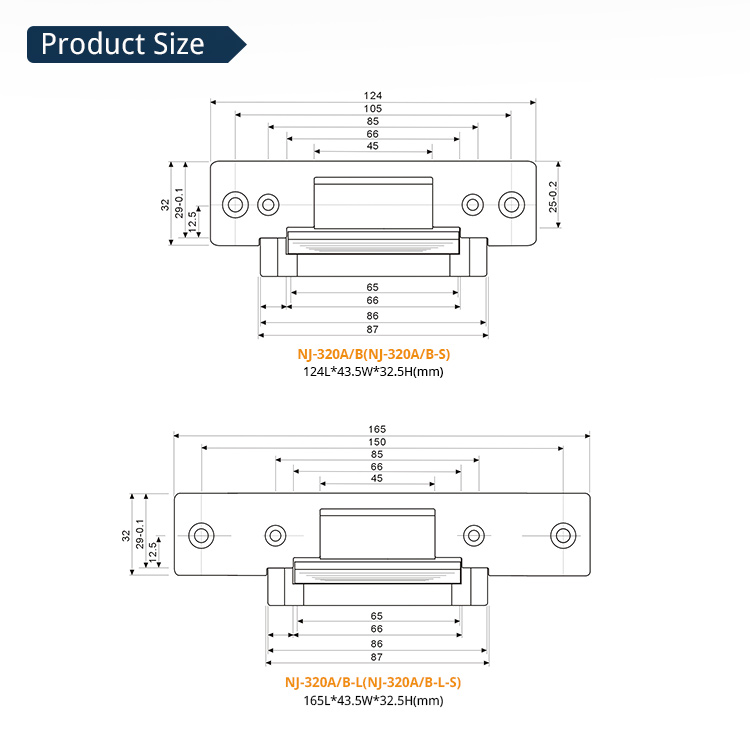

Lock Size: 124L*43.5W*32.5H(mm)
Holding Stength: 500kg
Bolt Structure: Stainless Steel

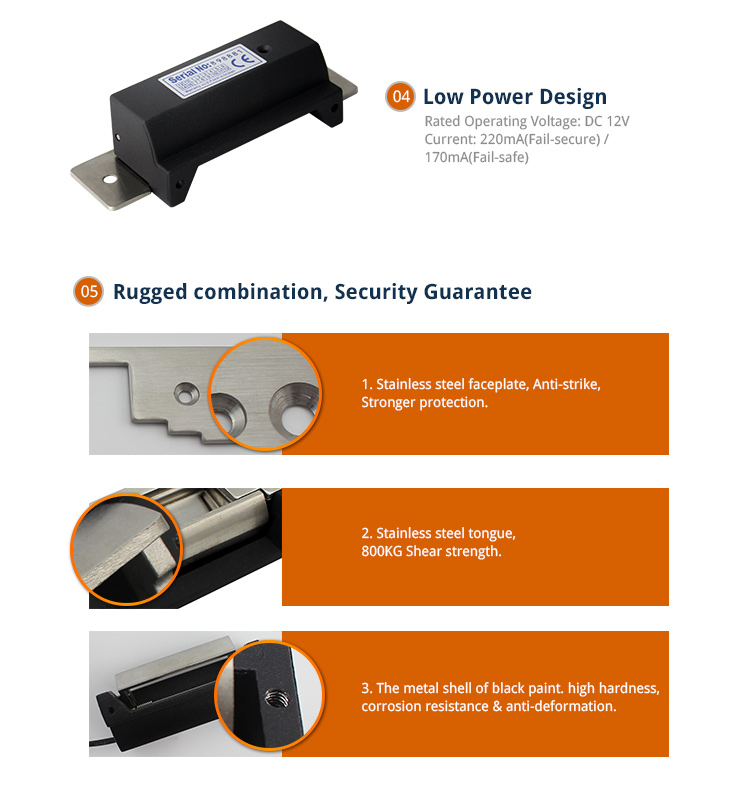

Voltage: 12VDC
Current: 220mA(NJ-320AS) / 170mA(NJ-320BS)
Weight: 0.6kg

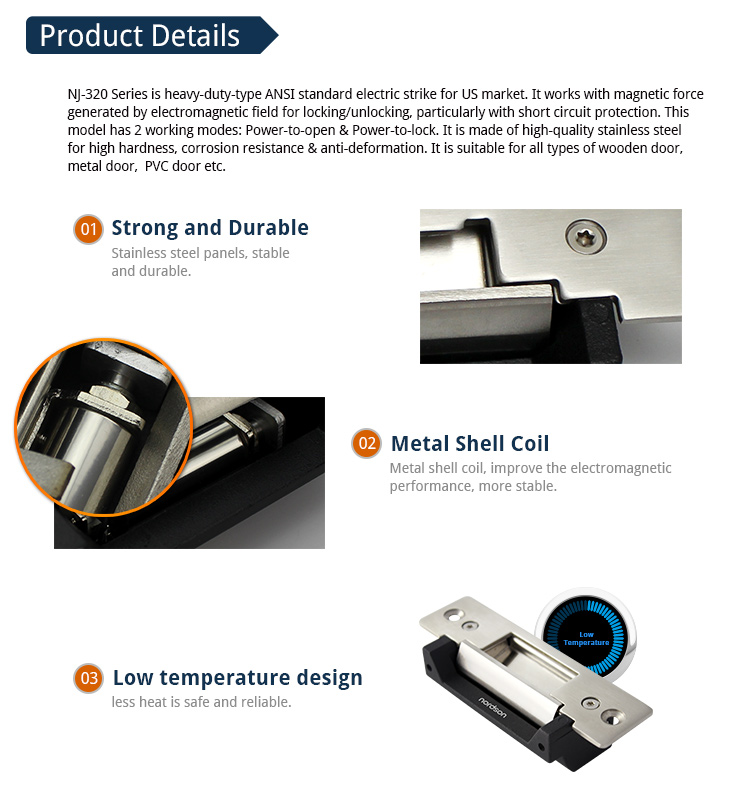

NJ-320A-S is heavy-duty-type ANSI standard electric strike lock with feedback signal output.It works with magnetic force generated by electromagnetic field for locking/unlocking,particularly with short circuit protection.This model has 2 working modes:Power-to-open & Power-to-lock.It is made of high-quality stainless steel for high hardness, corrosion resistance & anti-deformation.It is suitable for all types of wooden door, metal door, PVC door etc.

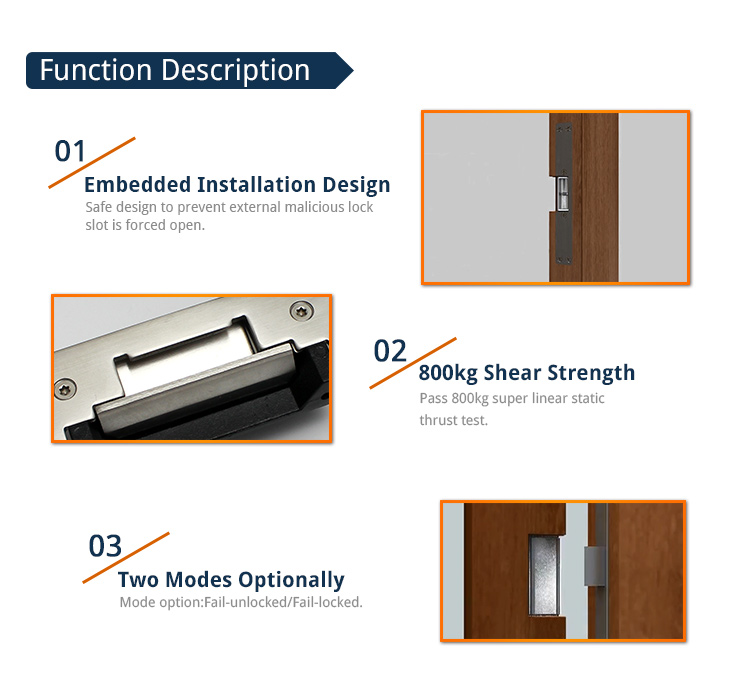

1.Pass 1000lbs super linear static thrust test

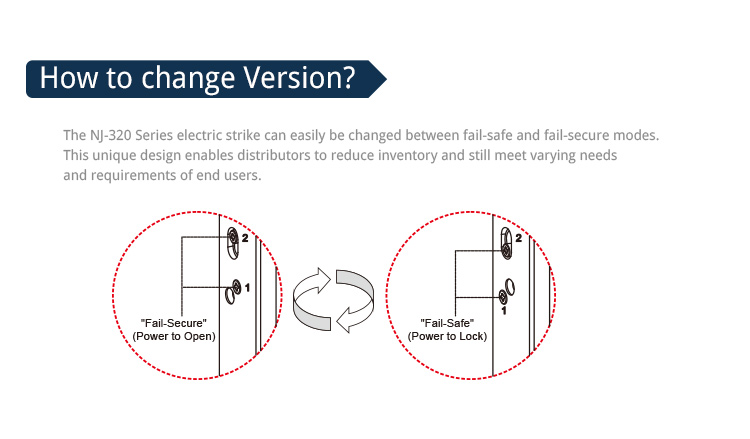

2.Mode option:Fail-unlocked/Fail-locked
3.Suitable for ANSI standard for US Market

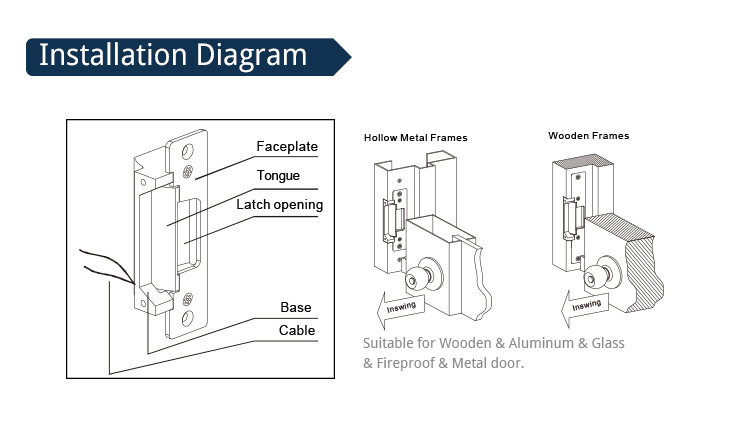

4.Direct installation on Wooden,PVC,metal door frame with mounting hole
5.Pass test of high temperature aging 100,000 times

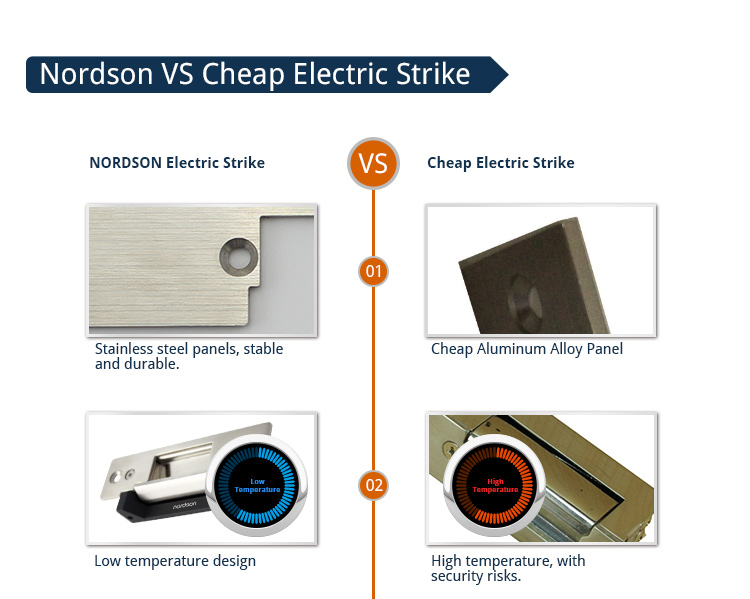

6.Made of high-quality stainless steel for high hardness,corrosion resistance & anti-deformation
7.Strike trough 15mm deep,Widely used with all kinds of mechanical lock.
8.CE Certificate & MA Certificate approved

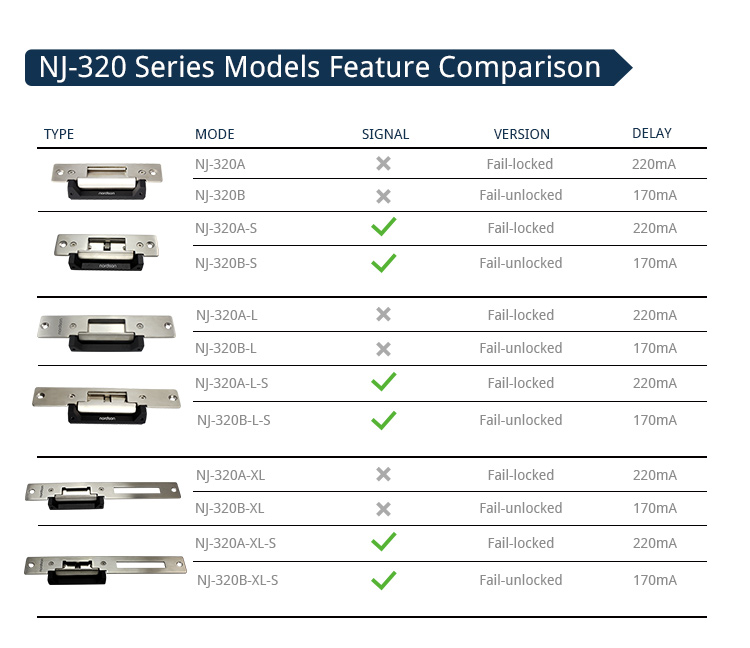

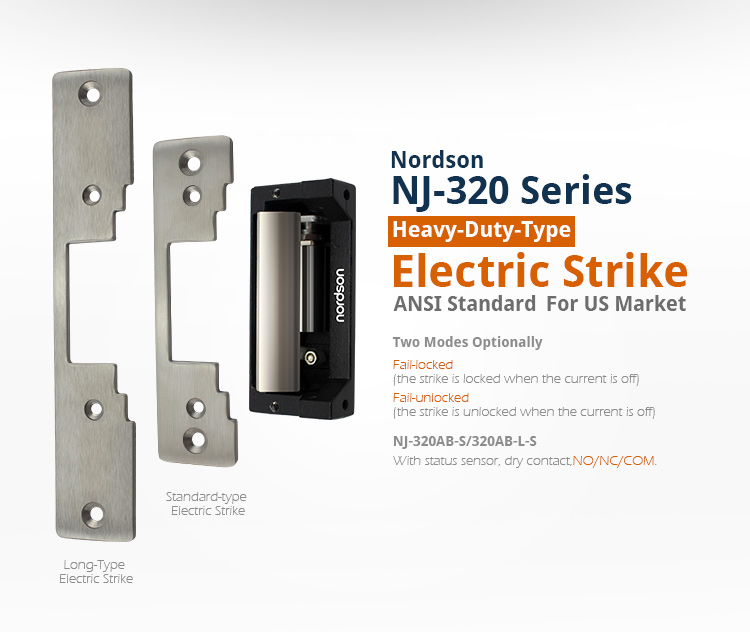

Version	NJ-320A-S:Fail-locked(the strike is locked when the current is off) NJ-320B-S:Fail-unlocked(the strike is unlocked when the current is off)
Shear strength	1000Lbs(500kg)

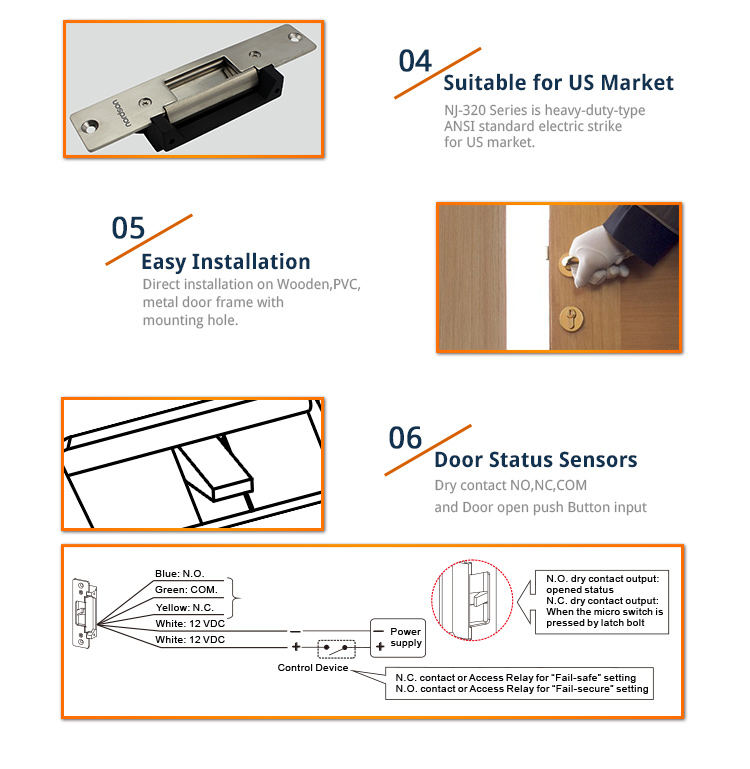

Lock Status Sensors	Dry contact,NO/NC/COM
Rated Operating Voltage	DC 12V
Standby Current	220mA
Optional Functions	DC24V/DC12V&DC24V
Face place material	Stainless Steel
Surface Temp	Low Temperature
Ambient temperature in °C	-10°C - +55°C
Suitable for	Wooden & Aluminum & Glass & Fireproof &Metal door
Strike Plate Dimensions(L x W x D)	124Lx32Wx36H(mm)
Weight in kg	0.38kg
CE-mark for building	YES
Rohs-mark for building	YES
