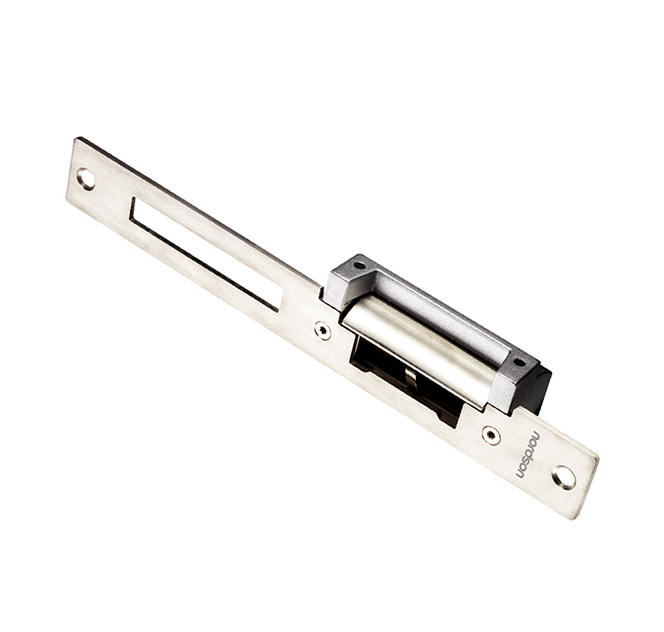

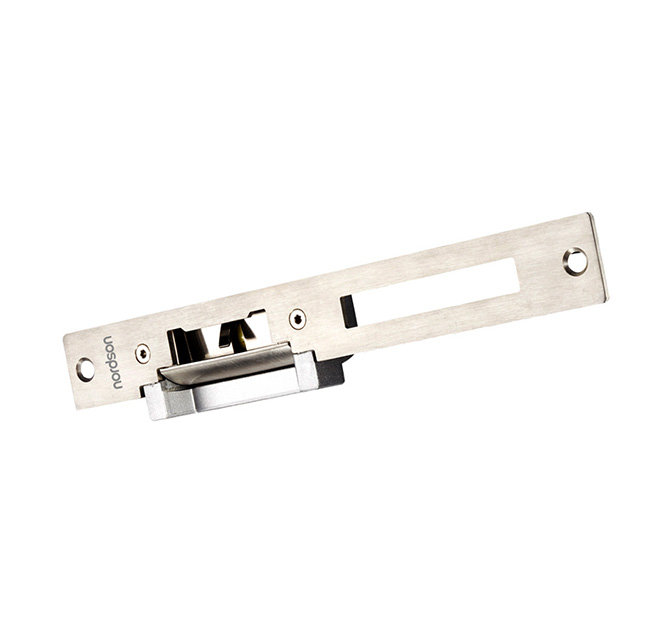

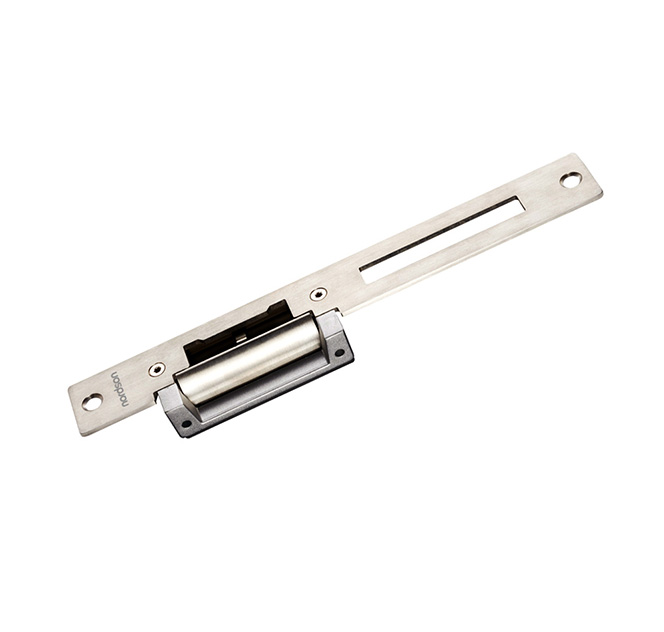

NJ-320A-XL-S Long Type Heavy Duty European Electric Strike with Lock Status Output

NJ-320A-XL-S Long Type Heavy Duty European Electric Strike with Lock Status Output

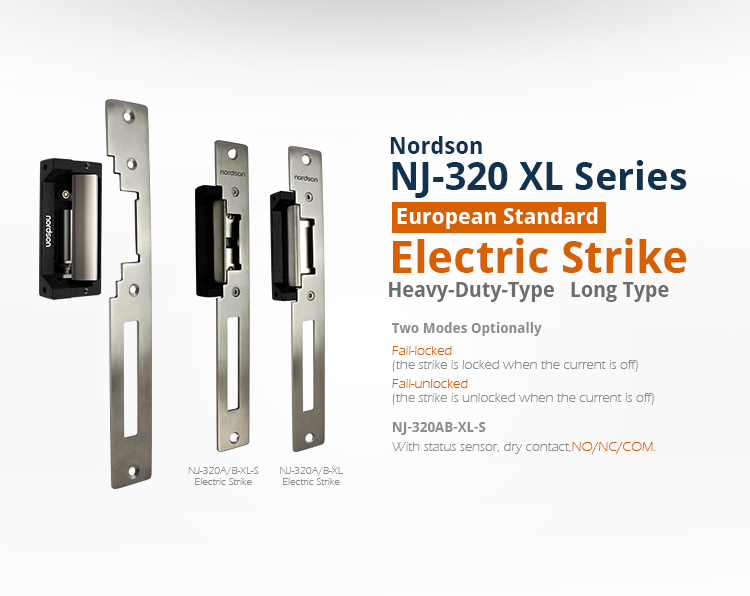

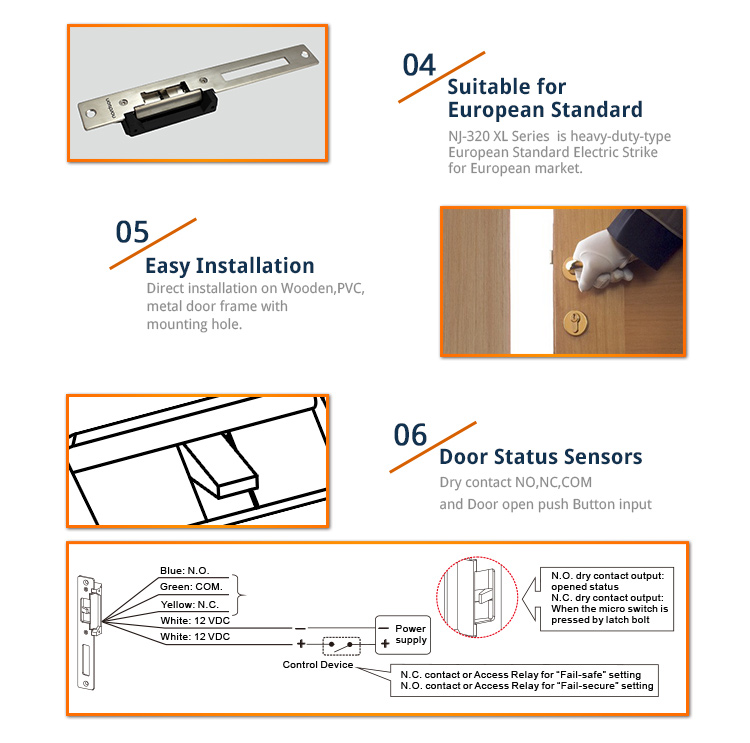

With Signal Output: Lock Status Output NO/NC/COM

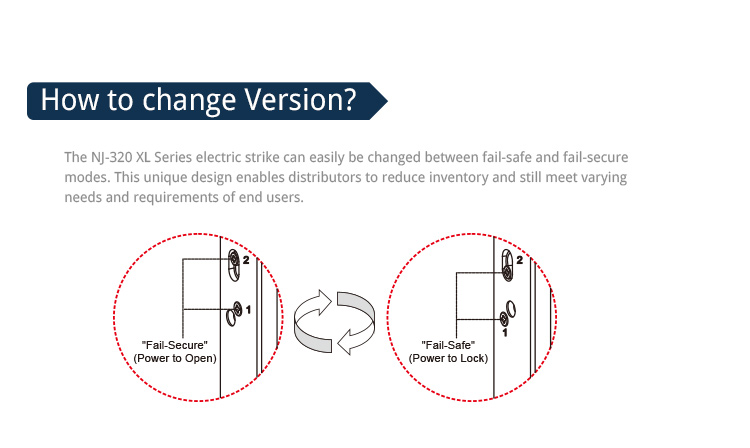

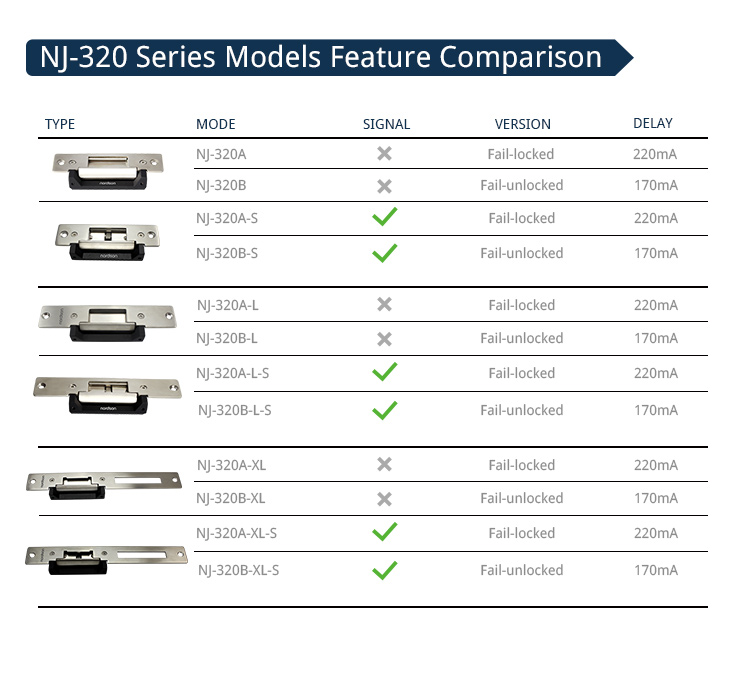

Fail-secure or Fail-safe Can be adjusted

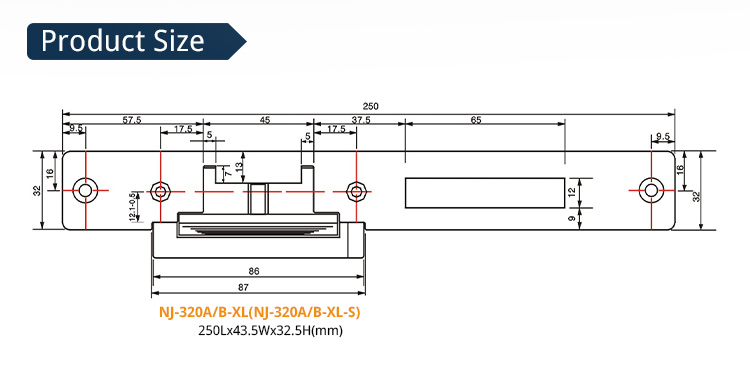

Lock Size:250L*43.5W*32.5H(mm)
Holding Stength: 500kg

inquiry

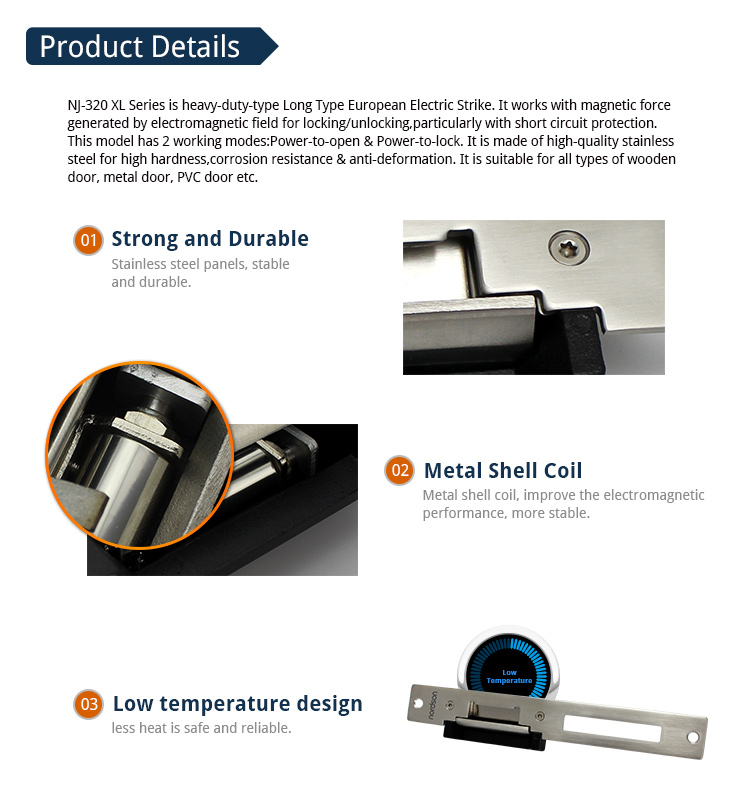

NJ-320A-XL-S is heavy-duty-type Long Type European Electric Strike with Signal.It works with magnetic force generated by electromagnetic field for locking/unlocking,particularly with short circuit protection.This model has 2 working modes:Power-to-open & Power-to-lock.It is made of high-quality stainless steel for high hardness,corrosion resistance & anti-deformation.It is suitable for all types of wooden door, metal door, PVC door etc.

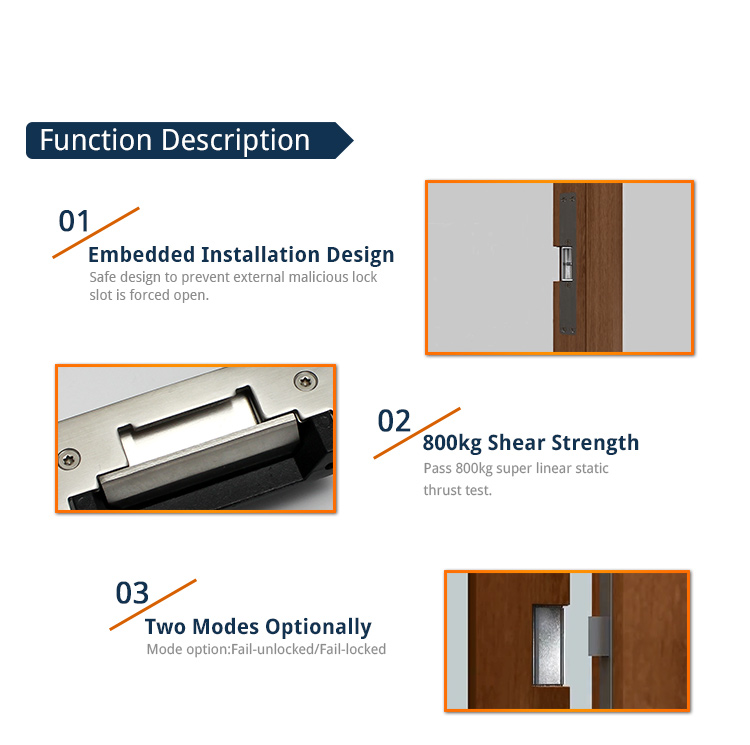

1.Pass 1000lbs super linear static thrust test
2.Mode option:Fail-unlocked/Fail-locked
3.Suitable for ANSI standard for European Standard

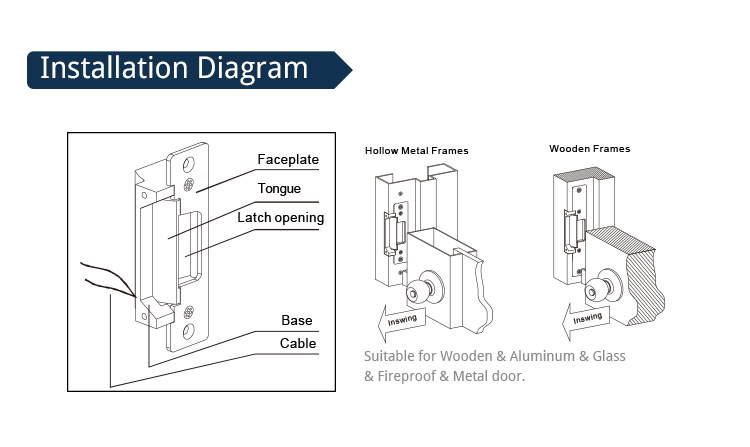

4.Direct installation on Wooden,PVC,metal door frame with mounting hole
5.Pass test of high temperature aging 100,000 times

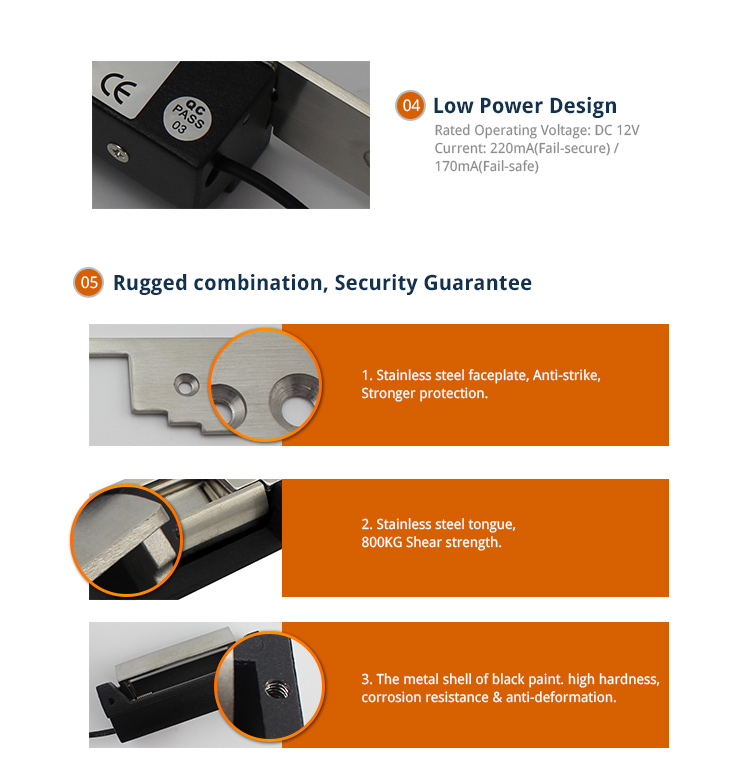

6.Made of high-quality stainless steel for high hardness,corrosion resistance & anti-deformation
7.Strike trough 15mm deep,Widely used with all kinds of mechanical lock.
8.CE Certificate & MA Certificate approved
