Top High Quality Standard Elevator Door Access Control System,Floor Door Access Control Unit,Multi Door Access Controller from Nordson China

DT20 Elevator/Multi-Door Access Control Unit can be restricted based on various user credentials, including RFID card,password or biometric.Normal management of the Access Control are "One for One", that means one card reader control one door. Valid card can open the door, invalid card can not open. Bur we can found that in many fields, a "One for More Controllers" are needed.The multi-door access control Pre-defined time schedules can also be used to control Elevator access. During normal visits/business hours, unrestricted floor access can also be permitted (aka Passage mode).
The DT20 and DT20K Elevator Controller can restrict access up to 20 floors. Each DT20 can support up to two DT20K boards. When combining together,total 40 floors can be controlled with two DT20K bundle.

DT20 Elevator/Multi-Door Access Control Unit can be restricted based on various user credentials, including RFID card,password or biometric.Normal management of the Access Control are "One for One", that means one card reader control one door. Valid card can open the door, invalid card can not open. Bur we can found that in many fields, a "One for More Controllers" are needed.The multi-door access control Pre-defined time schedules can also be used to control Elevator access. During normal visits/business hours, unrestricted floor access can also be permitted (aka Passage mode).
The DT20 and DT20K Elevator Controller can restrict access up to 20 floors. Each DT20 can support up to two DT20K boards. When combining together,total 40 floors can be controlled with two DT20K bundle.
Application 1: Elevator Access Control Management
We usually have ten or more floors in one Elevator, but you just need one card reader. The system can distinguish the user's privilege, then take them to the right floor.
If the user has multi-floor privilege, when swiping the card, he can choose the floor he want to go this time, and he can not push other floor buttons.
If the users are the security and administrator, they can go to any floor they want according to the privilege settings.
Application 2: Multi-Door Cabinet Access Control
It can combine with the Adroitor software to manage this.
When you swiping card, the appoint cabinet will open.
The administrator can use PC to open all doors at one time to do some check and manage work.
The cleaner can open all the door to do cleaning work after office-time.

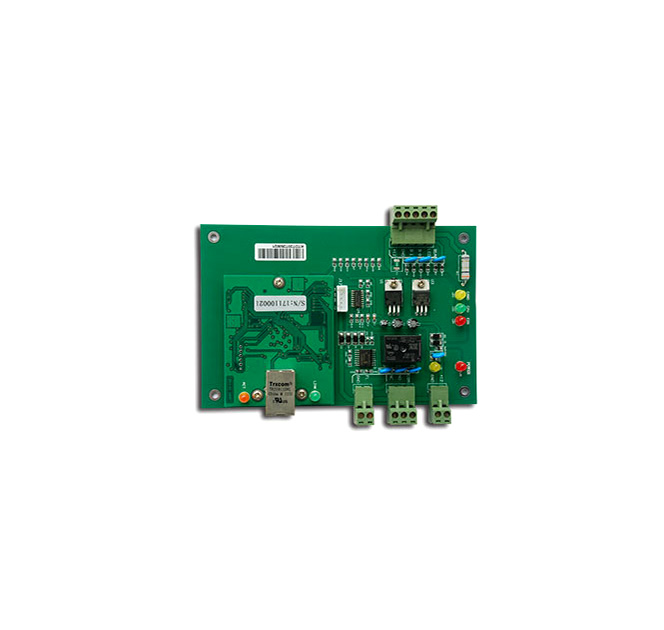

Model	DT20 Elevator/Multi-Door Access Control Unit
Input Format of Reader	Wiegand 26 (All card reader with compatible protocol, such as Motorola 、 HID 、 EM 、Mifare one etc)
Q ' ty of users	20,000
Q ' ty of Event Buffers(offline)	100,000
Power Supply	12V DC 3A
Communication to PC	TCP/IP 10M/100M self adaptive
Number of supported EX16	2
Dimension(L×D×H)	164mm*106mm
Net weight	0.20Kg

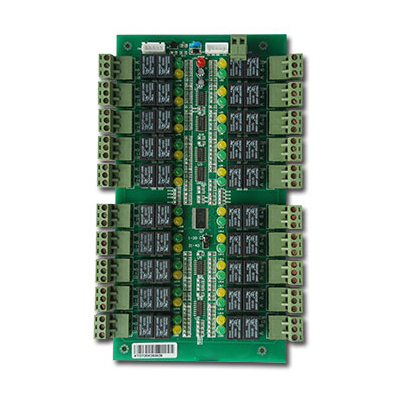

Model	DT20K Extend Function Board
Floor Control Relay	20
Operating temperature	Operating temperature:
Run Humidity	10-90% RH, non-condensing
Suitable for	1.Elevator Access Control Management 2.Multi-Door Cabinet Access Control
Power Supply	12V DC 3A
Dimension (L×D×H)	164mm*106mm
Net weight	0.30Kg
