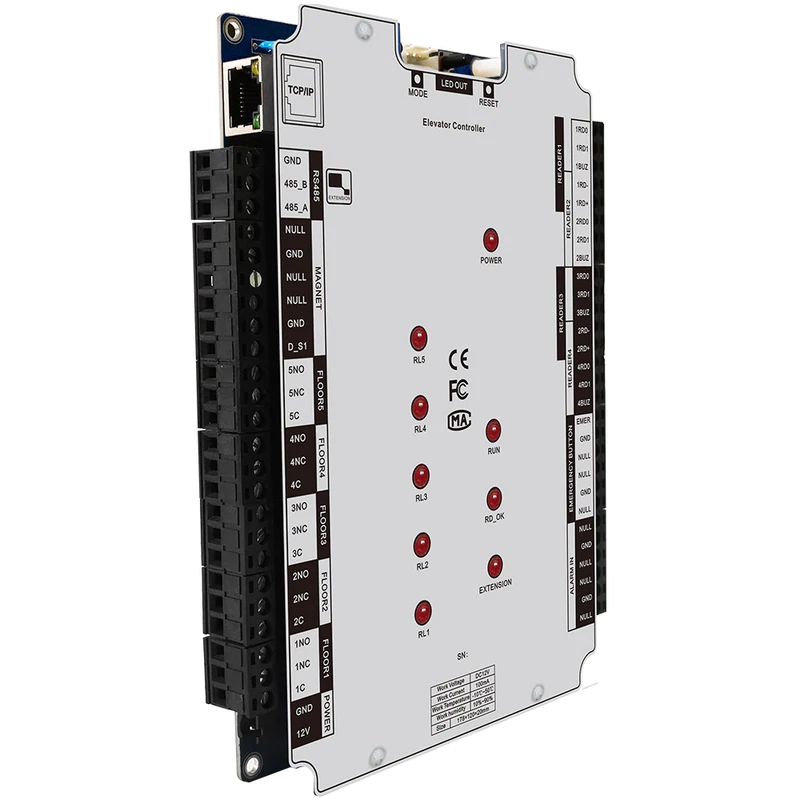

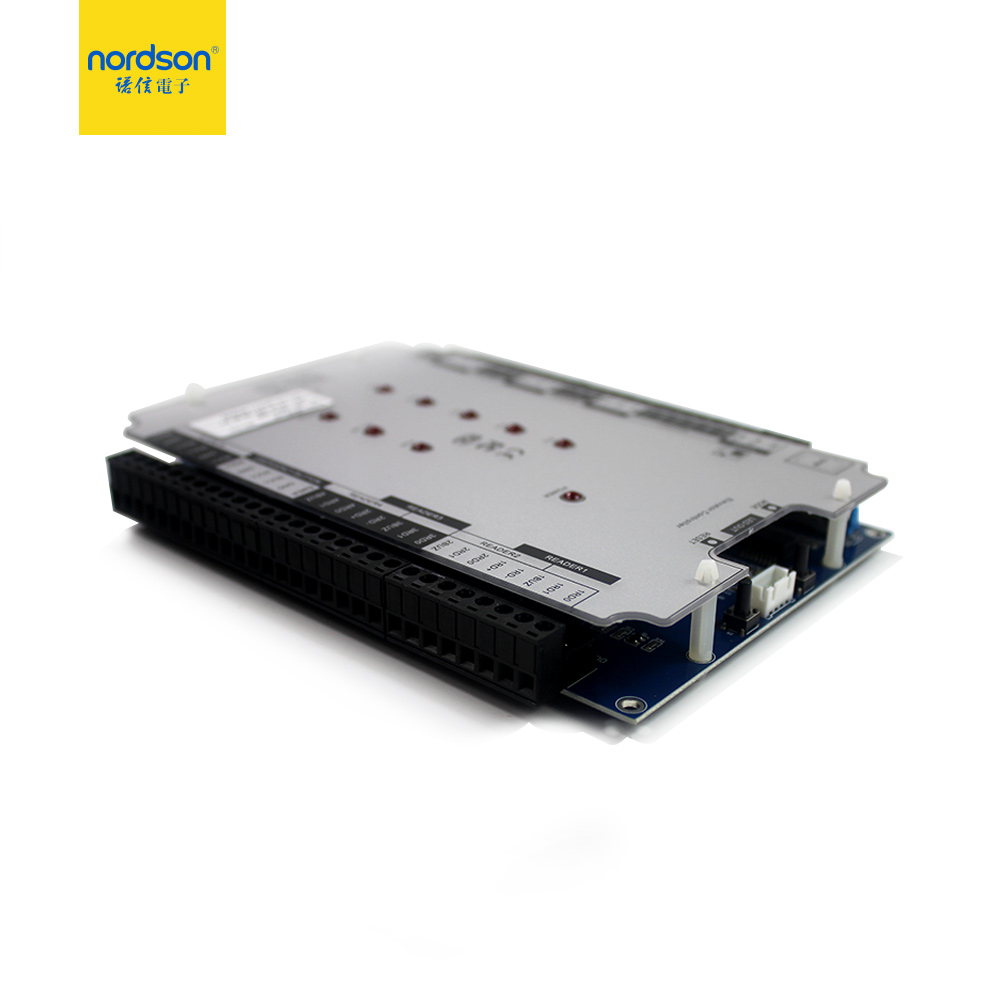

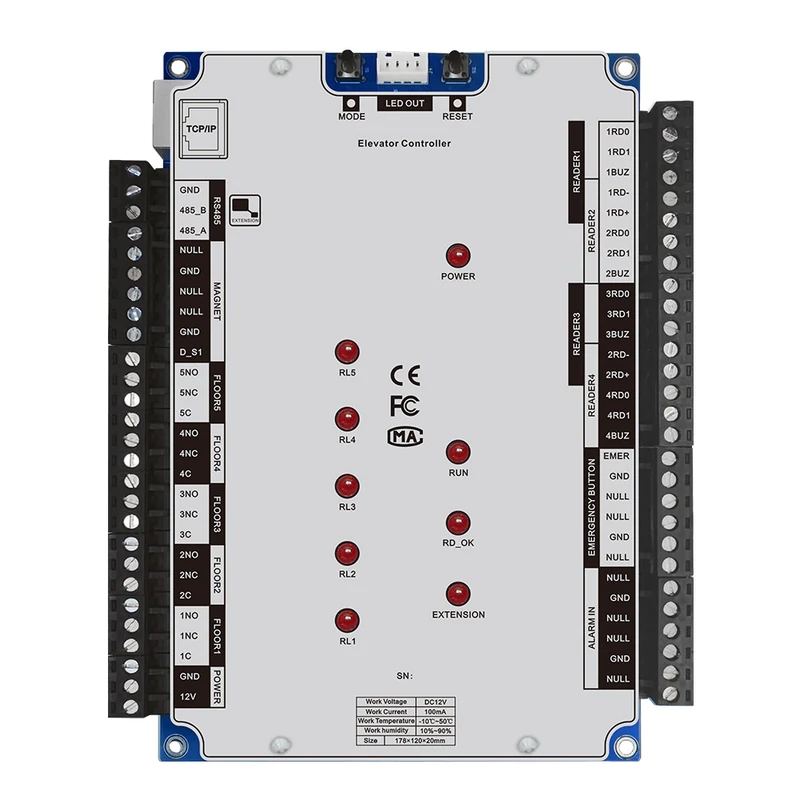

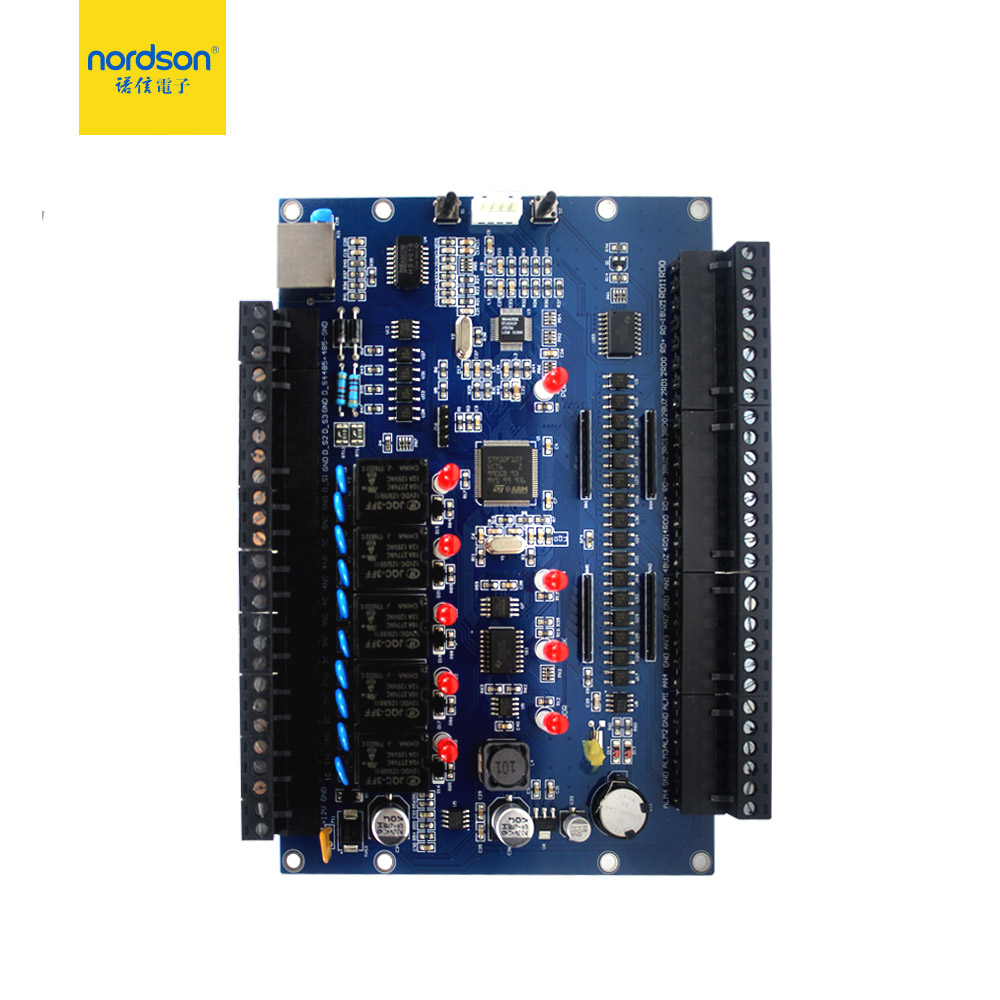

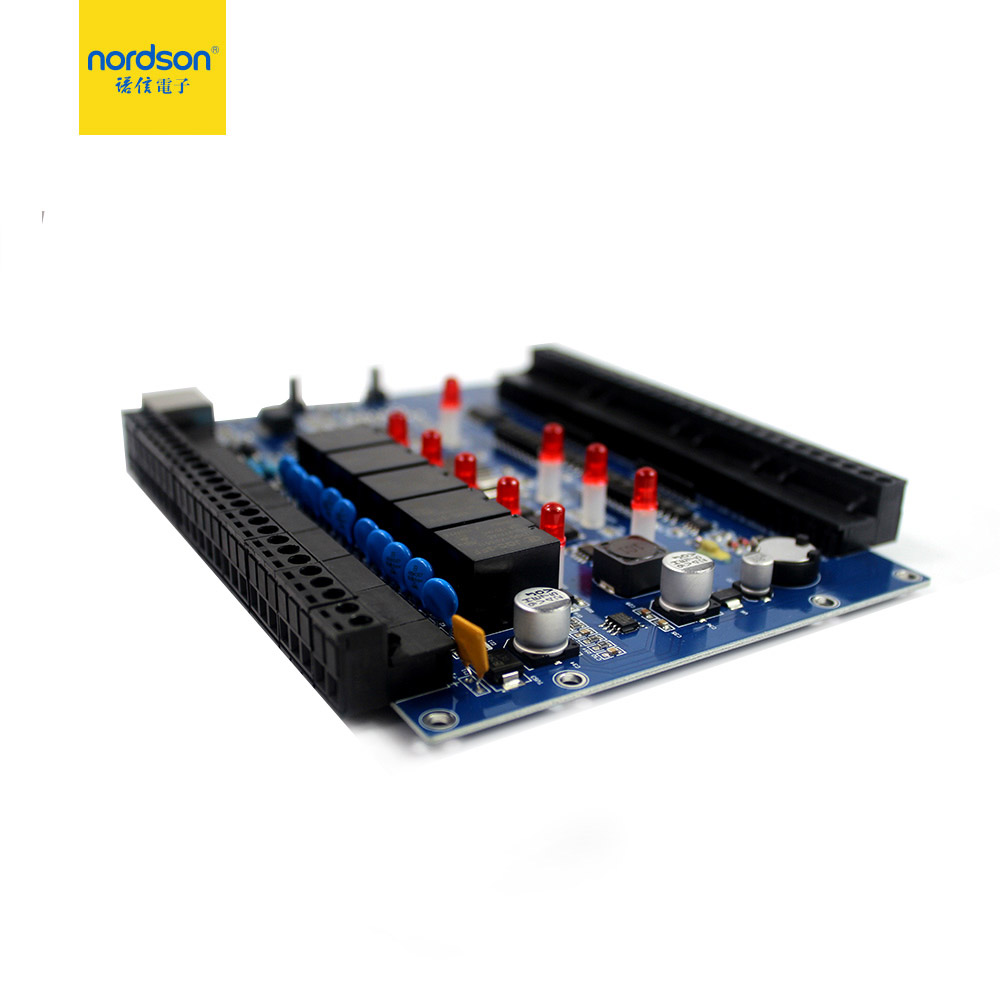

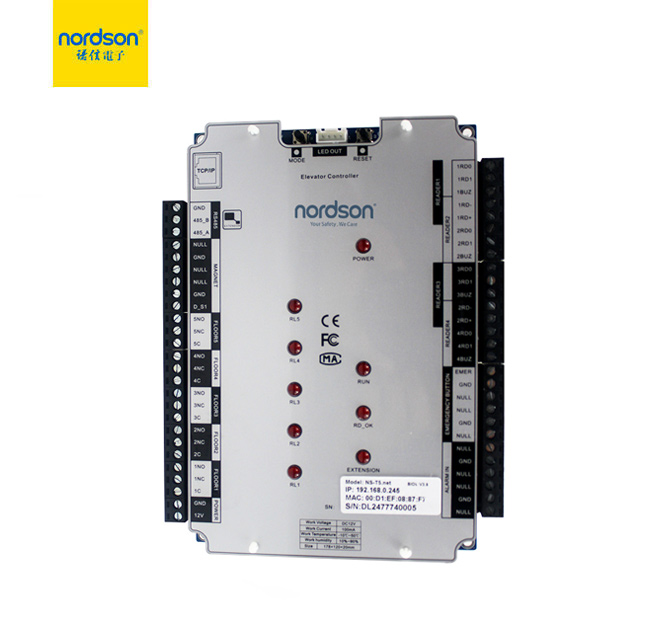

T-Series Elevator Control Board are one reader for more door controller units, including NS-T5.net Elevator Controller and NS-T16 Expansion Controller Board. NS-T5.net can easily achieve 4pcs RFID reader for more door control with higher security level.As for elevator control,users are only authorized to pass specific floor.By using RFID card, QR Code, biological recognition or password to pass door and floor, so it's very apply to hotel's elevator, which can prevent unauthorized access. NS-T16 Expansion Controller Board must work with NS-T5.net Controller Board, at most with four NS-T16 Expansion Controller Board, control 69 door. Nordson T-series one reader for more door controller unit not only apply to elevator in hotel, office building, apartment but also for many door area like electric storage locker and delivery locker.

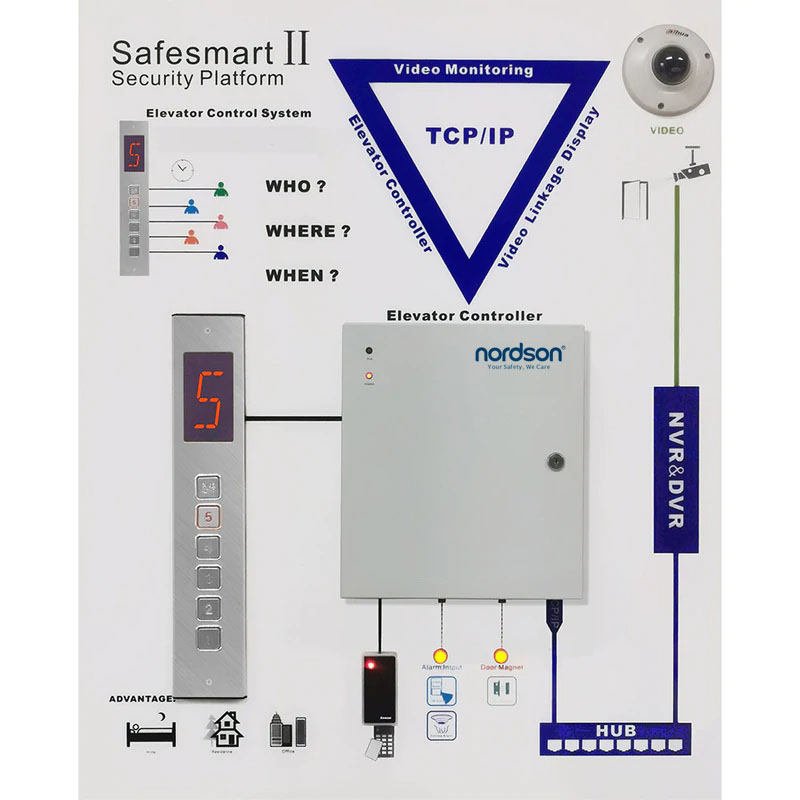

Example 1: Lift Access Control Management
We usually have ten or more floors in one lift,support 4pcs wiegand RFID reader. The system can distinguish the user's privilege, then take them to the right floor.
If the user has multi-floor privilege, when swiping the card, he can choose the floor he want to go this time, and he can not push other floor buttons.
If the users are the security and administrator, they can go to any floor they want according to the privilege settings.
Example 2: Cabinet Access Control
It can combine with the Adroitor software to manage this.
When you swiping card, the appoint cabinet will open.
The administrator can use PC to open all doors at one time to do some check and manage work.
The cleaner can open all the door to do cleaning work after office-time.

1.One for more door security control unit, support 4pcs wiegand RFID reader, at most control 69 floor or cabinet locker door.
2.Support multiple Verification Mode to pass specific floor or open cabinet locker door that is authorized.
3.ARM processors from the United States, input/output protection, components from well-known IC manufacturers.
4.Standard TCP/IP communication, multi-level lightning protection and surge protection
5.User Capacity:20000, Data Record: 70000(Power OFF without loss)
6.Wiegand Reader Port:4ea (26/34bit Wiegand)or other Biometric equipment.
7. Powerful Software
When access controller series work with software, it can achieve more complex security function. Such as, access data search, employee shift, attendance statistics.
● Access Control and video device linkage
● Attendance
● On-line access control
● Real-time Remote monitoring
8.Perfect access control management
The controller has powerful access control function and can provide perfect management of single door access control.
Realize multi-card opening, password opening, card and password opening and different opening modes in different time periods.
● First Card
● Multi-card Open
● Anti-passback
● Remote Control
● Threaten Code
● Normal Open Automatically
9.Apply Software: KeylessSafesmart Software Easy Mode/Expert Mode.

Model	NS-T5.net	NS-T16
Type	5 Floors Elevator Access Control Panel	16 Door Expansion Controller unit
PCB board size	L171mm * W141mm * H20mm	L198mm * W144mm * H20mm
Power supply	10~15VDC	10~15VDC
Reader Port	4ea Wiegand26/34 compatible with Motorola, HID, EM, Mifare one	/
Communication	TCP/IP/Extension RS485	RS485
Maximum number of connections	Standard is 5 Door	16 Door,Max:4pcs Expansion
Output Port	5 FORM-C Relay Output,1 button,1 Door Sensor	/
User Capacity	20,000 cards	/
offline storage	70,000 records	/
Operating temperature	-10°C-50°C
Run Humidity	10-90% RH, non-condensing
Software	KeylessSafesmart Software Easy Mode/Expert Mode.
Application	Example 1: Lift Access Control Management Example 2: Cabinet Access Control

NS-T5.net Elevator or Multi Door Access Control Panel Wiring Diagram 2537.73KB 2022-04-13
