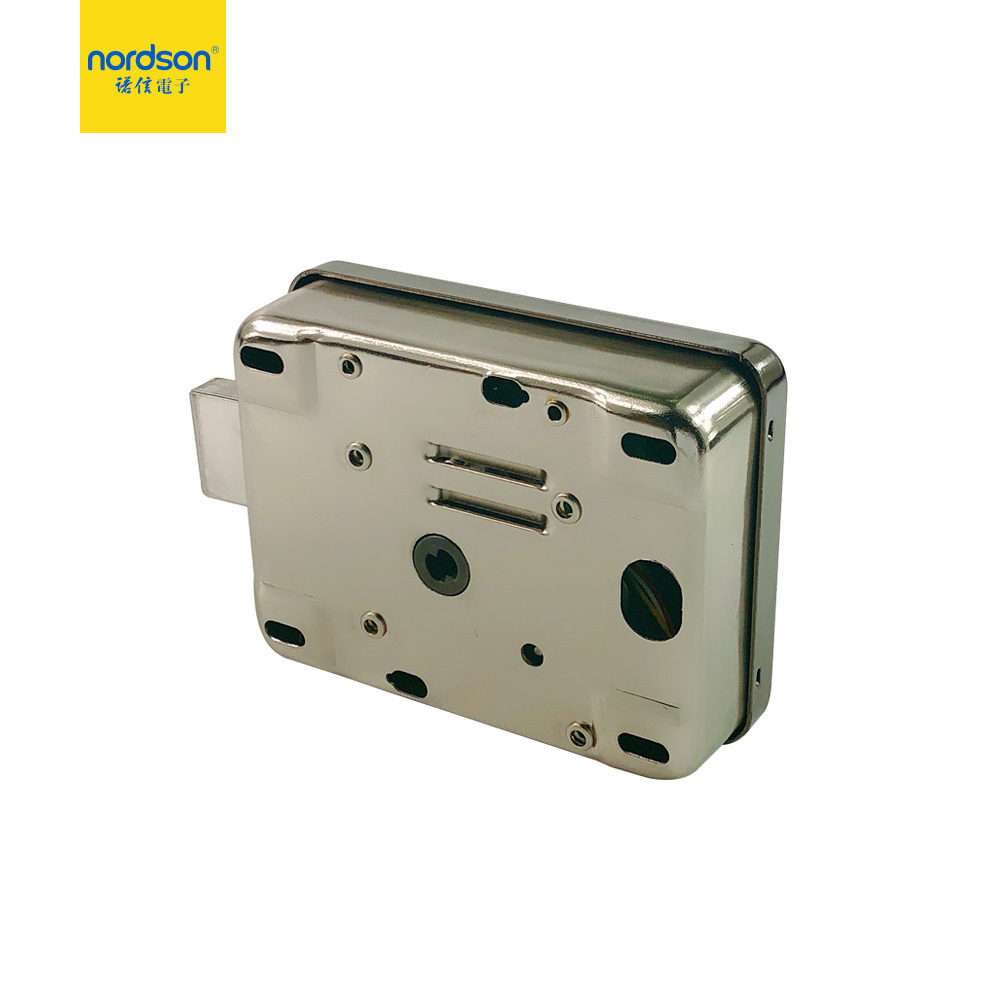

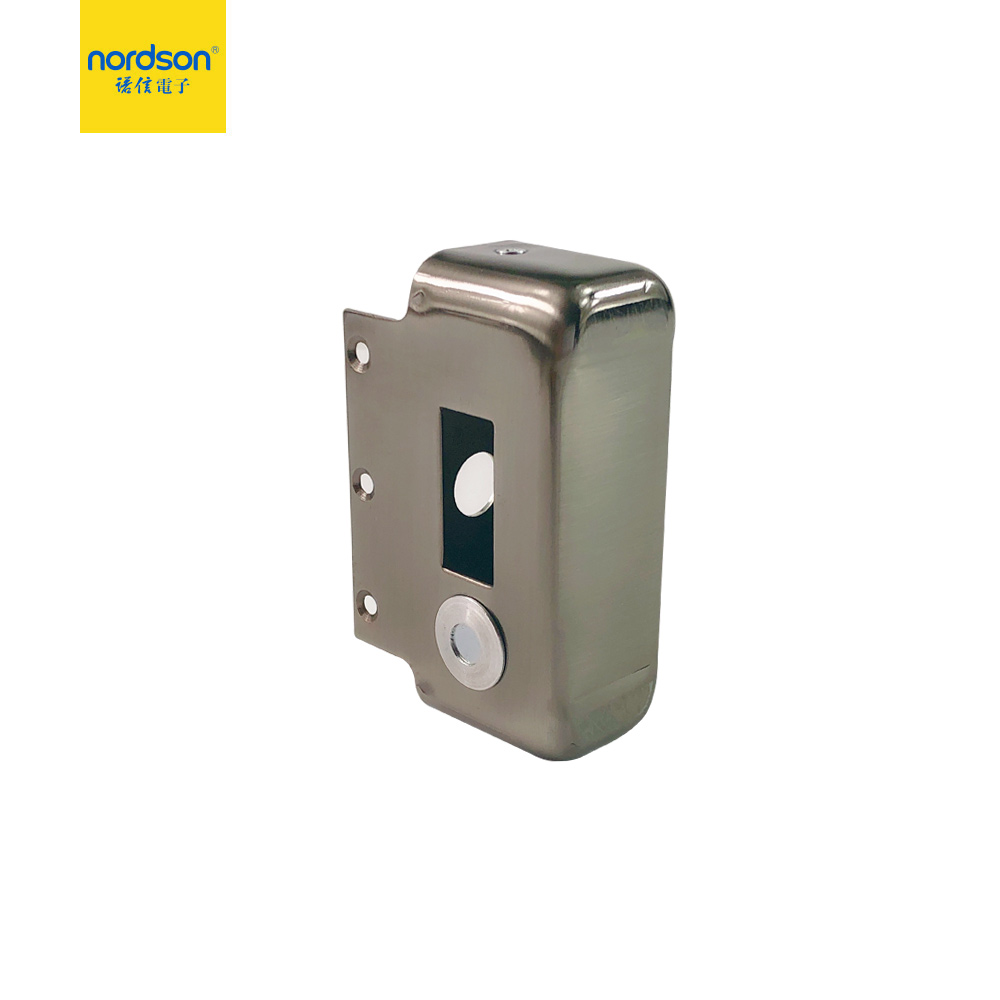

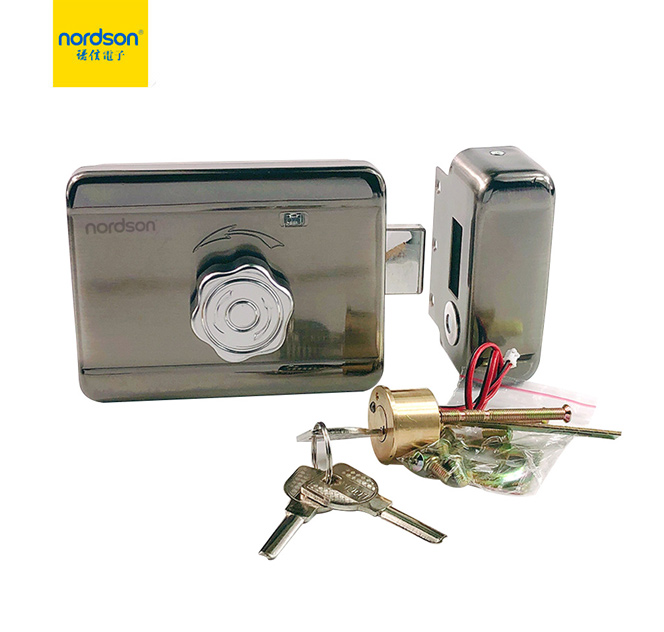

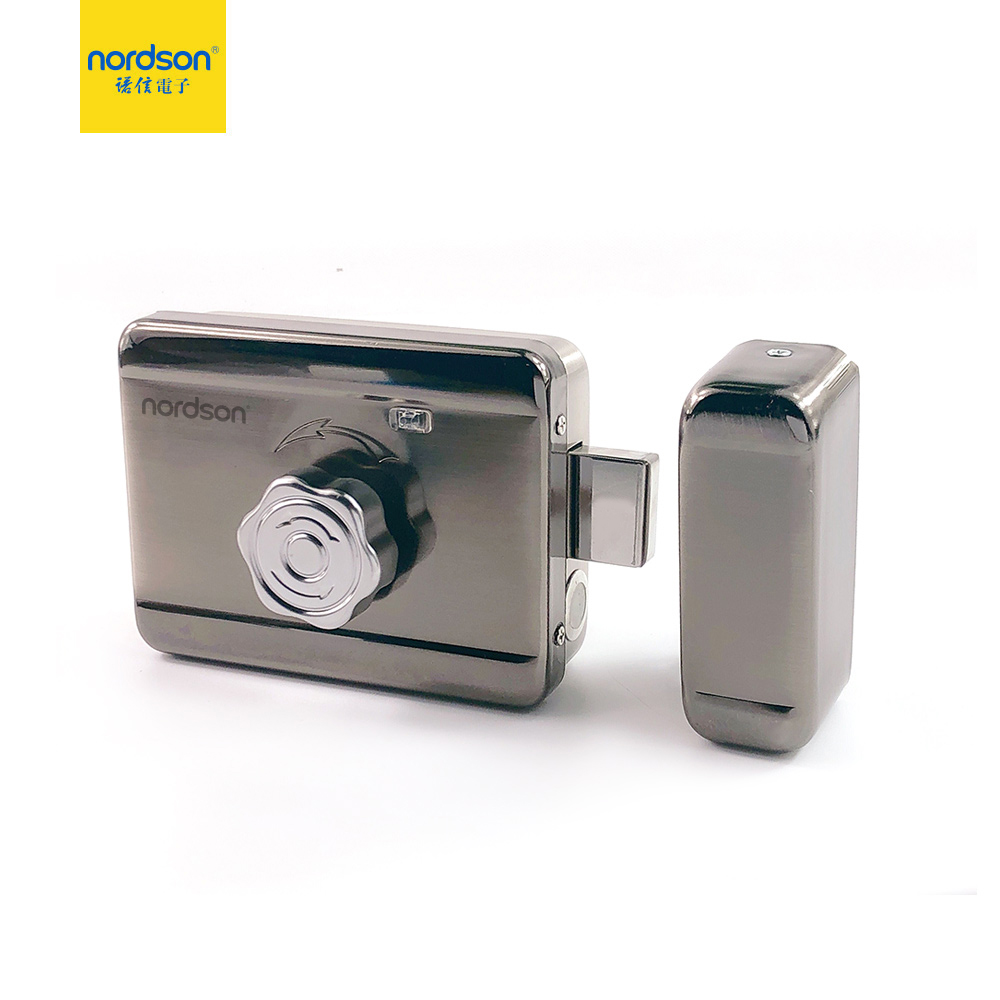

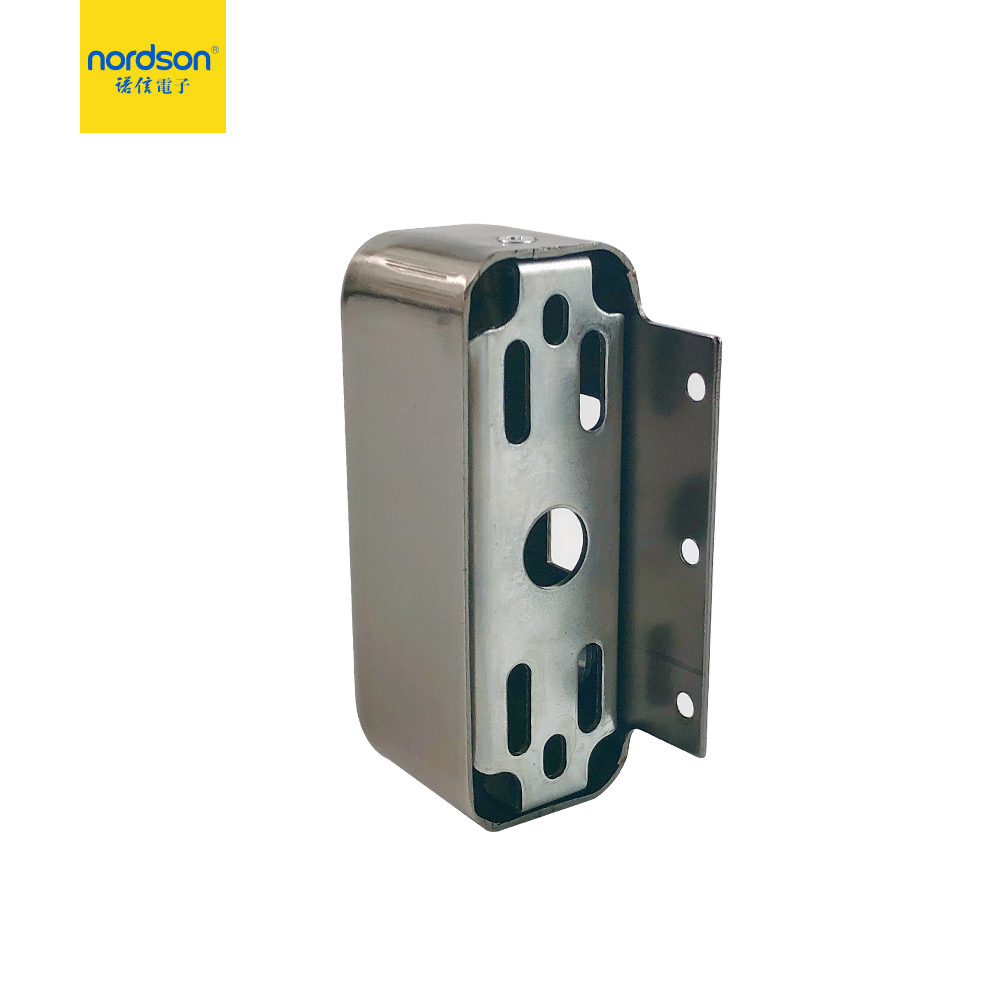

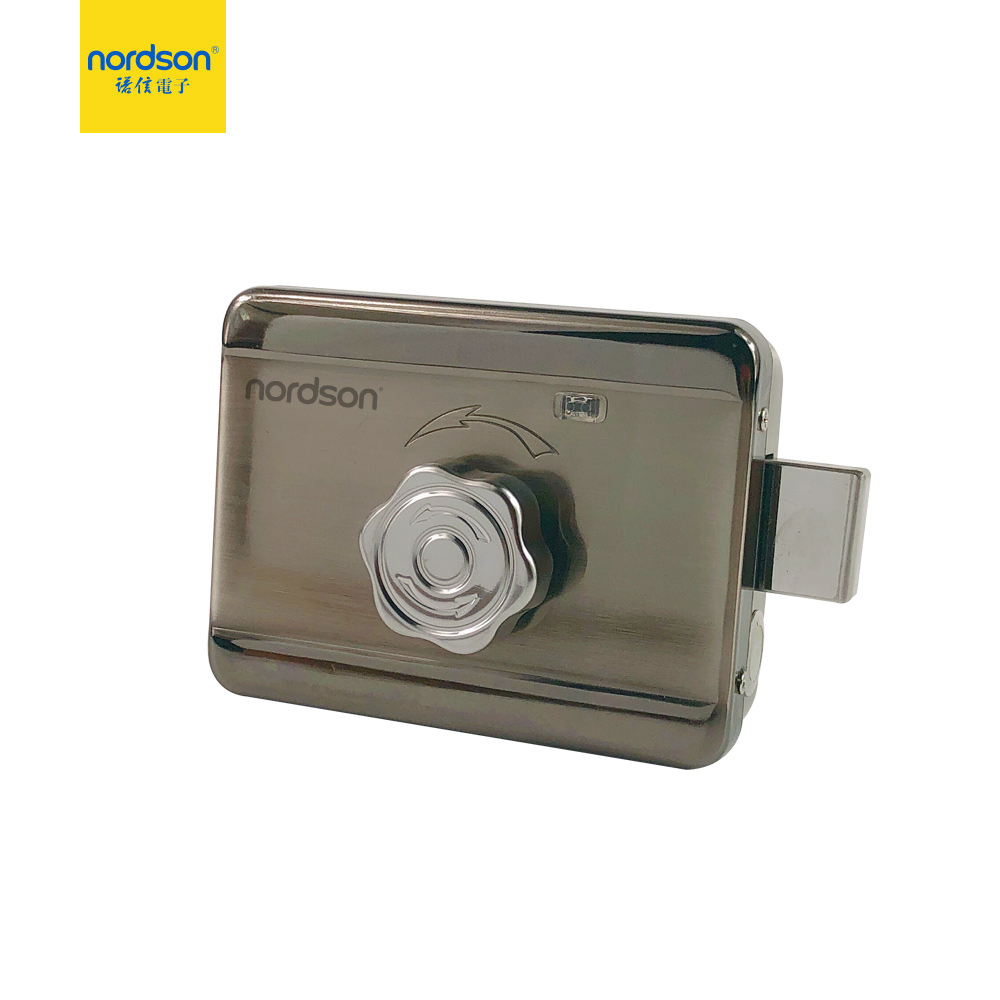

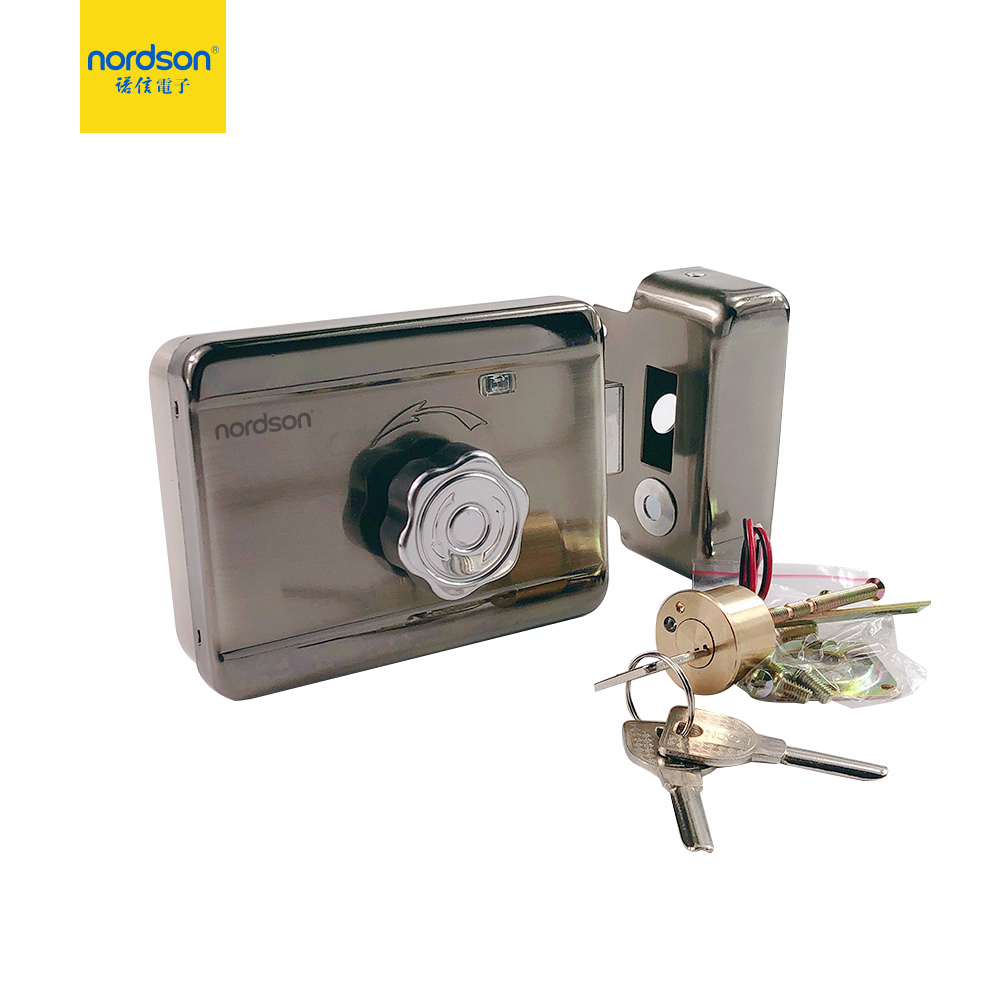

ND-3000&ND-3002 combine the merit of traditional electric control lock and electric magnetic lock, overcoming noisy and current consuming defect. Installation is very convenient with easy operation.The direction of door installation is not limited. This intelligent lock is closed without collision, auto-induction and self-locking, auto-detecting deadbolt state to ensure safety as well as extend the limitation of door closer type. It solve the problem of door frame being out of shape due to strong strength, extending lifespan of door. This electric rim lock is widely used in intelligent community, high-grade office building,school,rental house, troops, mobile base station, bank, compatible with building conversational system and access control system. ND-3000&ND-3002 metal rotary knob electric control lock is also called electric intelligent lock, electromagnetic lock, electric rim lock.

1.Installation and operation are easy and convenient, suit for all direction of door.
2.Door closed without collision,auto-sense and self locking for long lifespan of door lock.
3.Auto-detecting, when lock fail, it will auto lock again to ensure safety.
4.Low noisy, long lifespan, low power consumption.
5.Multiple open way: Access control system, building conversational system, remote control, rfid card, key.
6.Prevent separating door magnetic,then keep safe.

Model	ND-3000 Electric Control Lock	ND-3002 Electric Control Lock
Type	Fail Secure type:Power to open	Fail-secure type (Power to open)
Lock Size	25L*110W*45H(mm)	25L*110W*45H(mm)
Extension Length of Dead Bolt	20mm	20mm
Lock-opening Delay Time	Automatically lock within 9s if no opened	Automatically lock within 9s if no opened
Voltage	9-12VDC	9-12VDC
Key cylinder	Single	Double
Lock-opening current	≥400mA	≥400mA
Standby current	50mA	50mA
Working Current	1.5-3A	1.5-3A
Consumption Power	10W	10W
Option	Stainless steel lock body，remote control	Stainless steel lock body，remote control
Sensitivity	1s	1s
Alarm	If bolt is not in correct position when locking by power	If bolt is not in correct position when locking by power
Weight	1.7kg	1.55kg
