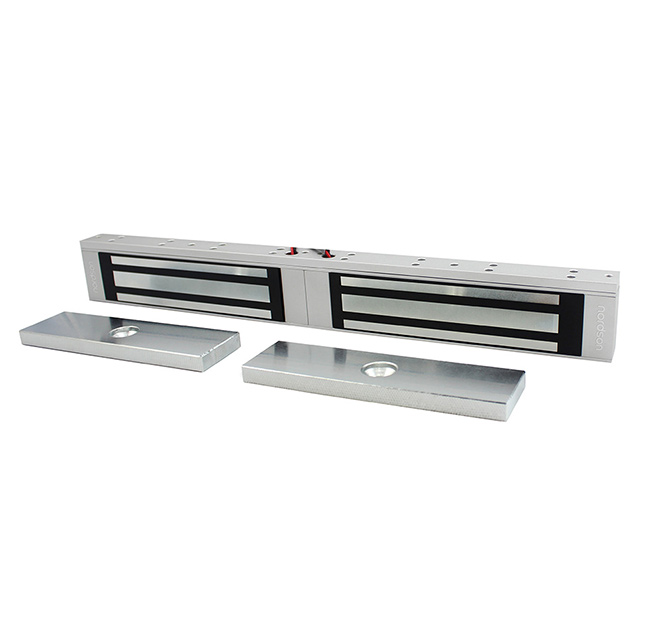

NE-180D Double Door Magnetic Lock

NE-180D Double Door Magnetic Lock

Without Signal Output
Voltage:DC12V or DC24V (adjustable)
Current Draw: 12V/480mAx2 24V/240mAx2
Lock Size: 340L*35W*21H(mm)
Armature Plate: 130L*27W*9.3H(mm)
Time delay is optional
Weight: 2.4kg

inquiry

NE-180D,double door magnetic lock,specially used to normal glass door,wodden door,metal door,fire doors, small doors.Hoisting design,saves time and power when installation.Inward door,frameless glass door,narrow door all have a complete set of accessories.Special Anti-residual magnetic design makes automatic access control safer and more convenient.
1.Passed 350lbs super static linear tension tests.
2.Anti-residual magnetic design,keep constant tension.
3.Built-inreverse current protection device (MOV), performance stability ,safetycoefficient is higher.
4.Wearmaterials, durable.
5.Electromagneticsuction work completely, there is no mechanical failure.
6.Shellwith high strength alloy material, anode hardening treatment.
7.lockbody with double insulation treatment.8.Through the European CE and ROHS, MAcertification in China.
