NT-M2000E Programmable Magnetic Card Access Control

Magnetic head meets the ANSI/ISO standard.
Metal outer cover of alloy of zinc is sturdy and duable, fixed with prevent demolition screw.
Unique anti-interference design to fit a variety of environment installation.
Adopt import the alloy magnetic head, wear-resisting,high sensitivity, support different card feeding speed.
Characterized large capacity lock mod ule, it can link with variouselectric locks directly.
Dry contact signal output,can be linked with various autodoor,access controller and electric lock simul taneously. With time difference setting to ensure the autodoor runs smoothly.
Dimensions: 138L*56D*32W(mm)
Gross Weight: 0.5kg

The product can be widely used as exit switch for bank VIP room.With the authorized card controlled by Magnetic card reader access controller, only a part of people have the right to enter in.Online working or offline working is available.
1.The product can be widely used as exit switch for bank VIP room.With the authorized card controlled by Magnetic card reader access controller, only a part of people have the right to enter in.Online working or offline working is available.

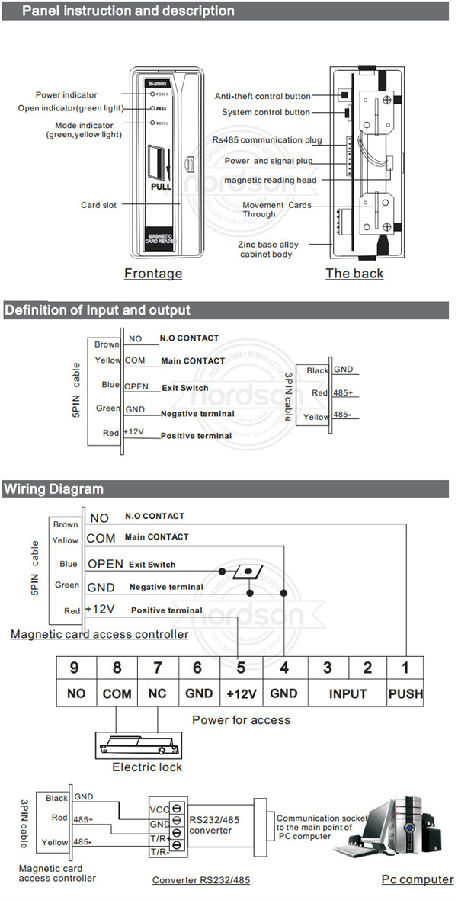

2.Swiping card record can be stored to computer by connecting with RS323/485 converter Alerting signal will be output once the computer in danger condition.
3.With two groupsof signel output, one group is RS 485 signal contact to computer ,to achieve authorizing cards,recording,outputting alerting signal and remote control. Theother group is relay contact signal to control access controller ,electric lock and autodoor unit.
4.This productattaches with apply software(o ne purchase)On-lineworkingor off-lineworking optional

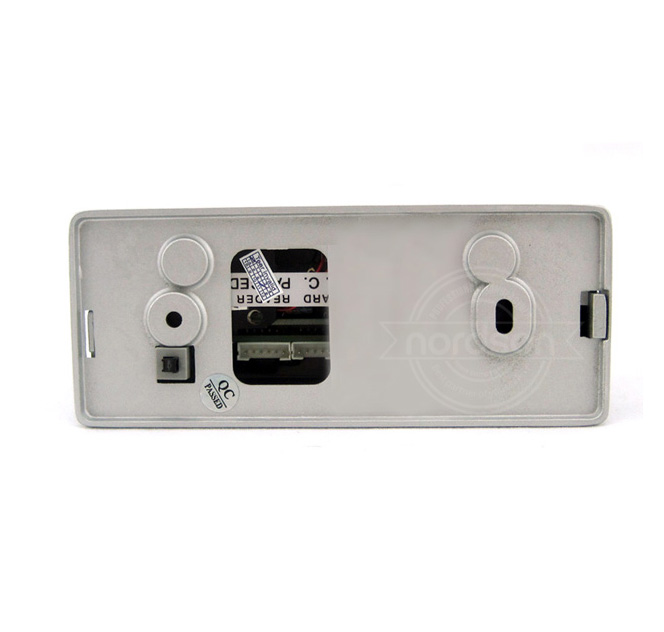

5.Designed with anti-theft control button(as the picture shown). The butt on will bounced and the control system will issue a buzz ASAP the magnetic card access controller left the install ation wall.
6.The power indicator and pattern indicator will light up simultaneously with the sound of "beep beep" for the initial use. When the patten indicator extinguished, the product runs into a normal operation.
7.In normal operation mode,swiping the authorized card, open signal will be output with gree light. and then door can be open.

Model	NT-M2000E Programmable Magnetic Card Access Control
Power supply	DC12V
Output current of lock	2A( 12v)
Static current	32MA
Operation current	52MA
Maintain open time	1- 10S adjustable
Time difference for unlocking	0.5S
Magnetic card standard	ISO7811-7815
Card feeding speed	10-3000px/s
Communication	RS232/485
Communication speed	9600bps
Operation temperature	-10℃—70℃
Environment humidity	10~90%RH
Dimension	138mm(L)56mm(W)32mm(H)
Weight	400g
