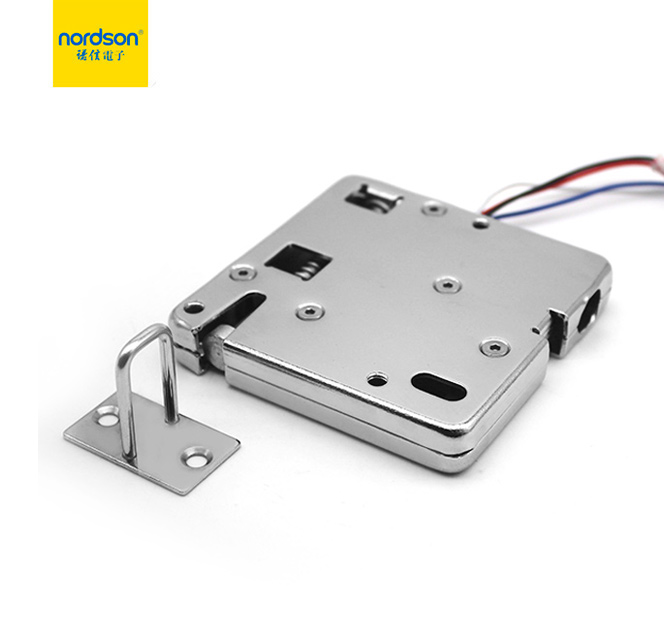

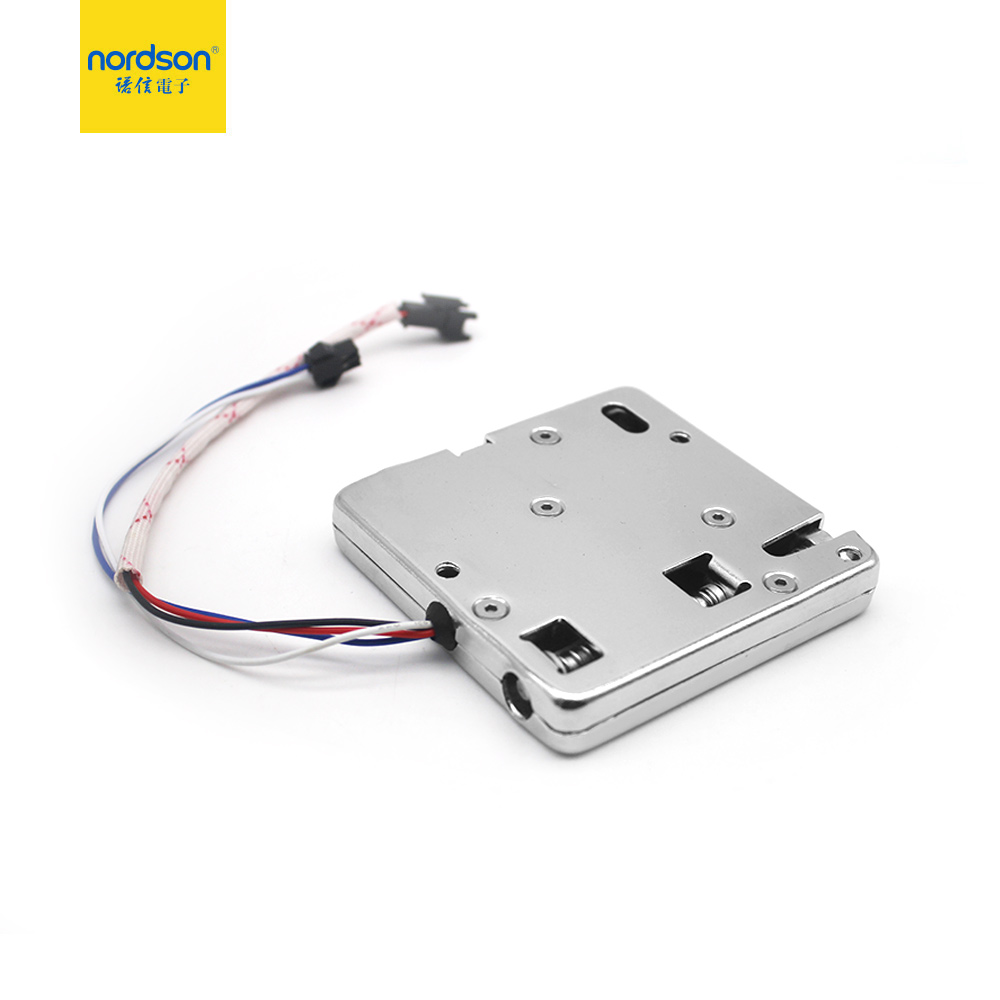

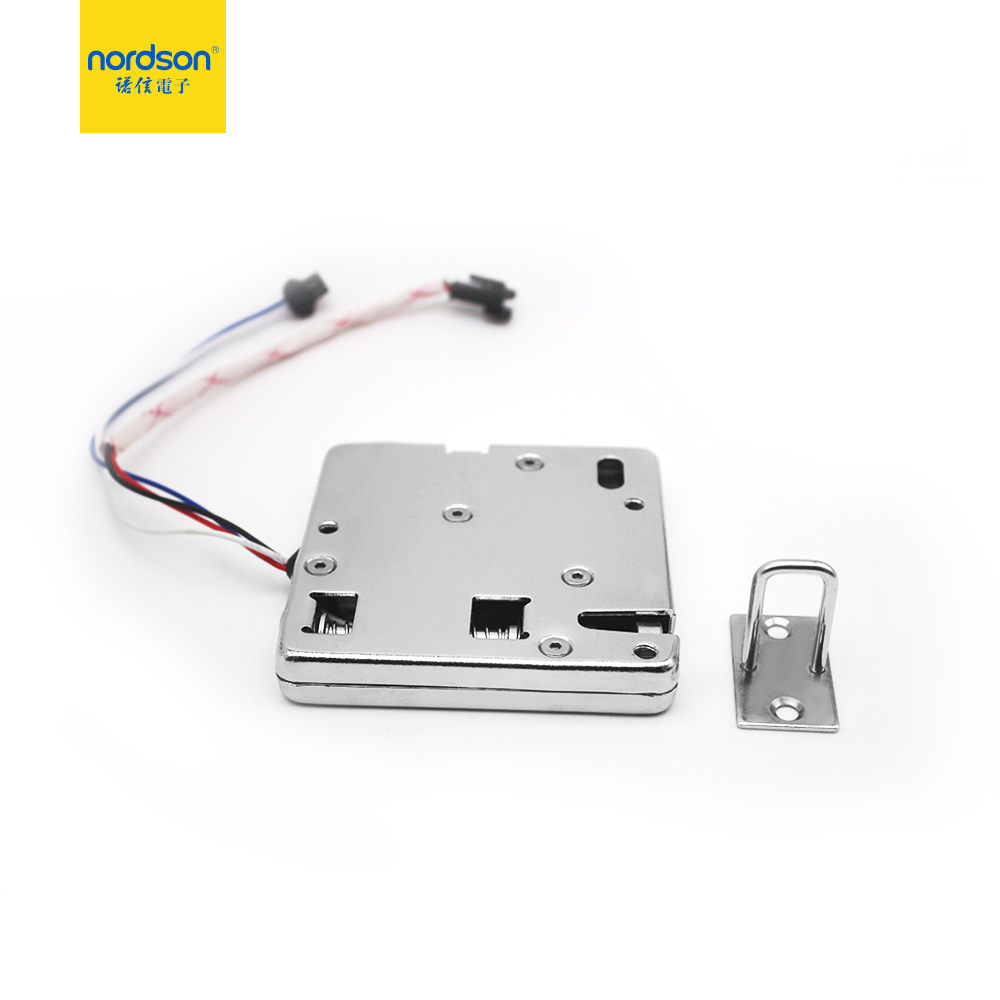

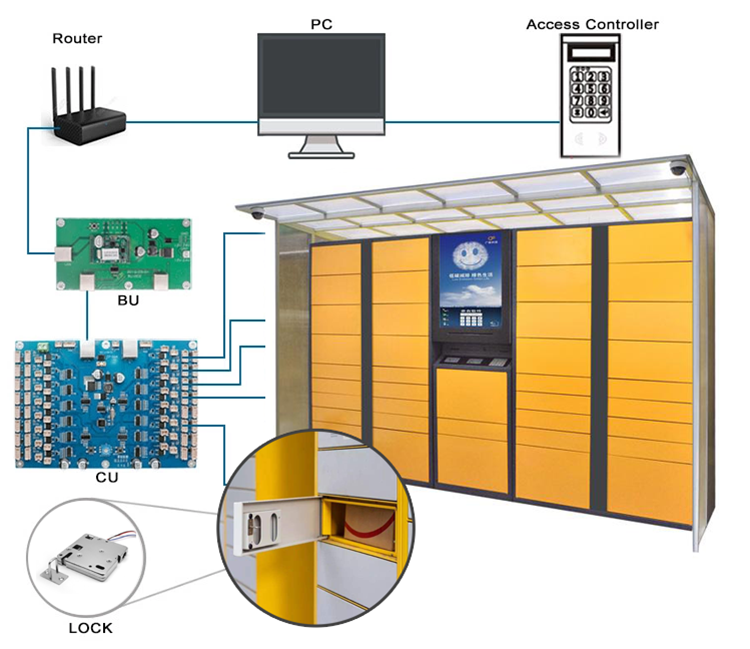

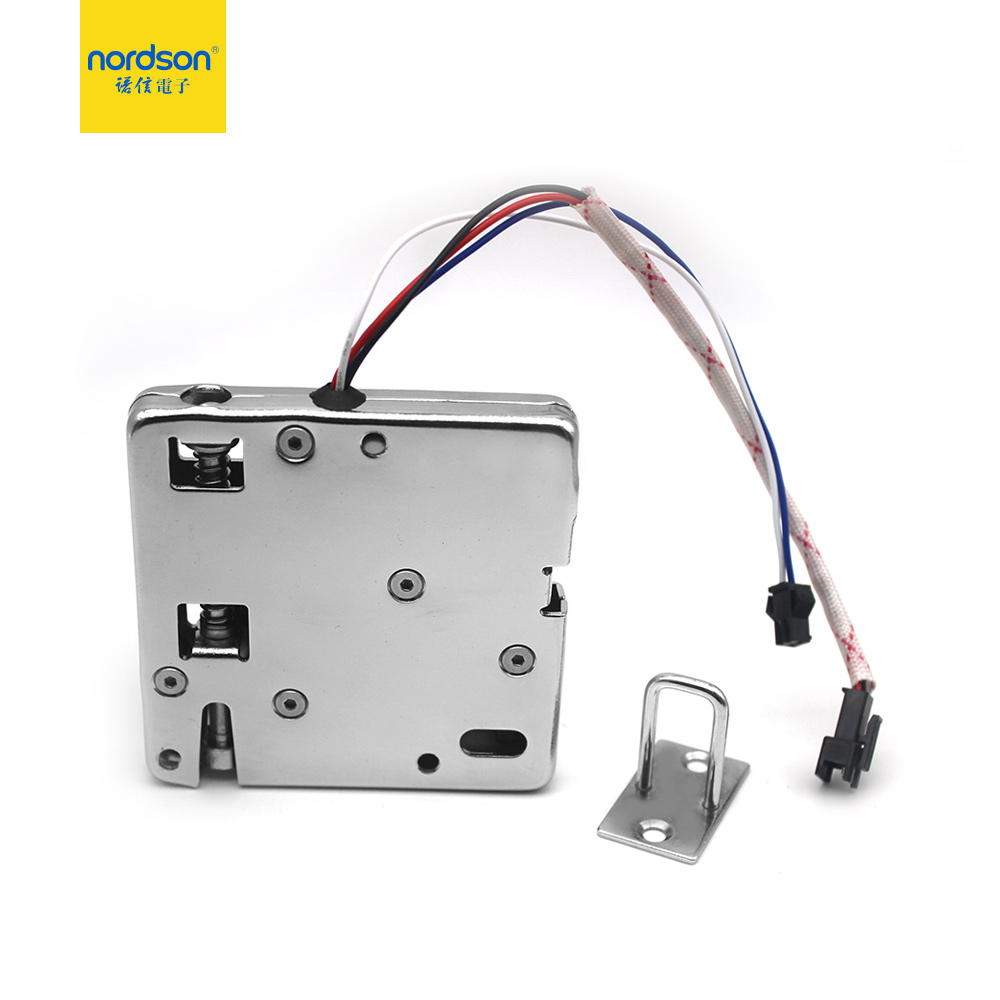

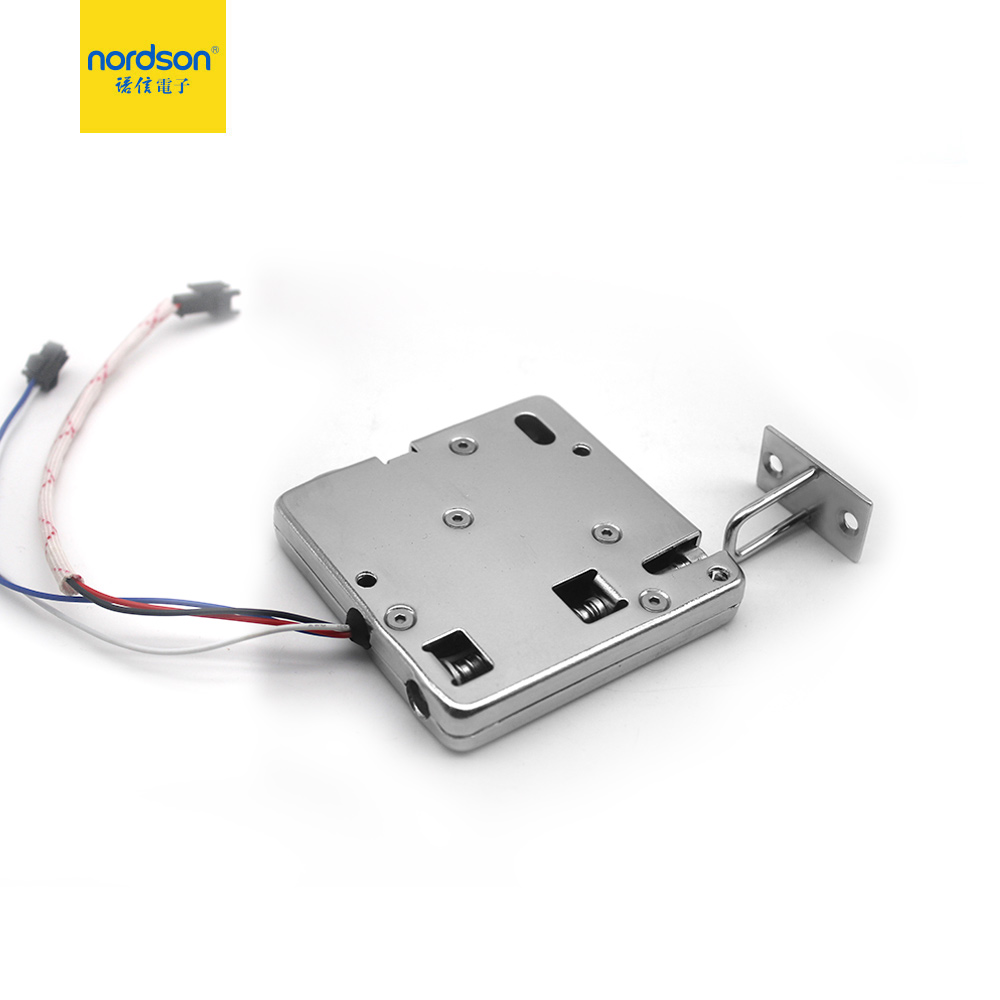

NI-S2 Large elastic force metal electronic cabinet lock, all metal body design, lock shells are made from low carbon steel with three times surface treatment, more robust and wear-resisting, guarding users' property. It use high quality micro detective switch from Japan and AWG24 wires with PVC protecting tube to provide ultra long working life. This smart cabinet lock have powerful compatibility which can connect access control system with multiple opening methods such as: Keypad password, rfid card, fingerprint, remote control and mechnical key. Mechanical emergency lever can open lock in case of power failure, the lock have signal output function, so lock status can be monitored at real-time. users can adjust lock common mode:NC/COM, really making intelligent and humanized management. What's more, This electeic cabinet lock is good value for price, easy installation and low power consumption with high efficiency, when you buy it, you can get 3 year warranty! It's widely used in deposit lockers,fresh freezer, safe box etc, worthy for home and commercial usage. NI-S2 Large elastic force metal electric cabinet lock is also called smart access conrtrol electric cabinet lock, express delivery locker lock, document lock, gym sauna locker lock, wardrobe lock, vending machine lock.

1. Solenoid driven, support 12V & 24V (optional).
2. Lock shells are made from low carbon steel, anti-force performance: 200kgs.
3. Three times surface treatment: copper plated, nickle plated and matt chrome plated.
4. High quality micro detective switch from Japan, 1,000,000-time working life.
5. Mechanical emergency lever, can be unlocked manually in case of power failure .
6. Pushing lever help to push door open. Can be removed.

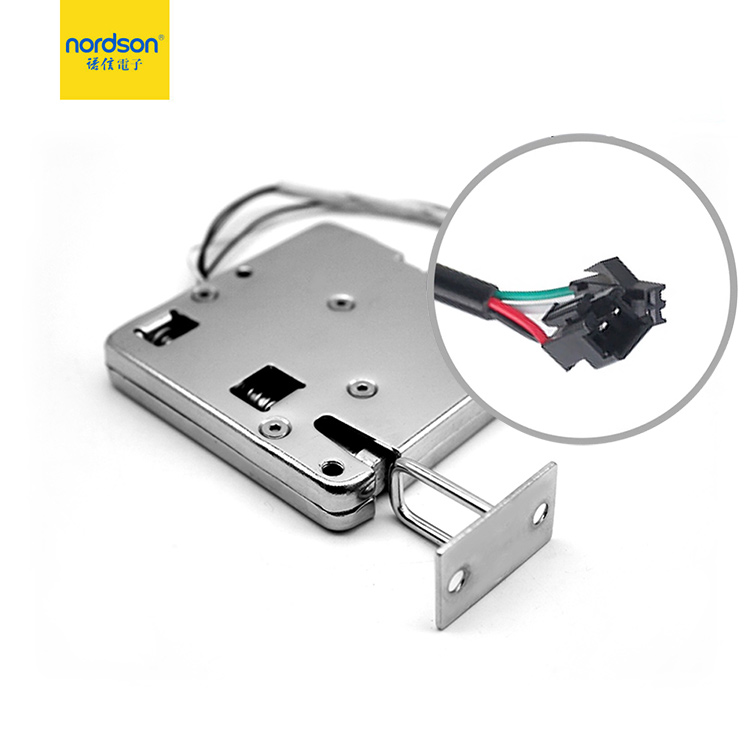

7. AWG24 wires with PVC protecting tube.
8. Support customizing wires and connectors.

Product Name	Chinese original high quality metal electic cabinet lock
Model	NI-S92
Brand	Nordson
Weight with lock hook	200g
Operation voltage	DC12V / DC24V (Option)
Working current	0.8A~2A
Maximum power	24W
Protection Class	IP20
Mechanical Override	7mm hole
Manner of working	Independently (Be locked when door is close, unlocked power-on);
Response time	Less than 20ms
Working temperature	-20℃ ~ +60℃
Working humidity	5% ~ 95%RH
Working life	1,000,000 times
Sample	Accepted
OEM	Accepted
Size	80mm*80mm*13mm
Door weight	0.5KG~4KG
Usage	Storage locker; cabinet; Express locker; electricity meter box; vending kiosk
