Nordson ejector ejected all-metal lock electronic cabinet lock is a compact and all-metal lock body for cabinets, delivery locker, fresh freezer,drawers and steel furniture. The all-metal cabinet lock is compatible with any existing access control system or simply controlled through a remote keypad or key switch. Surface mounting either vertically or horizontally offers easy and flexible installation and allows mechanical override for emergency open. all-metal lock series is energy saving, cost efficient, robust, easy to install and especially suitable for multiple cabinet for one cabinet applications.

1.Operation Voltage:12/24VDC

2.Superior heavy duty metal construction

3.Chrome-plated steel housing

4.Convenient mechanical override enables manually release during power failure

5.Three-bolt regular triangle mounting enables high security and low install cost

6.Accepts access control signals from access control keypad, RFID card, remote or biometric access control

7.Suitable for cabinets, delivery locker, fresh freezer,drawers and steel furniture.

8.Signal Output: Lock status Output,NC/COM

9.Three years limited warranty

Model	NI-S80
Version	Fail locked(the bolt is locked when the current is off)
Operation Voltage	DC 12V
Working Current	12V DC 2000mA
Open Lock Response Time	＜20ms
Holding Force	300Lbs/150KG
Optional Functions	12V/1.5A, 24V/0.8A ,24V/3A
Face place material	Chrome-plated steel housing
Solenoid	Rated for intermittence use
Working Life	＞80,000
Protection Class	IP20
Microswitch	Output NC/COM
Working Temperature	-20ºC ~ +60ºC
Suitable for	Cabinets,Delivery locker,Fresh freezer,Drawers and Steel furniture,Storage Locker,Express Locker,Electricity Meter Box,Vending Kiosk.

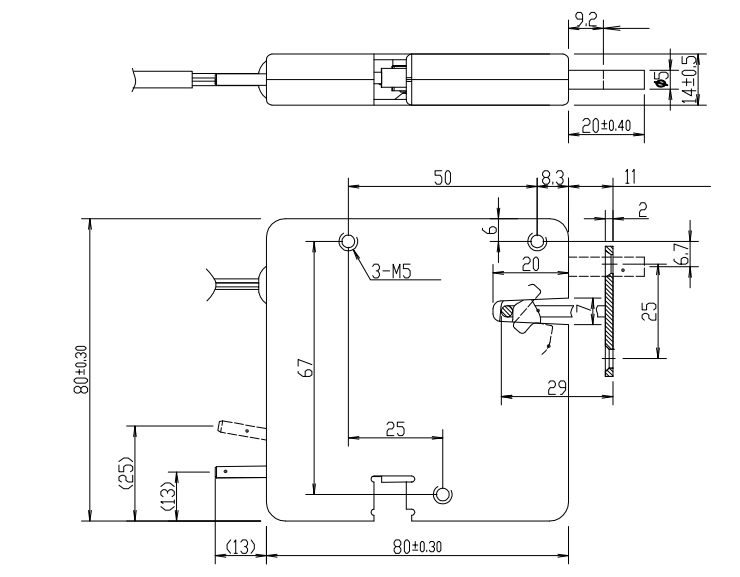

Dimensions(L x W x H)	80mmL×80mmW×13mmH
Weight in kg	0.30kg
CE-mark for building	YES
Rohs-mark for building	YES
